HappyModel ES900 900MHz ELRS Dual RX Diversity Receiver

$21.99
Original price $21.99 - Original price $21.99
Original price
$21.99 - $21.99
Current price $21.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

HappyModel ES900 DUAL RX ELRS Diversity Receiver 915MHz / 868MHz Built-in TCXO for RC Airplane FPV Long Range Drones.

Check out the rest of our ELRS accessories, and our HappyModel collection!

Specifications

  • Brand: Happymodel
  • Type: 915MHz/868MHz true diversity receiver

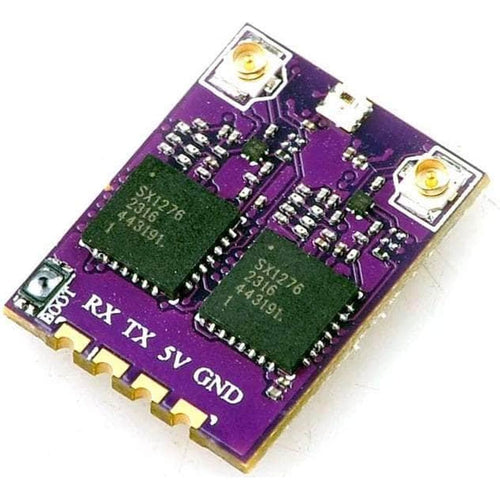

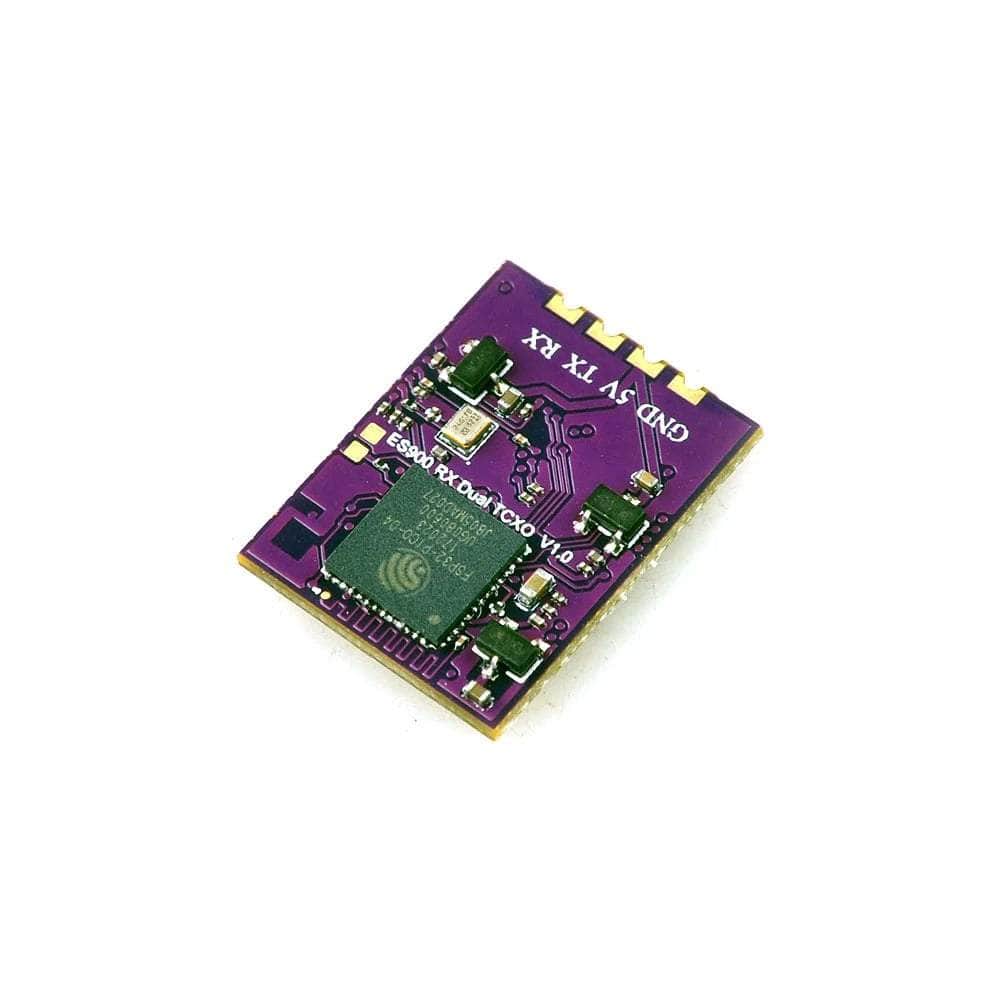

  • ESP32 PICO D4, dual SX1276
  • Antenna connector: IPEX MHF 1/U.FL
  • RF Frequency: 915MHz or 868MHz (Optional)
  • Telemetry power: 17dbm
  • Receiver protocol: CRSF
  • Input voltage: +5V DC @ “5v” pad
  • PCB size: 21.5mm x 16mm

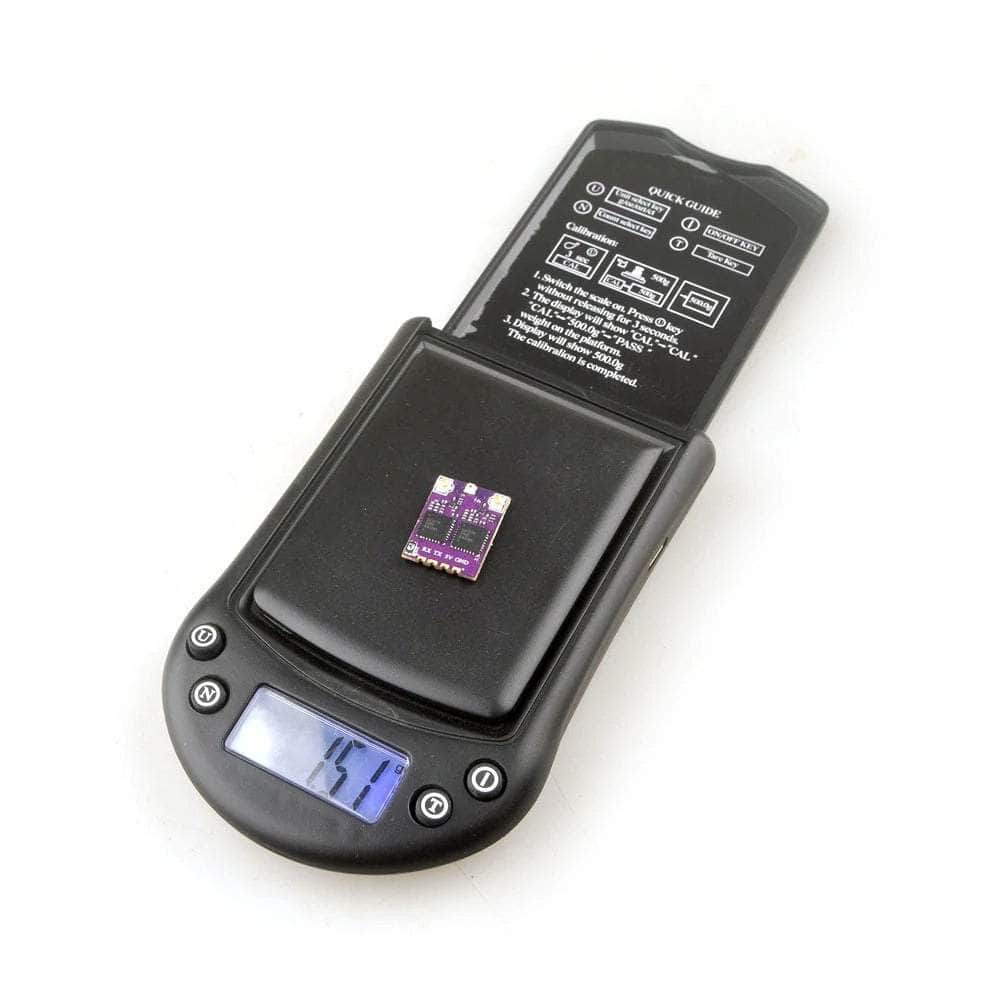

  • Weight: 1.5gram exclude antenna
  • Built-in a TCXO (temperature compensated crystal oscillator)

 Includes

  • 1x HappyModel ES900 900MHz ELRS Dual RX Diversity Receiver

More Information:

  • SKU: 691023500334
  • Barcode: 691023500334
