SpeedyBee F4 AIO Flight Controller

  • $37.99

Add to Wishlist

Loved the SpeedyBee Bluetooth UART adapter? Now its even easier to make your build Bluetooth, using this new flight controller by SpeedyBee with the Bluetooth built into the flight controller!
SpeedyBee F4 AIO Flight Controller

BLE Module Integrated 0 configuration

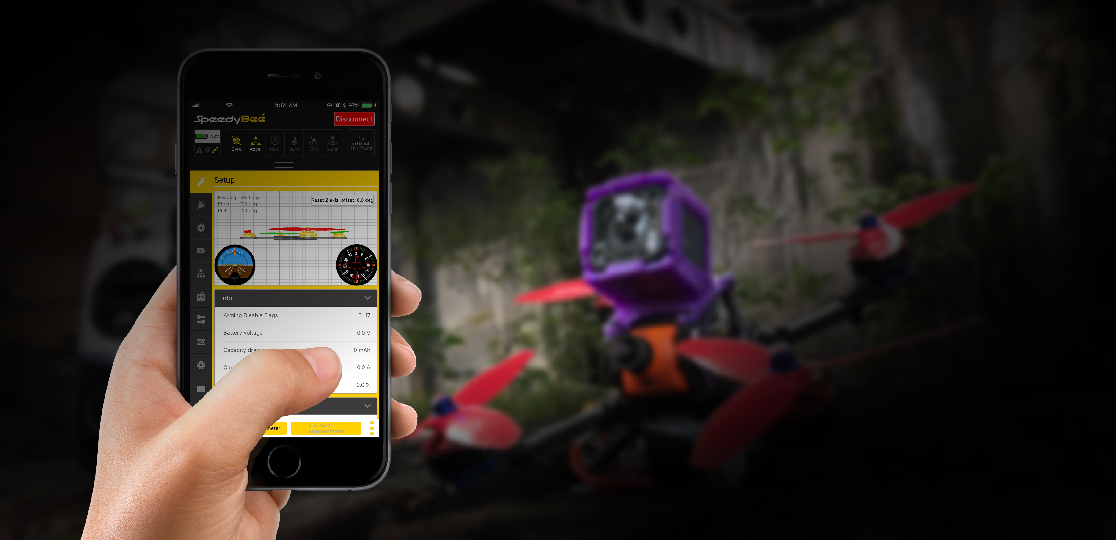

Setting the FC parameters via mobile device
iOS 10.0+:iPhone4S, iPad 3rd Gen and later  APP Store
Android 4.3+:  Google PlayDownload
*Throttle Armed, the Bluetooth module will deactivate automatically
Throttle Disarmed, the Bluetooth module will activate automatically
SpeedyBee F4 AIO Flight Controller

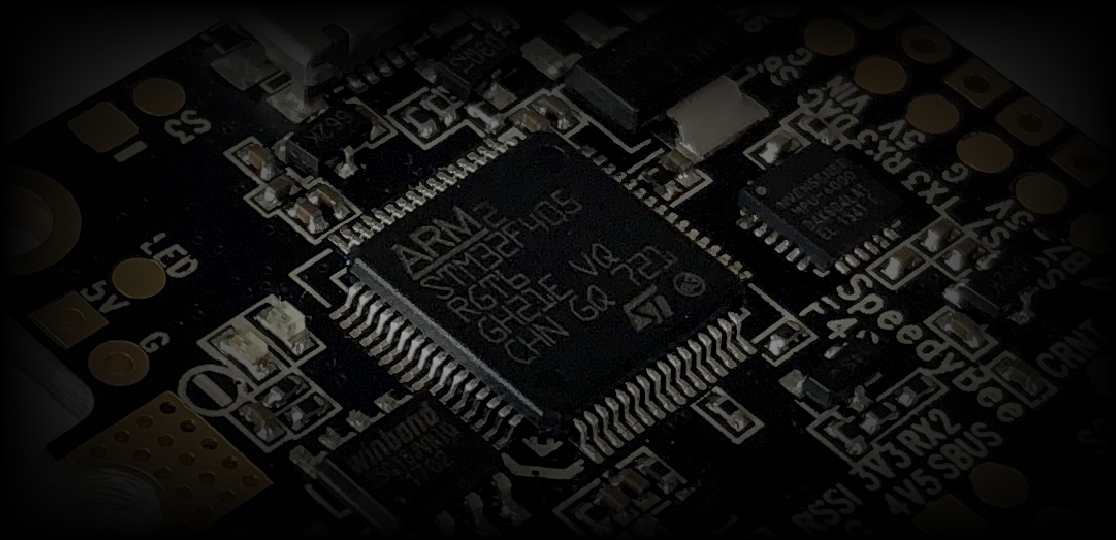

MCU: STM32F405

Much better than STM32F1 and F3

Built-in LC Filter | Clear image | Reduce noise

All 5V/9V Output with LC Fliter

SpeedyBee F4 AIO Flight ControllerWithout LC Filter
SpeedyBee F4 AIO Flight ControllerWith LC Filter
SpeedyBee F4 AIO Flight Controller

Support OSD

Preview (drag to change position)

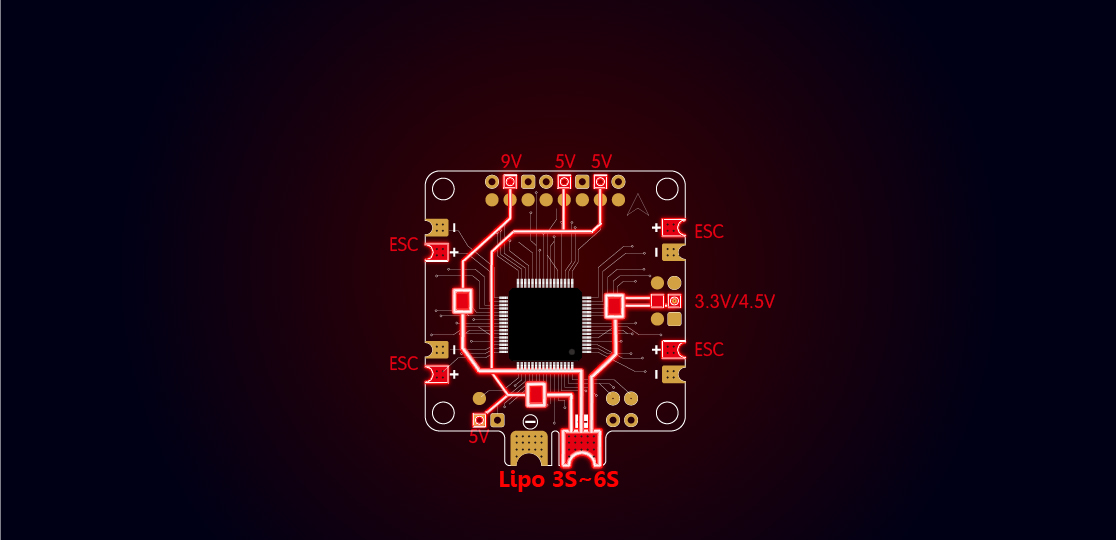

PDB integrated for powering external devices

1*3.3V/1*4.5V/3*5.0V/1*9.0V Output

Direct power to the ESCs

SpeedyBee F4 AIO Flight Controller
SpeedyBee F4 AIO Flight Controller

MPU6000 Gyroscope More stable

SpeedyBee F4 AIO Flight Controller

SpeedyBee F4 AIO Flight Controller









Package

  • SpeedyBee F4 AIO Flight controller * 1
  • M3*3+3 Nylon column * 6
  • M3 Nylon nut * 6
  • M3 Anti-vibration Gasket * 6
  • Rubycon 35V 470uf capacitor * 1
  • Manual * 1

Specifications

MCU STM32F405
IMU MPU6000
OSD BetaFlight OSD w/ AT7456E chip
BLE Module Inner connect to UART5 for remote setting with SpeedyBee App or other similar apps
BlackBox 2MB onboard dataflash
Current Sensor 200A(Scale 302)
Power input 3s - 6s Lipo
Power output 4.5V * 1 , 3.3V * 1, 5V * 3 , 9V * 1
Cam And VTX power output Built-in LC-Filter for 5V and 9V
ESC power output 4 * VCC output
UART UART Pads * 3(UART1, UART3, UART4)
UART2 for Receiver Built in inverter of RX2 for SBUS input through SBUS pad, RX2 pad used for PPM, DSM2, DSMX, IBUS
RSSI input RSSI input solder pad
I2C Used for external GPS, Barometer module
Buzzer Buz- and 5V pad used for 5V Buzzer
ESC signal s1 - s7
LED pin Used for WS2812 LED
Boot button Used to easy enter DFU mode
Weight ≈8.8g
Dimension 36*39*7mm
