NewBeeDrone Cricket200 V2 32Bit 55A 3-6S 20x20 4in1 ESC

Original price $99.99 - Original price $99.99
Original price
$99.99
$99.99 - $99.99
Current price $99.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

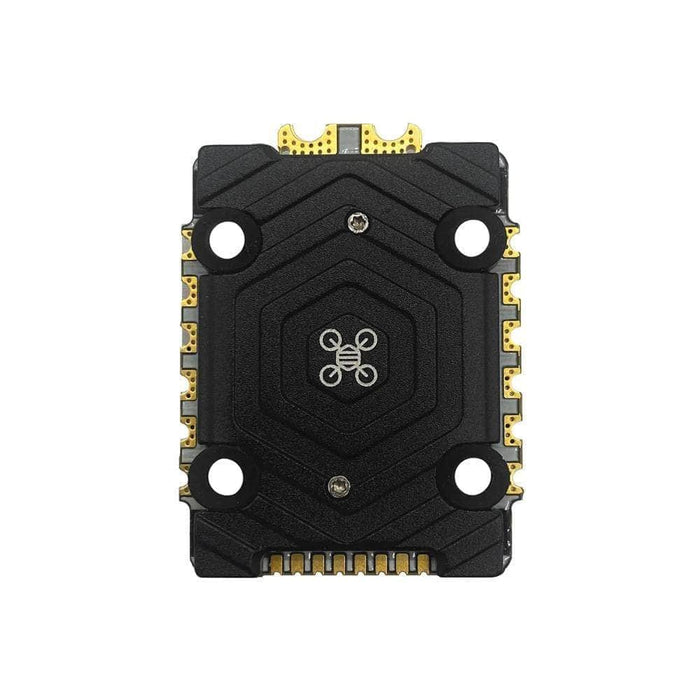

The NewBeeDrone Cricket200 V2 is a 55A 3-6S BLHeli_32 4-in-1 20x20 ESC, upgraded to include a full aluminum shield for protection. This new configuration brings an optimized layout, improved power support, and a double-sided heatsink and aluminum shield, which improves protection and heat dissipation from the previous single-sided version.

Check out the rest of our 20x20 ESCs, and the rest of our NewBeeDrone products.

Features

  • Upgraded version of the first-generation Cricket200 ESC
  • Double-sided heatsink for improved heat dissipation
  • Optimized layout and power support
  • Enhanced durability and reliability
  • Full aluminum shield coverage
  • Heatsink design
  • 8 Layer PCB with 2Oz Copper
  • Signal plug JST1.0 8pin plug with NBD Cricket200FC

Specifications

  • Weight: 13.0g
  • Deminsions: 39x29.5x8mm
  • ESC Programming: BLHeli32
  • Mounting Holes: 20x20mm
  • LiPo Power Input: 3-6S
  • Burst Current: 65Ax4
  • Cont.Current: 55Ax4

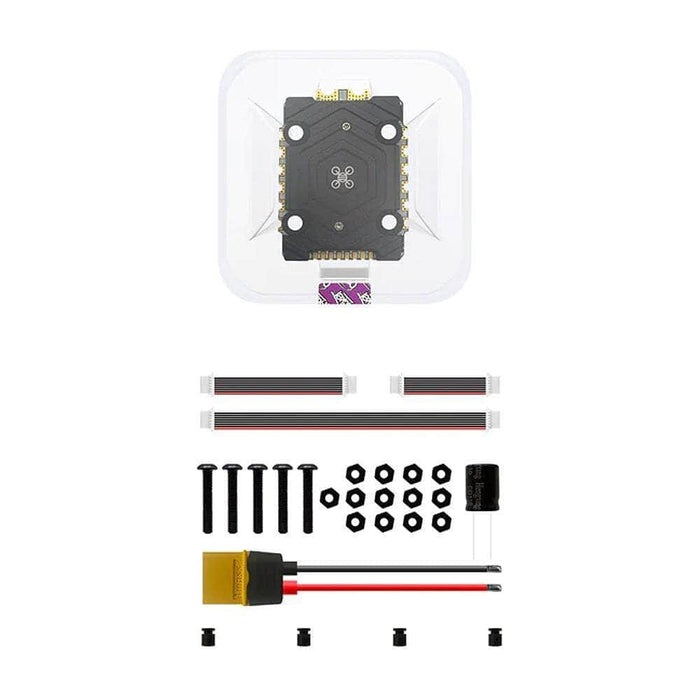

Includes

  • 1x NewBeeDrone Cricket200 V2 32Bit 55A 3-6S 20x20 4in1 ESC
  • 1x Cricket200 FC to Cricket200 ESC cable 30mm
  • 1x Cricket200 FC to Cricket200 ESC cable 50mm
  • 1x Cricket200 FC to Cricket200 ESC cable 85mm
  • 4x Short Grommets & 4x Long Grommets
  • 1x 470uf 35v Electrolytic capacitor
  • 5x Steel Screw 25mm
  • 13x Nylon Nuts
>
