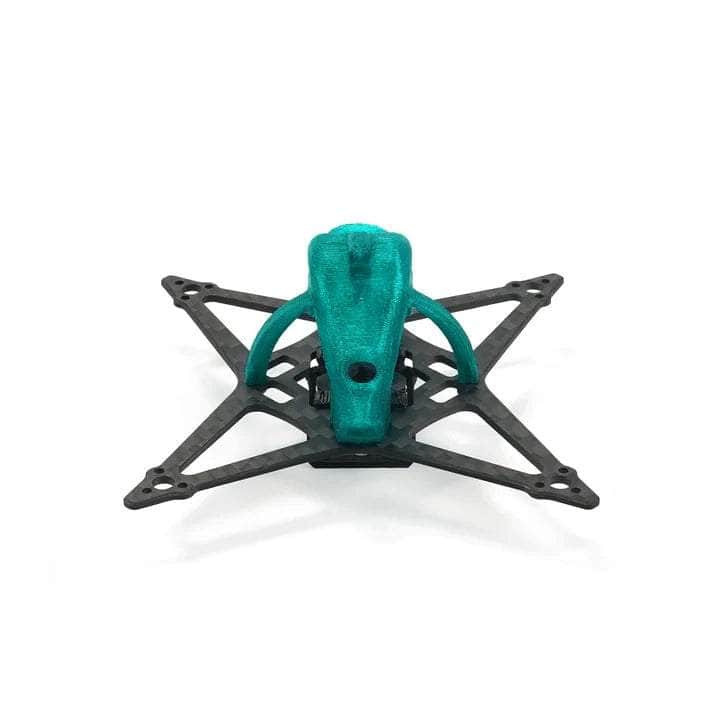

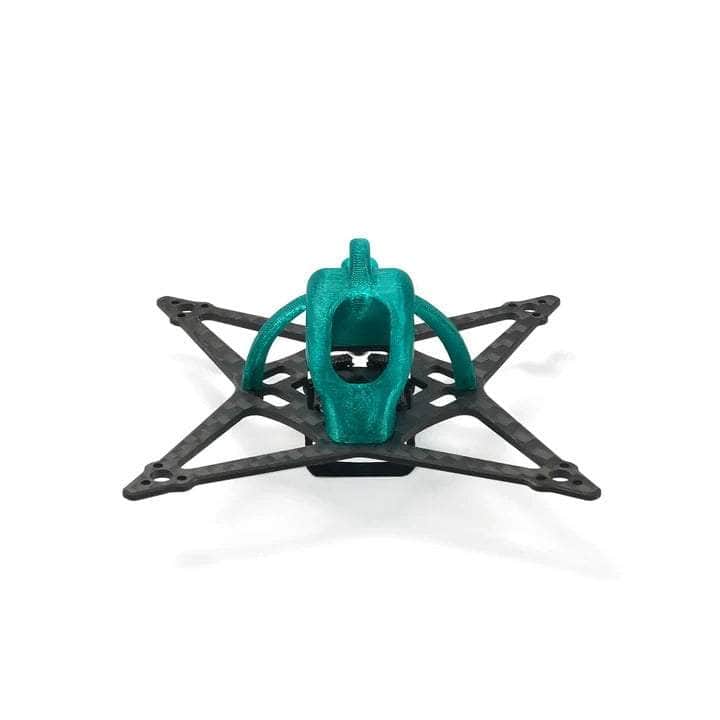

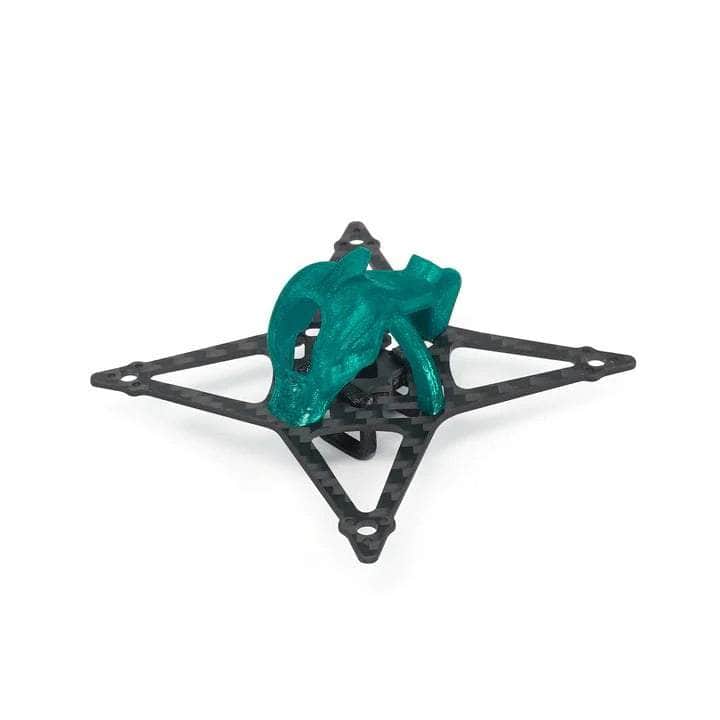

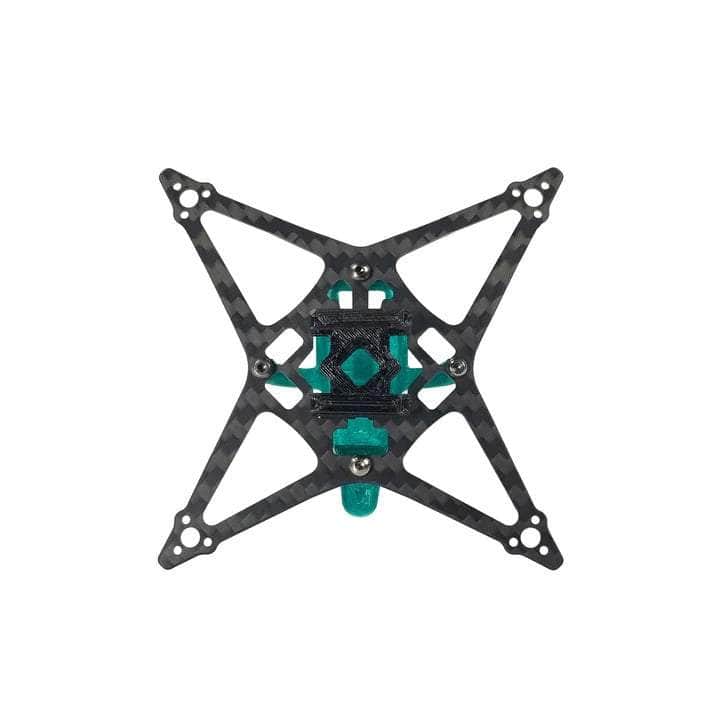

Sub250 Nanofly20 2" Micro Frame Kit
The long-awaited second member of the Nanofly family "Nanofly20!" is released! "Change your flying habits in small spaces". The Nanofly20 is equipped with a two-inch propeller, and the motor mounting hole is 3-M1.4-Ø6.6, which can easily install most of the 1002 motors and 1102 motors on the market. Its overall lightweight design achieves a light feel, "as light as a swallow". The 25.5 flight controller holes can be installed with mainstream flight controllers on the market. Install a highly integrated sub 1s 5A flight controller, so that it can take off with only one flight controller board plus a camera and motor. It can also be used with Walksnail Avatar VTX and HDZero VTX.
- "Light as a swallow" lightweight design, with an overall weight of 8.4g, giving more installation space for your electronic equipment.
- Carbon fiber bottom plate design, body strength pro beyond.
- 25.5mm flight controller installation holes allow for easy installation of the market's most popular AIO flight controllers.
- Ø6.6 M1.4-3 motor mounting holes, compatible with most motors such as 0803, 1002, and 1102.
- Match a variety of VTX solutions to build your own HD FPV mini drone.
- Item: Nanofly20 frame
- Wheelbase: 88mm
- Arm plate: 1.5mm
- Motor holes: 3-M1.4-EQS-Ø6.6
- FC mounting holes: 25.5x25.5
- Camera installation space: 14x14 (mm)
- Weight: 8.4g
1x Nanofly20 Frame
1x Battery cabin
4x M2x18 Round head screw
4x M2x12 Round head screw
2x M2x3 Round head screw
2x M1.4x3 Round head cross screw
