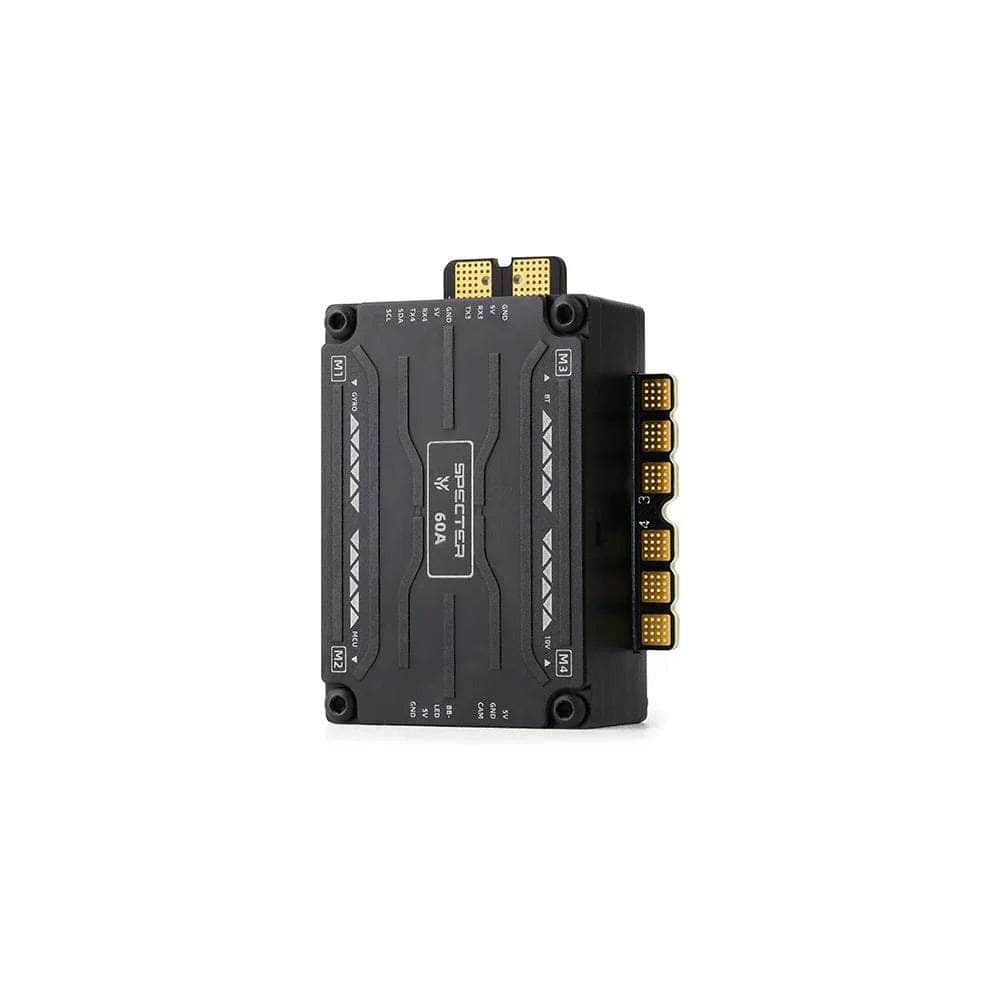

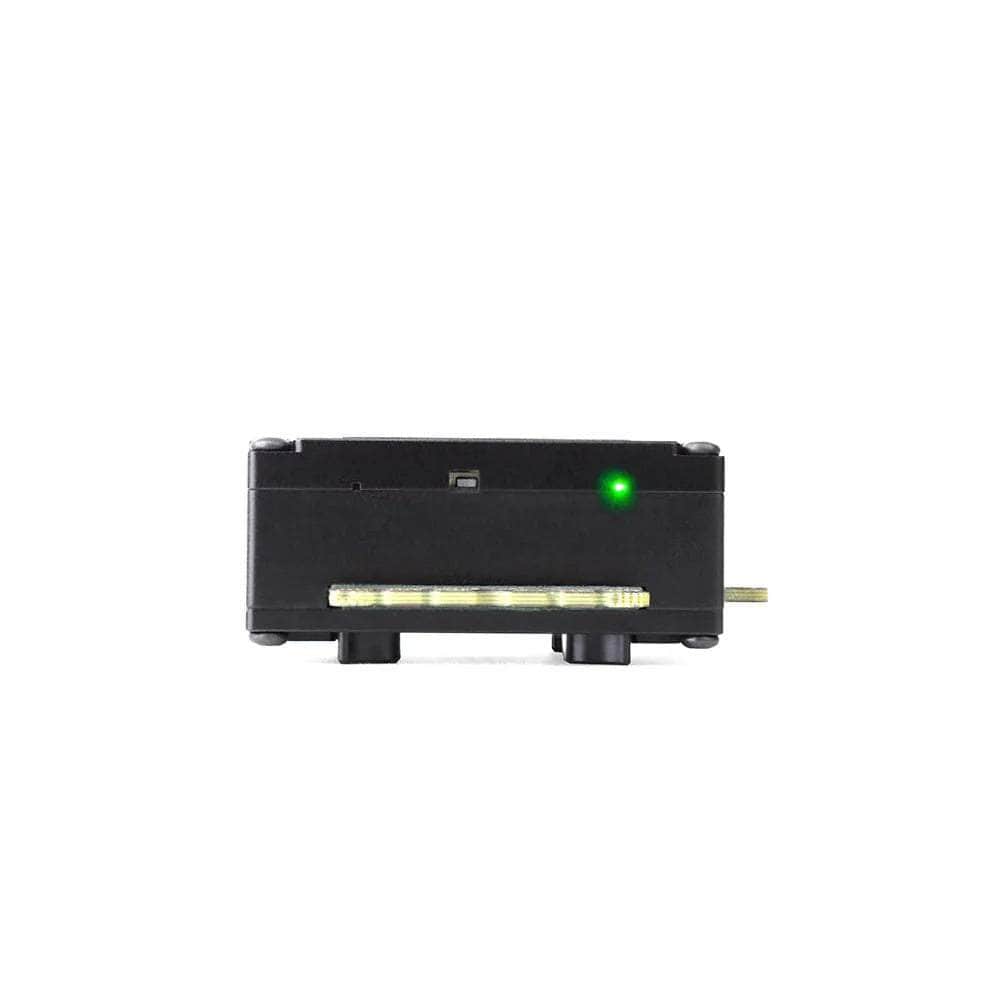

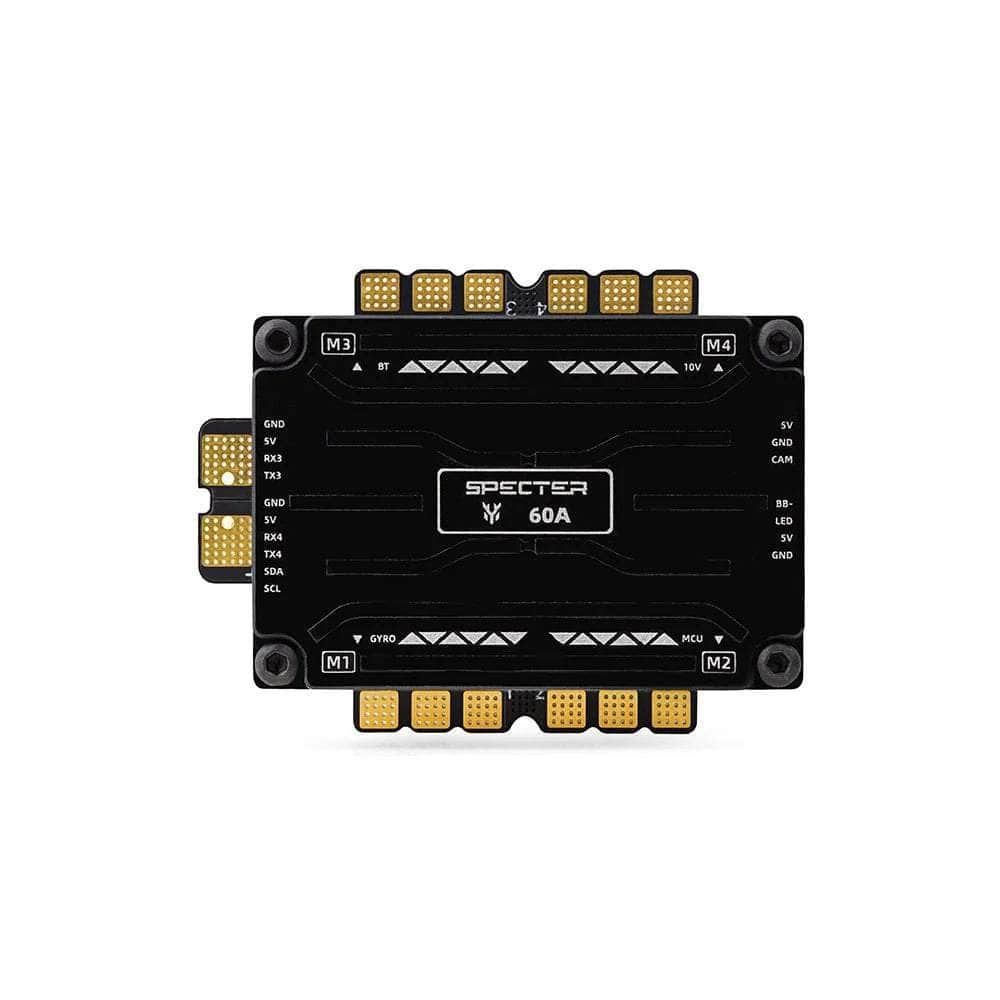

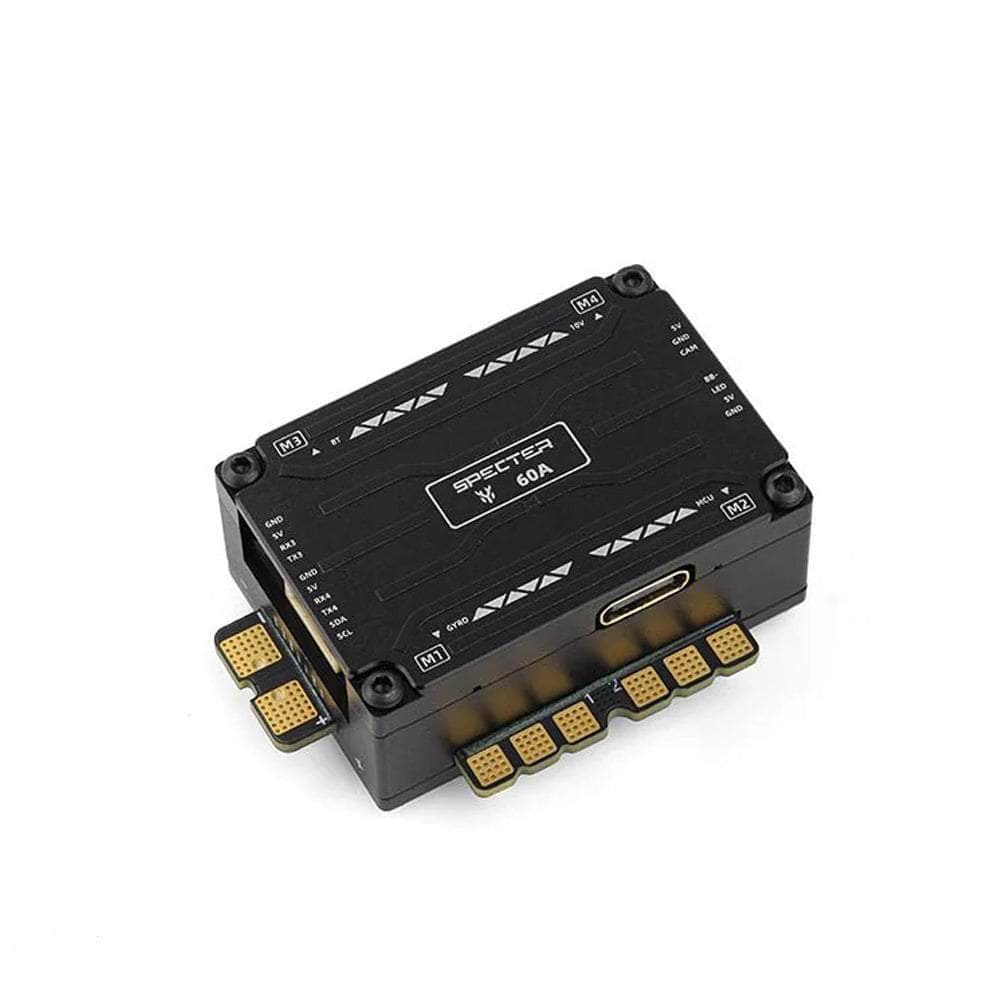

HGLRC SPECTER F760 BOX 3-6S 20x20 Integrated Stack/Combo (F722 FC / 32Bit 60A 4in1 ESC)
Original price
$135.99
-
Original price
$135.99
Original price
$135.99
$135.99
-
$135.99
Current price
$135.99
In Stock
Pre Order
$135.99
In order to reduce the difficulty of installation to a large extent and allow model friends to easily get the fun of flying, we specially designed and developed the HGLRC SPECTER F760 BOX integrated stack. The flight control is a full module plug-in type, and only needs to weld the ESC power supply and motor wires. It is used, and the stack is equipped with suspended shock absorption and built-in capacitors. With the factory-preset filter parameters, the flight is even more outstanding!
Check out all our 20x20 stacks, and our HGLRC products!
Features
- The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216MHz, providing smoother control, better hand feel, and faster response speed.
- The flight control gyroscope uses high-performance MPU6000 to improve the stability of use.

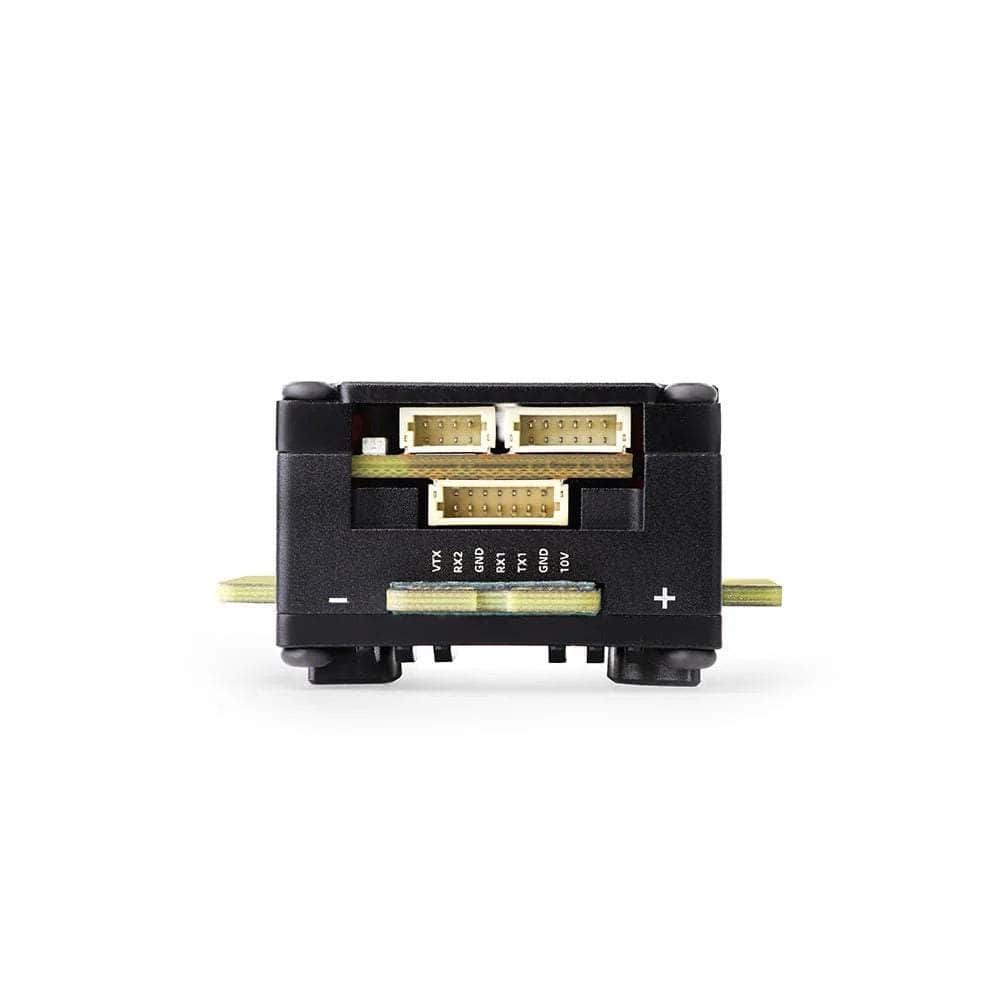

- Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.
- Personalized CNC heat sink shell to prevent debris from entering the interior of the flight control and improve usage efficiency.
- 16MB large-capacity black box to ensure adequate recording of flight data.
- Integrated BF wireless Bluetooth parameter adjustment, connect to SpeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
- Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the problem of heat transmission during long-term power-on.

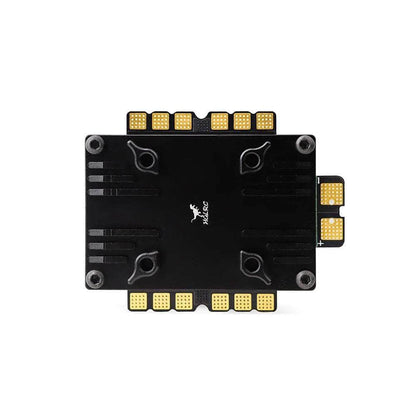

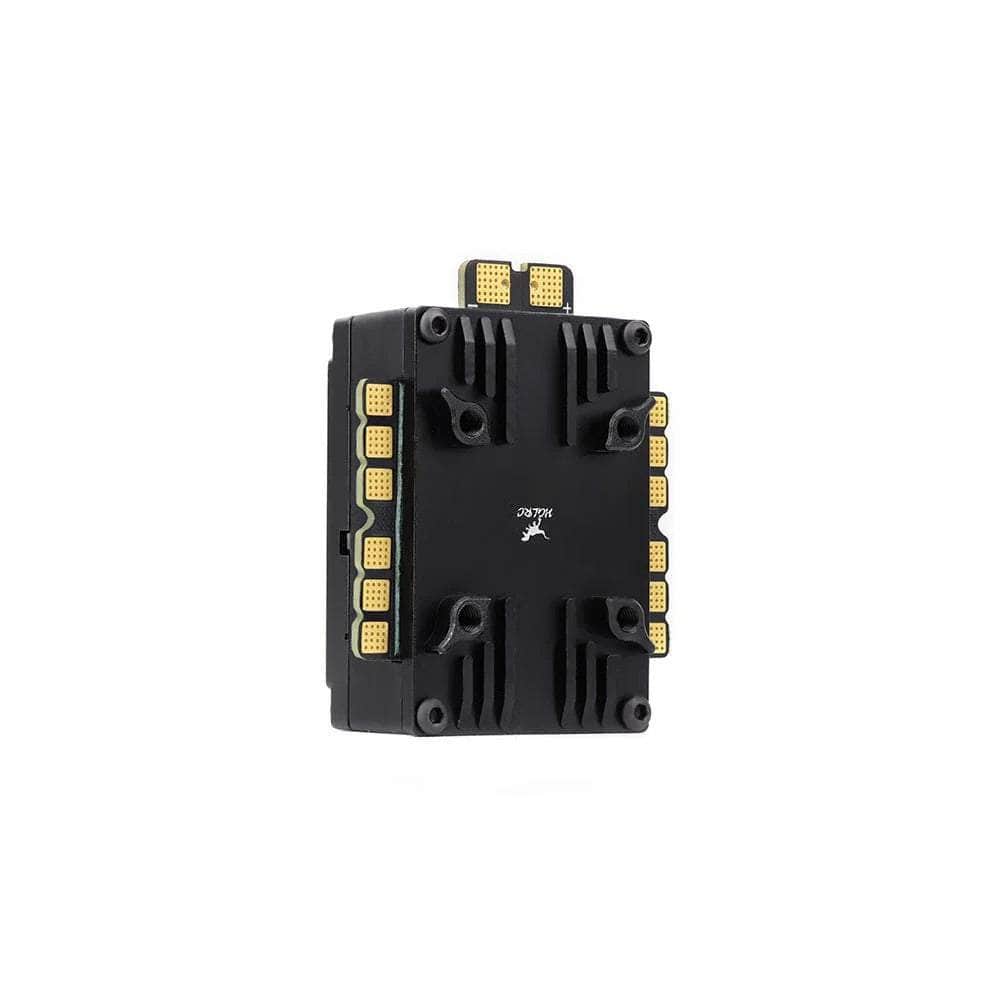

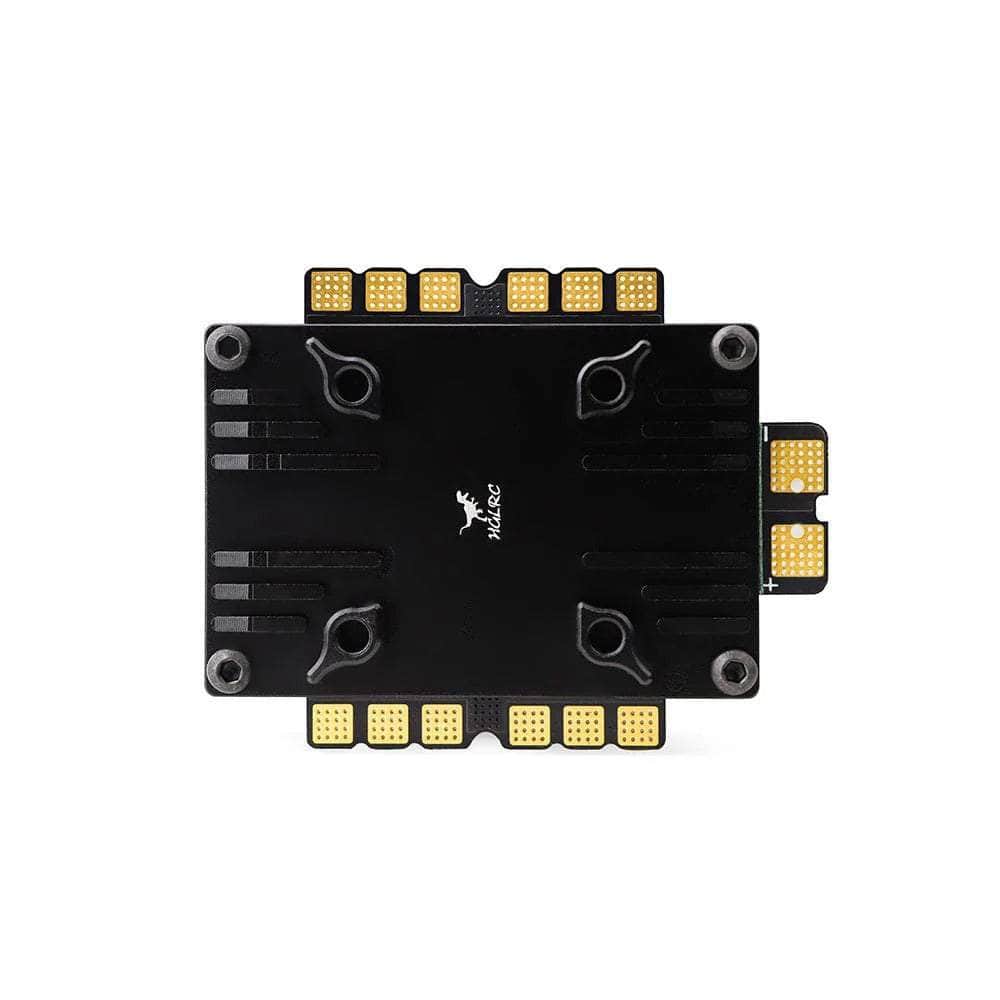

- Built-in suspension damping system + preset filter parameters.
- Built-in capacitor, no need to solder external capacitor.
Specifications
Flight Controller
- Flight control firmware: HGLRCF722 MINI V2
- MCU: STM32F722
- GYRO:MPU6000
- OSD: AT7456E
- Barometer: BMP280
- Black box: 16MB
- UARTS: 4
- Bluetooth parameter adjustment: UART5
- Input voltage: 7.4V-22.8V/2-6S LIPO
- BEC: 10V2A/5V2A
- Stack size: 37mmx34mmx9.8mm
- Installation hole position: 20x20mm, M3

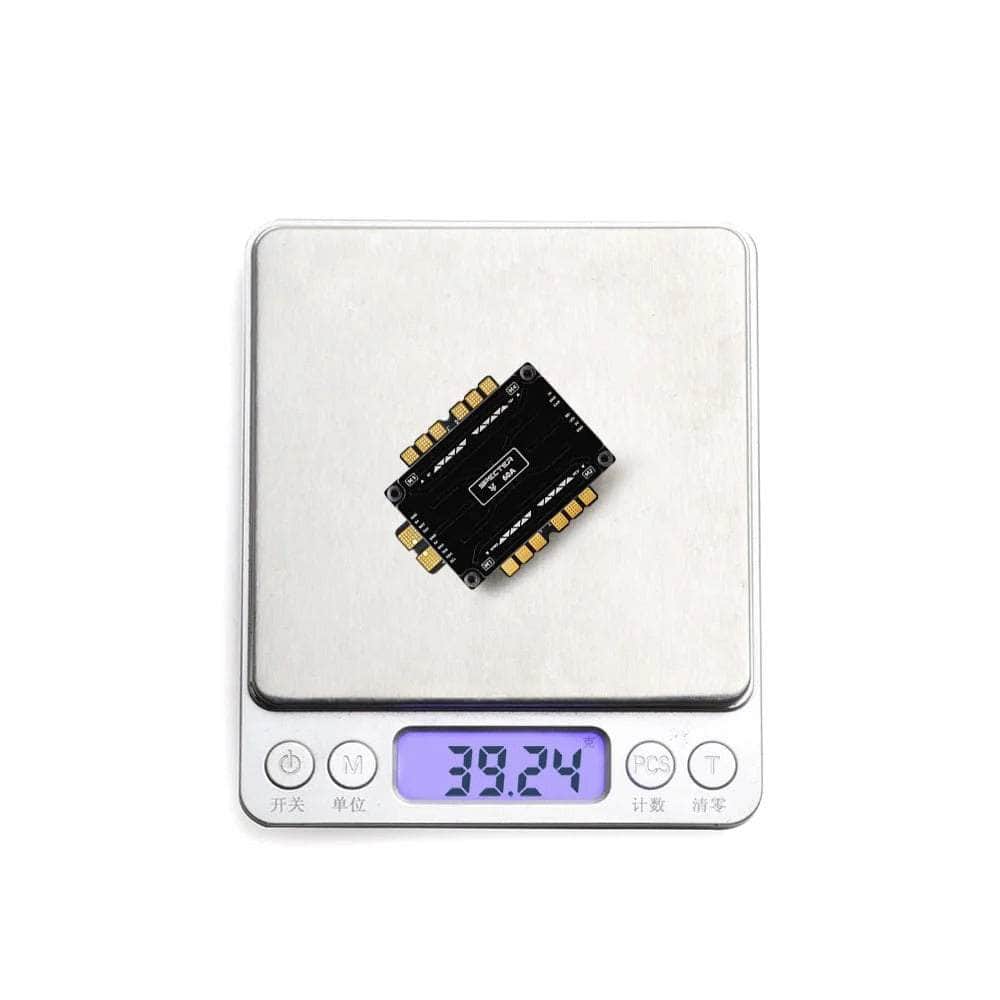

- Weight: about 39.24g
ESC
- Input Voltage: 3-6S
- Continuous current: 60A
- Peak current: 60A (10 sec)
- MCU: STM32G071 (128K)
- Firmware: BL32(SPECTER60_G_128)
- ESC size: 44mmx36mmx7mm
- Mounting Hole: 20x20mm, M3
- Support Protocol: DShot600/300/150/Oneshot125/42, MultiShot

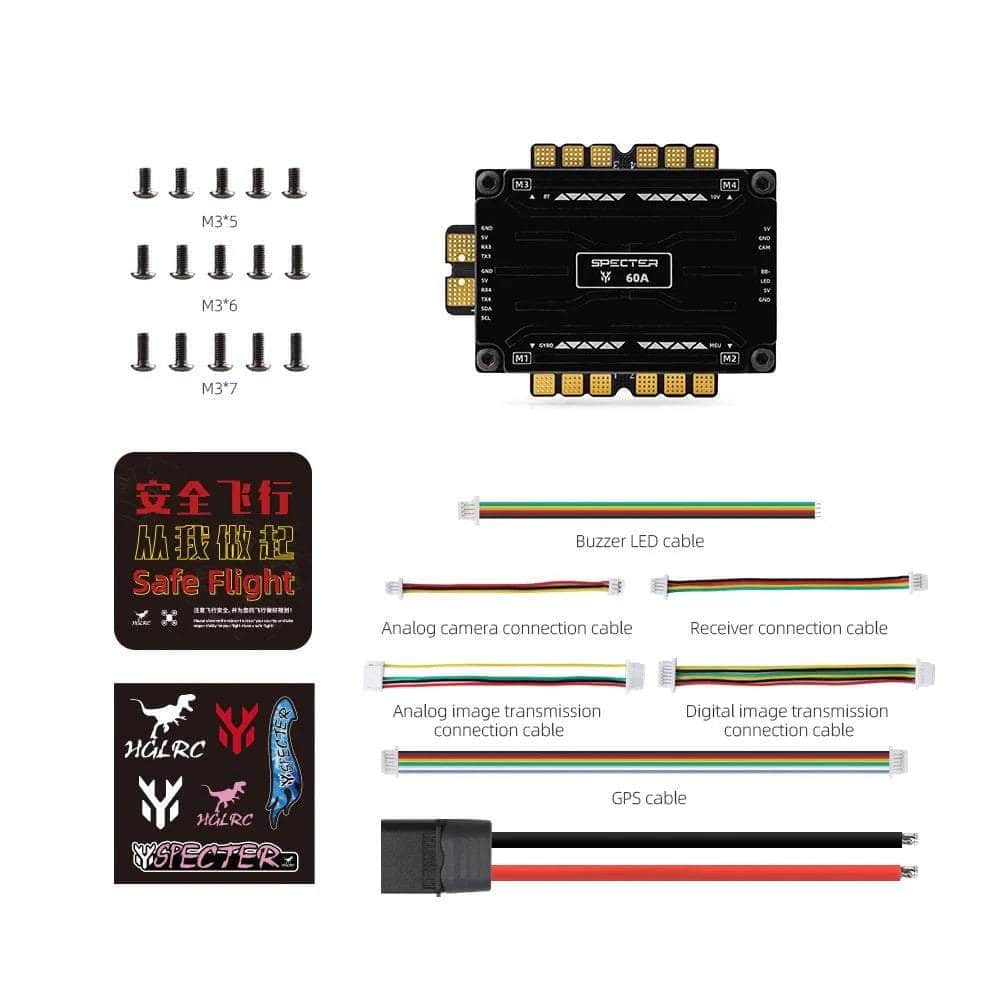

Includes
- 1x HGLRC SPECTER F760 BOX 3-6S 20x20 Integrated Stack/Combo (F722 FC / 32Bit 60A 4in1 ESC)
- 1x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable
- 1x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable
- 1x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable
- 1x 30AWG 70mm single-head SH1.0-4P receiver cable
- 1x 30AWG 100mm, single-head SH1.0-4P LED soter cable
- 1x 30AWG 140mm single-head SH1.0-6P/single-head SH1.0-6P GPS cable
- 1x 14AWG 70mm, red and black power cord
- 5x M3x5 hexagon socket screws
- 5x M3x6 hexagon socket screws
- 5x M3x7 hexagon socket screws
