Description

Experience enhanced stability and performance with the F7 SE FC Designed for 5-inch X4 flying machines, it supports 8 motor outputs and is compatible with X8 drones. Equipped with a 42688 gyroscope and firmware version 4.4.3 or higher, it ensures superior stability. The 128 MB large-capacity black box chip provides ample storage for flight data. Paired with T-Motor Velox motors, enjoy a comfortable and stable flying experience. Trust the F7 SE stack for countless takeoffs and landings without damage. Upgrade your aerial adventures today!

Check out our other 30x30 Stacks & Combos and all our T-Motor products!

Features

• Highly cost-effective, the first choice for beginners
• Perfect match with Velox V3 motor
• Quality assurance, tested thousands of times without breaking
• Elevate Your Filmmaking &  Power Delivery
• Versatile Applications & Reliable Performance
• Advanced Features
• Professional Grade

Specifications

VELOX F7  SE Flight Controller

• MCU: STM32F722

• Input Voltage: 3-6S

• Gyroscope: ICM-42688P(SPI)

• OSD: AT7456E&HD

• BEC: 5V2A & 12V1.5A

• Mounting Holes: 30.5x30.5/Φ4mm

• Size: 37.5x40x6.4mm
• Uarts: 6

• Blackbox: 128MB
• Firmware: TMTR-TMOTORVELOXF7

• USB: Type-C
• Weight: 9g

V50A SE ESC

• MCU: AT32F421

• Input Voltage: 3-6S

• Current: 50A

• Peak Current(5S): 60A

• Size: 41x44.4x5.8mm

• Mounting Holes: 30.5x30.5/Φ4mm
• Weight: 12.3g

Includes

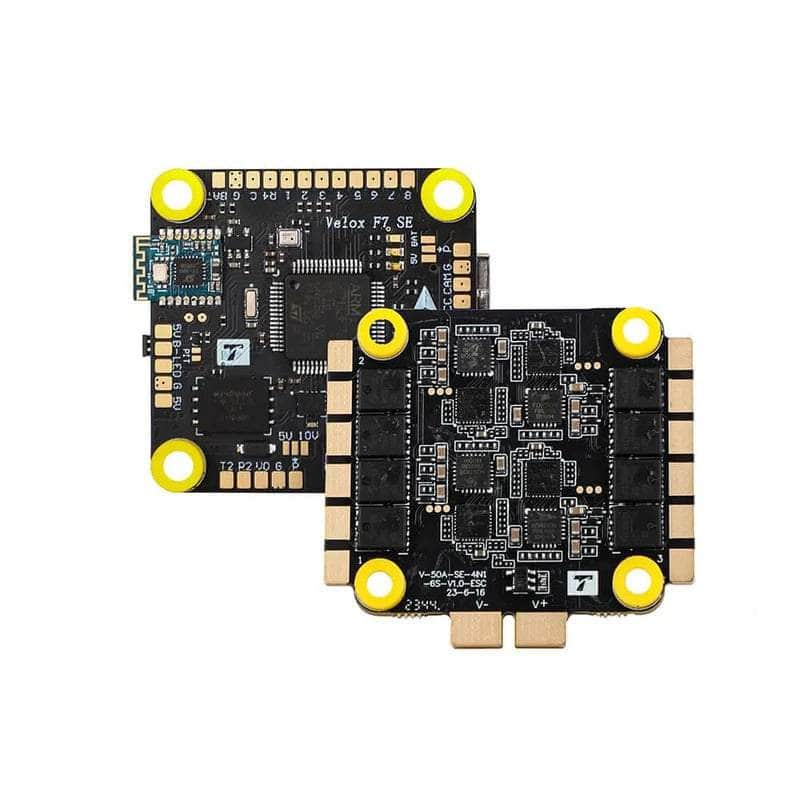

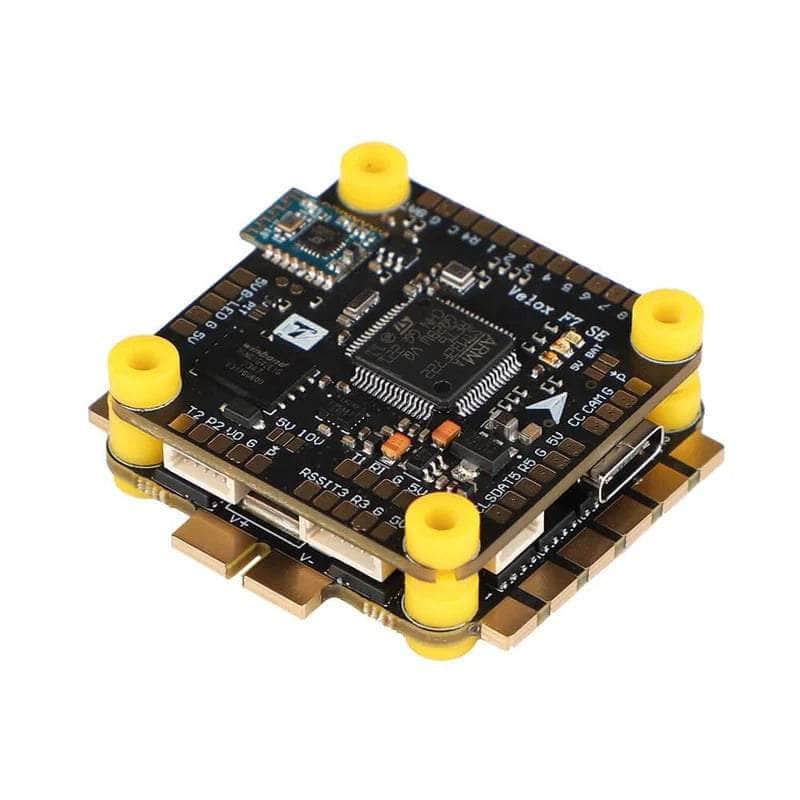

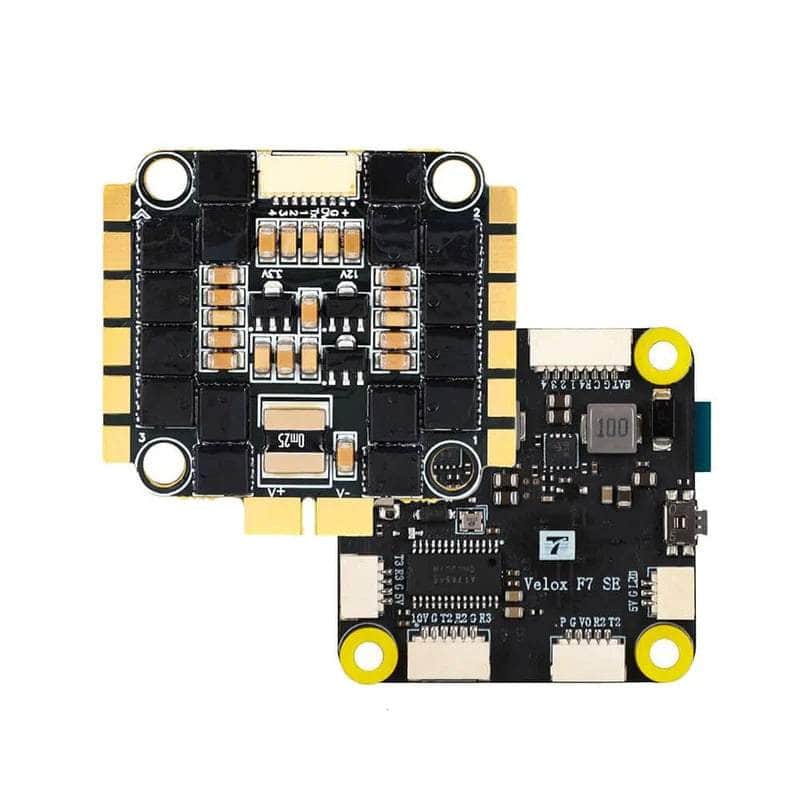

• 1x T-Motor Velox F7 FC + V50A SE 3-6S 30x30 Stack/Combo (F722 FC / 32Bit 50A F4 4in1 ESC)
