NewBeeDrone HummingBird V3 F411 1S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 25mW VTX) - ELRS 2.4GHz (SPI)

Original price $59.99 - Original price $59.99
Original price
$59.99 - $59.99
Current price $59.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

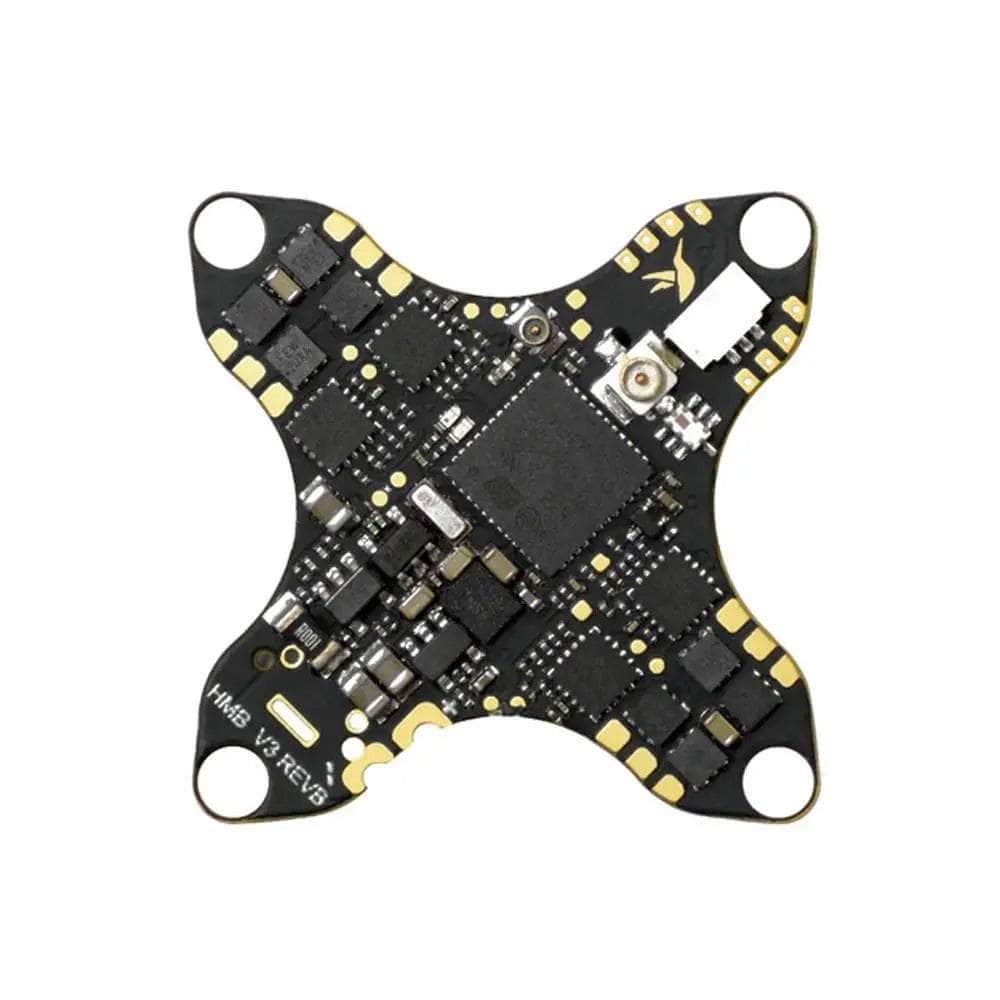

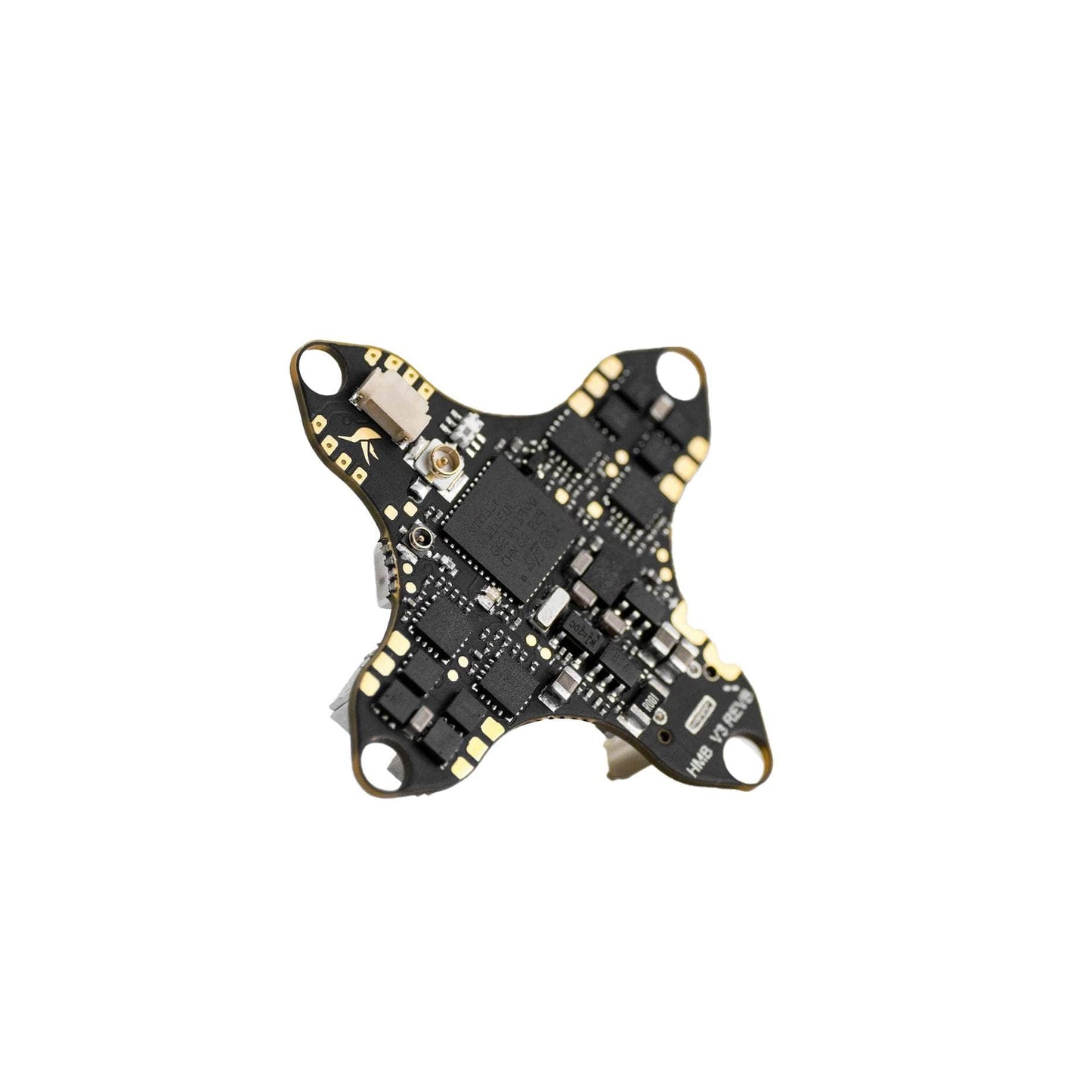

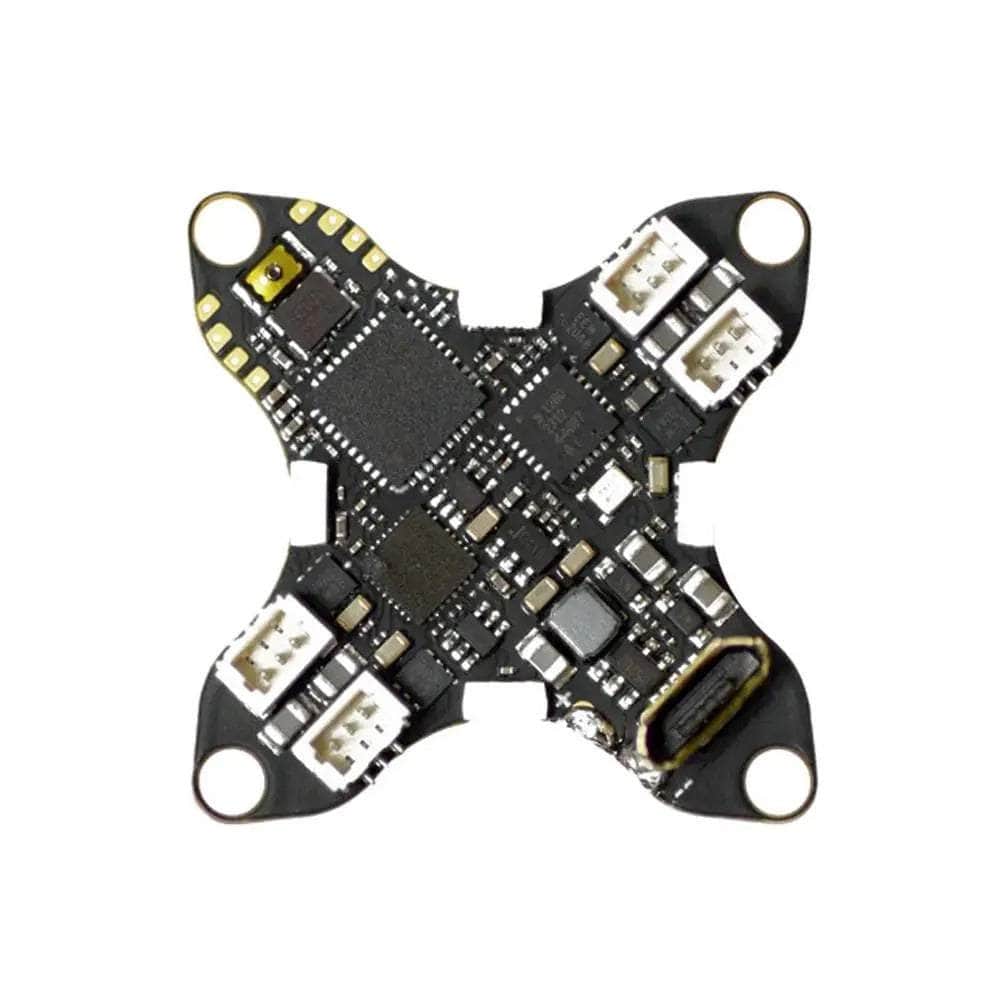

The NewBeeDrone Hummingbird V3 AIO Flight Controller is designed for the Hummingbird F4 V2 ELRS BNF or Hummingbird F4 V3 ELRS BNF drone. Enjoy a premium flying experience with its STM32F411 MCU, BMI270 gyro, 25mw VTX with BeeTX 5.8GHz antenna, plus a pre-flashed 12A BLHeliS ESC. Enjoy the ultimate FPV experience with the latest innovations in flight controller technology.

Check out our other AIO flight controllers as well as the rest of our NewBeeDrone selection.


  • Plug-and-Play Convenience with a pre-flashed 12A BLHeliS ESC, JST-1.0 3Pin connector, and Nectar Connector Gold Plated PH2.0 Solid Pin power plug that provides a hassle-free upgrade for enhanced flight capabilities.
  • STM32F411 MCU, BMI270 gyro, and a 25mw VTX with BeeTX 5.8GHz Antenna for precise control and superior video transmission.
  • Designed as a replacement for the Hummingbird BNF drone, ensuring perfect integration with the Hummingbird Mark3 VtxCamera.


  • Hummingbird V3 ELRS AIO Flight Controller Spec:
  • MCU: STM32F411
  • GYRO:BMI270 or 42688
  • VTX: 25mw with BeeTX 5.8Ghz Antenna
  • ESC: 12A BLHeliS Pre-Flash with Bluejay 0.20 target: O-H-5 48khz
  • ESC Connector: JST-1.0 3Pin
  • OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
  • Receiver: 2.4G Antenna with MHF3 connector
  • Flight Controller Weight: 4.57g(Include antennas and battery connector) RS 3.23
  • Flight Controller Size: Outer dimensions: 29x29x7.6mm
  • Flight Controller Holes: 25.5x25.5mm
  • Battery input: 1S Only
  • Uart1: free
  • Uart2: free
  • Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin
  • SPI ELRS3.0 receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.0 or above version. You will need to update your remote controller ELRS to 3.0 version because betaflight 4.4 will no longer support any lower version of 3.0)


  • 1x NewBeeDrone HummingBird V3 F411 1S AIO Whoop/Toothpick Flight Controller (w/12A 8Bit 4in1 ESC & 25mW VTX) - ELRS 2.4GHz (SPI)
