Description

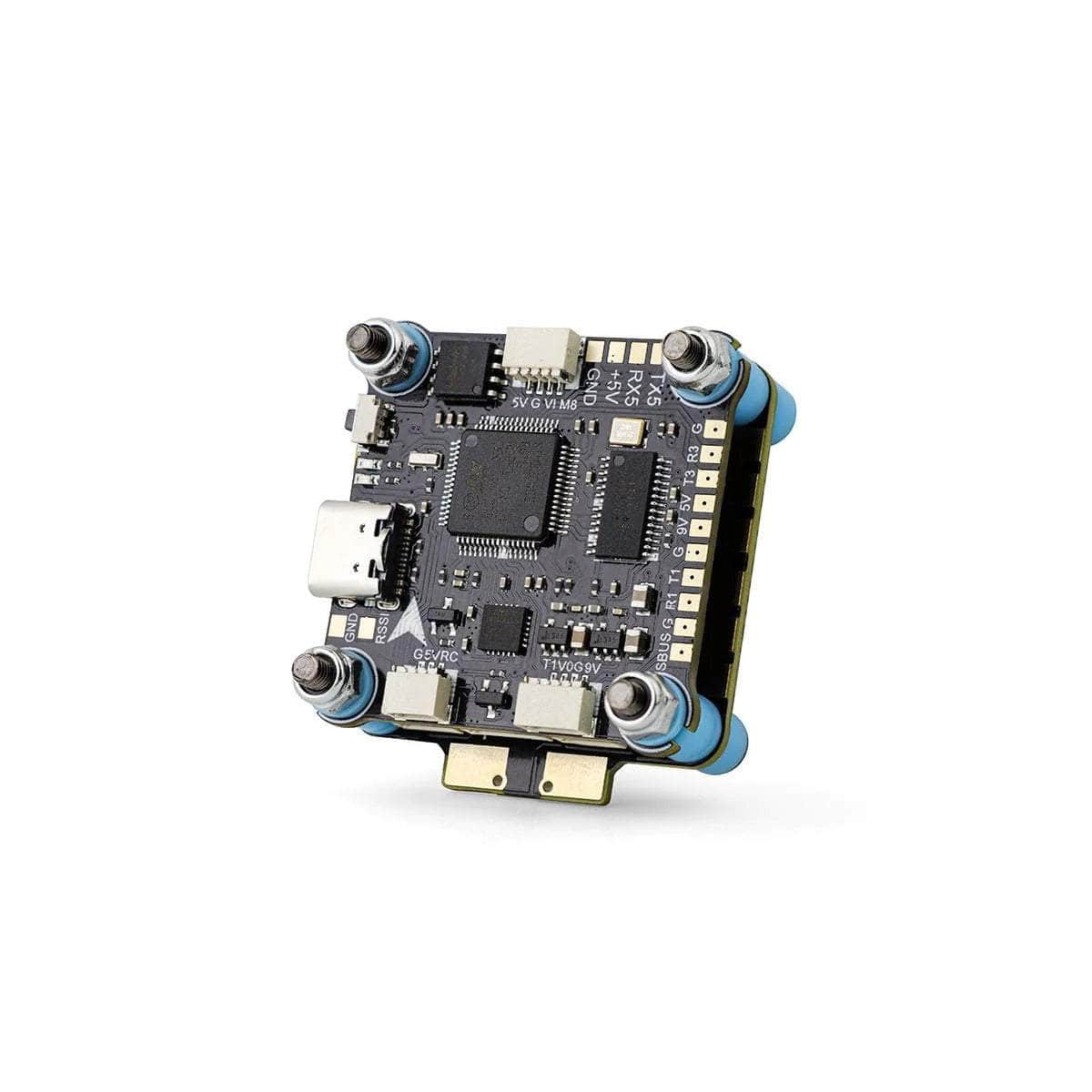

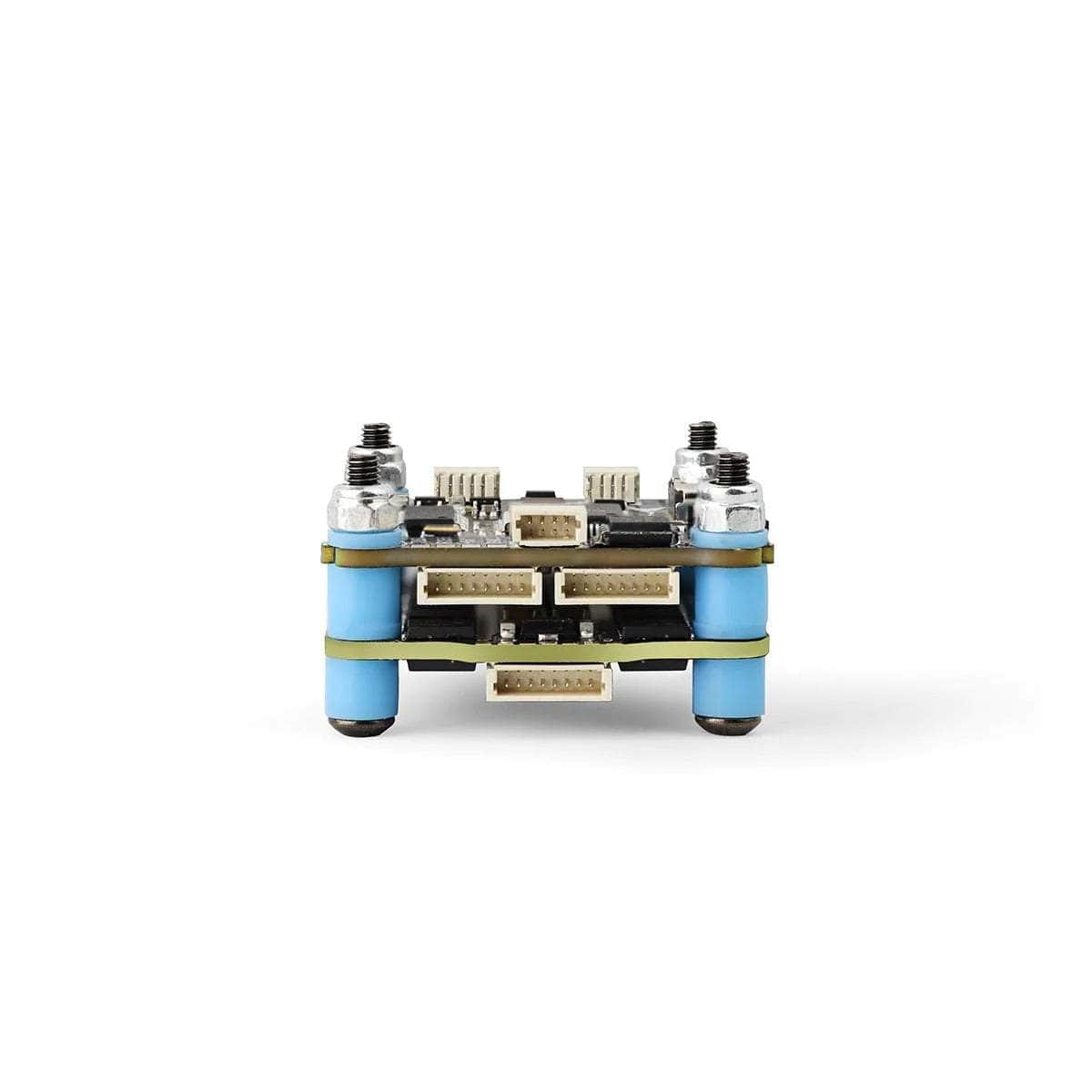

Check out this fantastic budget stack brought to you by HGLRC, which is 2S-6S capable and can confidently handle 60 amps of power. (70 Burst) Boasting an MP6000 for precise and reliable performance from your flight controller.  The SPECTER F460 is an excellent choice for your next 5-6" build!

Check out our other 30x30 Stacks, and all our HGLRC products!

Features

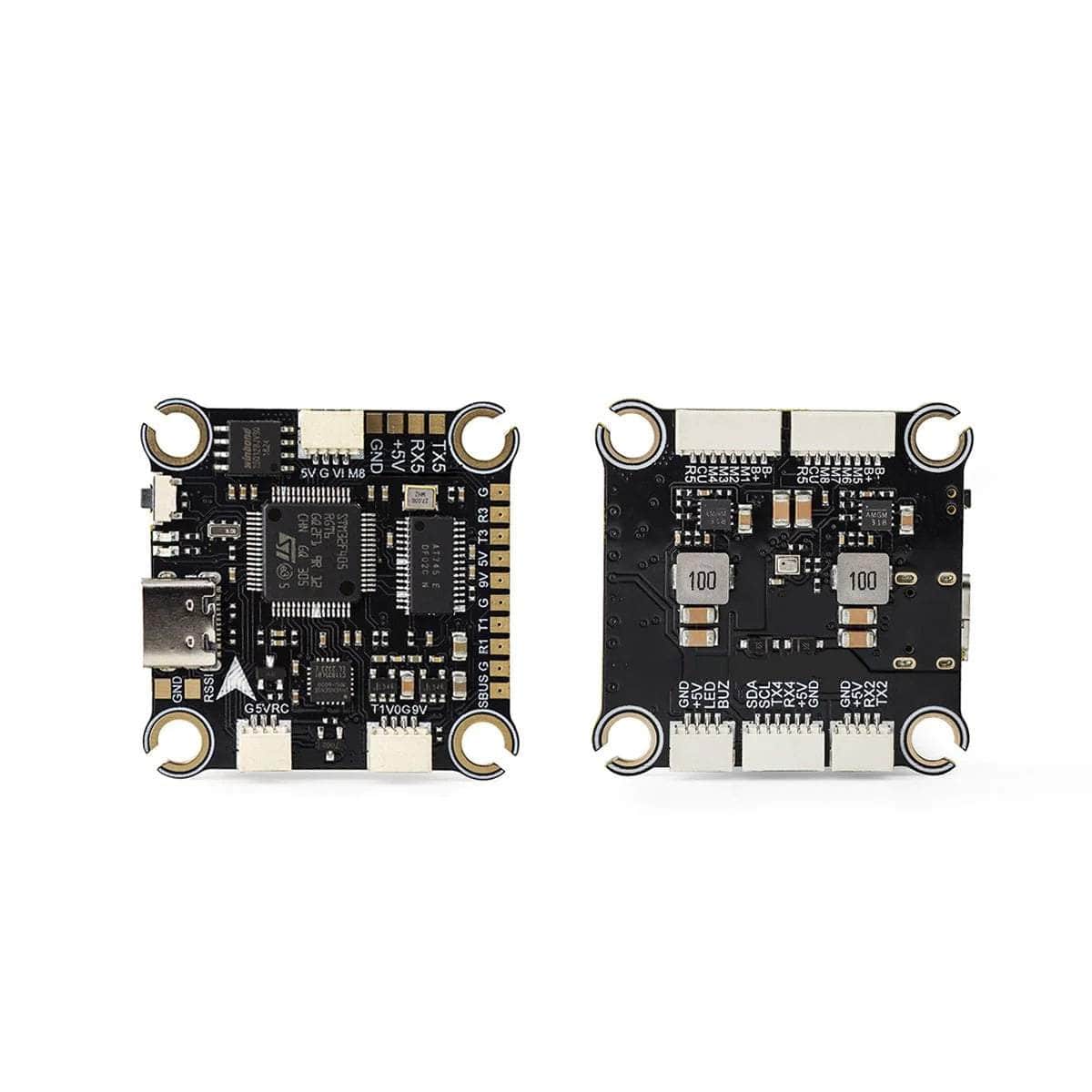

• The flight control adopts the extremely stable MPU6000 gyroscope;

• The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;

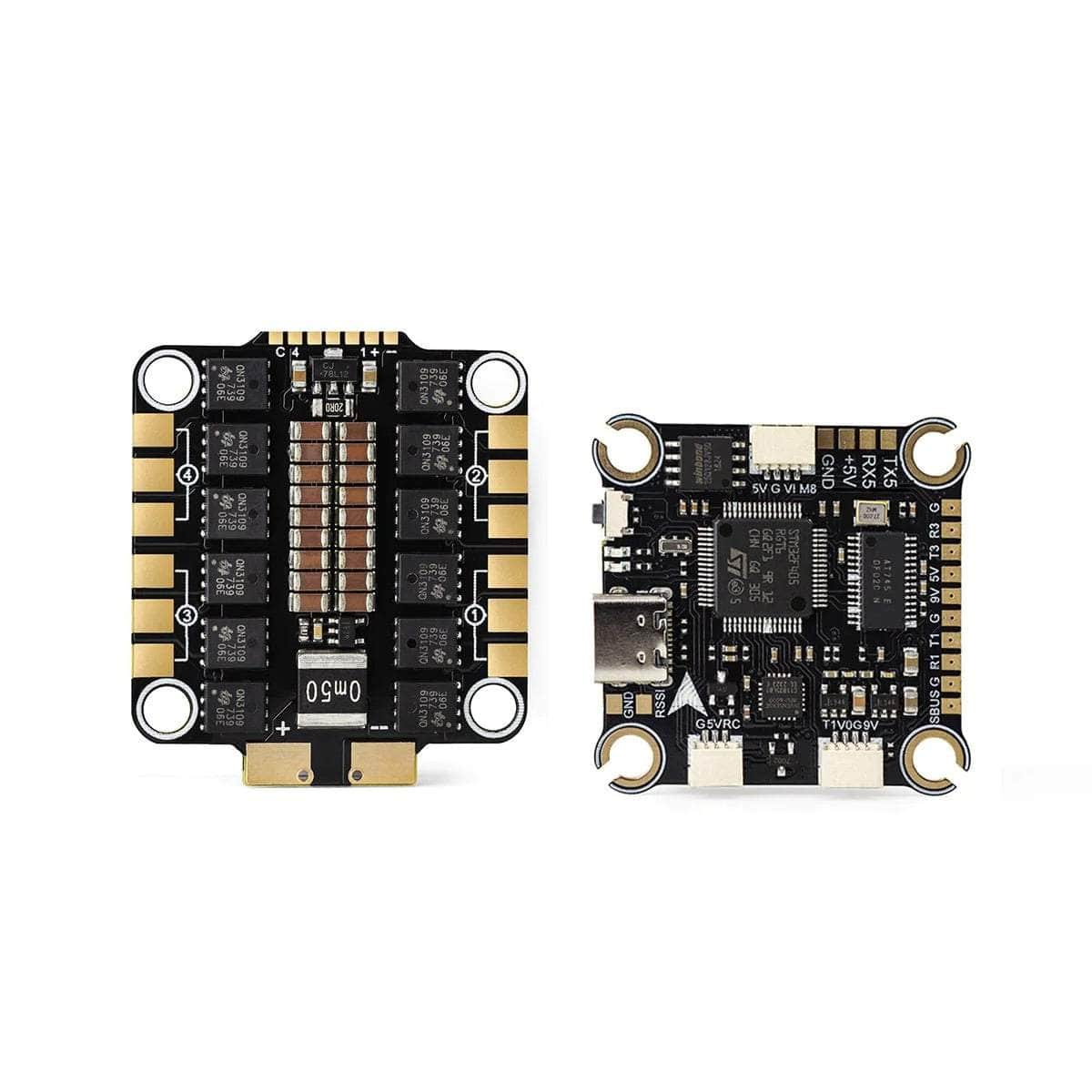

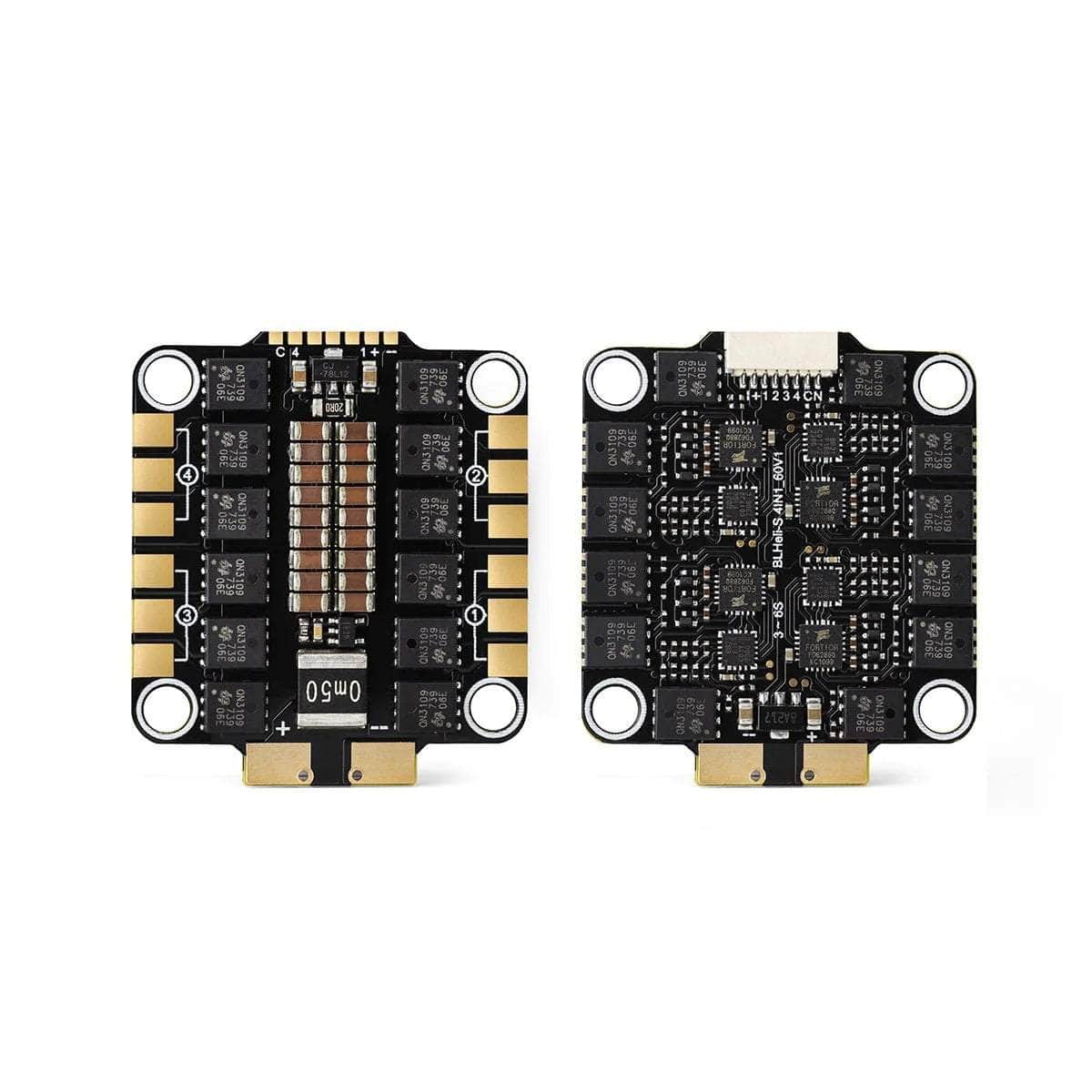

• The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;

• It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;

• Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;

• Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;

• Integrated 16M black box, can record flight data;

• Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

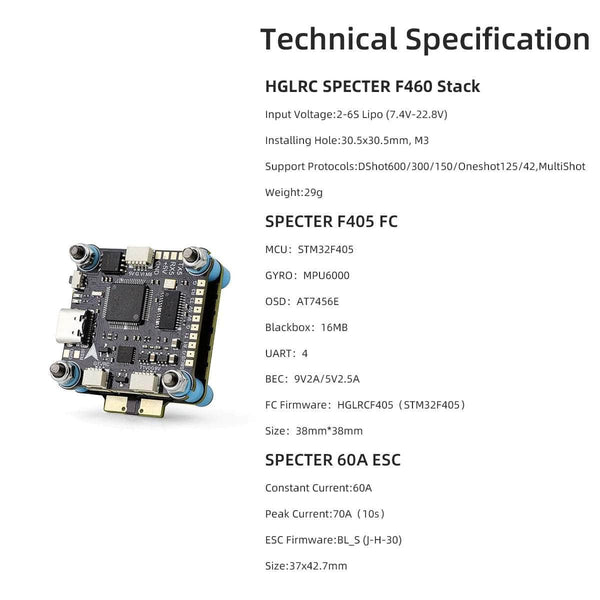

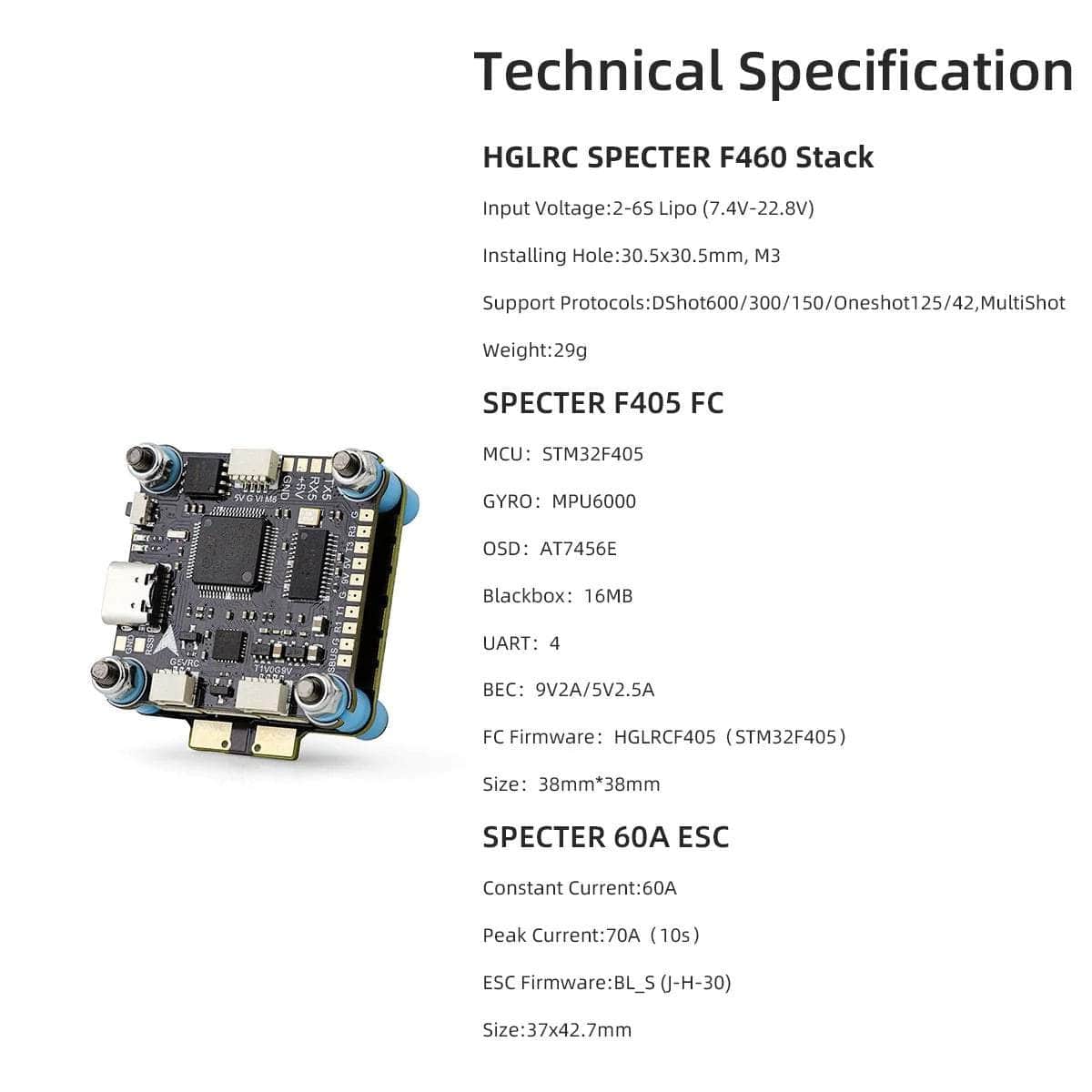

Specifications

• Input Voltage: 2-6S Lipo (7.4V-22.8V)

• Installing Hole: 30.5x30.5mm, M3

• Support Protocols :DShot600/300/150/Oneshot125/42,MultiShot

• Weight:29g

• MCU: STM32F405

• GYRO: MPU6000

• OSD: AT7456E

• Blackbox: 16MB

• UART: 4

• BEC: 9V2A/5V2.5A

• FC Firmware: HGLRCF405V2

• Size: 38mmx38mm

• Constant Current: 60A

• Peak Current: 70A（10s）

• ESC Firmware: BL_S (J-H-30)

• Size: 37x42.7mm

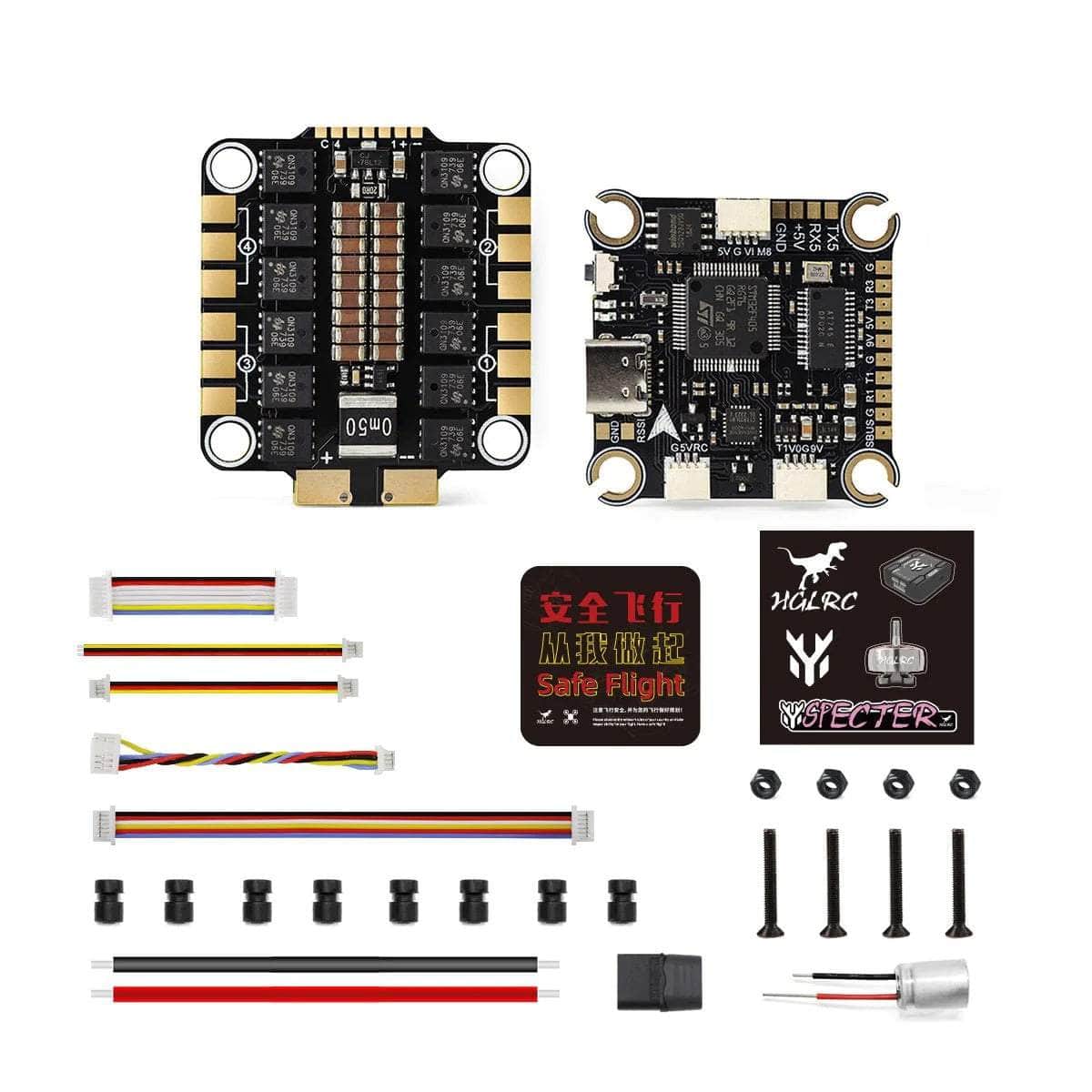

Includes

• 1x HGLRC SPECTER F460 HD 2-6S 30x30 Stack/Combo (F4 FC / 8Bit 60A 4in1 ESC) - MPU6000
