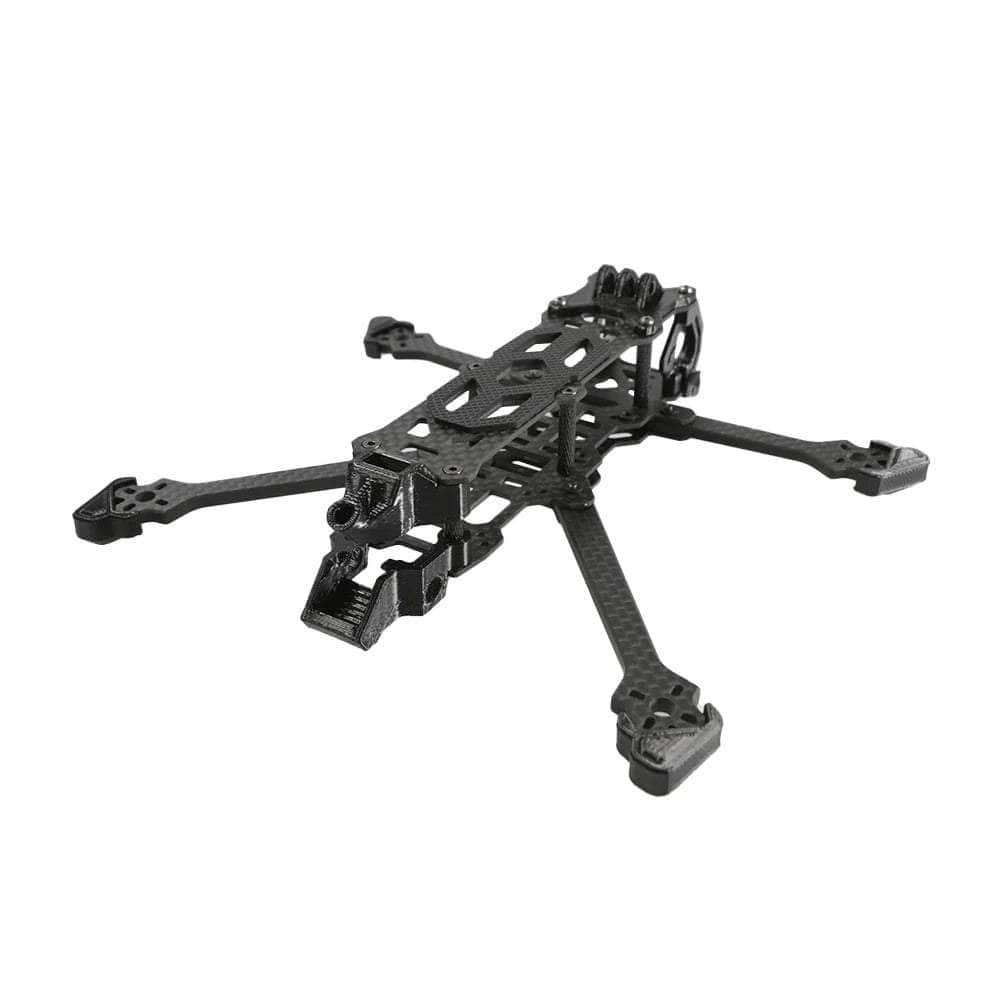

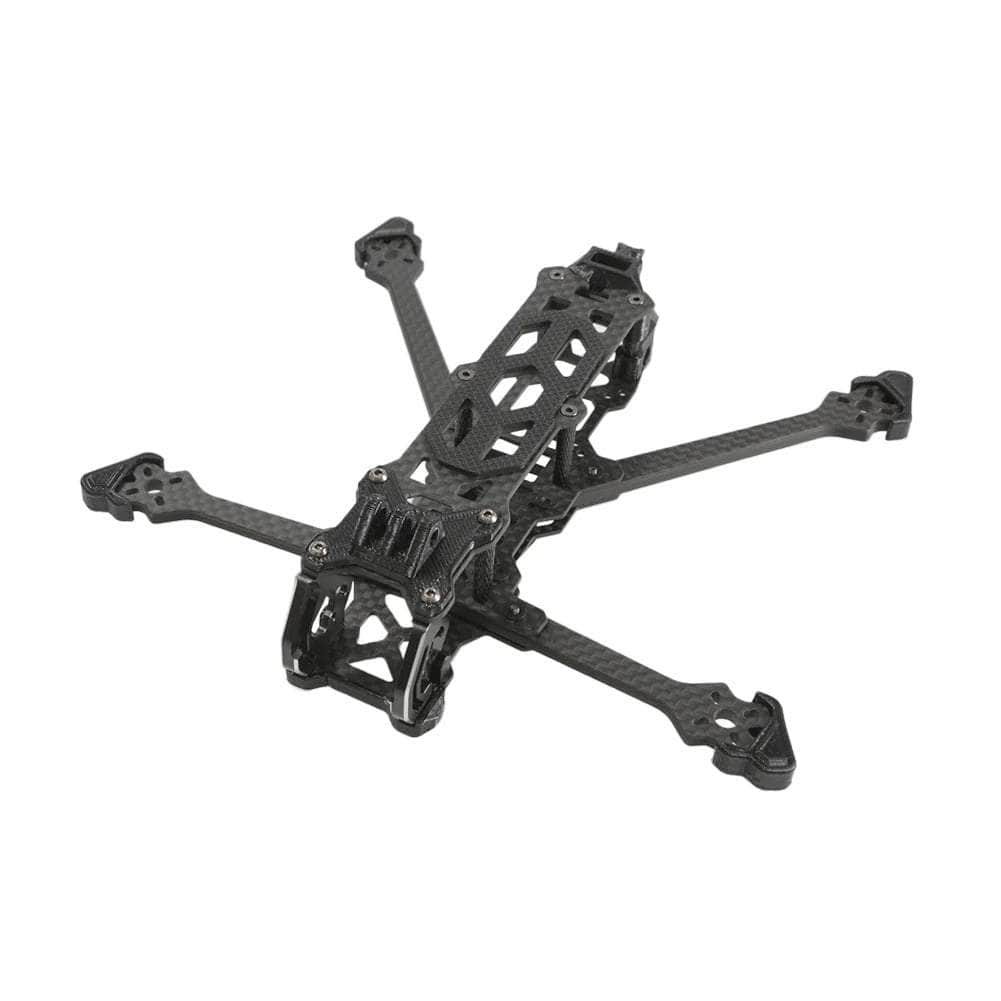

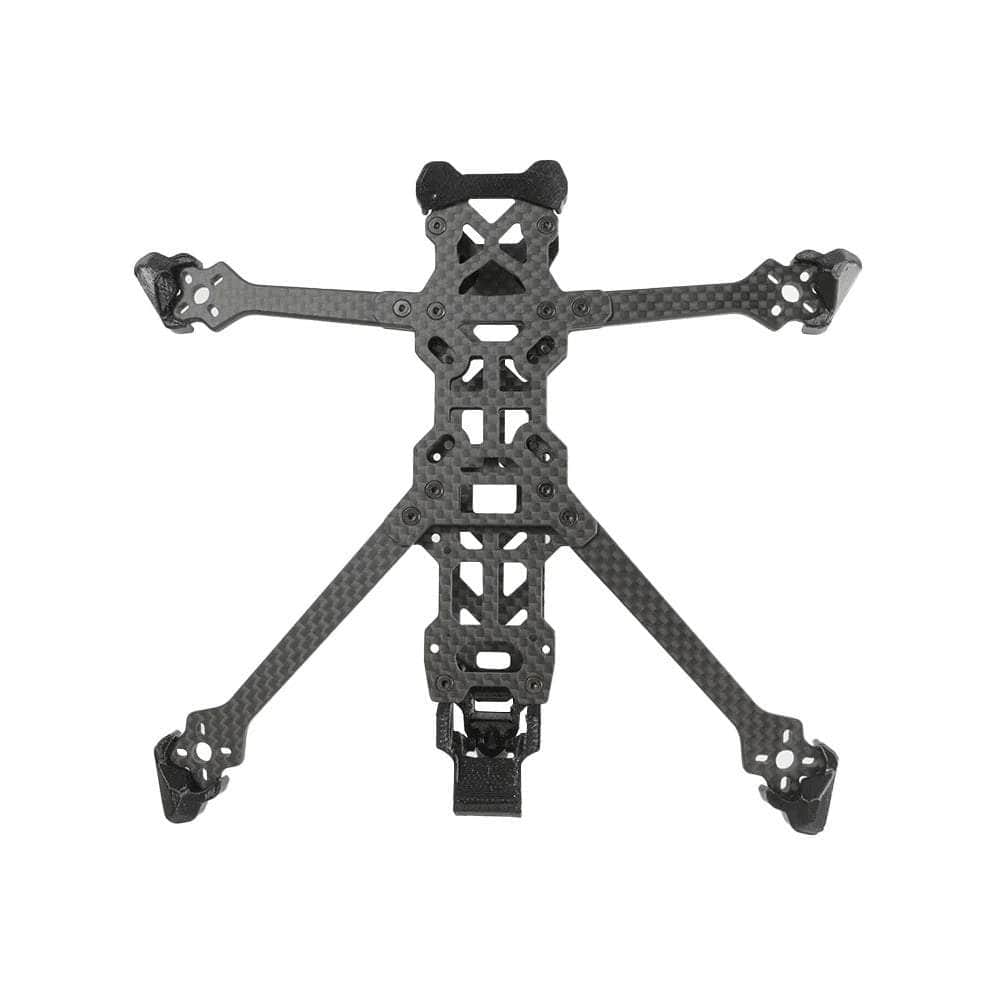

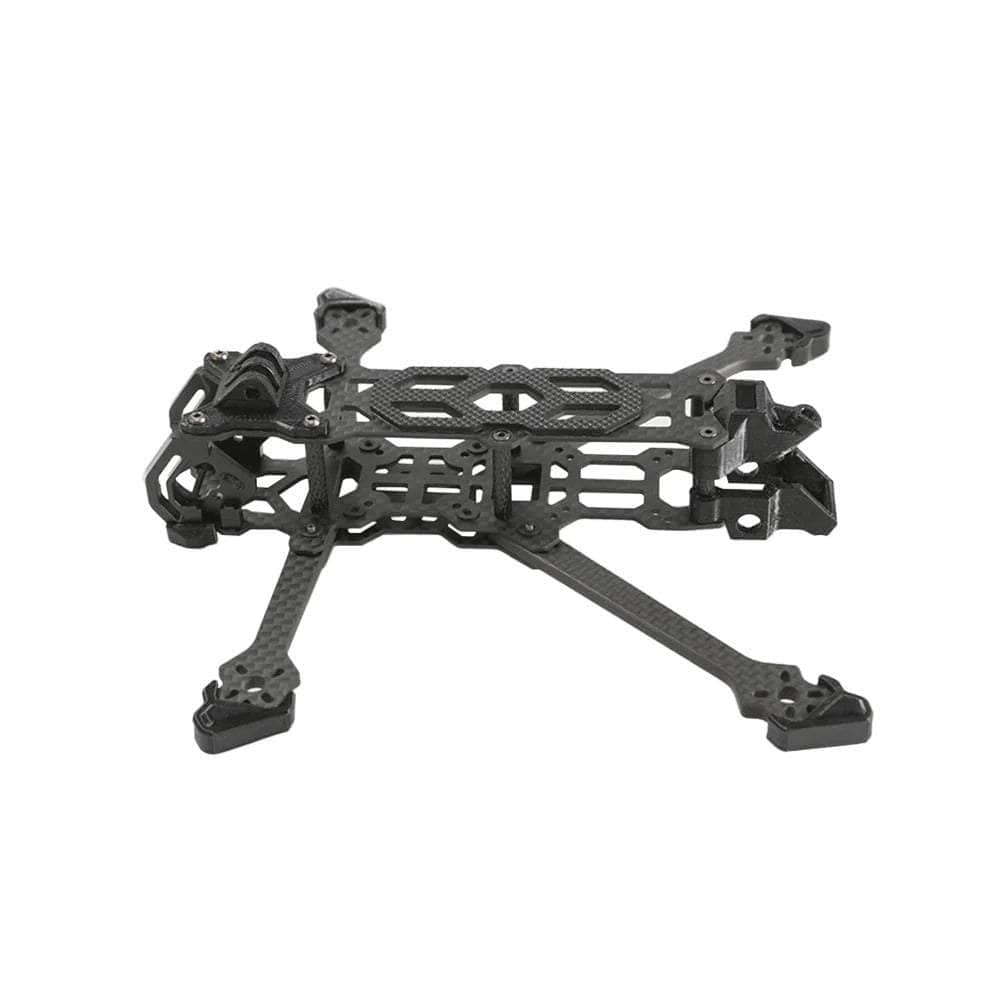

FlyFishRC Atlas 4 Long Range 4" Frame kit

Introducing Atlas, our new 4-inch frame. Weighing in at a mere 55g, Atlas emerges as a formidable contender in the realm of sub-250g frames.

Atlas is anything but your typical long-range or endurance frame. While it excels in extending flight times, its true strength lies in versatility. At FlyFishRC, we've thoroughly enjoyed occasional park freestyle sessions with this frame, and it consistently delivers!

With meticulous design that seamlessly combines light weight and a good level of durability, Atlas is ready to tackle any challenge. Equipped with FlyFishRC's signature CNC aluminum camera plates with silicone shock absorbers and a deadcat-style layout, Atlas not only takes flight; it does so exceptionally well, offering a unique and gratifying flying experience.

And as always, something we take great pride in is our open-source 3D prints, which are readily accessible and remixable on our Thingiverse account. Atlas maintains a mere 55g weight with the complete TPU kit, including arm protectors, action camera base mount, VTX+RX antenna mount, mini GPS holder, and even an XT30 mount that enables integration of an XT30 connector right into the frame. However, our commitment to choice doesn't end here. We've carefully considered your preferences, knowing that not everyone desires an integrated connector. If you prefer an alternative route, there's a cutout in the back of the top plate and one in the front, just behind the action camera base. And, of course, you can always run the lead on the side.

Atlas 4 empowers you to establish your own rules. Want a true sub250g quad? 30-40A AIO, DJI O3/Vista/WS/Analog, FlyFishRC 1804 motors and a 380mAh 6S battery will easily get you below the 250g mark. Want something a bit more spicy? Same setup with FlyFishRC 2004 motors and a bigger battery is what you’ll need!

Share your experiences online, tag us on social media, and let us know what you love or what you'd like to see improved in our products. We promise to treat every piece of feedback with utmost attention.

Thank you for choosing FlyFishRC!

Check out the rest of our 4" frames as well as the rest of our FlyFishRC products selection!

Features

• High-end T700 carbon fiber

• Sub-250 build capable

• Well thought through structure design

• Just 55g with all TPU parts

• No props in view

• CNC aluminum camera plates

• Silicone shock-absorbers for the O3 AU
• High-quality TPU parts

• XT30 can be integrated

• Dedicated small capacitor cutout
  Made for endurance flights

• Equipped with all accessories needed for analog and HD builds

• 12.9-grade strength hardware with Loctite pre-applied

Specifications

• Model: Atlas 4

• Geometry: Deadcat

• Wheelbase: 173mm

• Arm thickness: 3.5mm

• Top plate thickness: 1.5mm

• Middle plate thickness: 1.5mm

• Bottom plate thickness: 1.5mm

• Propeller size: 4inch

• CNC plate thickness: 4mm

• FPV cam spacing: 19mm/20mm

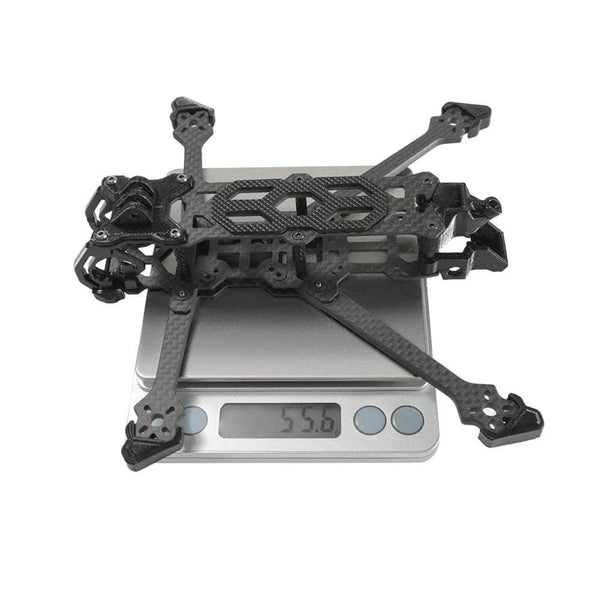

• Weight: 55.6g(with TPU parts)

• Total Dimensions:108mm*139*28mm

• Motor Mounting holes:9mmx9mm/12mmx12mm(M2)

• Stack mounting holes: 20mmx20mm/25.5mmx25.5mm(M2)

• VTX mounting holes: 20mmx20mm/25.5mmx25.5mm(M2)

Includes

• 1x Atlas 4 LR FPV Frame
