ReduxAir Redux32 Pro F4 128K 32Bit 70A 3-8S 20x20 4in1 ESC

Original price $109.99
Current price $91.99
Original price $109.99 - Original price $109.99
Original price $109.99
$91.99 - $91.99
Current price $91.99
In Stock
Add to Wishlist
Ask a Question

Details

Description

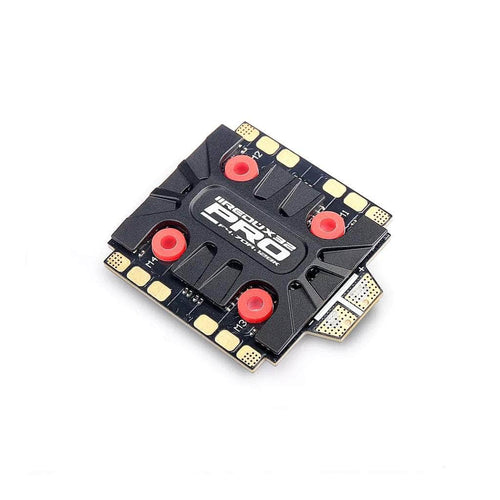

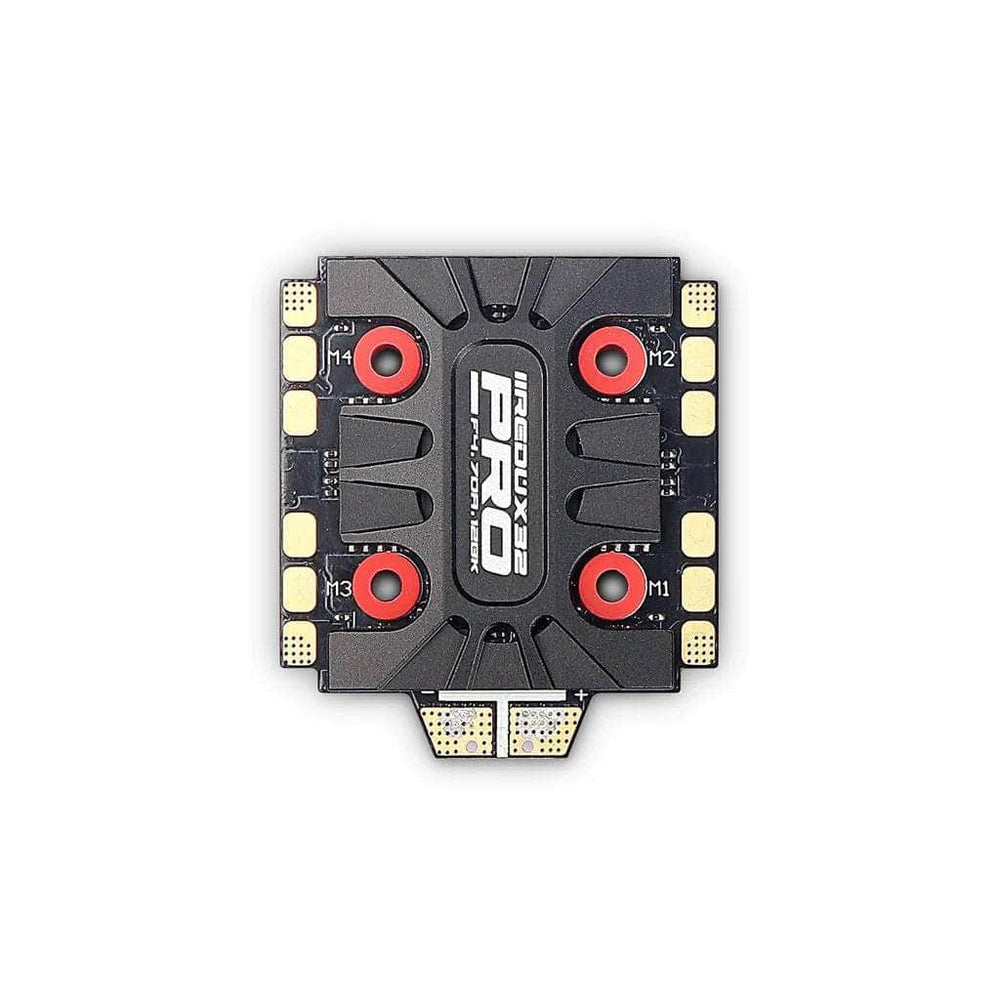

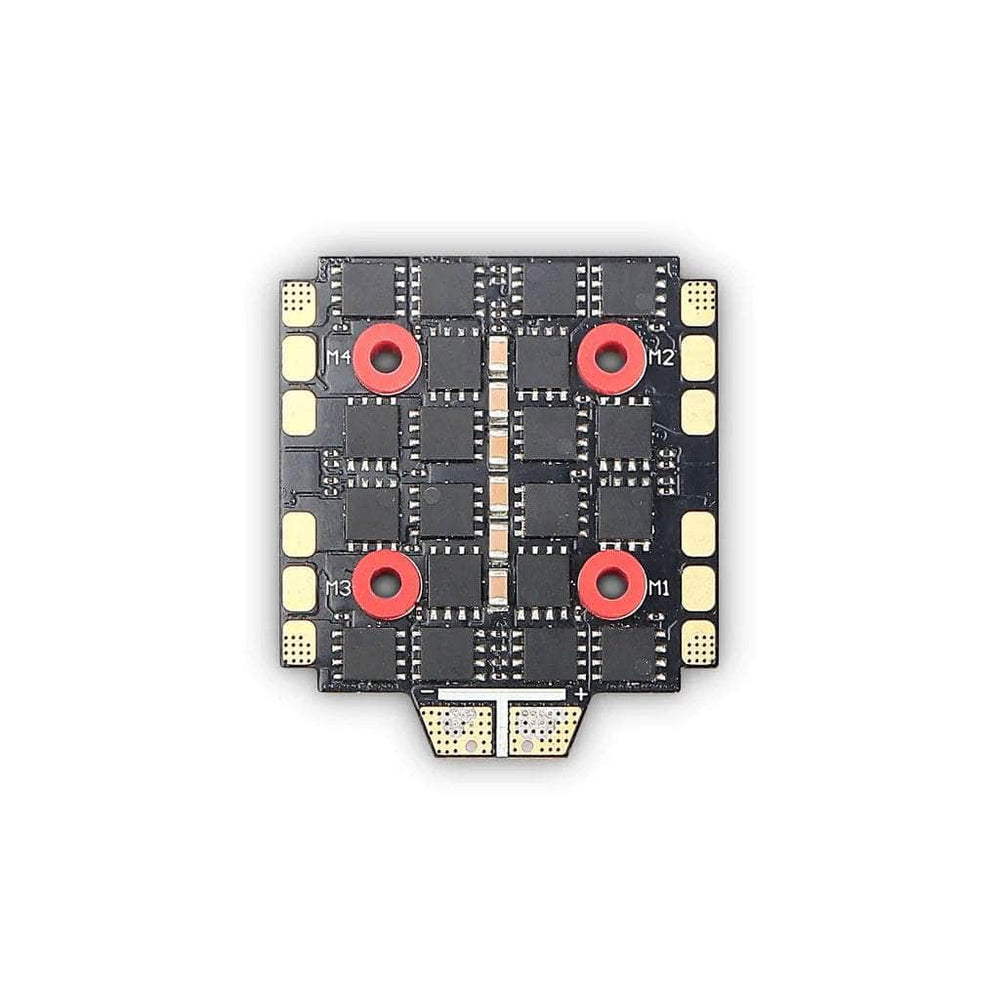

The all-new Redux32 PRO F4 20x20 race ESC. Some of the fastest FPV pilots in the world fly these ESCs and incorporate their feedback to make changes. The REDUX AIR Redux32 Pro F4 128KHz 32Bit 70A 3-8S 20x20 4in1 ESC is a powerful ESC that provides up to 70A continuous current and features a 32-bit processor running at 128KHz PWM frequency. The ESC is designed to handle 3-8S LiPo inputs and uses a 20x20 mounting pattern. Its 4in1 design minimizes weight and maximizes efficiency.

Specifications

  • Input Voltage: 3-8S
  • Current: 70A
  • Peak: >80A 10S
  • Mounting: 20x20
  • Mounting Hole: M4 —> M3 (with grommets)
  • MOSFETs: 5x6 (FULL-SIZE)
  • PWM Frequency: up to 128KHz
  • Protocol: BLHeli_32
  • Telemetry: Yes
  • Current Sensor: Yes
  • Amp Meter Scale: 200

Includes

  • 1x REDUX AIR Redux32 Pro F4 128KHz 32Bit 70A 3-8S 20x20 4in1 ESC
  • 1x Hardware Kit
  • 1x Accessory Kit (capacitor, grommets, power lead w/XT60 Pigtail, FC plugin harness)

More Information:

  • SKU: REDUX32-PRO-70A-ESC
  • Barcode: 691023500822
