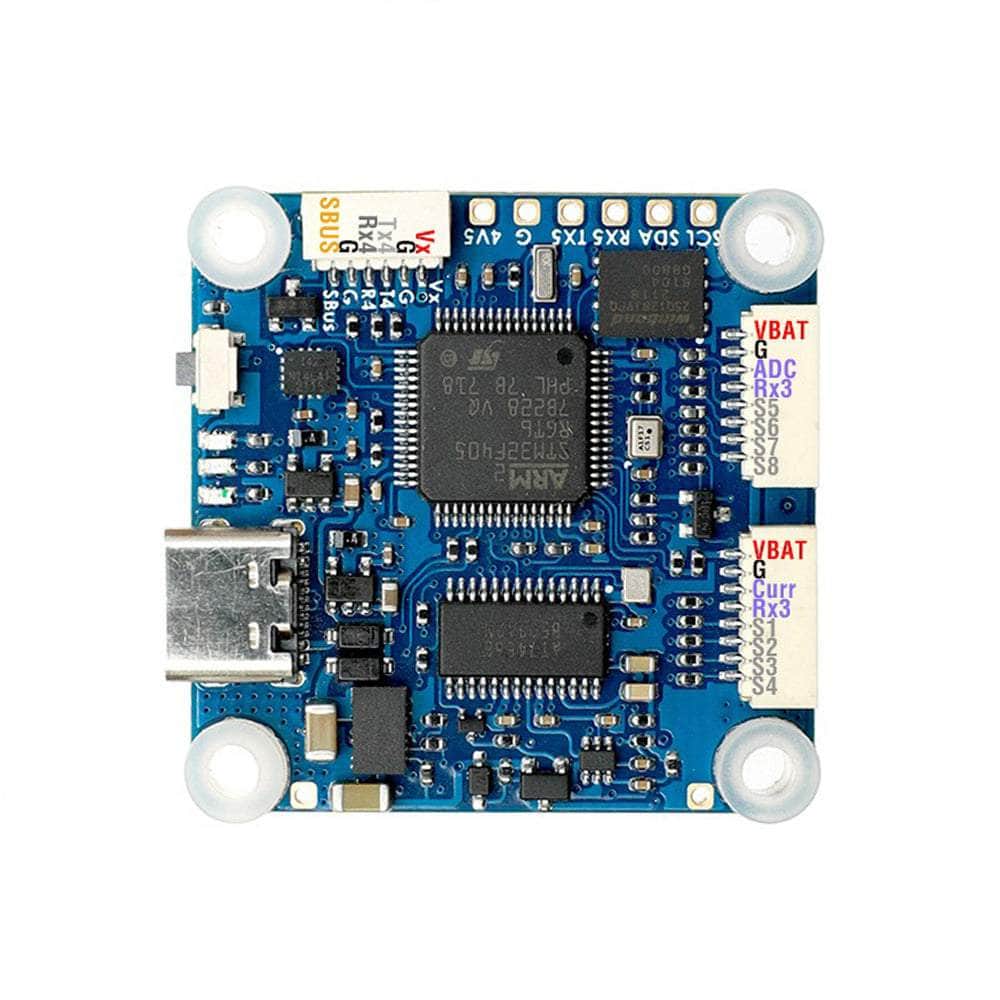

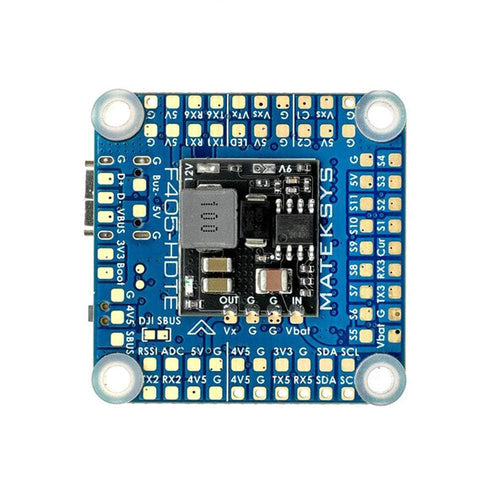

Matek F405-HDTE 30x30 Flight Controller

Original price $66.99 - Original price $66.99
Original price
$66.99 - $66.99
Current price $66.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Another feature rich offering from Matek in the 30x30 class. Loaded with features for digital and analog builds. Matek leads the pack when it comes to quality and performance.

Check out our 30x30 Flight Controllers as well as the entire Matek selection!


  • STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight
  • InvenSense the 3rd generation IMU ICM42688-P
  • 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX
  • 8motors+3servos in INAV/BF multirotor mixer.
  • SH1.0_8pin connector for PnP with 2x 4in1 ESC
  • SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)
  • USB pin breakout for connecting to external USB adapter


  • Input Voltage: 3-12S
  • MCU: STM32F405RGT6
  • IMU: ICM42688-P
  • OSD: AT7456E, DJI OSD
  • Barometer: SPL06-001 (I2C)
  • Blackbox: 16M-byte Flash memory
  • UARTs: 6 + 1x Softserial_Tx option
  • PWM outputs: 12 (8x Dshot)
  • I2C: Yes
  • BEC:  5V 1.5A, Vx,  9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)
  • ADC: 4 (VBAT, Current, RSSI, Airspeed)
  • PINIO: Yes
  • Dual Analog Camera Cignal Switchable: Yes
  • Mounting Pattern: 30x30mm
  • Dimensions 36x36x5mm
  • Weight: 7g


  • 1x Matek F405-HDTE Flight Controller
  • 6x Silicon grommets M4 to M3
  • 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors
  • 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)
