MenaceRC 5.8GHz SMA VTX & Receiver Antenna Pack - RHCP

The MenaceRC 5.8GHz SMA VTX & Receiver Antenna Pack - RHCP includes our best-performing and best-selling antenna in a neat pack along with various interconnects to make sure it will fit your drone, goggles, or ground station.

The Antenna Pack is the perfect way to get your FPV setup going with the correctly matched antenna without needing to research the minefield of antenna’s with the knowledge they will all work optimally together.

If your starting out or looking to upgrade your FPV setup then the Menace Antenna Pack is a one-purchase simple solution to get you the best performance.

Check out all our FPV Receivers & Antennas and our Menace selection!

Specifications

Invader Antenna

• Frequency Range: 5645 – 5945 Mhz
• Gain: 6.5 dBi
• Beam Width: 150° at -7db, 120° at -5db, 90° at -3db
• Right Hand Circular Polarised ( RHCP)
• SMA Connector (Fits FatShark Goggles)
• Dimensions: 45mm x 41mm x 16mm
• Weight: 11grams

Raptor Patch

• Centre frequency 5.8 GHz
• Frequency Range: 5550 – 6050 MHz
• Matching S11 < -20dB, VSWR <1.22
• Gain: 1.09dB with efficiency: 92%
• Axial Ratio <1.3
• Beam width: 360 degrees
• Right Hand Circular Polarised ( RHCP)
• SMA Connector (Fits Fat Shark Goggles)
• Height: 85mm
• Weight: 9.4grams

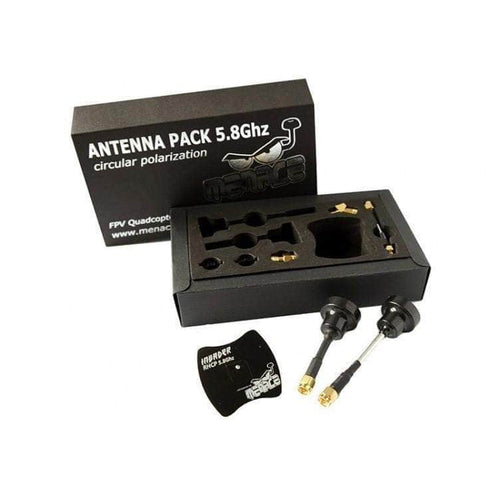

Includes

• 1x Invader Patch Antenna
• 1x Raptor Omni Antenna
• 1x Stubby Omni Antenna
• 1x 50mm SMA Semi Flex Extension
• 1x 45 degree SMA
• 1x SMA to RPsma Converter
• 2x SMA finger spinners
