Luma Quads Luma 30 Cinewhoop 3" Micro Frame Kit
The Luma 30 is an ultra-lightweight and super high-performance 3" cinewhoop that can be powered by the same 6S setup as its predecessor, the Luma 3, while still being able to carry a full-size GoPro. It has the same symmetrical bolt patterns on its top and bottom plates that allow it to be built in "puller" or "pusher" configurations, plus a 15mm slammed deck height for a low center of gravity and room for O3 Air Unit, Vista or analog VTX. Weighing just 85g (Frame hardware and prints) and 238g when fully built (without Gopro), it offers longer flight times and improved maneuverability over other 3" whoops. The only drawback is the durability of the injection-molded guards, which will break if you hit anything hard. To make sure customers are satisfied, they have included five guards in each kit. This version comes with black ducts and blue tpu.
Check out our selection of 3" Frame Kits as well as our Luma Quads Products!
Features
- HD Vista / analog compatible.
- Slammed 15mm stack height.
- Both Mini, Micro, and Nano FPV camera mounts are included - supporting all FPV cameras from 20-14mm.
- Support for all 3" propellers.
- Front Standard GoPro mount (suits any GoPro mounting style camera)
- Symmetrically designed to be built in either "Puller" or "Pusher" configurations.
- Both SMA and Vista/ Airunit 03 Rear mount with VTX antenna and Immortal T Style Antenna Mount included.
- Download the 3d model .stl files for this kit here.
Come on, can any other 3" Cinewhoop do moves like this?
The Ideal setup
Specifications
- Stack Mounting: 20x20mm and 25.5x25.5mm
- Rear Mounting: 20x20mm
- Motor Mount Pattern: 12x12mm M2 & 16x16mm M3
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2.5mm
- Motor to Motor: 157.5mm
- Frame Weight: 85g (238g built with no battery or HD cam)
Includes
- 1x Luma Quads Luma 30 Cinewhoop 3" Micro Frame Kit - Black
Kit contents:
HARDWARE BAG BREAKDOWN:
| Bag A - MAIN | Quantity |
|
M2 8mm Bolt |
12x |
| M2 15mm Standoff | 6x |
|
Bag B - STACK |
|
| M2 14mm Bolt | 4x |
|
M2 Plastic Nut |
4x |
| Bag C - REAR STACK | |
|
M2 18mm Bolt |
4x |
|
M2 Steel Nut |
4x |
| Bag D - MOTORS | |
|
M2 10mm Bolt |
16x |
| M2 Washer | 16x |
|
Bag E - HD MOUNT |
|
| M2 8mm Bolt | 2x |
| M2 10mm Bolt | 2x |
| M2 Steel Nut | 4x |
| M2 Steel Washer | 4x |
| M5 Steel Nut | 1x |
CARBON PARTS.
| 2mm Top-plate | 1x |
| 2.5mm Bottom-plate | 1x |
3D PRINTED PARTS.
| Front FPV Camera mounts | 2x |
| Front GoPro Hard-mount | 1x |
| Rear Immortal T & Vista Antenna Mount | 1x |
| Rear Immortal T & SMA Antenna Mount | 1x |
| 25.5x25.5 Stack RX Mount | 1x |
| Rear 20x20 Analog RX/VTX Mount | 1x |
Plastic Parts.

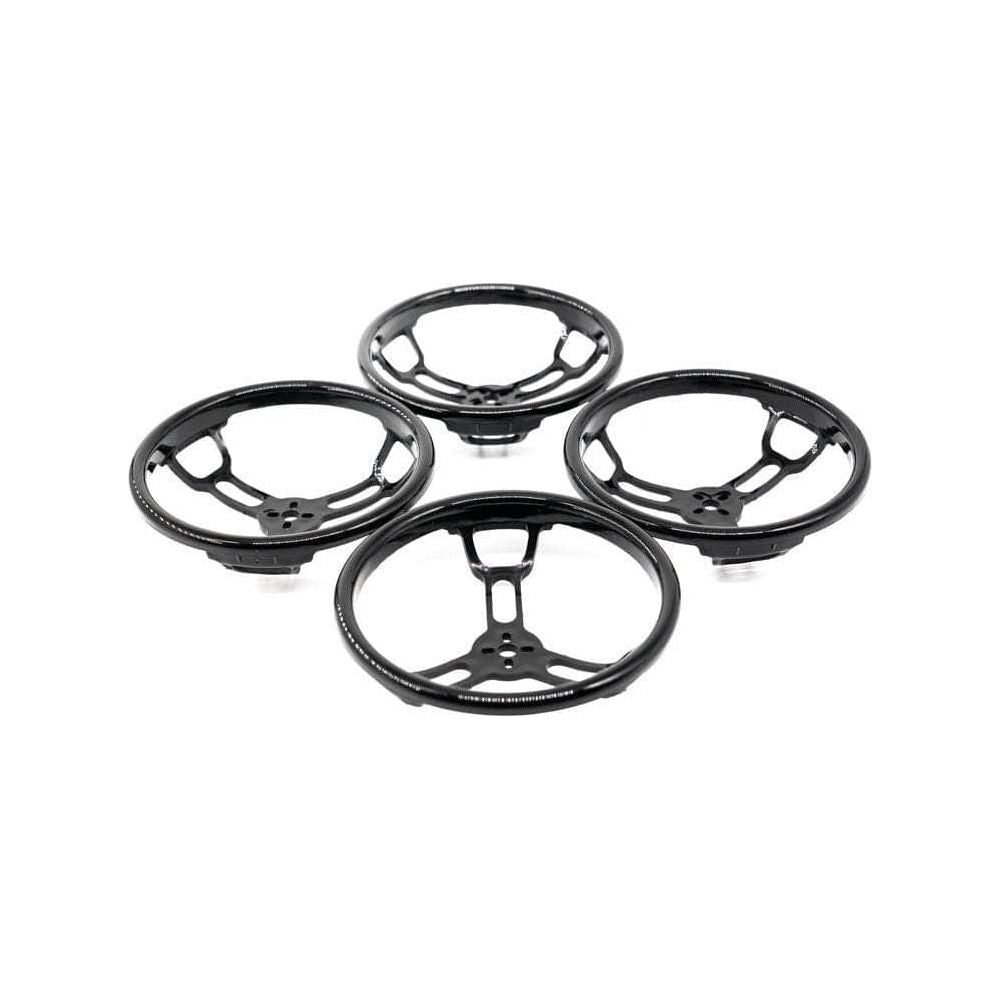

| 3" Prop Guards | 6x |
Extras.
| Zipties | 4x |
| Luma 250mm Lipo Strap. | 2x |
Assembly guide.
The Luma 30 is designed to be built in either Standard or Pusher configuration.
The following guide is for Standard configuration, if you want to build the Luma 30 as a Pusher the two carbon plates as well as the guards need to be flipped upside down and you attach the HD mount to the Bottom plate and the standoffs to the Top plate instead.
1) HD Mount
Insert 1x M5 Steel Nut into the GP mount as shown.
Secure the Gopro mount to the top plate using 2x 8mm M2 bolts washers and steel nuts through the front 2 holes of the mount.
2) Main Frame.
Install 6x 15mm Standoff onto bottom plate.
Secure with 6x 8mm M2 bolts from below.
Insert front FPV camera mounts over front 2 standoffs.
Insert Rear antenna mount over rear 2 standoffs.
Align top plate over the standoffs
Secure with 4x 8mm M2 bolts
Insert 2 more 8mm bolts with M2 washers through the back 2 holes on the GoPro mount into the middle two standoffs.
3) Prop Guards and bumpers
Align and orientate the prop guards as shown.
Secure the guards and bumpers using 16x 10mm M2 bolts and M2 washers.
These are screwed through the bumpers, carbon plate and guards into the base of the motors.
NOTE: M2 BOLTS HAVE SKINNY CAPHEADS
DO NOT FORGET TO INSTALL THE WASHERS!
DEPENDING ON WHAT MOTORS YOU RUN IT MAY BE NESSASARY TO EXPAND THE CENTER HOLE IN THE GUARDS
BY A FRACTION OF A MM TO ALLOW THE BASE SCREW TO SPIN FREELY.
BE SURE NOT TO LET THE MOTOR BOLTS TOUCH THE WINDINGS OF THE MOTORS
4) Rear Antenna
Secure the Immortal T antenna Into the rear mount using zipties.
5) Other
The included 25.5x25.5mm or 20x20mm RX mounts can be used either on top of main stack to secure an RX if using Vista or in the rear 20x20mm stack mount position for rear mounted Analog VTX/RX.
IMPORTANT:Do not let electrical components come in contact with the carbon, use spacers that came with your with FC stack and the included RX/VTX Mounts to space your components away from carbon.
