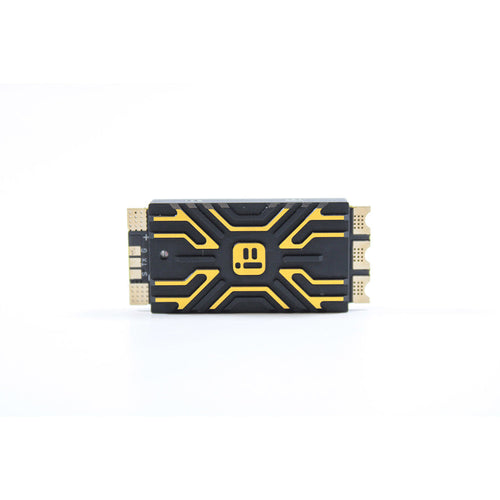

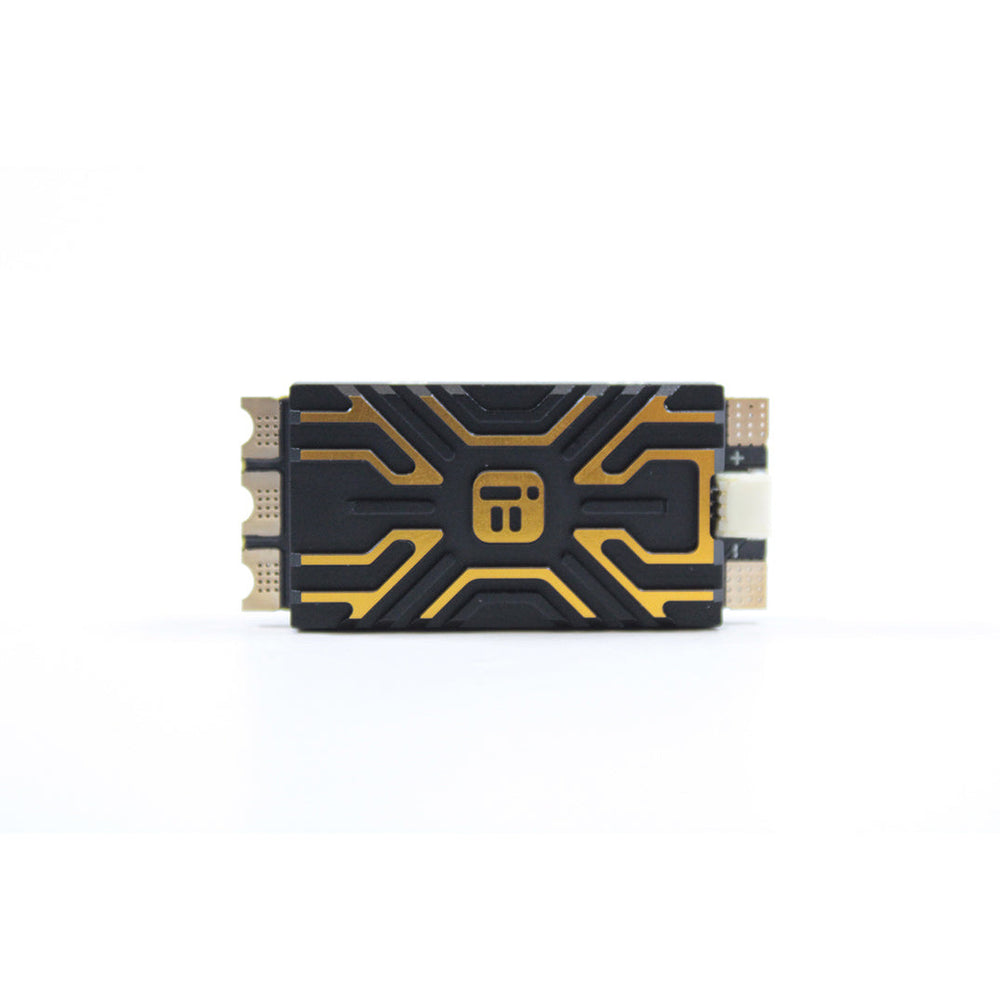

iFlight Blitz E80A X-Class 32Bit 2-8S 80A ESC - CNC Alum Cover

BLITZ E80 BLHeli Dshot600 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster-responding speed and a smoother flying experience.

Check out all our individual ESCs and all our iFlight gear!

Features

• 2-8S input
• 80A 8 layers 4OZ copper PCB, better operating load capacity;
• 11 pieces TDK MLCC total 420UF Low ESR capacitors, lower ripple, and more stable.
• Top grade NTMFS5C430NL MOSFET, stable and reliable;
• A 3528 LED for power- on display;
• Rational layout, large soldering pad, countersinks, and semicircle orifices enable each layer to be energized after power-on.

Specification

• Dimension: 40x17mm
• Weight: 9.5g without wire
• Supports 2-8S lipo input
• STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware
• Capacitance: total 240UF Low ESR
• BEC: No
• Supports: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
• Target: IFLIGHT_BLITZ_G2

Supports

• Current Sensor
• Telemetry output
• Motor Timing
• Brake on Stop

Includes

• 1x BLITZ E80 Single ESC
• 1x 50V 470uf capacitor
• 1x Power cables & ESC signal wire set
