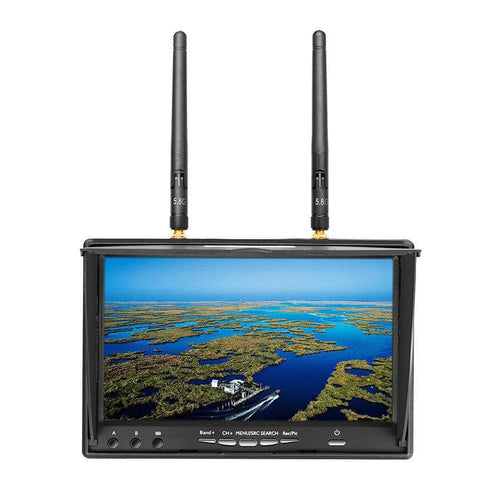

Eachine 5.8GHz 40CH 7 Inch FPV Monitor with DVR

Original price $119.99
Original price $119.99 - Original price $119.99
Original price $119.99
Current price $89.99
$89.99 - $89.99
Current price $89.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Don't strain your eyes from struggling to see a tiny screen. Go big with the Eachine 5.8G 40CH 7 Inch FPV Monitor with DVR! Featuring an integrated folding sunshade, diversity receivers, DVR and internal battery. This is an ideal display if you want to spectate other pilots or just fly FPV without goggles on your face!

Check out the rest of our FPV monitors!

Features

  • DVR
  • Dual buffered AV outputs
  • Not affect by 2.4GHz R/C Radios
  • AV Receiver with Diversity inputs
  • Small, light weight, durable
  • 5 Bands and total 40 Channels
  • Built-in battery, easy to carry and outdoor use
  • Automatic signal search
  • Simple operation
  • Work status OSD display

Specifications

  • Screen size: 7”
  • Screen type: TFT LCD Screen/long life, LED backlight
  • Resolution: 800*480
  • Brightness: 600cd/m2
  • View Angle: 140/120degree (Horizontal/Vertical)
  • Size: 180mm x 120mm x 25mm(Note:Sunshield height:110mm)
  • Working Voltage: DC 7~16V
  • Power Consumption: max 650 mA @12V
  • Battery charging current: 850mA @12V ( max )
  • Working temperature: -10℃~+ 65 ℃
  • Connectors: RP-SMA female(outer needle)
  • Antennas Connectors: RP-SMA male (inner hole)
  • Storage: Support up to 32G , C10 SD Card

Includes

  • 1x Eachine LCD5802D 5.8G 40CH FPV Monitor w/ Internal Battery - 7"
  • 2x 5.8G Antenna
  • 1x AV Cable
  • 1x Charger

>
