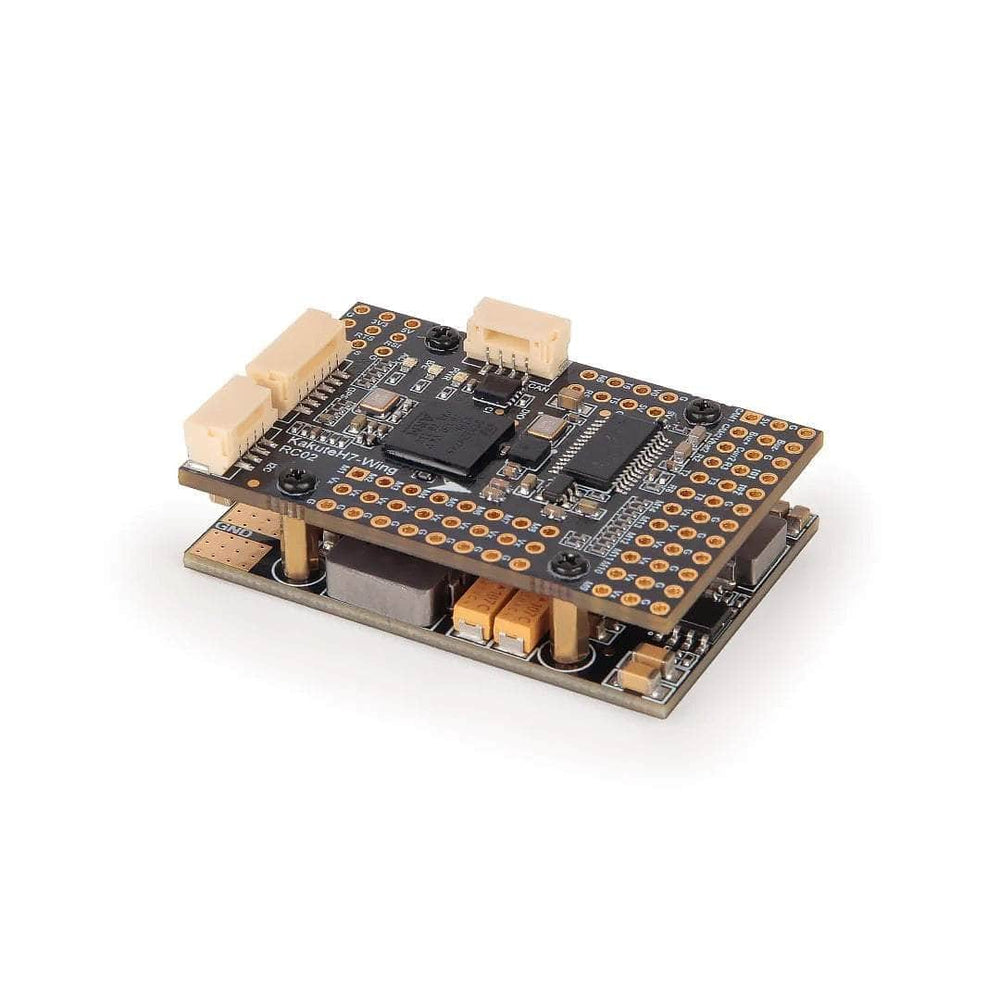

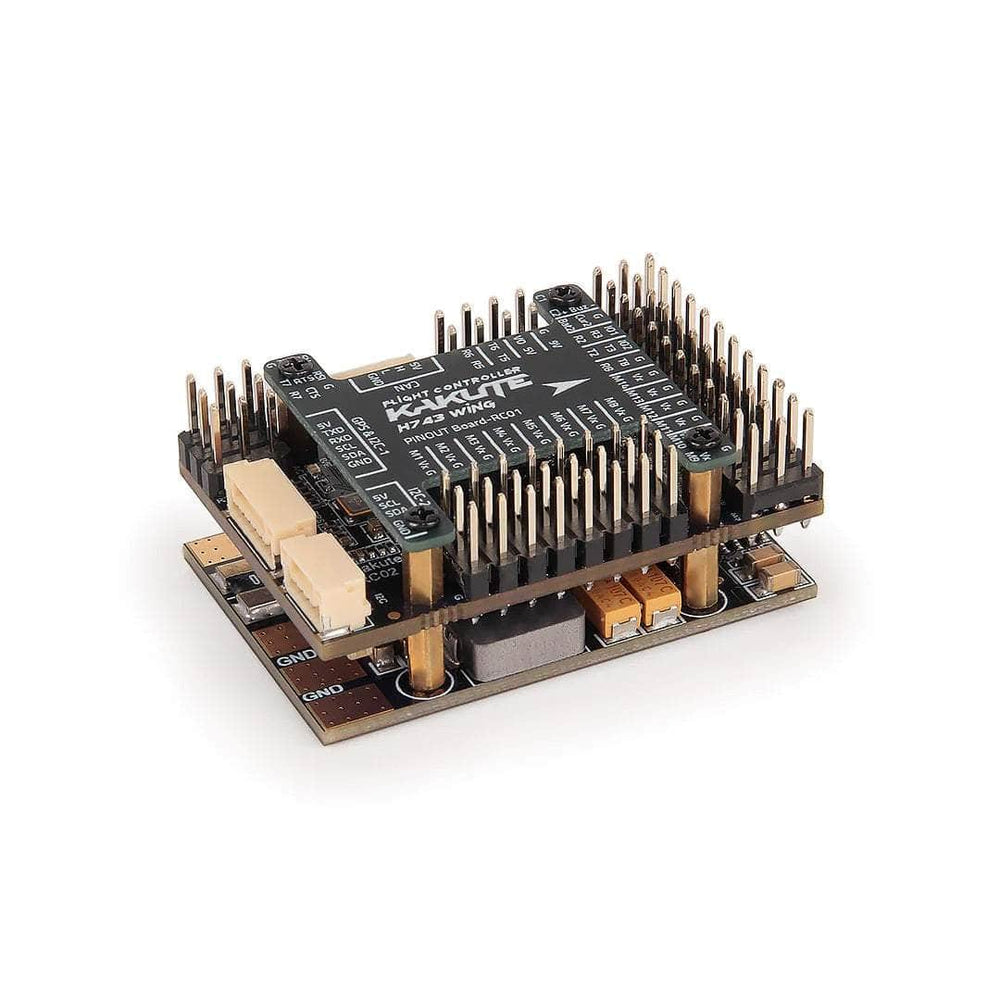

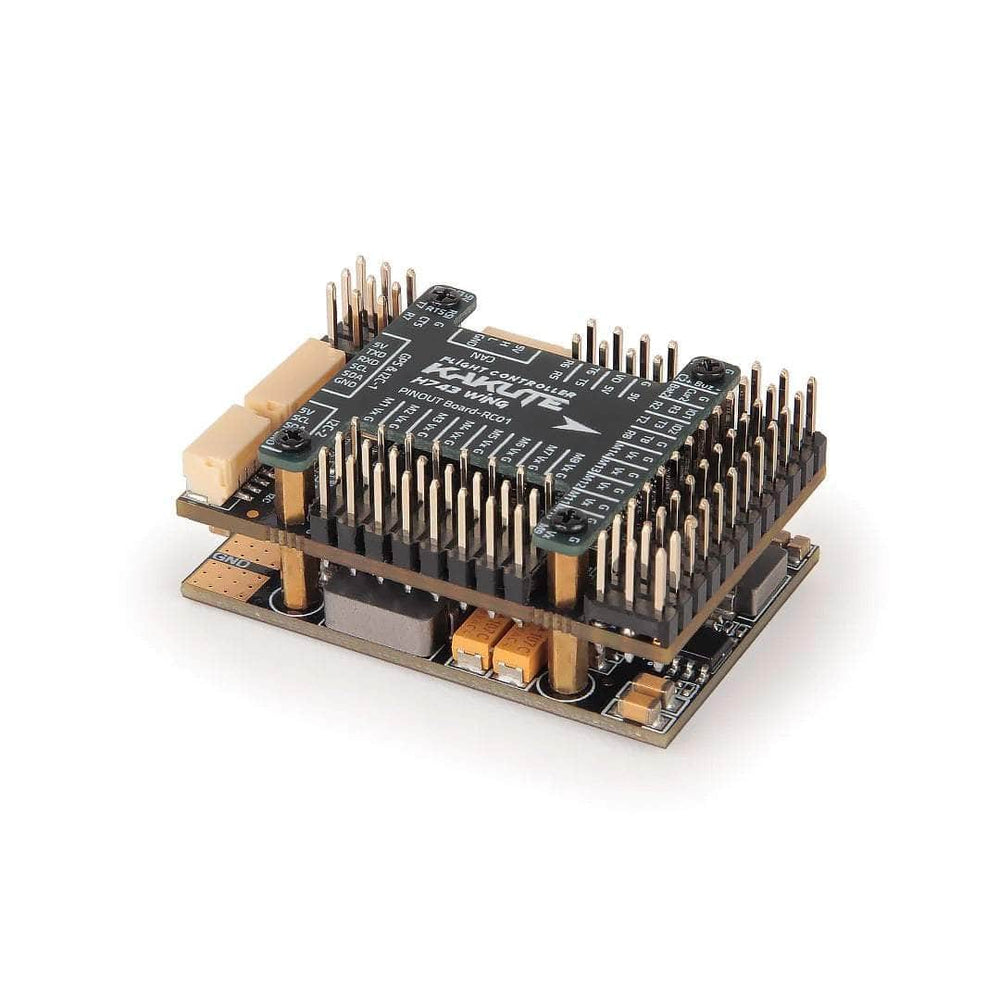

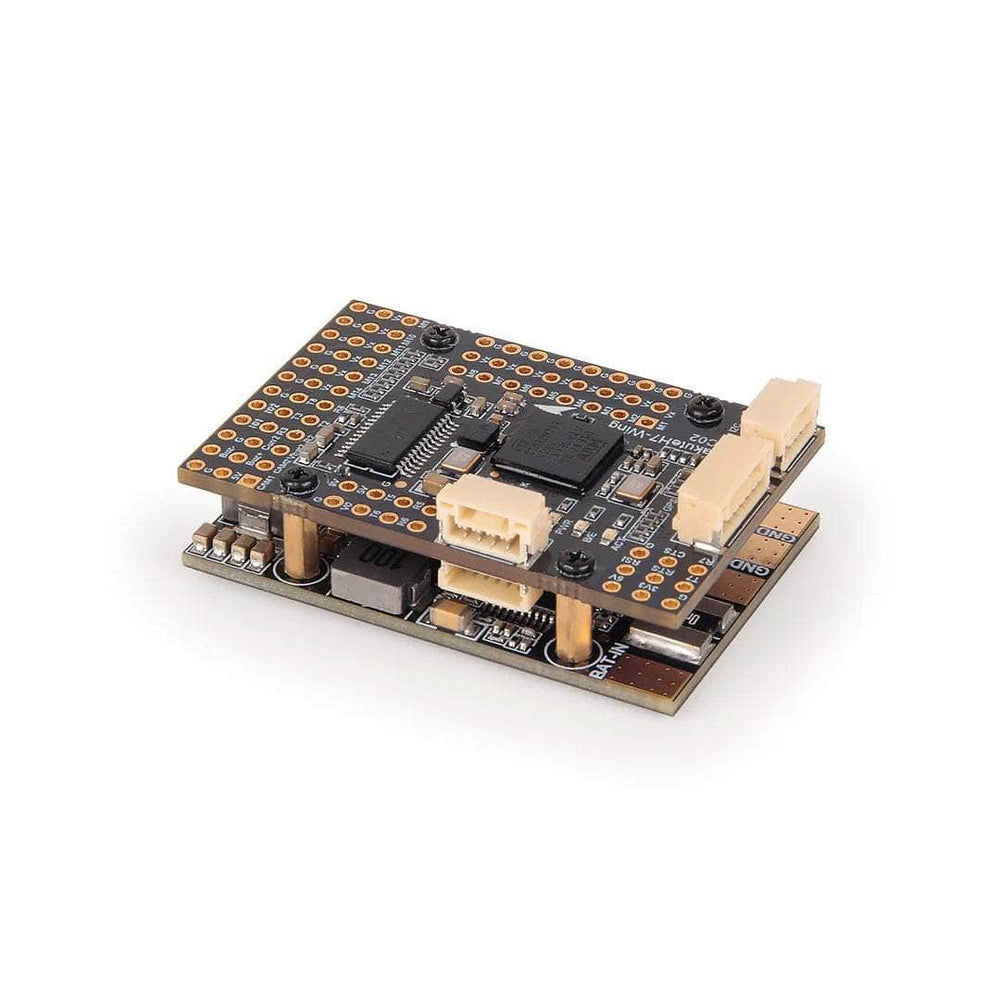

Holybro Kakute H743-WING 3-8S Fixed Wing Flight Controller

$100.49
$72.99 - $100.49
$72.99 - $100.49
$100.49
Pin Header :
Out Of Stock
Add to Wishlist
Ask a Question

Details

Description

A serious fixed-wing pilot can count on the Holybro Kakute H743 Wing flight controller for powerful operation and reliable performance. Equipped with the STM32 H743 Processor running at 480 MHz, CAN Bus support, dual camera support & switch, 9V/12V ON/OFF Pit Switch, and plug-and-play GPS, and I2C ports, this controller is designed for fixed-wing & VTOL applications. Featuring an intuitive layout, it works with INAV and Ardupilot systems for rapid setup and precise control.

Choose between having the pin headers solder on or loose.

Check out our other wing flight controllers and the rest of our HolyBro selection!

Features

  • STM32H743 MCU running at 480 MHz
  • High-Precision / low-noise ICM-42688-P IMU
  • CAN Bus Support
  • Dual Camera Inputs switch
  • 3 On-board BEC output 5V, 6V/8V and 9V/12V
  • 9V/12V ON/OFF Pit Switch
  • On-board voltage & current sensor
  • Integrated BMP280 barometer
  • Plug-and-play GPS, CAN, I2C ports
  • Small & low-profile design fits into compact frames
  • Supports INAV (6.1.1 & later), Ardupilot (4.4 & later)

  • Holybro Kakute H743-Wing Manual v1.0


Specifications

  • MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash
  • IMU: ICM-42688P (SPI3)
  • Baro: BMP280 (I2C4)
  • OSD: AT7456E (SPI2)
  • Blackbox: MicroSD card slot on SDMMC2
  • 7x Uarts (1,2,3,5,6,7,8) with built-in inversion.
  • 14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)
  • 3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)
  • USB/DFU Key Extender with USB Type-C
  • Dual Camera Inputs switch
  • 5V/9V(12V) for Camera/VTX power switch
  • High-precision Current Sense (90A continuous, 220A peak)
  • Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
  • Static power 160mA@5V

Firmware Support

PDB

  • Input voltage range: 10~36V (3~8S LiPo)
  • 1x ESC power pads
  • Current Sense: 90A continuous, 220A peak. (Scale 275 in INAV, 36 A/V in ArduPilot)

BEC 5V output

  • Designed for FC, Receiver, OSD, Camera, 2812 LED Strip, Buzzer, GPS, Air Speed Sensor, etc.
  • Output 5.15 +/- 0.1V DC
  • Continuous current 2 Amps, 3A Peak

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal etc.
  • Continuous current 2 Amps, 3A Peak
  • 12V option with Jumper pad

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 6V Default, 8V option with Jumper pad
  • Continuous current 6 Amps, 8A Peak

BEC 3.3V output

  • Linear Regulator
  • Continuous current: 200mA

Mechanical

  • Mounting: 25 x 25mm, M2 hole
  • Dimensions: 45x 30 x 13.5 mm
  • Weight: 28g with USB extender

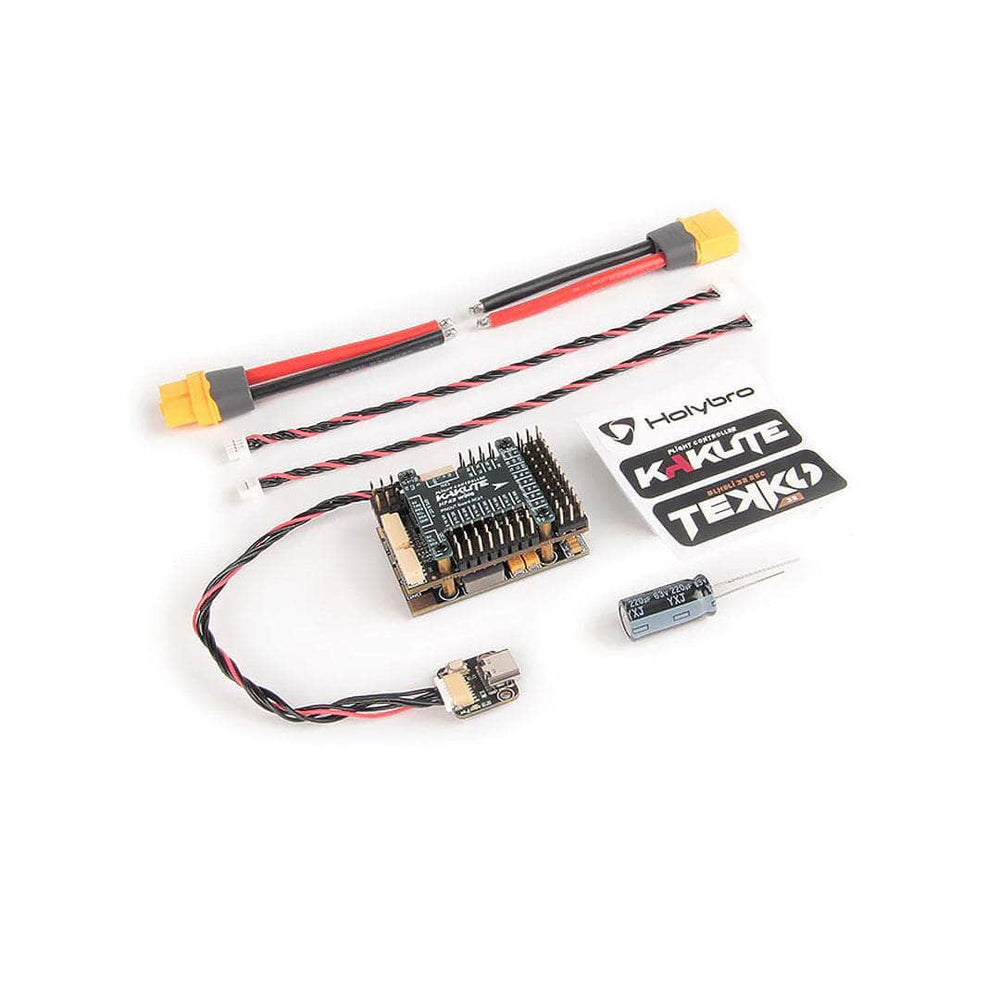

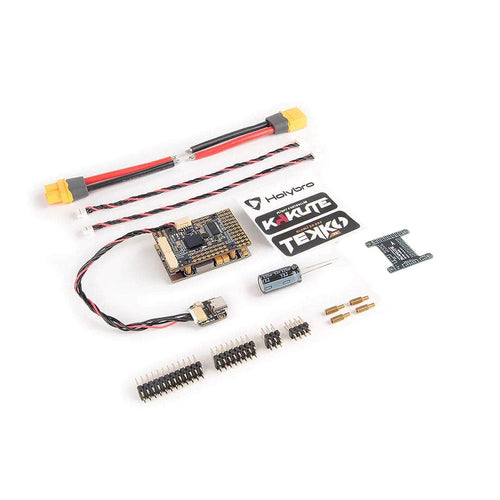

 Includes

  • 1x HolyBro Kakute 3-8S Fixed Wing Flight Controller
  • 1x Power Board
  • 1x Top Board
  • 1x USB-EXT Board
  • 1x GPS Module (Optional)
  • 1x Electrolytic capacitor: 220uF 62v
  • 2x XT60 60mm Power Cable
  • 4x Sets 2.54 DuPont Pin
  • 2x JST-GH 4Pin Cable
  • 1x 15cm JST-SH 6Pin Cable (For USB-EXT Board)

Wiring Diagram

More Information:

  • SKU: 22645
  • Barcode: 6910236001631
