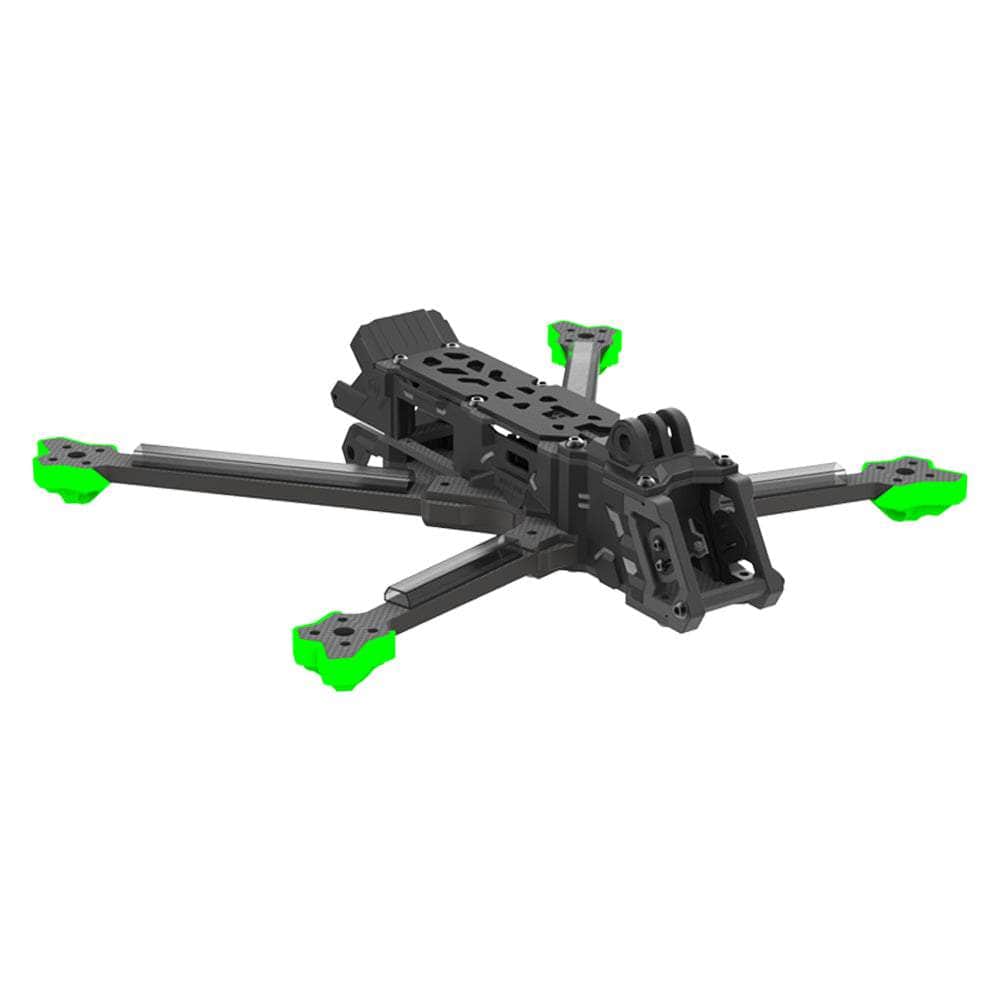

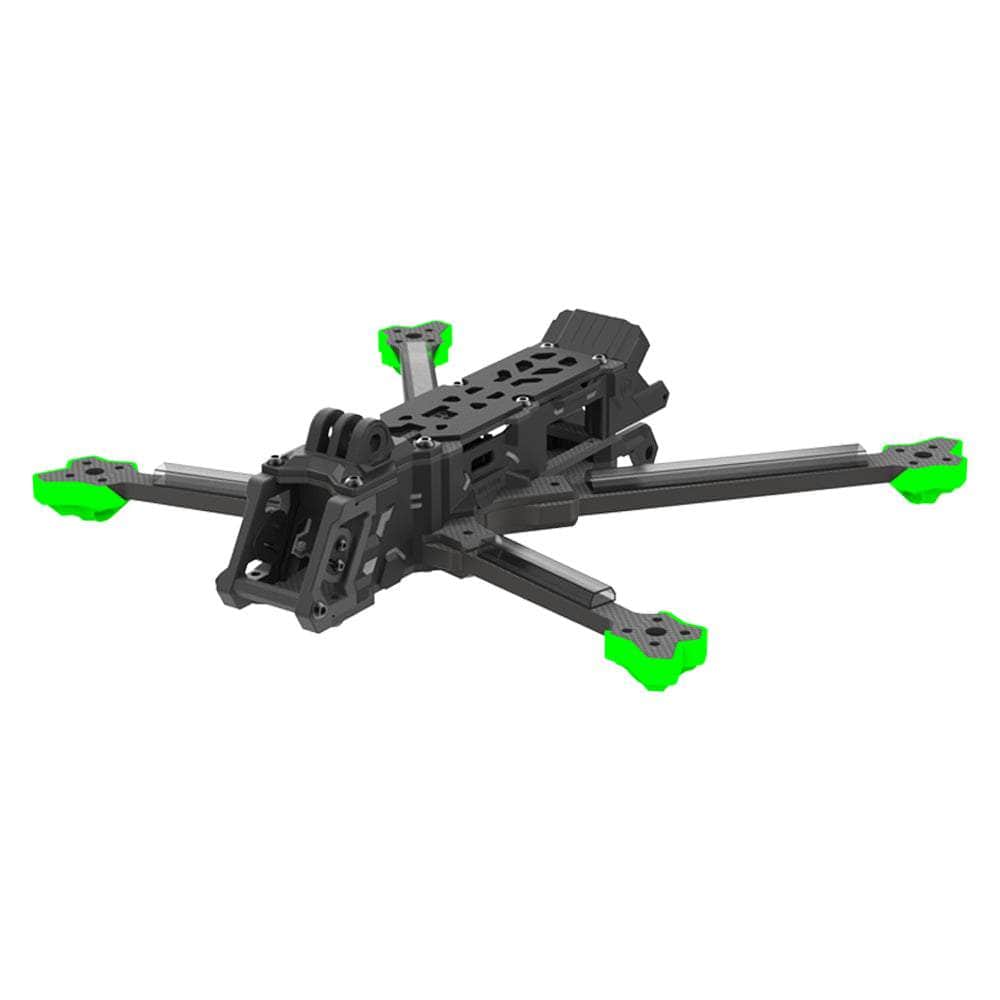

iFlight Nazgul Evoque F5D V2 HD O3 Deadcat 5" Freestyle Frame Kit w/ LED Side Plates

Description

Features

• V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
• Specially Designed Heatsink for DJI O3 Air Unit

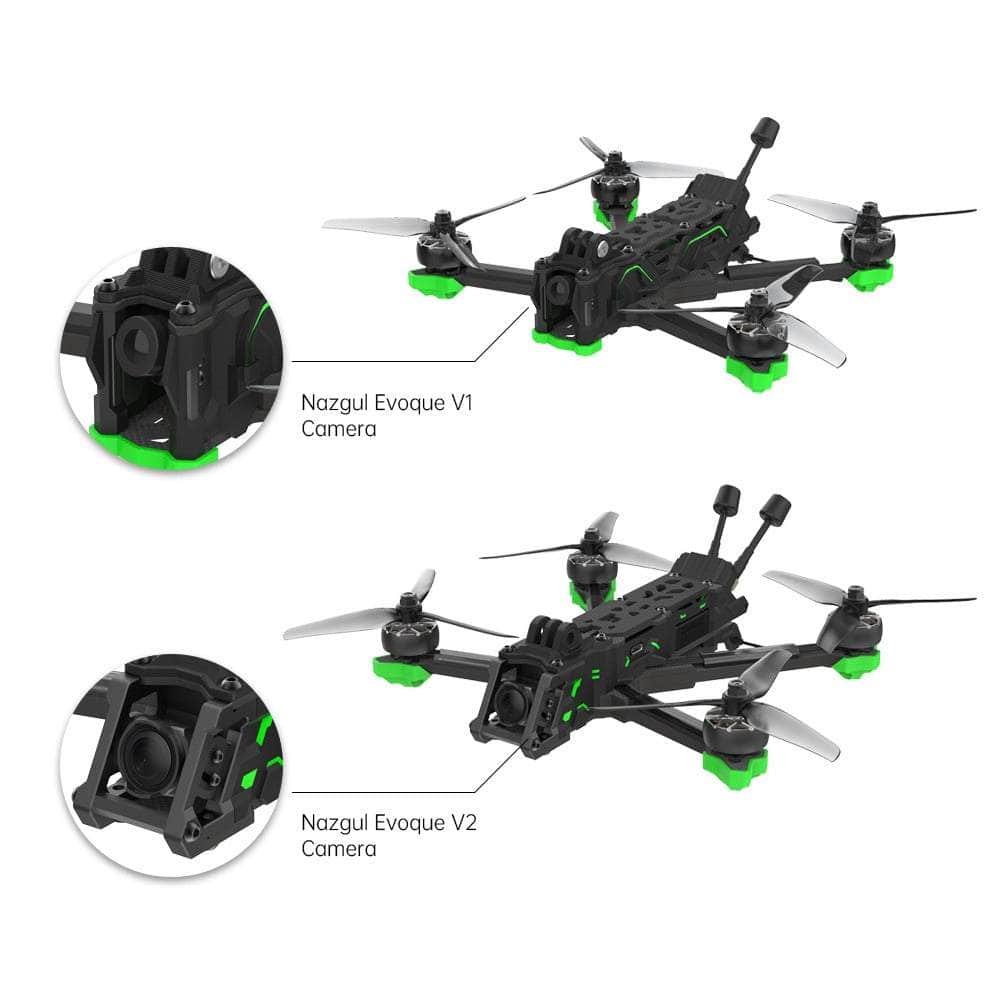

• New Camera Mount for a wider camera FOV with TPU damping inserts
• New Side Panels to perfectly fit the O3 Air Unit in the back
• New Dual 5.8G VTX Antenna TPU mount
• Latest Nazgul Frame Upgrades for Maximum Protection

Specifications

• Product Name: Evoque F5 V2 Frame Kit - DeadCat

• Frame wheelbase: 223 mm (DeadCat)

• Frame Dimension: L190xW136xH36 mm (DeadCat)

• Frame Body Dimension: 36mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 3mm

• Camera Plate Thickness: 3mm

• Max Flight Stack Height: 22mm

• Max VTX Height: 23mm

• Motor Mounting: 16x16mm

• VTX Mounting: 25.5x25.5/Φ1.6mm

• Weight: 240grams

Includes

• 1x iFlight Nazgul Evoque F5D V2 HD O3 Deadcat 5" Freestyle Frame Kit w/ LED Side Plates
• 1 x O3 Air Unit Heatsink
• 2 x O3 IPEX to RP-SMA Antenna Pigtails
• 1 x O3 Dual Antenna TPU
• 1 x GoPro TPU Base Mount
• 1 x Screw Bag
• 4 x TPU Armguard
• 1 x Front Bumper TPU
• 1 x Rear Bumper TPU
• 2 x Anti-slip Battery Pad
• 2 x Battery Strap (20x250mm)
