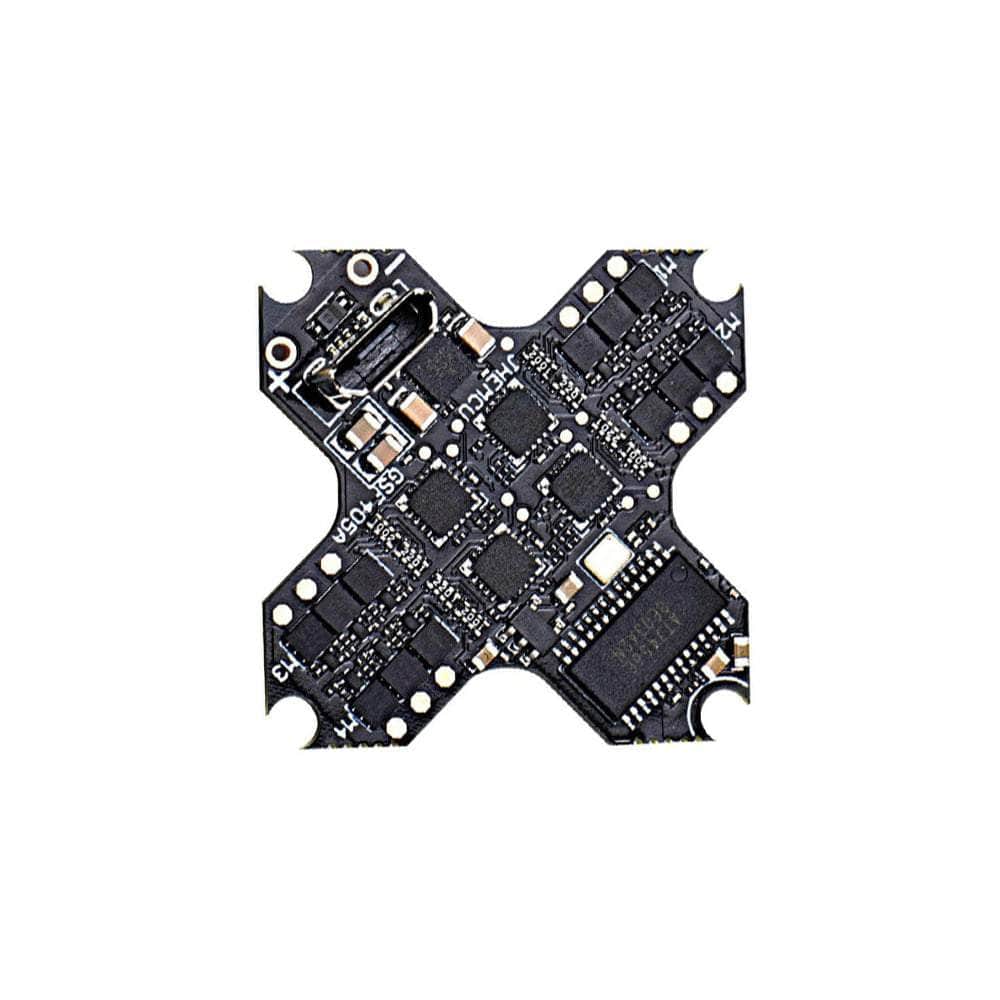

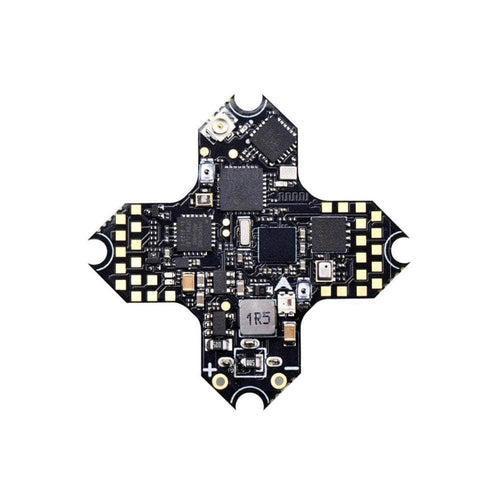

JHEMCU GSF405A 1-2S Toothpick/Whoop AIO Flight Controller w/ 8bit 5A ESC and ELRS 2.4GHz RX

$82.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more
Add to Wishlist

JHEMCU has done it again with this impressive 1-2S AIO featuring an ExpressLRS built-in RX!

Make sure to check out our ELRS collection and the rest of our JHEMCU selection!

Specifications

  • Input Voltage: 1-2S
  • CPU: STM32F405
  • Gyro: MPU6000
  • OSD: AT7456E
  • Barometer: BMP280
  • Black box: 8MB
  • IIC: Support
  • BEC: 5V
  • UART: UART1 (ELRS), UART2 (external RC), UART3, UART4, UART6
  • Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
  • Buzzer: Yes
  • Current Sensor: Yes
  • Protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Continuous current: 5A
  • Firmware: BLHELI_S S_H_50_REV16_7.HEX
  • Mounting Pattern: 25x25 M2
  • Weight: 3.3 grams

Express LRS Receiver

  • Frequency: 2.4GHZ
  • Protocol: CRSF
  • Firmware: DIY_2400_RX_ESP8285_SX1280

Includes

  • JHEMCU GSF405A 1-2S Toothpick/Whoop AIO Flight Controller w/ 8bit 5A ESC and ELRS 2.4GHz RX
