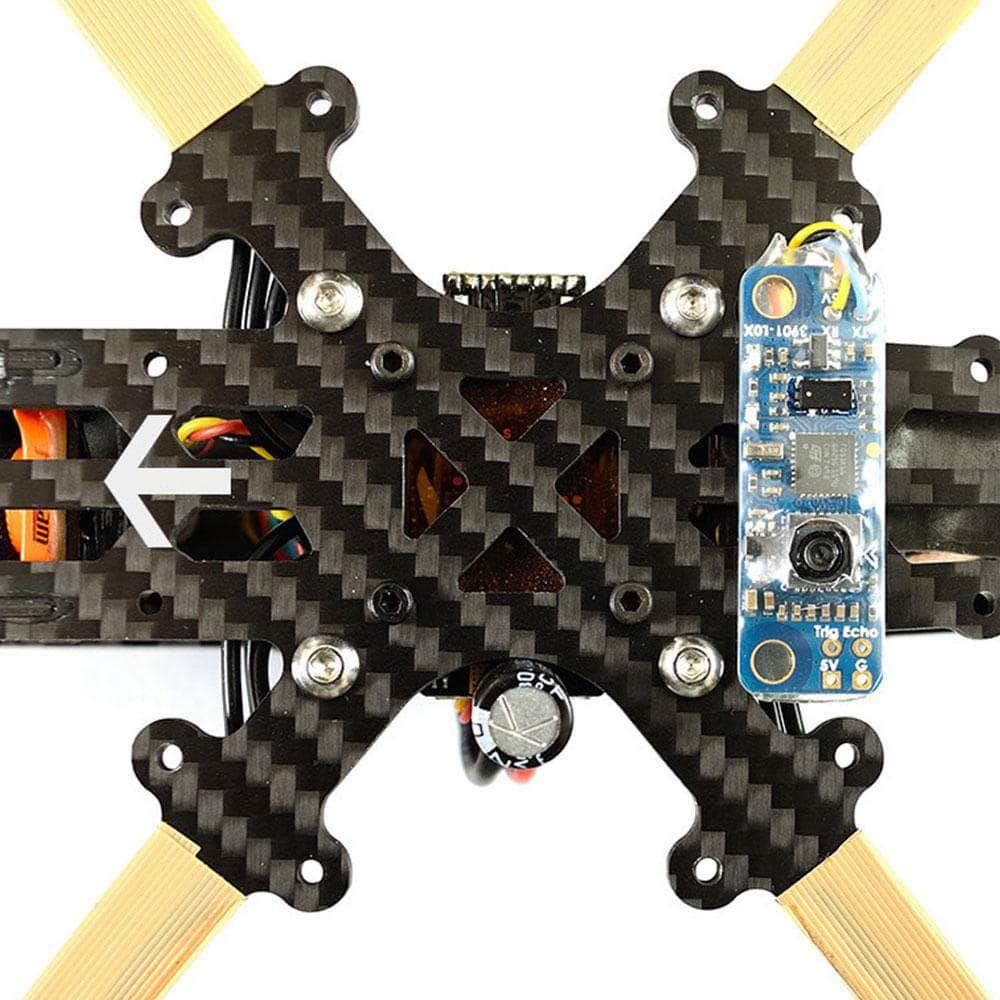

Matek 3901-L0X Optical Flow & Lidar Sensor

Matek 3901-L0X Optical Flow & Lidar Sensor

$35.99
$35.99
Add To Wishlist
View full details

Details

Description

This sensor works basically the same way as an optical mouse, helping your iNAV quad to maintain position without GPS! This module also integrates a laser time-of-flight range sensor. Check out Paweł Spychalski's video below.

For a comprehensive guide check out Setting up Optic Flow in INAV by digitalentity

Check out all our Matek products!

Specifications

  • Optical Flow: PMW3901
  • Lidar: VL53L0X
  • Interface UART
  • Protocol: INAV MSP
  • Working Range: 8cm~200cm
  • Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)
  • Minimum Illumination >60Lux
  • Input voltage: 4.5~5.5V
  • Power Consumption: 40mA
  • Size: 36*12mm,  2g

Tips

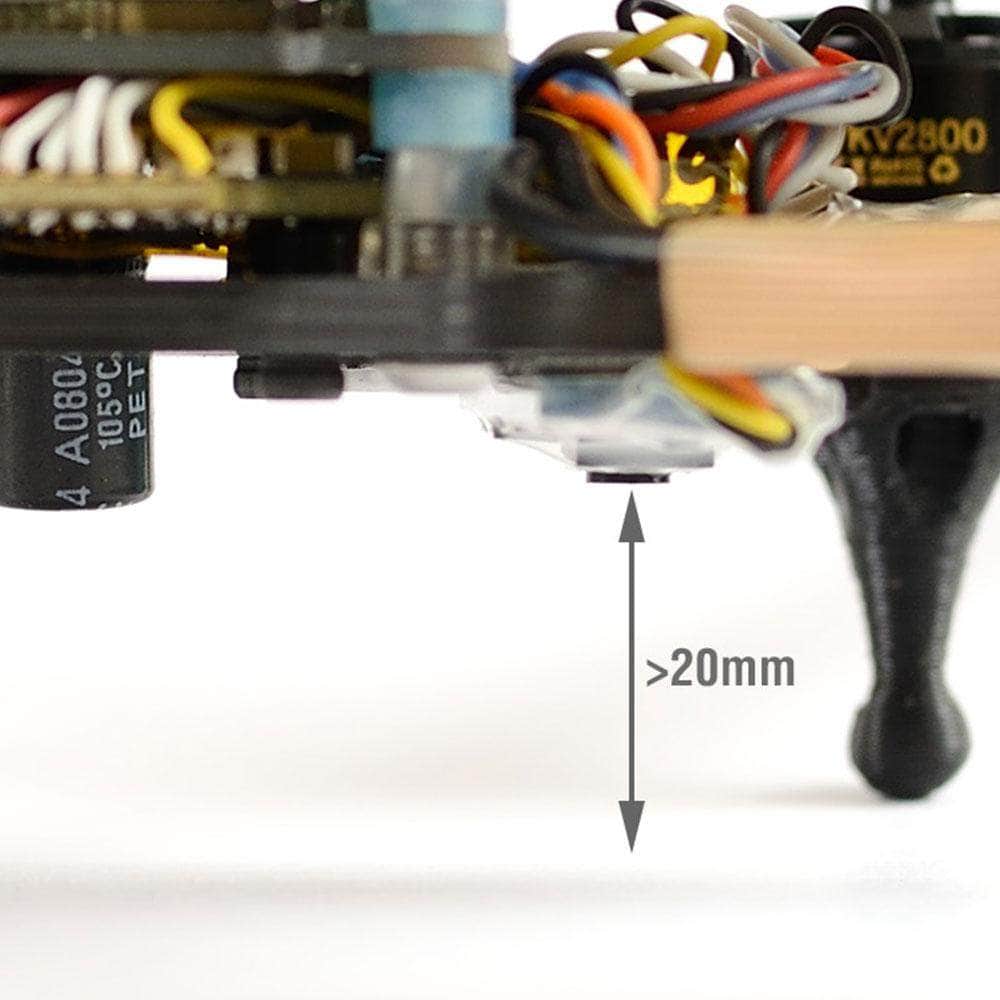

  • Be sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.
  • Maximum range of VL53L0X is 2m,   Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.
  • Any unused UART of FC supports it
  • Sonar connection (Trig & Echo) has not been implemented
  • Setting up Optic Flow in INAV   PDF by digitalentity

    Includes

    • 1x Matek 3901 L0X Optical Flow & Lidar Sensor

        More Info

        • SKU: 11930
        • Barcode: 691023490734
