TBS Lucid 60A 3-8S AM32 4-in-1 ESC - NDAA

Description

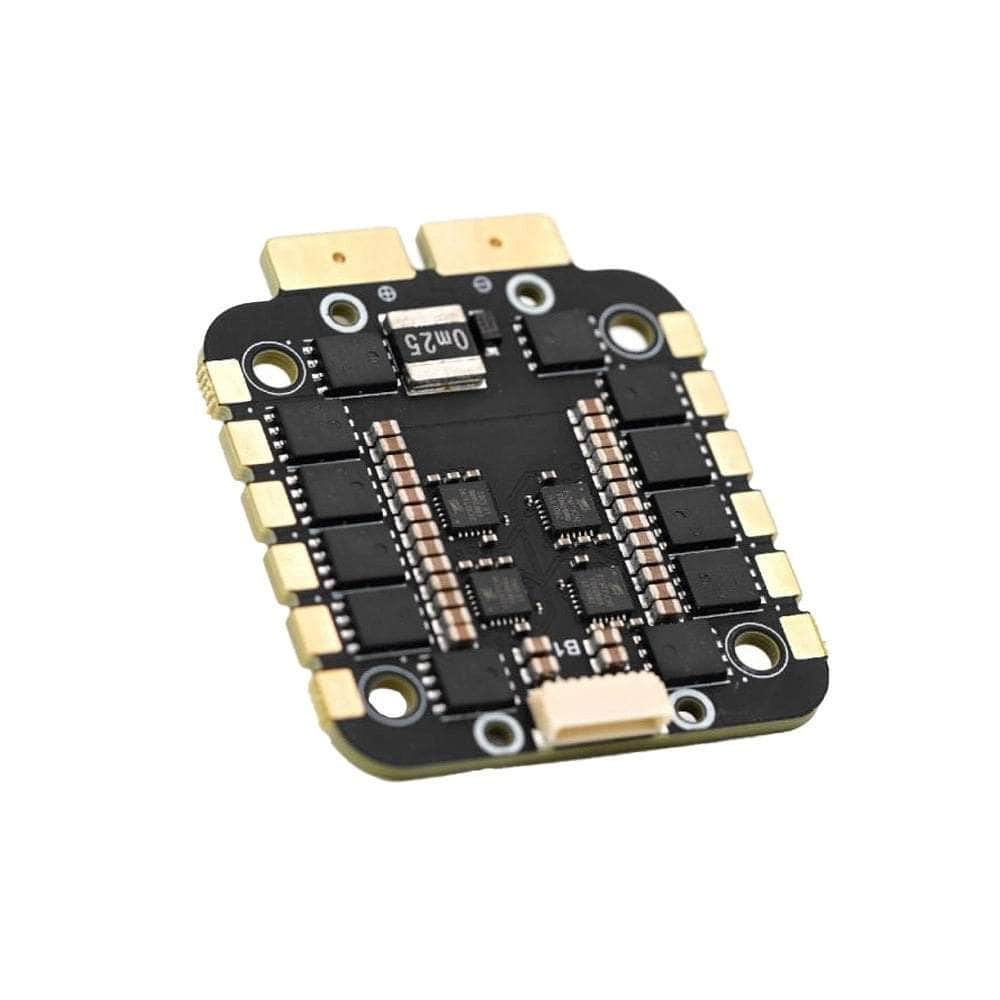

Engineered for peak performance, the NDAA Version of the TBS Lucid 60A 4-in-1 ESC is designed to satisfy both seasoned pilots and ambitious newcomers. Built on an 8-layer high current density board with twice the market average onboard capacitance, it delivers ultra-smooth flight control and explosive acceleration. Crafted for resilience, the Lucid ESC excels under extreme conditions, with advanced thermal dissipation removing the need for bulky heat sinks. Developed in close collaboration with AM32, it’s fine-tuned for maximum efficiency and affordability. NDAA-compliant for added security and compatibility.

Make sure to check out our other ESCs and everything NDAA Compliant!

Features

• 8-Layer High Current Density Board
• Enhanced On-Board Capacitance
• Optimized for Racing & Freestyle
• Exceptional Thermal Dissipation
• Robust & Reliable ESC
• Powerful Acceleration
• AM32 Collaboration
• NDAA Compliant

Specifications

• Mounting: Gorilla-mount (39.5mm x 16.0mm) & 30.5mm x 30.5mm, or Brackets for 20mm x 20mm
• Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
• Propellers: Up to 11"; over 7" requires good airflow
• ESC Software: AlkaMotors32 (AM32)
• Rated Current: 60A x 4 (60 seconds)
• Peak Current: 85A x 4 (10 seconds)
• Weight: 17.58g (22g with brackets)
• Brackets for 20mm x 20mm
• ESC Target: tbslu8s4in1
• ESC Current Port: Yes
• Size: 50mm x 42mm
• Input: 3-8S LiPo
• BEC: No

Links

• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• Gorilla mounting pattern
• TBS Lucid Manual
• AM32 Firmware

Includes

• 1x TBS Lucid 60A 3-8S AM32 4-in-1 ESC - NDAA
• 1x Aluminum top bracket for 20x20 FCs
• 1x XT60 power connector
• 4x 2.2x4mm standoffs
• 1x 560uF 8S Capacitor
• 1x Hardware Set
