BetaFPV BT2.0 1S Whoop Connector Male/Female Set 5 Pack

Original price $4.99 - Original price $4.99
Original price
$4.99
$4.99 - $4.99
Current price $4.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

BT2.0 Connector - the most significant revolution in 1S Whoop Drone!

BT2.0 1S Whoop Connector is an option for you to modify your existing batteries and drones which use the PH2.0 connector. With the 1.0mm banana connectors, it can support 9A continuous current and 15A burst. Makes the best potential of brushless whoop drone, and display the perfect performance of your drone with BT2.0 300mAh 1S battery.

Check out all our pigtails, connectors and adapters as well as our range of BetaFPV gear!

Not sure if it's worth to switch BT2.0? Check more from Joshua Bardwell'video- Proof that BT2.0 connector is better than PH 2.0

Features

  • BT2.0 connector decreased internal resistance of connector effectively by upgrading the crimped pins to 1.0mm banana connector and increasing the cross-sectional area of 1.0mm banana connector.
  • BT2.0 connector supports 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current. Brings more perfect flight experience when you fly the 1S brushless whoop drone.
  • By using the BT2.0 connector, it can solve the problem of voltage sag, the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flight time without disturbance of low voltage warning.
  • With the light and customized 22AWG wire, it will make the drone more lighter. The wire uses US standard core 0.08mm*60. The diameter of silicone outer layer is only 1.5mm, which is 0.2mm thinner than 22AWG standard wire.

There is a graph of comparison between BT2.0 connector and PH2.0 connector (solid pins version) in BETAFPV 1S 300mAh battery. The discharge current is 9A in this testing. You could see that it has double time (about 2minutes) with BT2.0 connector.

Specifications

  • Size: Male Connector - 6.0*4.2*10.5mm / Female Connector - 6.0*4.2*8.3mm
  • Weight: Male Connector- 0.34g/PCS / Female Connector - 0.24g/PCS
  • Note: The terminal molded case identifies the positive and negative poles, and must be welded according to the instructions.

Includes

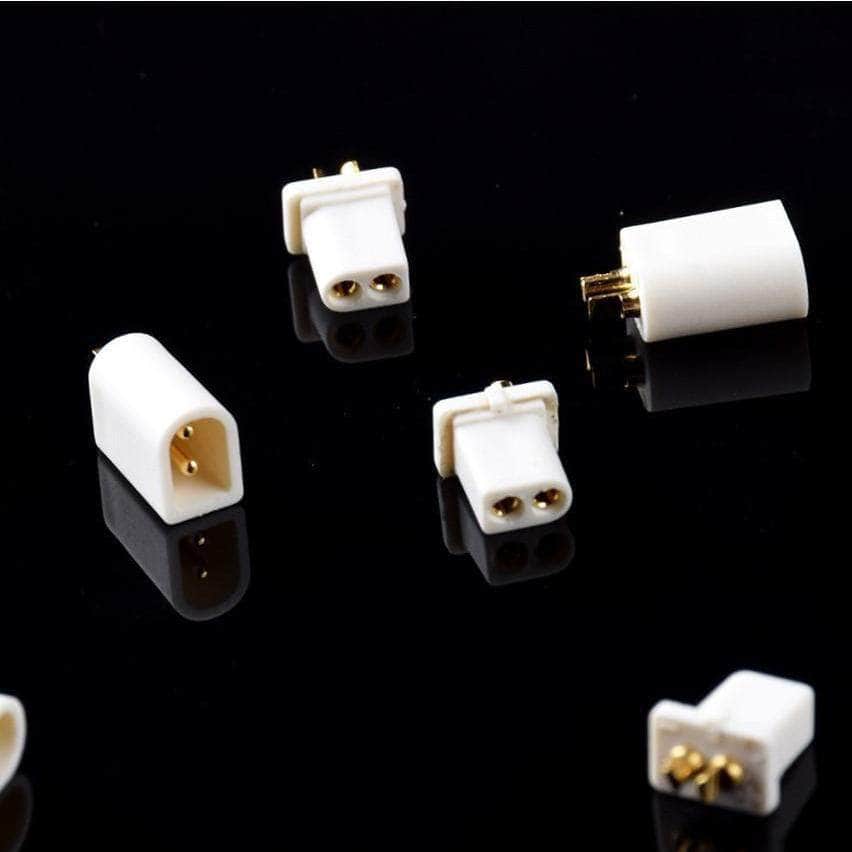

  • 5x BetaFPV BT2.0 1S Whoop Connector Male
  • 5x BetaFPV BT2.0 1S Whoop Connector Female
Here is Mr ShutterBug'vedio to show you the way of replacing connectors safely.


>
