Description

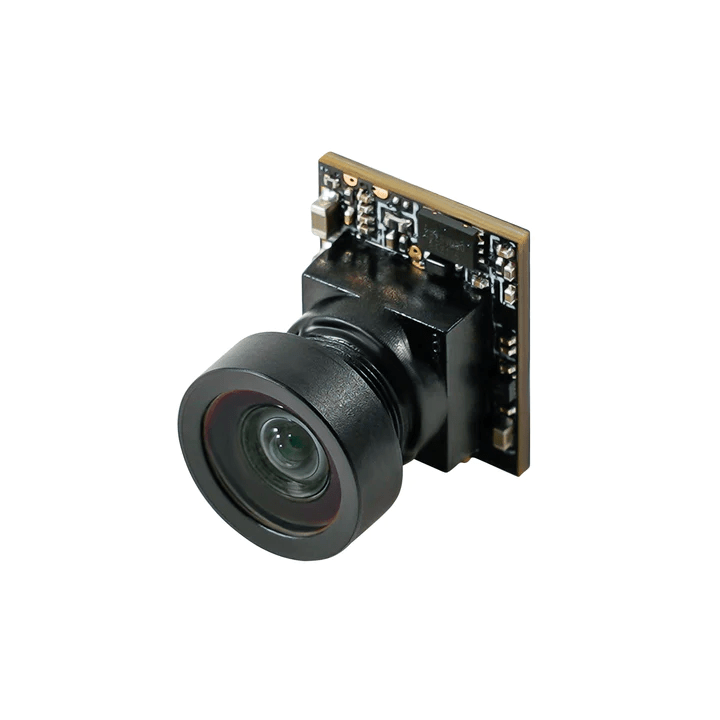

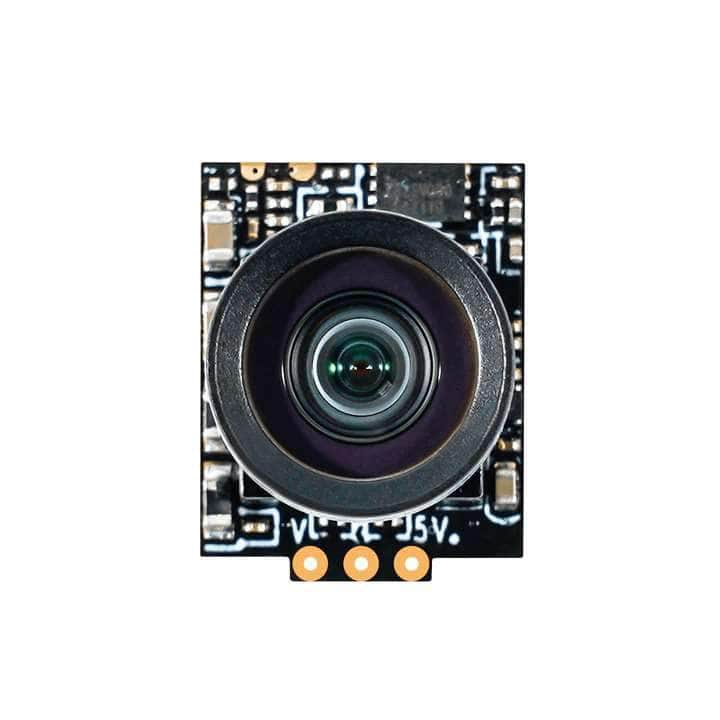

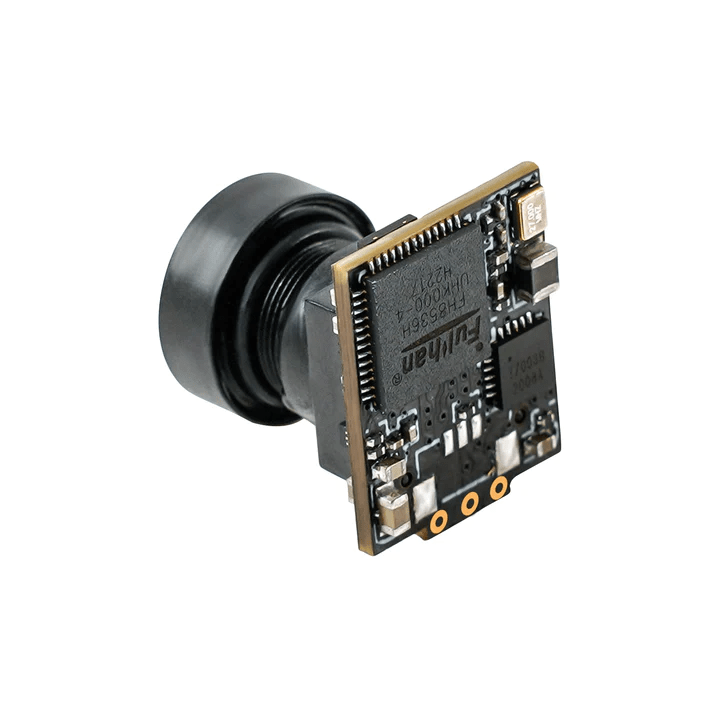

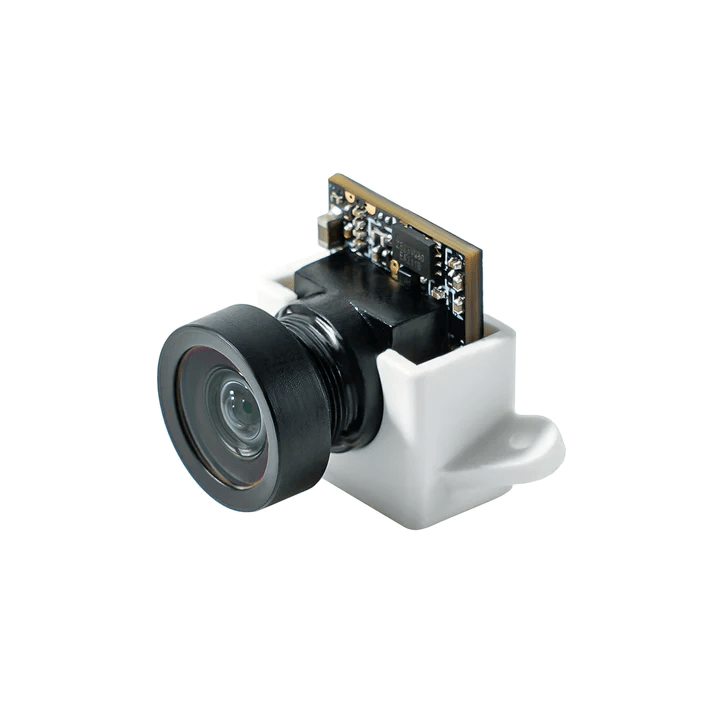

Check out the C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, this micro camera has 1200TVL resolution and 1/3" CMOS sensor getting you a high-quality and clear image. Expect a solder-free, and very convenient installation with this JST-0.8 plug-and-play design, suitable for Meteror series drones. With a Global WDR camera, 4:3 aspect ratio, getting you a clear dynamic picture even in low light conditions. Expect to 2.1mm lens, FOV 160° for beyond the wide angle for recording a more wide and eye-pleasing flight!
Be sure to check out all our Micro FPV cameras and our entire BetaFPV selection!
Features
- Included Micro Canopy
- 1200TVL High Definition Natural Image
- Low Latency
- Good Low Light Performance
- Plug-N-Play Connector
- Wide Input Voltage Range
Specifications
- Sensor Type: CMOS 1/3"
- TV System: NTSC
- Resolution: 1200TVL
- Screen Format: 4:3
- Lens : 2.1mm(M7) FOV 160°
- Video Out: CVBS
- Electronic Shutter Speed: Auto
- Min. Illumination: 0.01Lux@1.2F
- S/N Ratio: >50db
- D-WDR : Auto
- Day/Night: Color
- Power Requirement: DC 3V~5.5V
- Dimension: 11x14.1x13.5mm

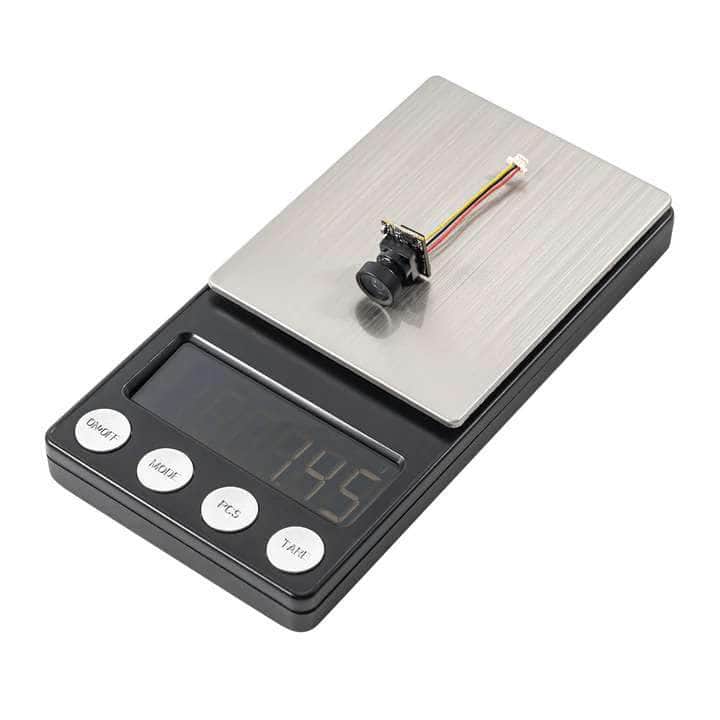

- Weight: 1.45g
Includes
- 1x BetaFPV Beta C03 Micro Camera

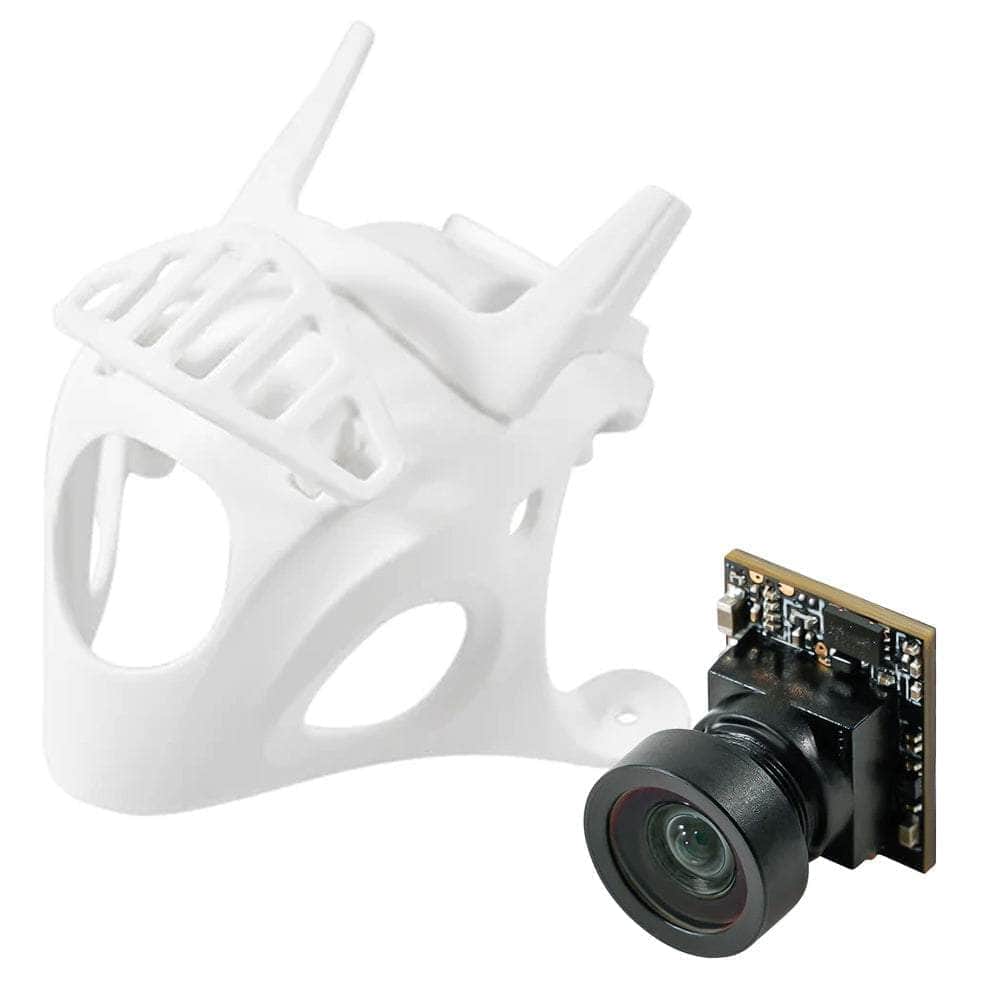

- 1x BetaFPV Micro Canopy w 20°/30° Camera Mounts
- 4x M1.4x5 Screws
More Info
- SKU: BETA-01060007
- Barcode: 738156453998
