BetaFPV SuperD ELRS Diversity 2.4GHz Receiver

BetaFPV SuperD ELRS Diversity 2.4GHz Receiver

$23.99
$23.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

BETAFPV SuperD ELRS 2.4G is the world's first True Diversity Receiver that applies two antennas, dual receiver chains, and TCXO (temperature compensated crystal oscillator) tech, achieving super accurate frequency rate and excellent performance in extreme temperature environments. It greatly fulfills the requirements of reliability for long range flying, aerial photography, or FPV freestyle tricks

Check out all our receivers, and our entire BetaFPV selection!

    Specifications

    • Item: BETAFPV SuperD ELRS 2.4G Diversity Receiver
    • MCU: ESP32 PICO D4, dual SX1280 (SX1281)
    • Antenna Connector: IPEX MHF 1/U.FL
    • RF Frequency: 2.4GHz (2400~2480MHz)
    • Telemetry Power: 20dBm (100mW)
    • Receiver Protocol: CRSF
    • Input Voltage: +5V DC @ “+” pad
    • PCB Size: 22mm*14mm

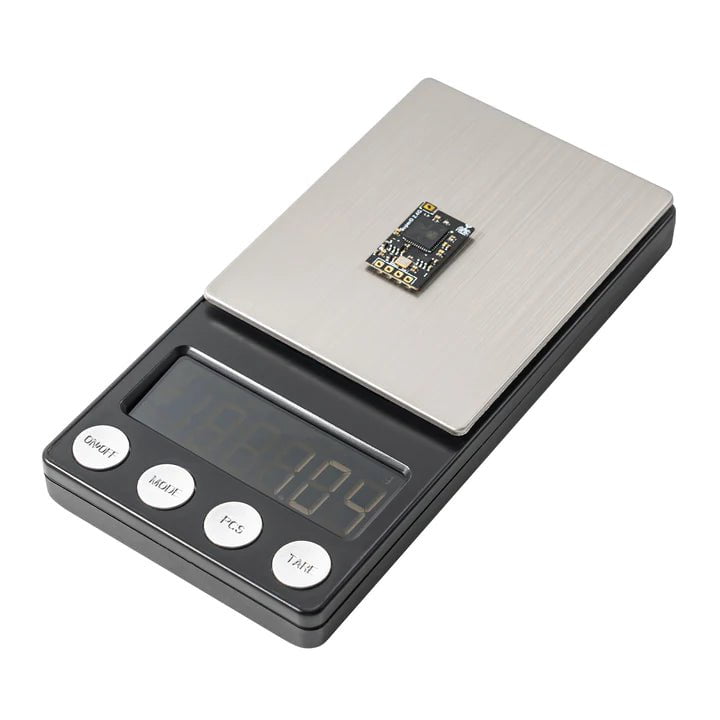

    • Weight: 1.1g excluding antenna

    Includes

    • 1x SuperD ELRS 2.4G Diversity Receiver

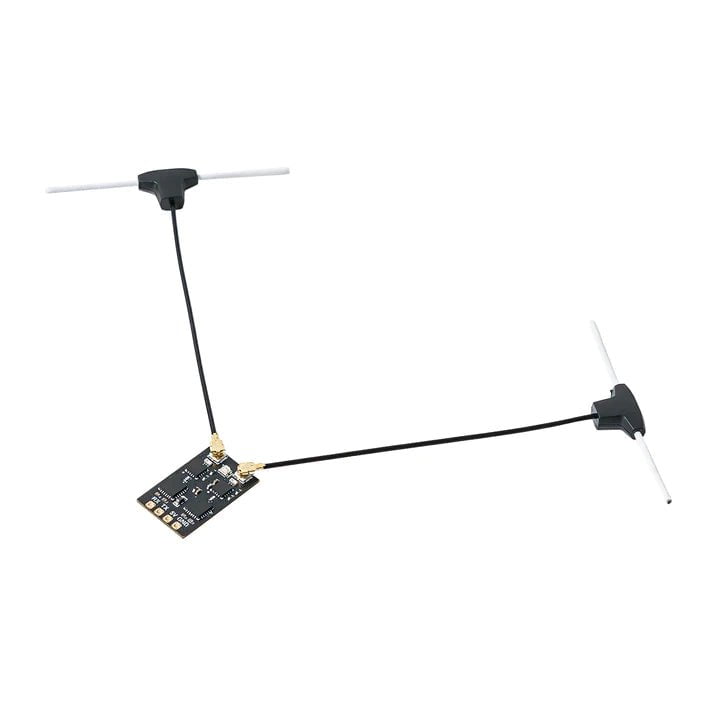

    • 2x BETAFPV Dipole T Antenna
    • 1x Pin Header
    • 1x 30AWG Silicon Wires (1 black, 1 red, 1 white, 1 yellow)
    • 1x User Manual

    More Info

    • SKU: 21987
    • Barcode: 738156454117


    Overall rating: 4.9333334 / 5 from 15 reviews.

    AI Generated Review Summary

    Summary topics

    Review topics: ["shipping","range","diversity rx","receiver","recovery","failsafe","diversity","works"].

    Review highlights

    Reviews

    Range. Recovery. Diversity.

    "I love that coming and going I still have a great link. Diversity is the bomb."

    — John T. (5/5)

    I have three of these

    "I have three of these rxs so far and I am very happy!"

    — Michael L. (5/5)

    Works well

    "Good receiver to use for the Gemini setup."

    — Hansen T. (5/5)

    So far so good

    "Connected up easily to TX at 1000hz Gemini mode. Can't say it's noticily better than the single rx, for my use, but it's pretty cool and I had to try it."

    — Oliver W. (5/5)

    Got good range decently small

    "Got good range decently small size and true diversity"

    — Chris S. (4/5)

    Long Range

    "IT IS SUPER GOOD!!! My long range drone now flys significantly further with little to no drop when I am KILOMETERS away"

    — Diego M. (5/5)

    Works perfect

    "Works perfect"

    — Alex B. (5/5)

    Another go-to!

    "Super light and compact true diversity RX, and cheap as well! Never had a failsafe, or any other issues!"

    — Tyler B. (5/5)

    Best RX PERIOD! Buy NOW!!

    "Best TRUE Diversity RX you can get! I never have lost signal from distances you would have to see to believe! Get one put into your quad now!!"

    — Eric R. (5/5)

    Works great, good range. No

    "Works great, good range. No failsafes so far"

    — Sam M. (5/5)
