thicker base plate, shouldn't break as easily
"Great replacement for the original CraftedKwad Odonata HD, only drawback is not having the slightly longer motor screws. I would pay a little more for a set of longer scews."
Details
Description

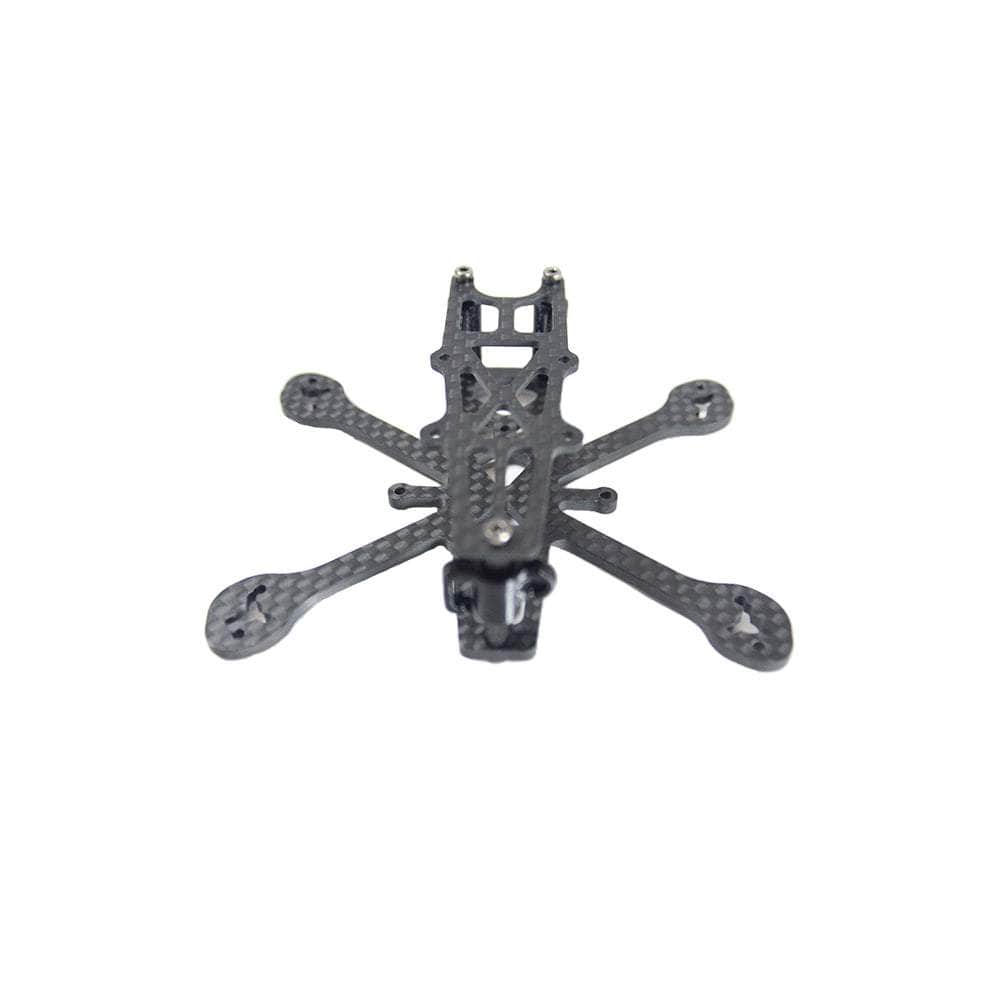

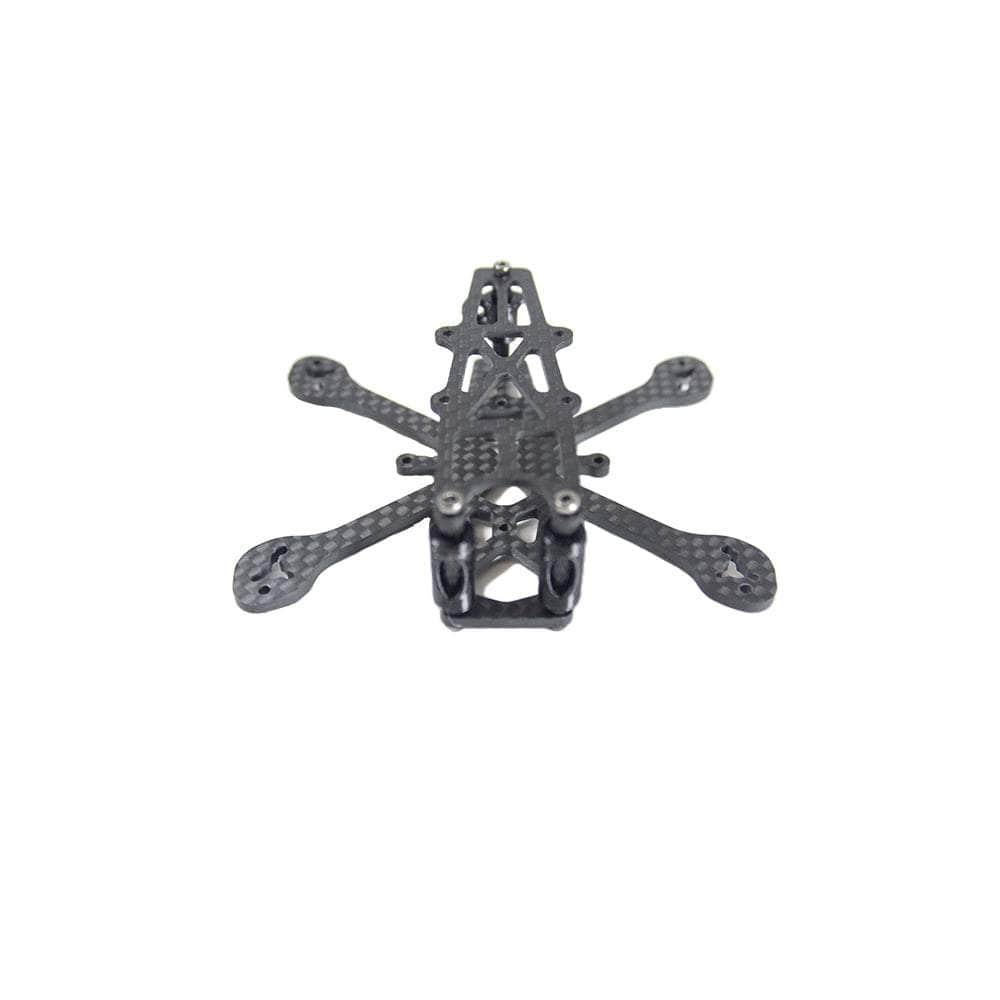

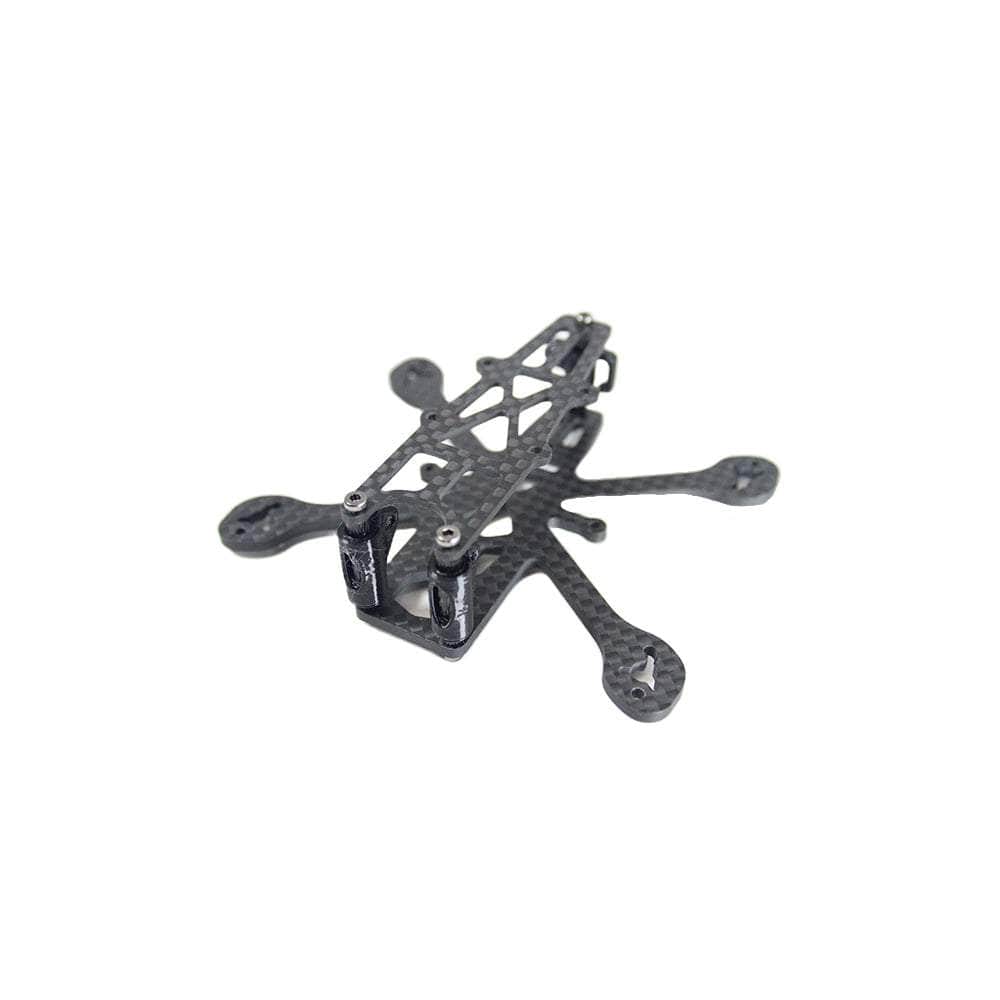

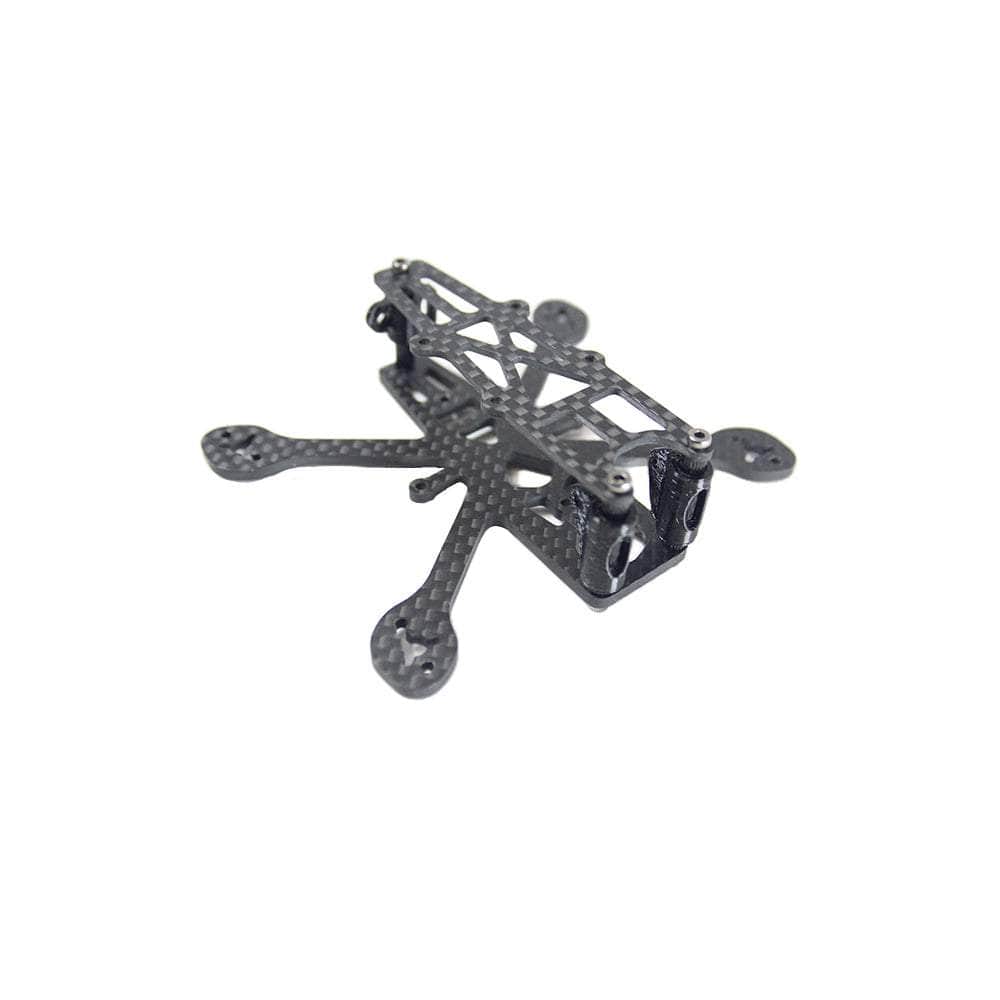

This micro drone boasts remarkable performance, fitting in the palm of your hand while providing the same feel as a 5" craft. The Ironclad works with 2" props and has an approximate 50g dry weight. The Odonata HD combines speed, silence, and a dragonfly's-eye view into one powerful package. This Ironclad ripper is designed to take on heavier builds and larger motors with its 2.5mm thick bottom plate.
Be sure to check out all our 2" frames, and all our Craftedkwads Products.
Features
- Palm size
- Dragonfly like POV
- Ultra light weight
- Supports DJI (Naked Vista)
- Supports HDZERO (Whoop Lite)
- Supports Avatar (1S Lite VTX)
- Supports Analog (Nano VTX)
- Extra Durable bottom plate
Specifications
- Motor mounting: Ø6.6mm tri-point m1.4, Ø9mm two-point m2
- Electronic mounting: 25.5x25.5 (bottom plate), 20x20 (top plate)
- Camera mounting: Nano (14x14)
- Prop size: 2"
- Weight: 13g
- Top Plate: 1.5mm
- Bottom Plate: 2.5mm
VTX systems supported:
- DJI: naked vista
- HDZERO: Whoop Lite
- Avatar: 1S lite VTX
- Analog: Nano VTX
Includes
- 1x CraftedKwads Odonata HD 2" Ironclad Micro Frame Kit
More Info
- SKU: Ckwad-Odo-HD-Frame-Kit-Ironclad
- Barcode: 691023507685
