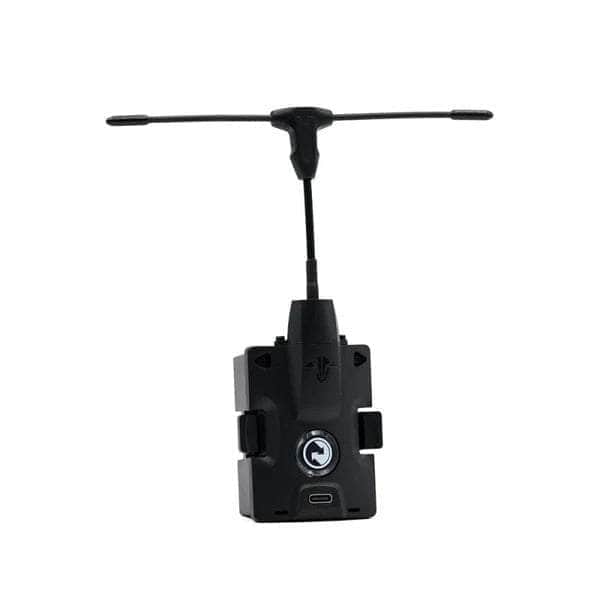

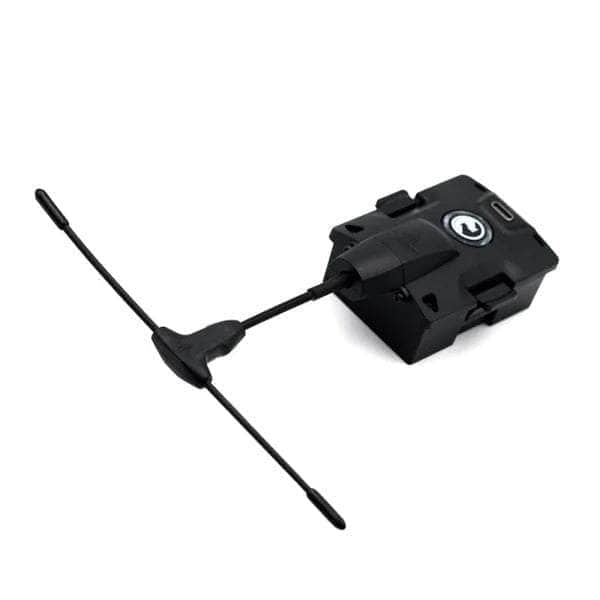

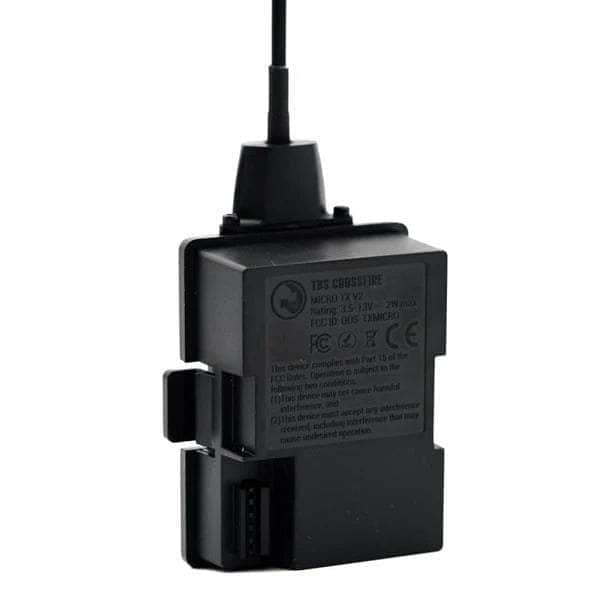

TBS Crossfire Micro TX V2
"Extremely good penetration low latency would recommend to everyone as their first protocol. Loving it so far provides so much range and freedom when im flying."
Details
Description
The Crossfire TX V2 Micro is a modern R/C link with telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Micro TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
Check out the rest of out TBS Products and our RC Transmitters!
Features
- Long range, adaptive and robust remote control system for your aircraft
- Immune to on-board noise
- Two-way communication link with real-time link vitals and telemetry
- Self-healing & frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and range optimization
- Super easy binding and configuration via built-in display of your R/C
- Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
- Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
- 8 or 12ch output via SBUS/PPM/CRSF on both receivers
- Ability to fly with multiple friends at the same time (10 or more)
- Selectable RF power from 25mW to 1W (local restrictions apply)
- Transmitter LED shows link health
- Micro-receiver for smaller drones. Smaller than you think!
- Software updates via RF Link
Specifications
- Frequency Bands: 915MHz (USA, Asia, Australia)
- Input Voltage: 6.0 - 13V
- Connector: USB-C
- Power consumption: 1.1W (@10mW) - 2W (@100mW)
- Dimensions: 65 x 48 x 22 mm (JR module size)
- Weight: 48g
DOWNLOADS
TBS Crossfire Manual
TBS Crossfire Micro TX Quickstart Guide
TBS Agent X (for software updates)
Latest OpenTX LUA Scripts for Crossfire
Includes
- 1x Crossfire Micro Transmitter (JR module)
- 1x Crossfire Stock Tx Antenna V2 (pre-installed)

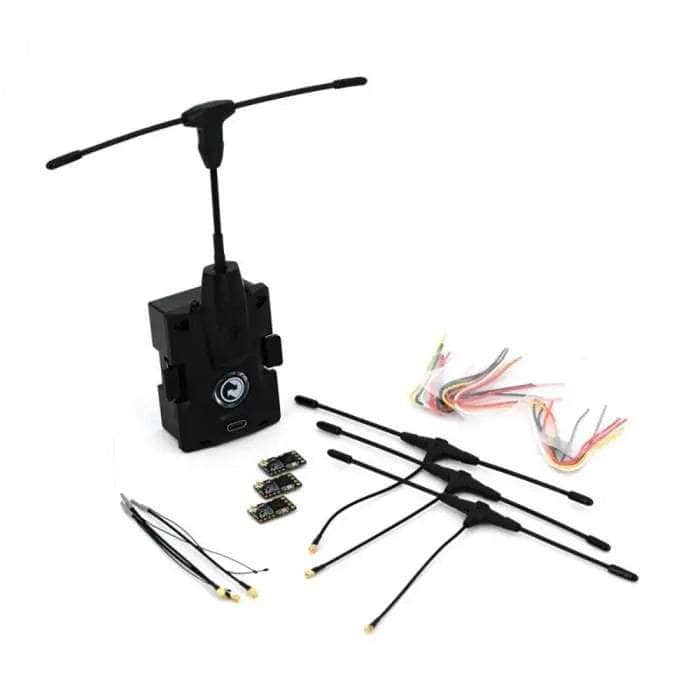

Includes Starter Combo
- 1 x TBS Crossfire Micro TX V2
- 3 x TBS Crossfire Nano RX
- 3 x TBS Crossfire Micro Receiver Antenna
- 3 x TBS Crossfire Immortal T V2 Antenna
- 1 x Taranis QX7 Mod
- 3 x Cables and Shrink Tubes set
More Info
- SKU: 13486
- Barcode: 766234651073
