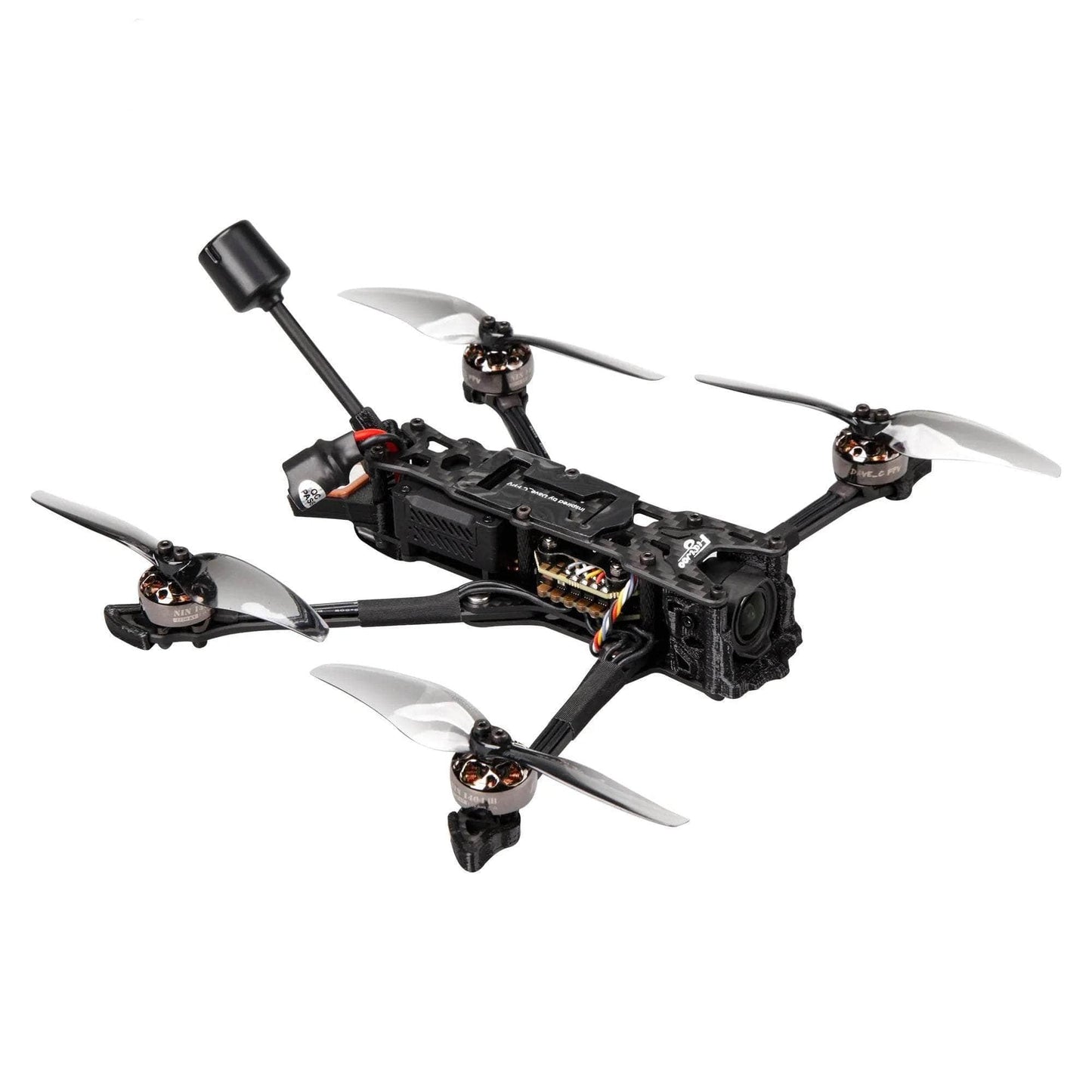

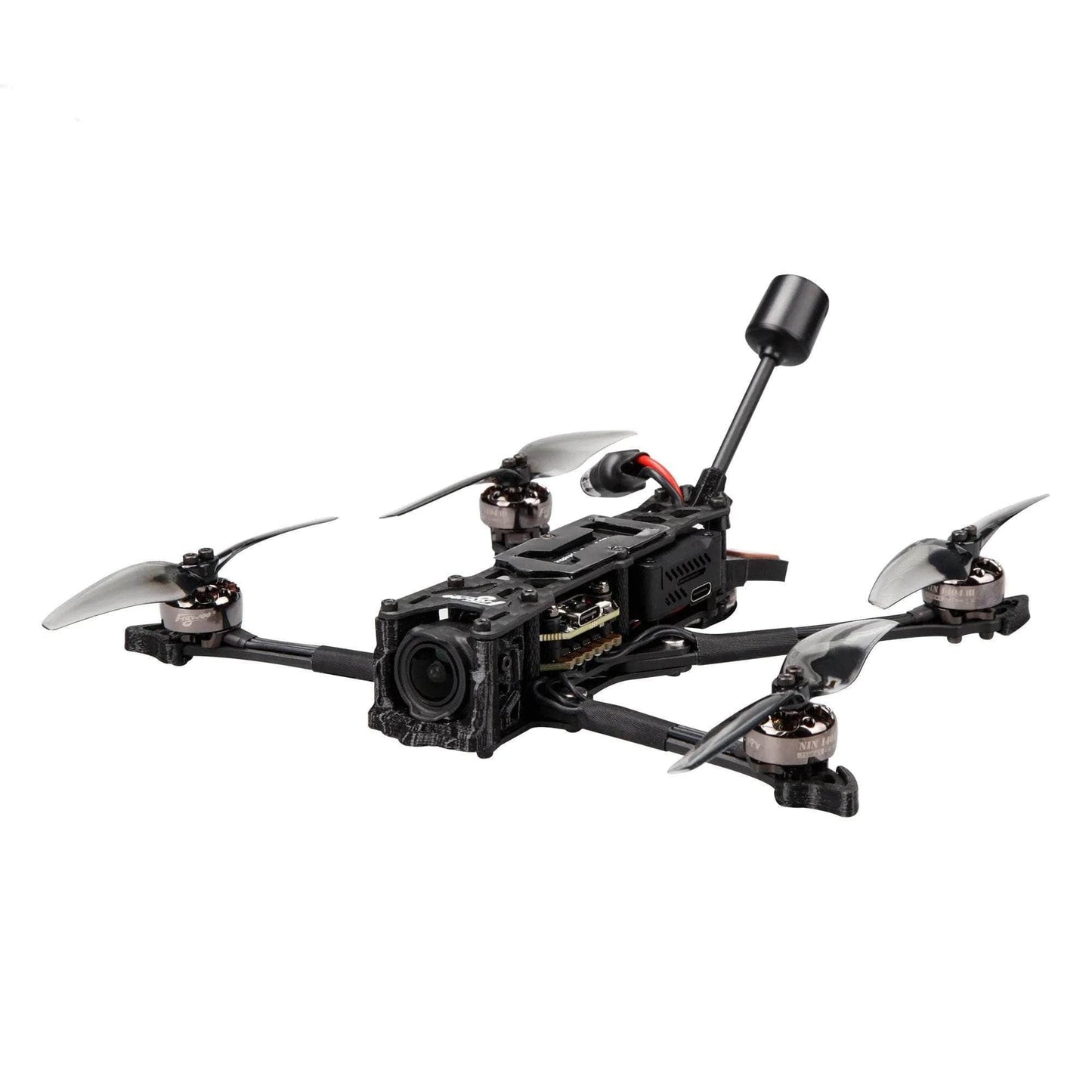

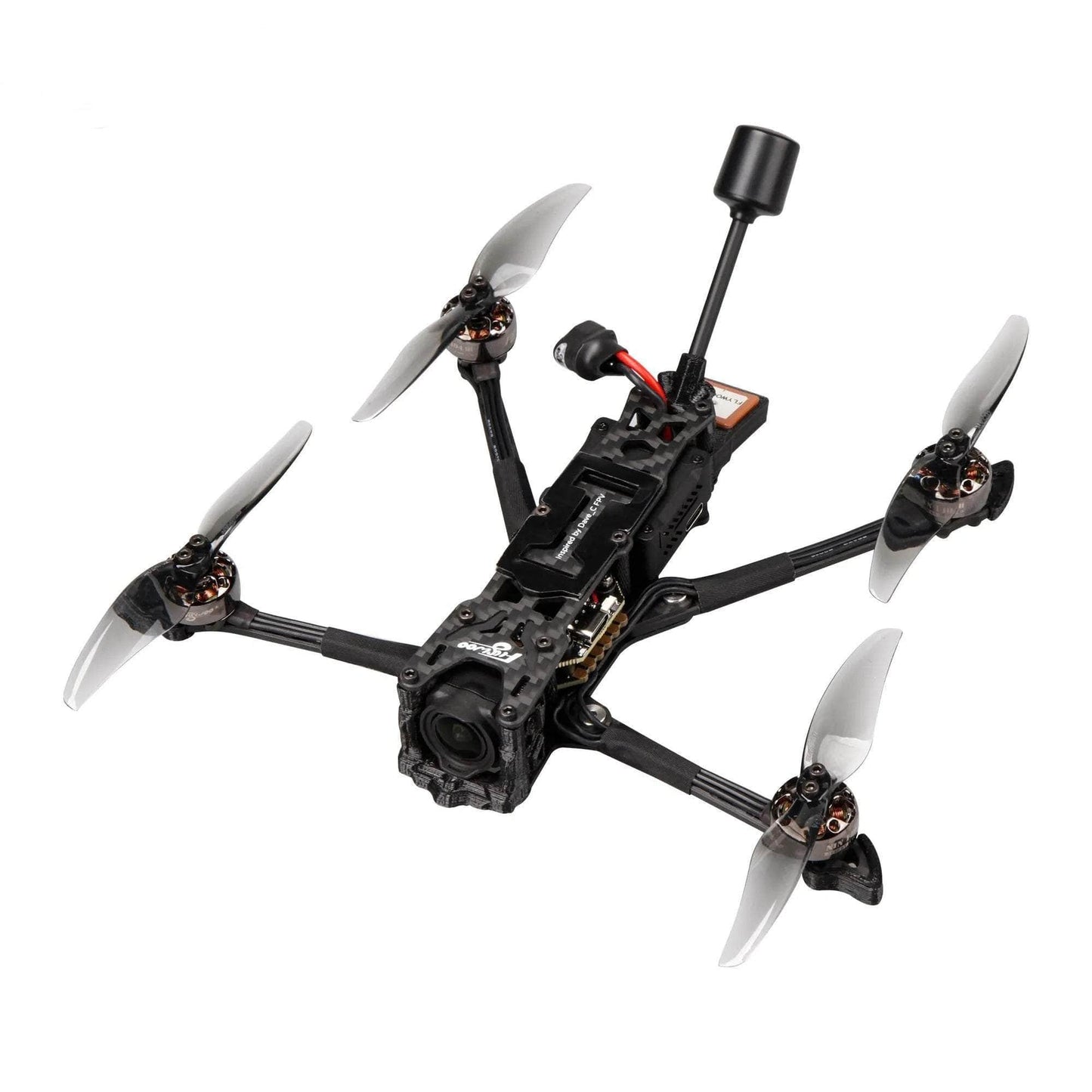

Flywoo BNF Explorer LR 4" Deadcat HD 4S Quad w/ DJI O3 Air Unit - ELRS
From the creator of the classic dead cat design for micro long-range, Dave_C FPV. As well as the collaboration with Flywoo, we at RaceDayQuads present you the Flywoo Explorer LR HD. Small, long-range, lightweight, and a DJI O3 FPV Air Unit, now that is a recipe for fun. This quad features the GOKU Versatile F405 Pro Mini Stack, NIN 1404 V2 2750KV Motors, and V3.0 GPS.
Want a guide for this drone, well here you go: Drone Guide
Check out our other DJI O3 Compatible Quads, and also see our other great products from Flywoo!
Features
- Long-range capabilities up to 10KM (FCC)
- Newest GOKU MINI GPS V3 for Explorer O3
- GPS search up to 30 satellites
- Plug&Play plug O3 Air unit. Hence there is no need to solder
- 4K/60fps recording for high-quality footage
- Latest GOKU MINI GPS V3 for greater accuracy
- Compact and lightweight design, weighing less than 250g even with the battery
- Long flight time of up to 30 minutes
- User-friendly controls for easy operation
DJI O3 FPV AIR UNIT
The DJI O3 Air Unit integrates DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!
GOKU GM10 MINI GPS V3.0
The V3.0 GPS allows for up to 30 satellites to be searched, making the rescue function more reliable. Safeguard your cruise flight with a built-in buzzer and up to 5 hours of standby.
PRE-TUNED AND PRE-SETUP
This RTF is fully built and test-flown by build technicians at Flywoo.
Specifications
- FC and ESC : Goku Versatile F405 Pro Mini Stack - F405 FC + 40A ESC
- Frame: Explorer LR 4 03 (Different from OG Explorer LR frame)
- Model: Explorer LR 4 HD DJI 03
- Propellers: Gemfan 4024 2-Blade
- Motors: NIN 1404 V2 2750Kv
- Antenna: DJI 03 antenna
- VTX: DJI 03 Air Unit
- Wheelbase: 168mm
- Camera: DJI 03
- Brand: FLYWOO
- Weight: 168.4g
GOKU GN F405 Pro Mini 40A 20x20 Stack
GOKU Versatile F405 PRO FC
- Input Voltage: 2-6S Lipo
- MCU: STM32F405BGA
- GYRO: ICM42688P
- UARTS: 1/2/3/4/5/6
- I2C: SCL/SDA
- Barometer: BMP280
- BEC: 5V 2A / 10V 2A
- Blackbox: 16M
- Input Voltage: 2-6S
- Firmware: FLYWOOF405PRO
- Mounting: 20x20mm M3 / 30x30mm M4
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- LED Controller: BF LED
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 2~6S Lipo (8.4~25.2V)
- TVS Protection: Yes
GOKU 406S 8bit 40A ESC
- Con. Current: 40A
- Burst Current: 45A
- Input Voltage: 2-6S
- Support DShot300/600
- Current Sensor: YES
- BEC Output: NO
- Size: 42×42×4mm
- Mounting Hole: 20x20mm ( M3)
FPV System
- VTX: DJI O3 Air Unit (Requires DJI Goggles 2 or DJI FPV Goggles V2)
- Channels: : Auto mode support Manual mode support: 40 MHz: 1 channel; 20MHz: 3 channels; 10MHz: 3channels
- Camera: DJI O3 Air Unit Camera
- VTX Antenna: DJI O3 Air Unit Antenna
Includes
- 1x Flywoo BNF Explorer LR 4" Deadcat HD 4S Quad w/ DJI O3 Air Unit - ELRS
- 2x Gemfan 4024-2 Black Propellers (Set of 4)
- 2x Battery Strap 15x180mm
- 1x Hardware Set
