Description

Note: The chip of GOKU GM10 V3 GPS is M10050. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

GOKU GM10 V3 GPS series is here!  Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Check out our other GPS options, as well as the rest of our Flywoo selection!

Features

• GPS Module, Three Module
• 1.0mm spacing between the 4pins patch seat

Specifications

• Brand: FLYWOO
• Model: GM10 MINI V3 GPS

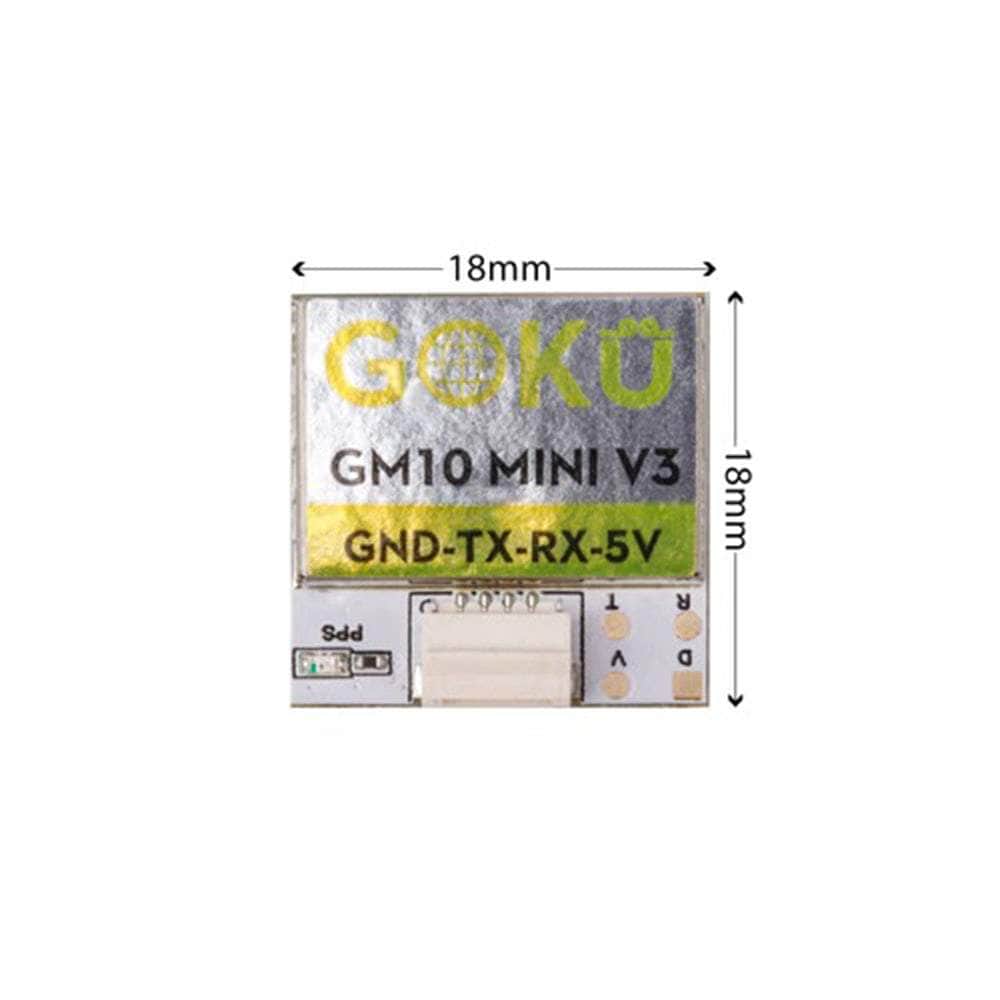

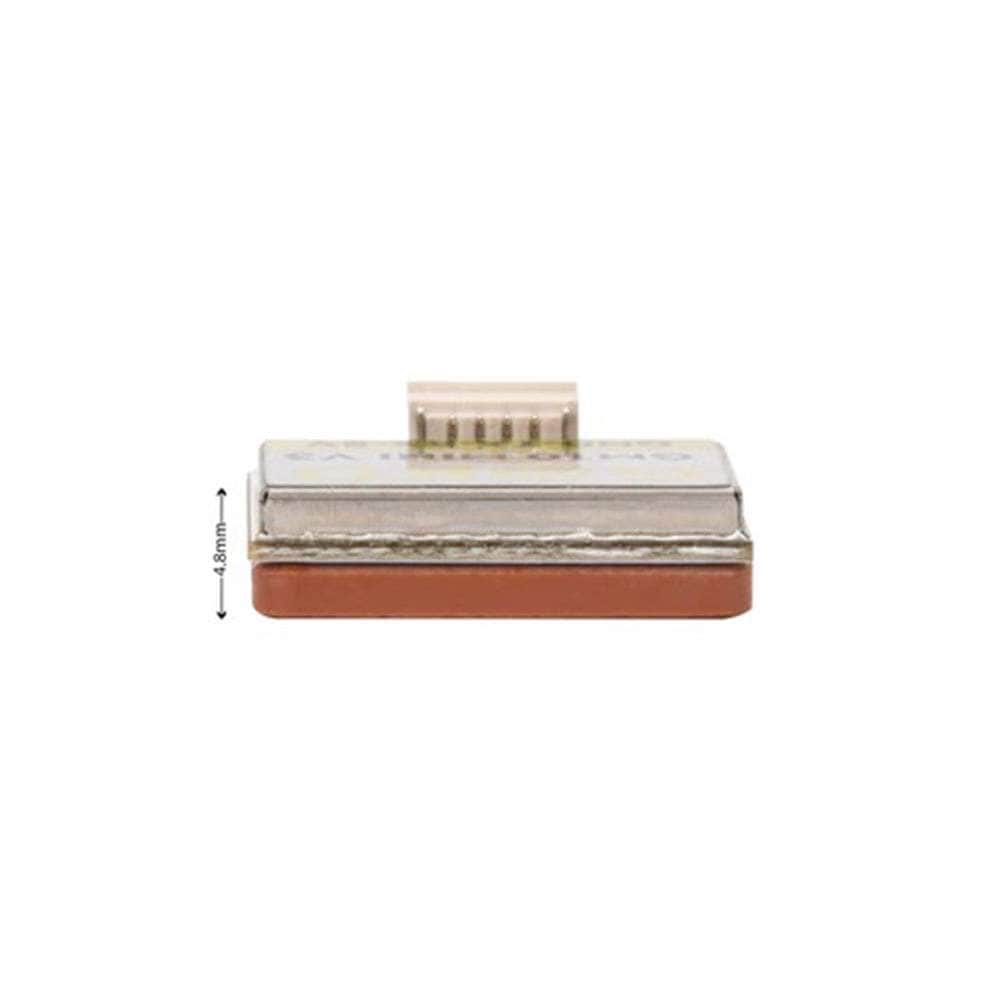

• Dimension: 18x18x4.8mm

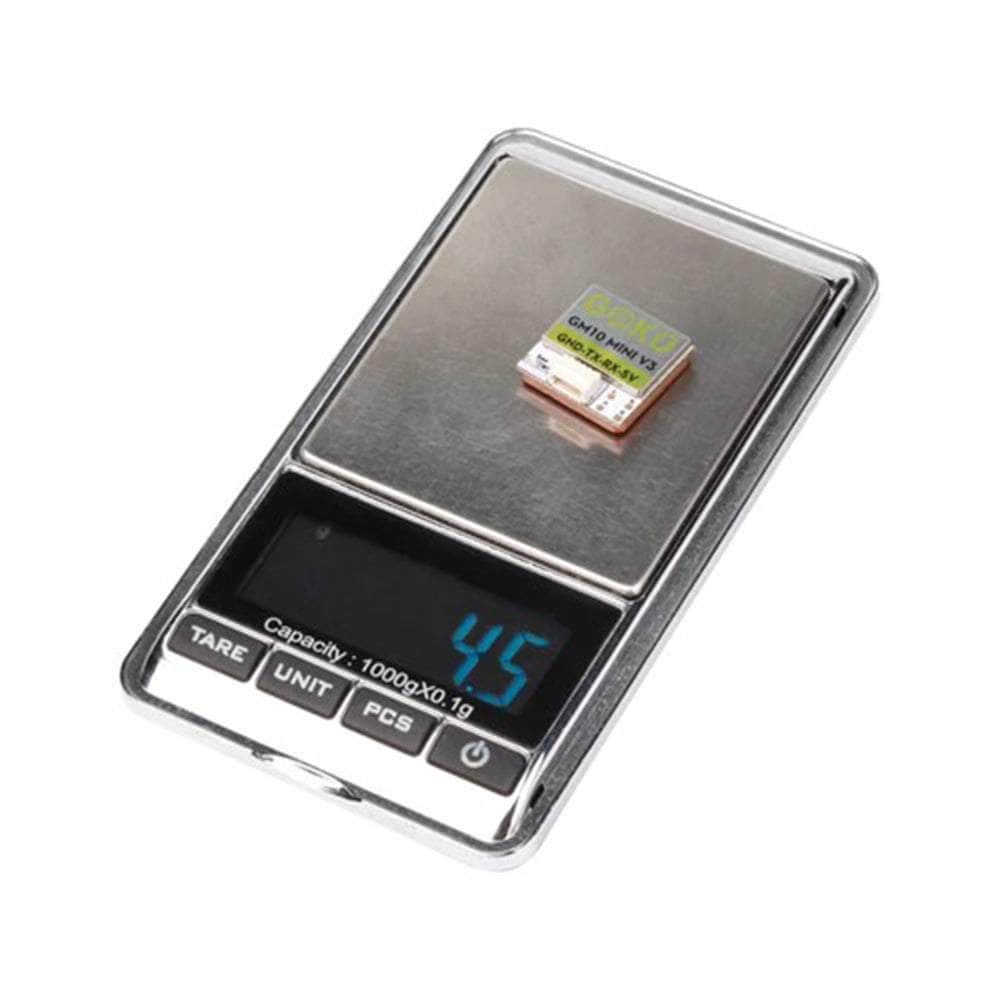

• Weight: 4.7g
• Connector: 1.00mm spacing between the 4pins patch seat
• Chipset: M10050 (Tenth Generation Chip)
• Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Default Protocol: GPS, Galileo, BeiDou
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 Searching Channel
• Tracking: -162dBm
• Reacquisition: -160dBm
• Support Rate: 4800bps to 921600bps, Default 115200bps
• Data Level: TTL or RS-232, Default TTL level
• Data Protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
• Output frequency: 1Hz-10Hz，Default 10Hz
• Altitude: 50,000m Max
• Velocity: 500m/s Max
• Acceleration: Less than 4g
• VCC: DC Voltage 5V
• Operating temp:　-40 °C ~ +85°C
• Storage Temp: -40°C ~ +105°C
• PPS LED: yellow .PPS LED is not bright when GPS is not fixed, flashing when fixed
• The Module’s Pins: GND TX RX 5V

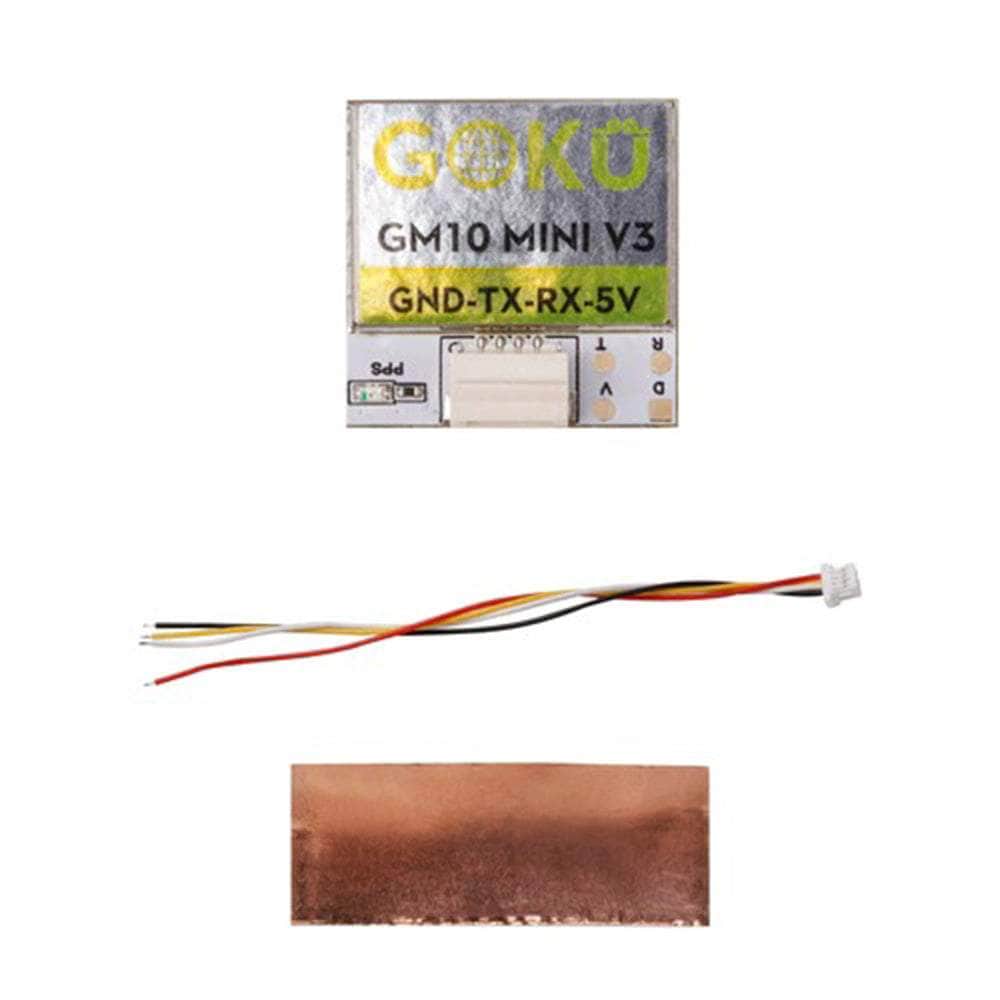

Includes

• 1x Flywoo GOKU GM10 Mini V3 GPS
• 1x 100mm Cable
• 1x Copper Foil

Wiring Diagram
