Description

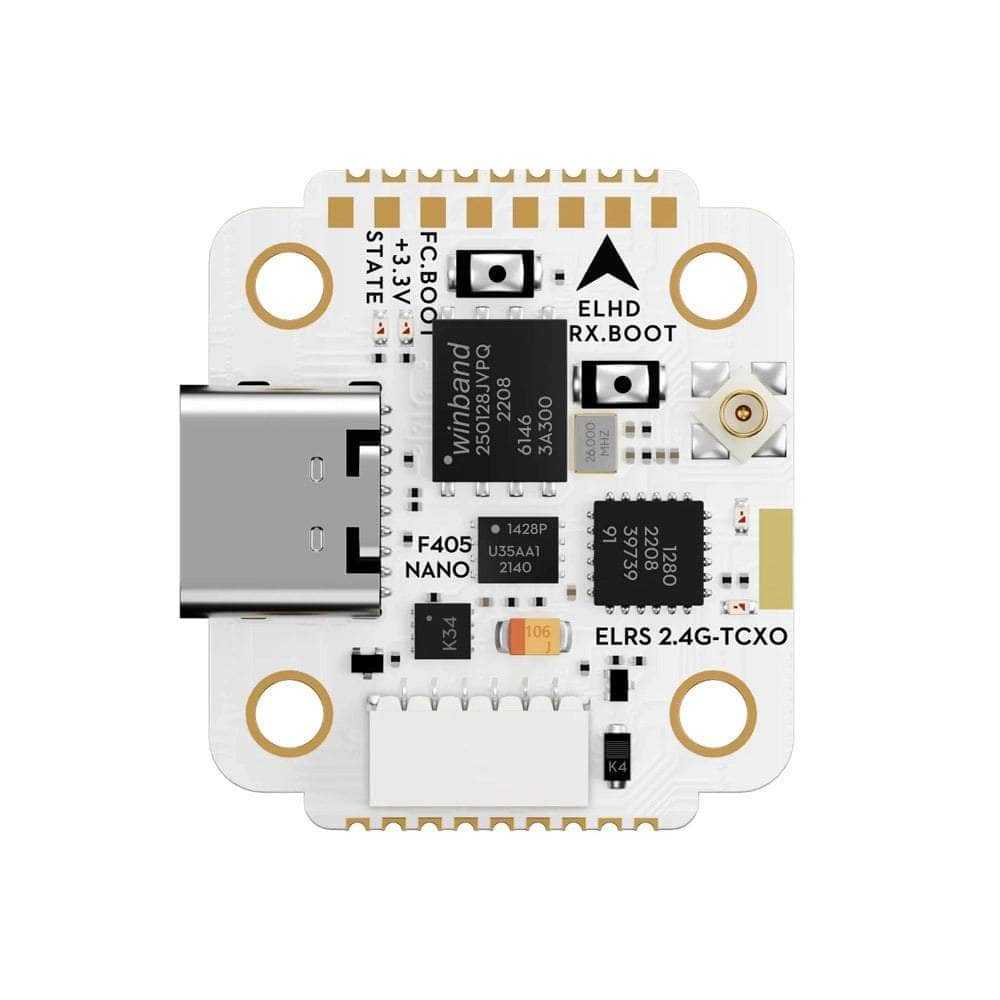

The Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller has arrived with upgrades. Designed for versatility, it is compatible with various HD VTX systems. The built-in TCXO ELRS receiver is ideal for micro drones. It is compatible with QUAD and HEX setups, making it a powerful choice for FPV enthusiasts.

Make sure to check out our other Flight Controllers and the rest of our Flywoo selection.

Features

• TCXO ELRS High-Precision Receiver
• Optimized for Micro Drones
• QUAD & HEX Compatibility
• DJI O3 Interface Support
• Upgraded Design
• Six UART Ports
• USB-C Port

Specifications

• Input Voltage: 7.4V - 24V / 2-6S LiPo
• Hole Position: M2 16x16mm
• Size: 25mm x 23mm x 8mm
• IMU (Gyro): ICM-42688P
• Gyro: ICM-42688P (SPI)
• MCU: STM32F405 BGA
• BEC: 5V 2A / 3.3V 0.5A
• USB Port Type: Type-C
• UARTs: 1, 2, 3, 4, 5, 6
• Barometer: DP310
• Black Box: 16MB
• Weight: 3g
• OSD: No

Includes

• 1x Flywoo GOKU GN405 Nano V3 F4 HD Flight Controller w/ ELRS 2.4GHz - 16x16
• 1x DJI O3 Connection Cable
• 1x Shock-Absorbing Ball
• 1x T-Antenna
