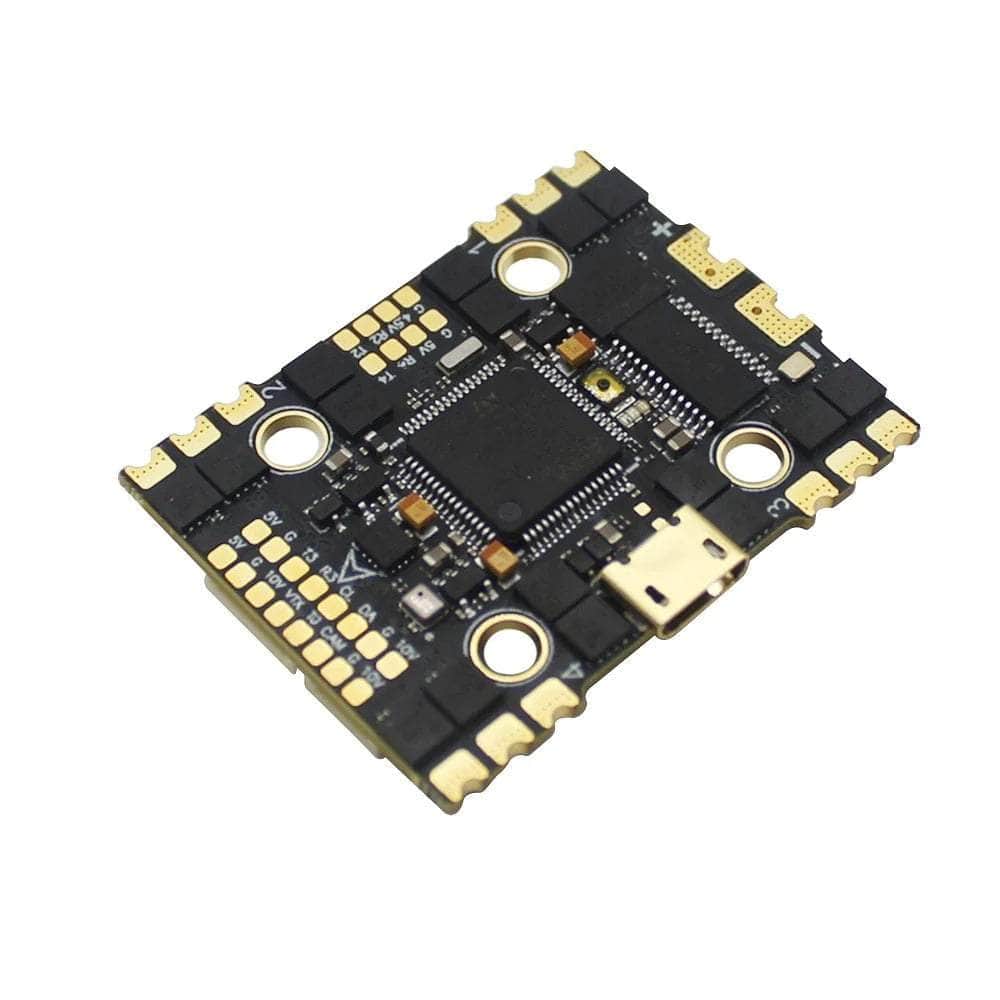

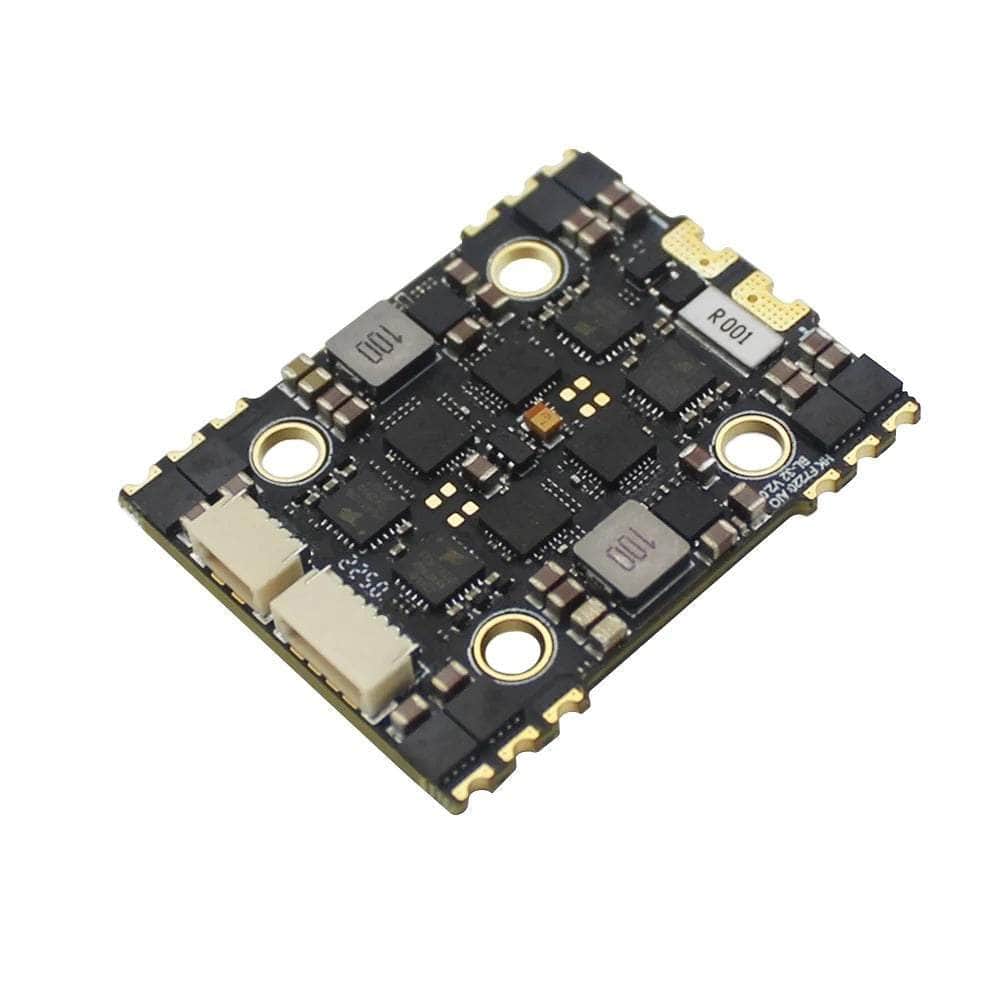

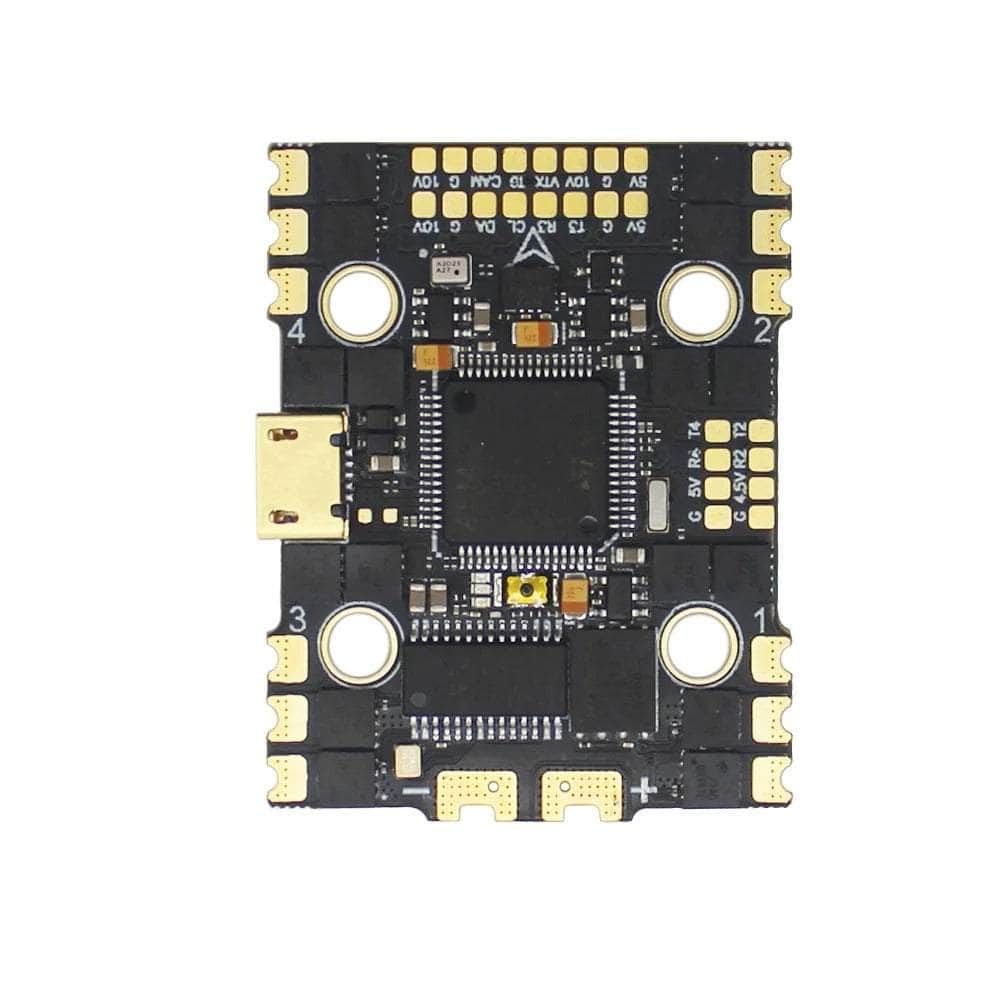

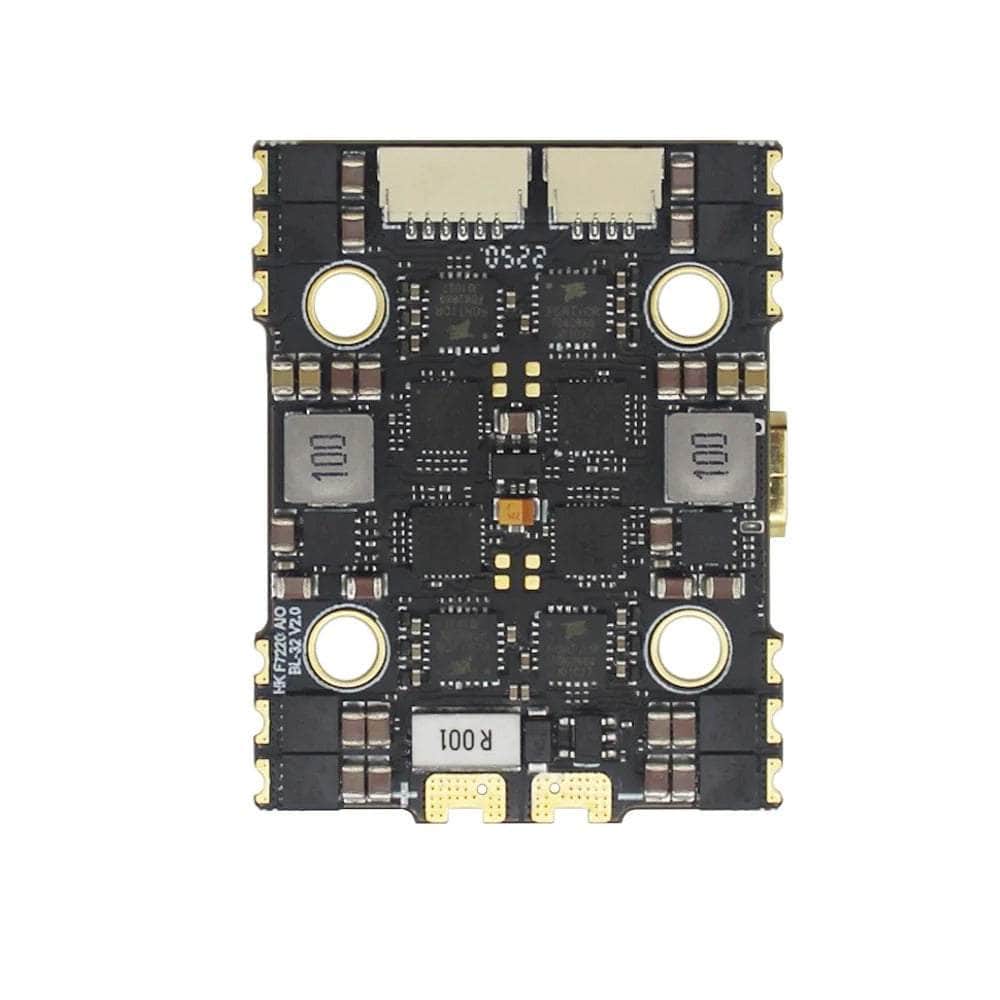

HAKRC F7220 2-6S AIO 20x20 Flight Controller w/ 32Bit 40A 4in1 ESC

Original price $95.99 - Original price $95.99
Original price
$95.99 - $95.99
Current price $95.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

HAKRC bring us another serious contender in whoop sized AIO boards. The HAKRC F7220 2-6S BL-Heli32 bit ESC AIO Flight Controller.  This ultra-powerful 20x20mm board is capable of handling the most demanding of tasks, including tons of power delivery such as pad options for 5V/3A & 10V/2.5A BEC delivering unbeatable performance and reliability. Give your quad those high quality parts for a better longevity for your quads.

Check out our other AIO boards and our other HAKRC products for sale at RaceDayQuads!


After upgrading the firmware of HAKRC F7220 AIO, the sensor direction needs to be changed

1. Connect FC to BF and select “configuration” page.

2. In the “flight control and sensor direction” column on the right side of the configuration page, change the first gyroscope to cw 90

3. on the setup page. Calibrate the flight control accelerometer and reset the z-axis and test whether the flight control roll, pitch and yaw are consistent with the BF feedback direction.

4. please check and make safety preparations before takeoff in an open or relatively safe place to test the flight feasibility.

5. If you use the DJI remote control and the DJI FPV glasses, open the serial data receiver Port 2 and MSP Port 6, as shown below:


  • The PCB adopts high-end 8-layer 2oz thick copper skin, which has stronger over-current capability and good heat dissipation
  • MOS adopts imported 40V high current resistance MOS, long life and strong load capacity
  • Industrial grade LDO, high temperature resistance
  • High-quality Japanese Murata capacitors, strong filtering performance
  • Size: 40x30mm (20mmx20mm mounting hole)
  • Product net weight: 10g


Flight Controller

  • Input Voltage: 2S-6S
  • MCU: STM32F722RET6
  • IMU: ICM42688
  • OSD: AT7456E
  • Black box: 16M
  • UARTs: 5
  • Barometer: integrated
  • Flight control firmware version: HAKRC F722D
  • BEC: 5V/3A
  • BEC:10V/2.5A
  • Sensor: Built-in current sensor
  • Firmware Target: HAKRCF722D
  • LED: Support WS2812 and other programmable
  • Compatible receivers: CRSF / Frsky/ Futaba/ Flysky/
    TBS Crossfire/ DSMX: DSM2 receiver
  • Dimensions: 40x30mm (20mmx20mm mounting hole)


  • Input voltage: 2S-6S
  • Continuous current: 40A
  • Peak current: 50A
  • Firmware: BLHeli_32
  • Firmware Target: HAKRC_AT4G_Multi_32_9.Hex
  • MOS Model: 7140
  • PWM:24-128K
  • Protocol support: PWM, Oneshot125, Oneshot42,
  • Multishot, Dshot150, Dshot300, Dshot600
  • Continuous current: 40A
  • Peak current: 45A

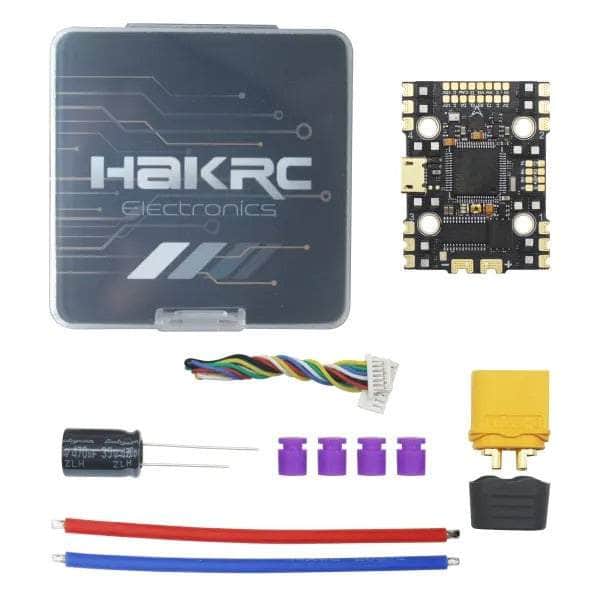

  • 1x HAKRC F7220 2-6S AIO Whoop/Toothpick Flight Controller w/ 40A 5V/3A & 10V/2.5A BEC
  • 1x XT60 H-M
  • 1x  Capacitor
  • 4x Purple Gummies
  • 2x Power lead
  • 1x Plug harness
