HAPPYMODEL X12 AIO 5-IN-1 BOARD - F4 FC + 12A ESC - Choose your version

HAPPYMODEL X12 AIO 5-IN-1 BOARD - F4 FC + 12A ESC - Choose your version

$81.99
$81.99
Receiver:
Add To Wishlist
View full details

Details

Description

The HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX) AIO board featuring an F4 Flight Controller, onboard 12A 4-in-1 ESC, 5.8GHz OpenVTX and built-in receiver of your choice! Happymodel continues to impress with yet another fantastic AIO for whoop applications!

Browse the rest of our Whoop AIO boards and all our Happymodel products!

Specifications

  • Input Voltage: 1-2S
  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Gyro: MPU6000 or ICM20689 or BMI270
  • Max Continuous Current: 12A
  • VTX Output Power: 25-400mW
  • Antenna Connector: U.FL
  • OSD: Yes

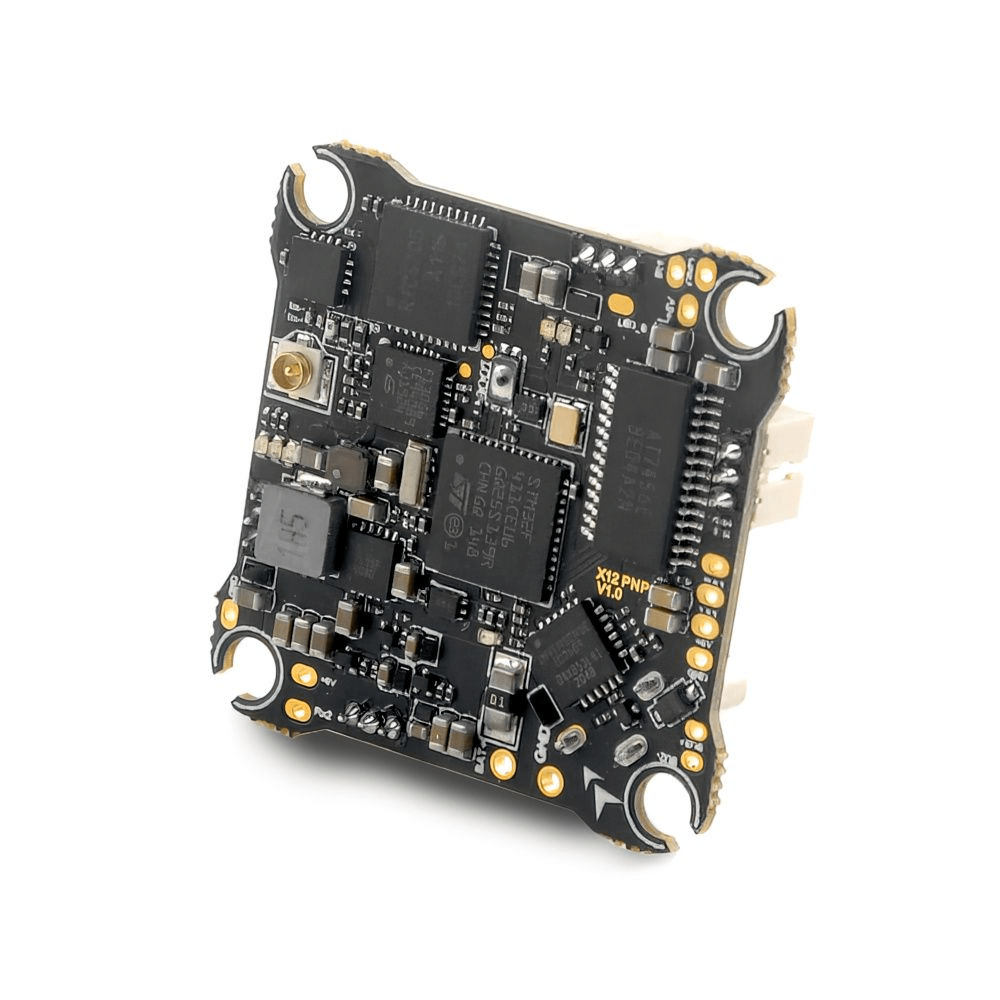

  • Betaflight Target: ELRS Version: CRAZYBEEF4SX1280, PNP Version: CRAZYBEEF4DX
  • ESC Firmware: Z_H_30_REV16_7
  • Mounting Pattern: 25x25mm
  • Weight: 5.1g

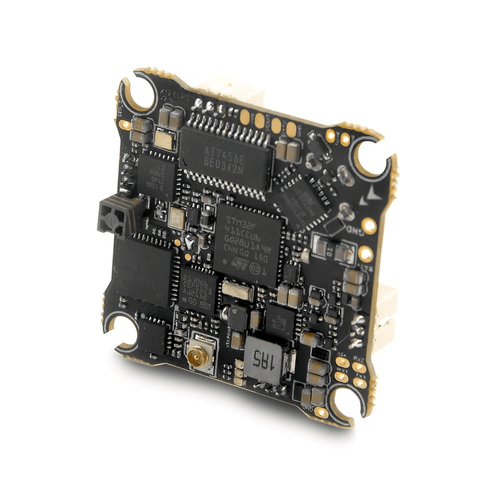

ELRS Version

  • Packet Rate: 50Hz/150Hz/250Hz/500Hz
  • ELRS Firmware Version: V2.0
  • RF Frequency: 2.4GHz
  • Antenna: SMD antenna
  • Telemetry output Power: <12dBm

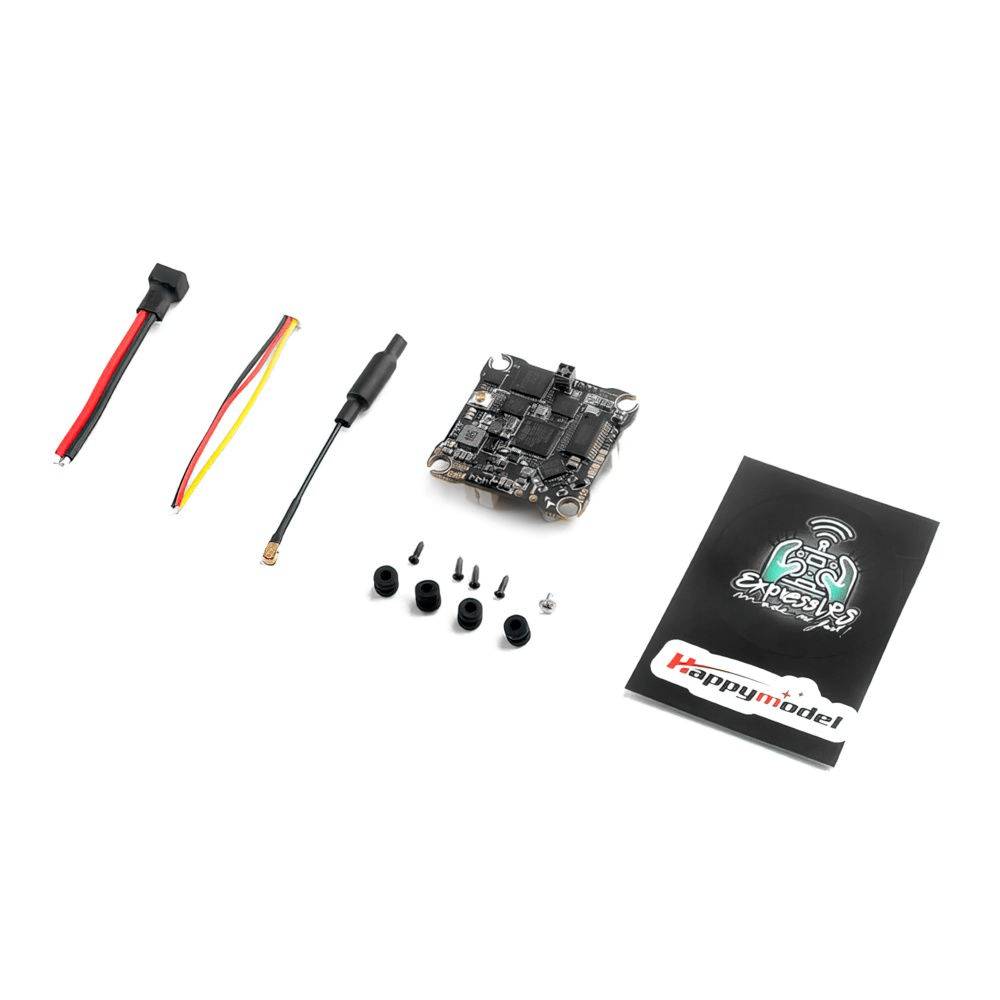

Includes

  • 1x HappyModel X12 2S AIO Whoop Flight Controller (F4 FC / 12A 4in1 ESC / 25-400mW VTX)
  • 1x Connecting Wires Set
  • 1x Hardware Set
  • 1x Antenna

More Info

  • SKU: 18181
  • Barcode: 691023527829


Overall rating: 4.46729 / 5 from 107 reviews.

AI Generated Review Summary

The HappyModel X12 AIO Whoop Flight Controller is praised for its excellent flight control and ease of setup. Customers appreciate the board's quality and solid build. However, there are mixed opinions on the ESC, ELRS integration, and pad size.

Summary topics

  • ESC Quality: 6%
  • ELRS Integration: 6%
  • AIO Performance: 18%
  • Flight Controller: 10%
  • Board Quality: 32%

Review topics: ["shipping","weight","control","issues","power","build","replacement","works","board","aio","pads","plug","elrs","esc","model","tune","gyro","draw","quad","whoop","rdq","aio fc","video","set","smoke","firmware","soldering","vtx","downside"].

Review highlights

  • "Loving this board so far Great video with 2S capability!" — aleph e.
  • "Great little AIO Flight controller." — Timothy S.
  • "Great board no issues!" — Bill F.

Reviews

unplug it and plug it

"My Mobula 7 board failed - lost video. Swapped it out with this x12 and I’m back on the air. Was easy unplug, plug, and fly."

— Bob W. (5/5)

Works for simple planes

"I put this on a plane that just flies off of differential thrust and an elevator and it works great. Motors are soldered to the front two escs I changed their resources to be motors 1 and 2 and the servo is hooked up to rx1. It was a little tough to configure but there’s a jb video on servos just make sure to reflash the fc and add servos before"

— Will C. (5/5)

X12

"Very compact"

— Ting W. (4/5)

Great Whoop AIO!

"Haven’t had any issues with this AIO! Used it in my first whoop build, was a little disappointed that it had plugs and not solder pads for the motors, but that’s okay! Not the biggest problem in the world!"

— Sean M. (5/5)

Great price, just what I needed.

"Easy to work on. Not the lightest but definitely more durable than some other options"

— Avery M. (4/5)

Bulletproof 2s AIO

"Bulletproof 2s AIO. This thing doesn't die. Perfect FC for 2s 2 inch toothpicks and 85mm whoops."

— Chris L. (5/5)

X12 bubito

"I used this for a bubito build the vtx has adequate power. Good aio board."

— Steve H. (5/5)

HappyModel killed it with this

"HappyModel killed it with this board and it is currently my favorite AIO for 2s whoops. Great model all round. No issues with gyro. Solder pads are always small on these but it didn't seem to be a problem. I've crashed and bashed multiple into all sorts of things, trees, water, concrete, etc and only lost one to a destroyed vtx. (And I think that was only because the antenna was ripped out in a wonky crash. I digress..for, again, this is a solid choice if your looking for a 2s AIO."

— Ryan H. (4/5)

Excellent stack and easy to

"Excellent stack and easy to install"

— javier m. (5/5)

Slow shipping

"Arrived as described but shipping was very slow, order got beaten by 2 separate aliexpress orders placed on the same evening."

— Soma C. (2/5)

Q&A

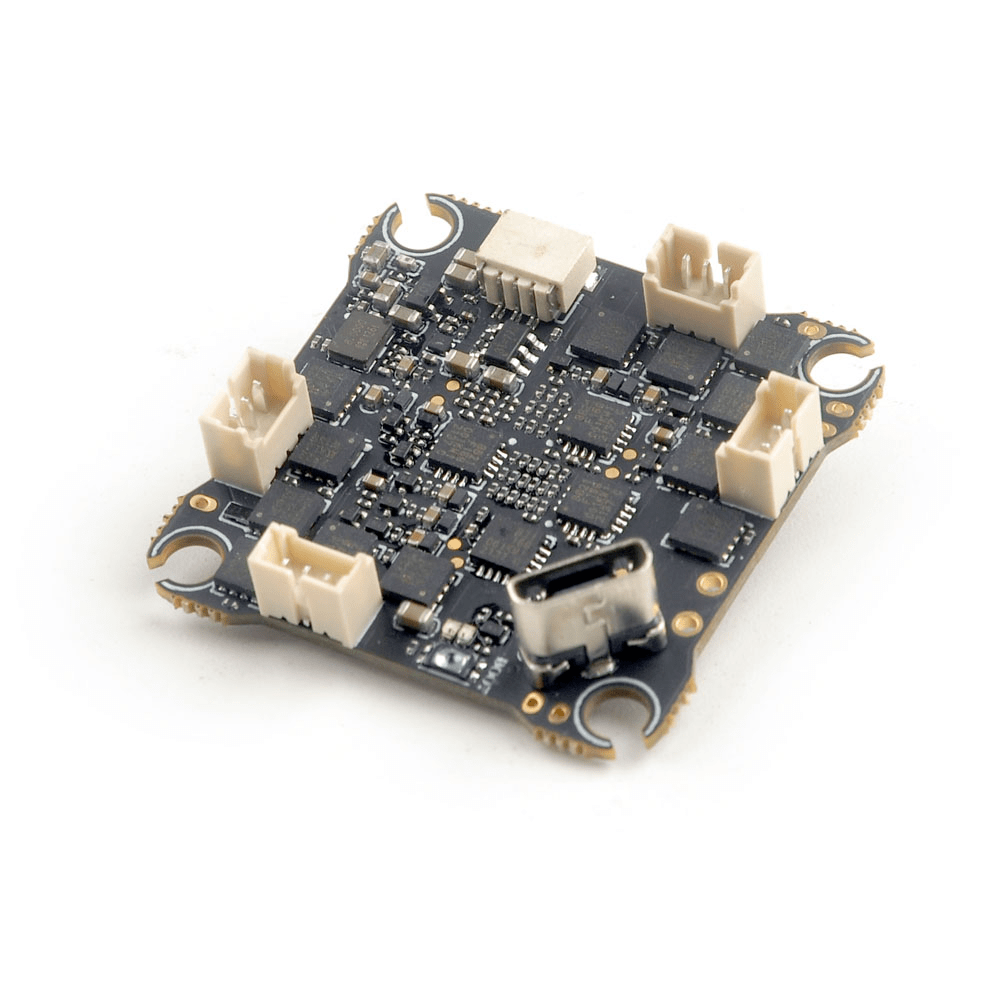

Is it compatible with frsky d8
The FrSky variant specifically will be FrSky D8.
Can this board really output 400mw on 1S?
Yes. Happy flying!
