Description

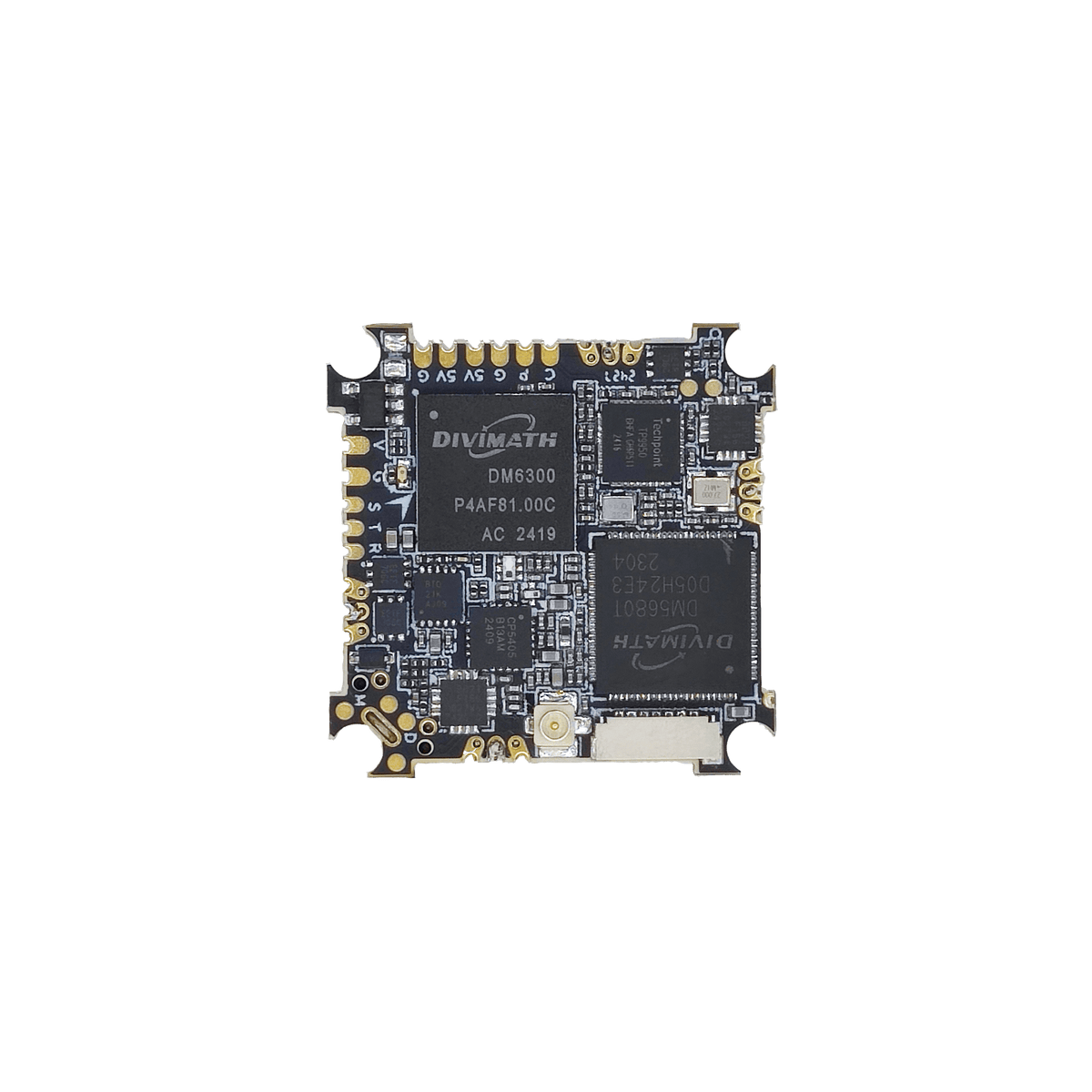

HDZero AIO5 is the world’s first digital video AIO, enabling bind and fly 65mm whoops to weigh less than 19.4g. AIO5 integrates a F4 flight controller, HDZero 5.8GHz digital video transmitter, ELRS, DSHOT protocol 4-in-1 ESC, and a 5V/1A BEC.  Get ready for a new era of no-compromise tiny whooping in clear digital video!

Check out all our whoop flight controllers, and our HDZero selection.

Features

• Minimum voltage increased to 2.3V - ensuring transmission during motor operation
• Single thick PCB - improved durability & simplicity

Specifications

• MCU: STM32F411 (100MHz, 512K Flash)

• Gyro: BMI270

• On board voltage and amperage meters

• Built-in 5A(each) BLHeli_S 4-in-1 ESC

  • MCU: EFM8BB21

  • HV Current: 5A continuous peak 6A (3 seconds)

  • Factory firmware: O_H_5_48_V0.19.2.HEX

  • Dshot600 ready

• Built-in 5.8G HDZero VTX

  • RF output: 25mw/200mW

  • Supported channels: R1-R8, F2/F4, L1-L8

  • UFL connector (ultra-lite linear antenna included)

• Built-in SPI ExpressLRS 2.4GHz receiver

  • Packet rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

  • Pre-soldered enamel wire antenna

  • Telemetry output power: <12dBm

• Built-in 5V 1A BEC

• Flight controller firmware target: CRAZYBEEF4SX1280, configuration file??

• Power supply: 1S battery (2.5V – 4.35V)

• Fully compatible with the popular whoop frames

  • Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size

• Weight: 5.7g(without motor plugs), 6.3g (with motor plugs)

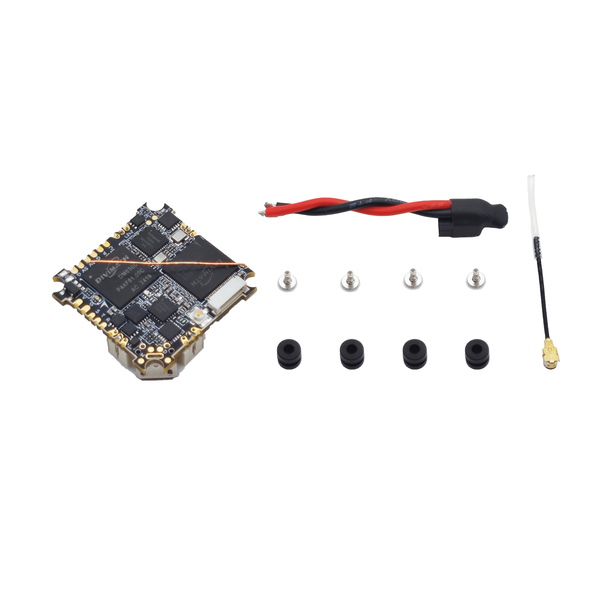

Includes

• 1x HDZero AIO5

• 1x Power cable with inverted angle A30 connector

• 4x screws

• 4x rubber grommets

• 1x ultra-lite linear VTX antenna
