HGLRC Sector X5 FR 5" Freestyle Frame Kit

HGLRC Sector X5 FR 5" Freestyle Frame Kit

$71.99
$71.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

The CNC camera plates on this frame are designed to support the DJI O3 Air unit. Making this Frame an HD and Analog compatible frame.

The HGLRC Sector X5 FR is a 5" Freestyle FPV Frame with a Wide X configuration. Take your freestyle flights to the next level with this durable frame! This frame features quick swap arms for easy electronic fixes and CNC aluminum side plates. It also has Dustproof belts that mount on the side standoffs to protect electronics from any debris.

Check out all our 5" frames, as well as our whole HGLRC product line!

Need Spare parts for your Sector Frame? Check out our spare parts list for all your needs.

Features

  • Replaceable arms for quick disassembly without taking apart the whole frame
  • A fixed power outlet for convenience and protecting your power cable from cutting by propellers
  • Dust-proof straps covering both sides to better protect your rig and keep them clean
  • CNC aluminum side plates combined with 3D printed parts to make your drone look dope!

Specifications

  • Brand name:HGLRC
  • Model: Sector X5 Freestyle Frame
  • Material: 3K Carbon Fiber
  • Type: 5-inch
  • Wheelbase: 210 mm
  • Size: 199x178 mm
  • Top plate: 2.5mm
  • Middle plate: 2mm
  • Bottom plate: 2.5mm
  • Top and middle plate space: 25mm
  • FC mounting hole: 30.5mmx30.5mm/20x20mm M3
  • VTX Mounting: 20x20
  • Camera mount:19x19mm
  • Motor mounting hole: M3X16

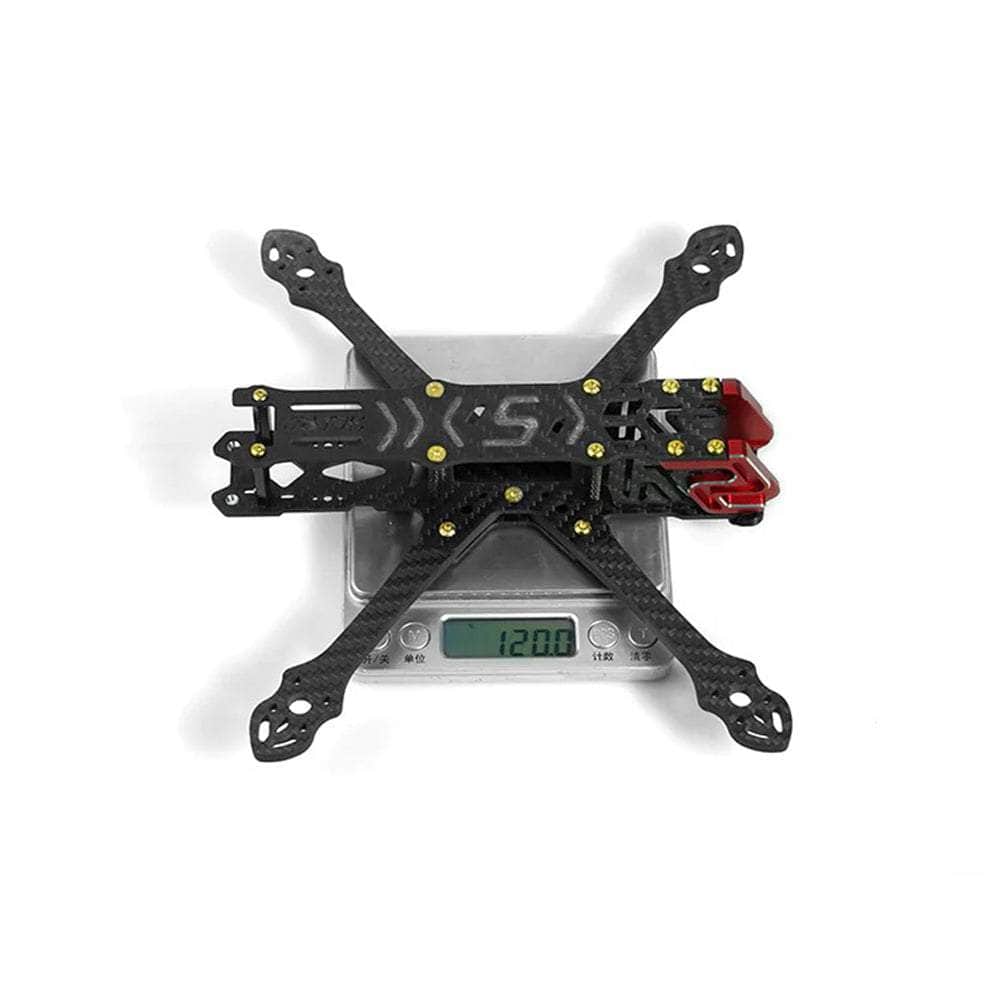

  • Weight: 120g

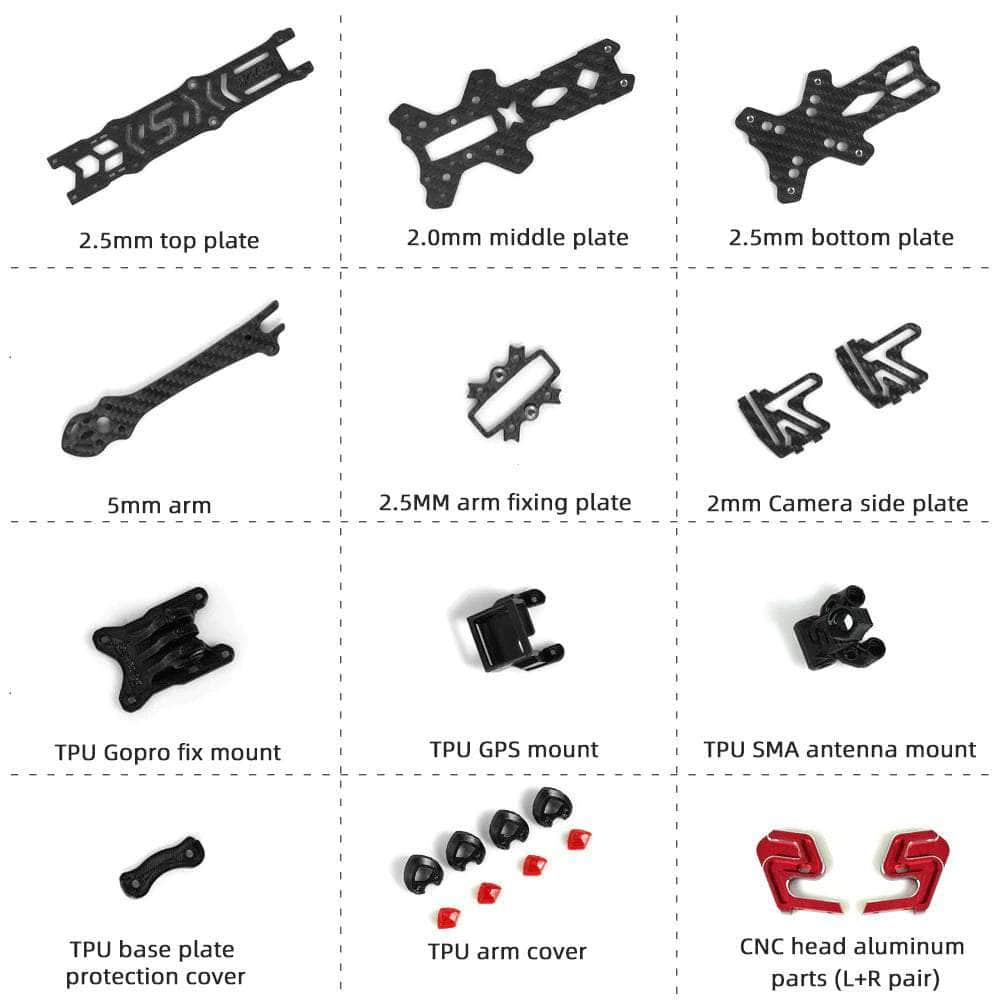

Includes

  • 1x 2.5 mm Top plate
  • 1x 2 mm Middle plate
  • 1x 2.5 mm Base plate
  • 4x 5 mm Arm
  • 1x 2.5mm Arm fixing plate
  • 2x 2mm Camera side panel
  • 1x Frame head CNC aluminum parts (one pair)
  • 1x TPU Black GOPRO fix mount
  • 1x TPU black SMA antenna mount
  • 1x TPU black GPS mount
  • 1x TPU black base plate protection cover
  • 4x TPU black arm protection
  • 4x TPU Red footpad
  • 2x Battery straps 20x250mm
  • 1x Battery Anti-slip pad
  • 1x Screw Accessory package

More Info

  • SKU: 18085
  • Barcode: 686661080546


Overall rating: 4.5833335 / 5 from 12 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["frame","instructions","quality","quad","shipping"].

Review highlights

Reviews

Excellent as always

"Sweet frame great quality. Instructions could be clearer. But happy with my product and fast service and delivery 🙌"

— Gabriel D. (5/5)

Great flyer.

"What a great quad'! Paired with a 6s setup, this thing rips. Have had a few solid crashes and the frame just brushes it off. Replace props and go! Really like the red accents with the carbon. Really sets it off"

— Ricci D. (5/5)

Good frame

"The Sector X5 is a clean build, and the build quality is impeccable"

— Alexander M. (5/5)

Missing parts and instructions

"This is my first time building a drone from scratch and the process because there was no instructions was quite difficult It is also very difficult to get instructions for this they have a QRL code on the box and it's a dead link My only saving grace was finding somebody putting one together on YouTube who actually had the instructions in the video and I was able to pause it so I can figure out what nut goes where... It was also missing the antenna mount so I had to use the GPS mount cut it down and poke holes in it to mount my antennas.. My complains are only the quality control as far as the missing items after putting everything together... I would give it five stars because its a great frame"

— SAl (3/5)

sold frame, bad nutserts

"I had a problem with several lose nutserts that had to be epoxied in place."

— John F. (4/5)

Very Duravle / Flys Great

"This frame has been excellent so far. I've smahed it into a pole pretty hard and it bounced off and kept going.. Durable. Order process was fantastic as usual. The instructions for building are a bit tedious but, that's every frame. The frame is super sturdy and paired with a great tune, it's truly nice feeling quad to fly."

— Anthony B. (5/5)

I would buy it again

"Is a decent kit, instructions are non existing. Frame is really durable"

— damian c. (4/5)

Very sturdy, comes with extra

"Very sturdy, comes with extra screws and lots of 3d printed parts. 30x30 fc mounting holes are larger than M3 though. Mounts caddx Vista with no problem."

— Austin C. (5/5)

Strong frame

"Strong frame"

— Chris N. (5/5)

Very nice frame. Instructions were

"Very nice frame. Instructions were a little vague but I figured it out. I paired this frame with the speedybee f405 v3. Everything went together perfectly. The frame Flys great"

— Ronnie H. (5/5)

Q&A

Would this frame work for an analog build?
Absolutely.
does the DJI o3 camera fit in this frame?
Not sure, I put the walksnail micro on it. Pretty sure it was a snug fit and i can't measure because I lost that drone. Sorry...
