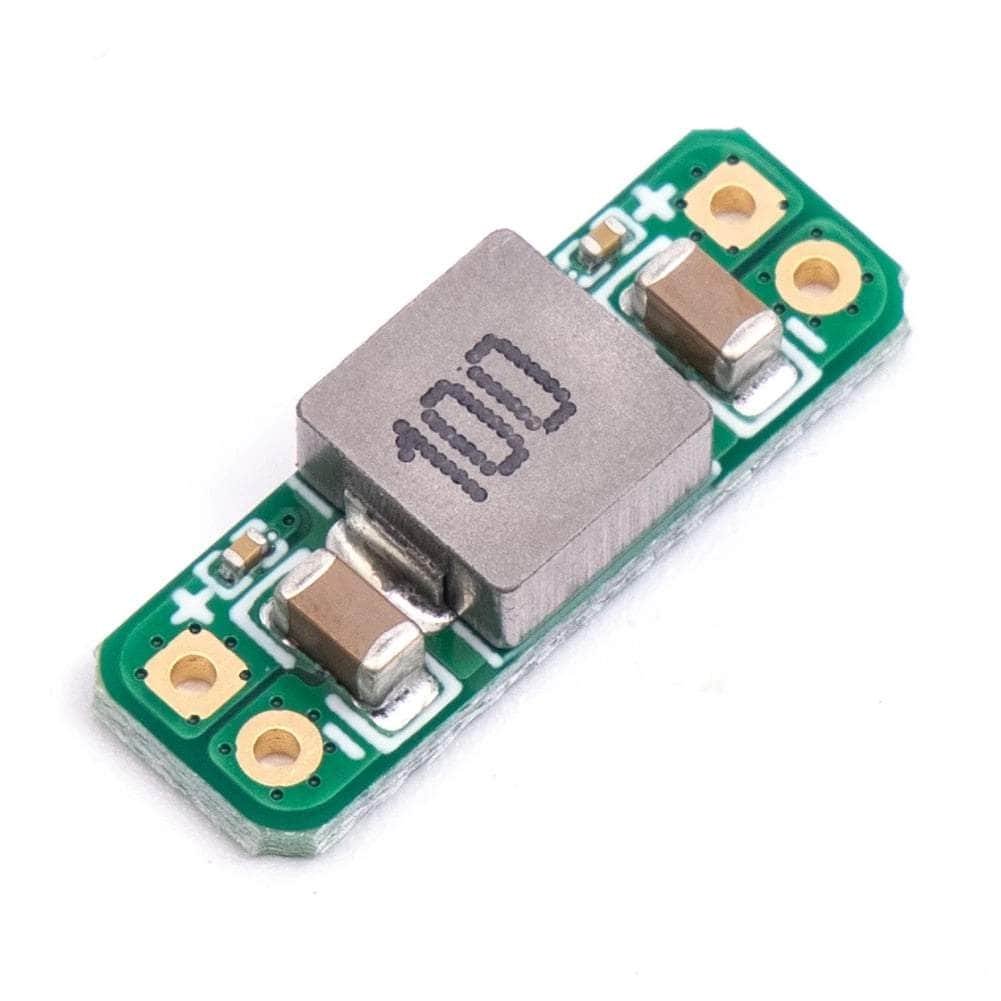

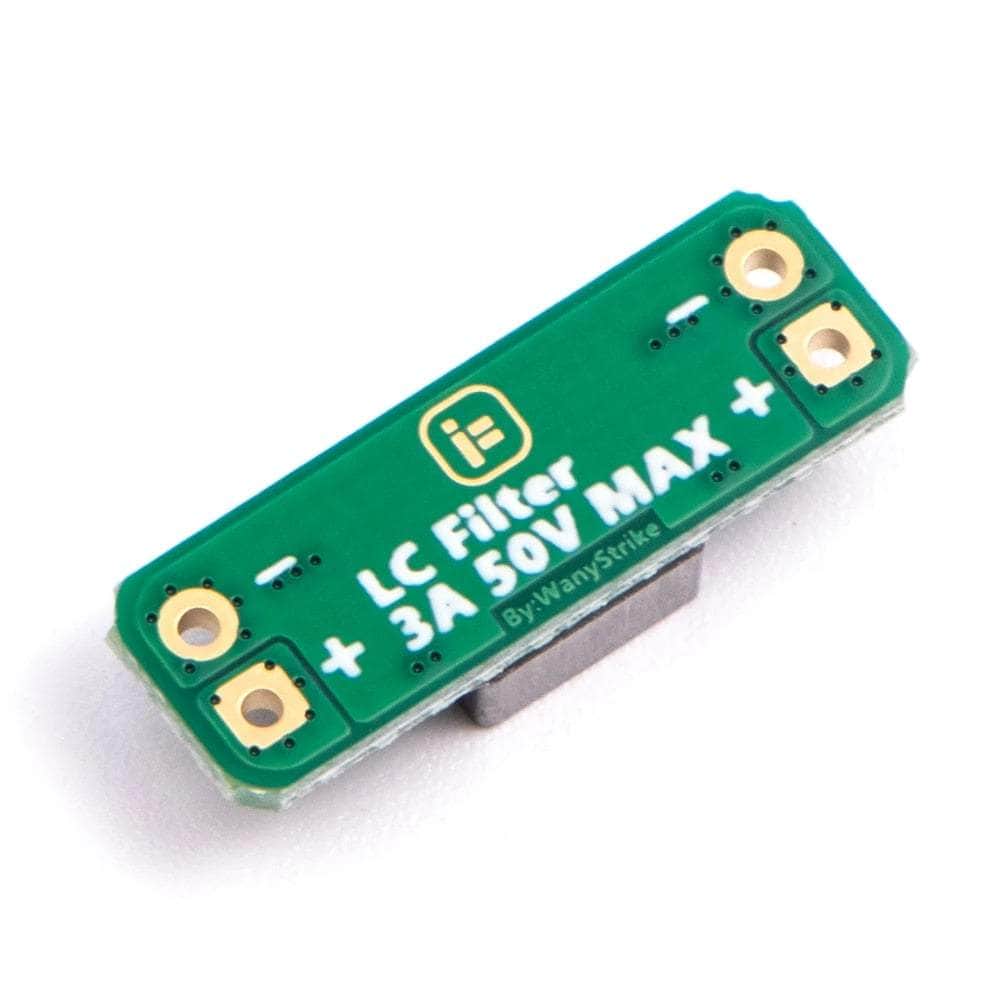

iFlight 5-36V 3A LC Filter Module

iFlight 5-36V 3A LC Filter Module

$5.99
$5.99
Add To Wishlist
View full details

Details

Description

Your motors and ESCs generate electrical noise that can be detrimental to your video quality. The most common symptoms of electrical noise are lines and dots in your FPV feed, especially when accelerating. These little filters can help clean up the noisy power running into your sensitive FPV electronics.

Take a look at our PDB & BEC selection, as well as the rest of our iFlight offerings.

Features

  • Perfect for sensitive FPV- and RC components in a single battery setup.
  • Both the negative and positive leads are filtered (common mode)
  • Suitable for setups up to 36V
  • Reduces DC-DC switcher supply ripple and helps clean noisy power from a shared battery.
  • Reduce the effects of interference radiated through the air and noise conducted via the power wires.
  • Help attenuation most of the high-frequency power supply noise and interference.
  • Suppress the noise in the power getting to your FPV setup (e.g. your VTX and FPV camera).
  • Built-in Reverse Polarity protection
  • Very low voltage drop

Specifications

  • Input Voltage: 5-36V
  • Max. Input Current: 3A

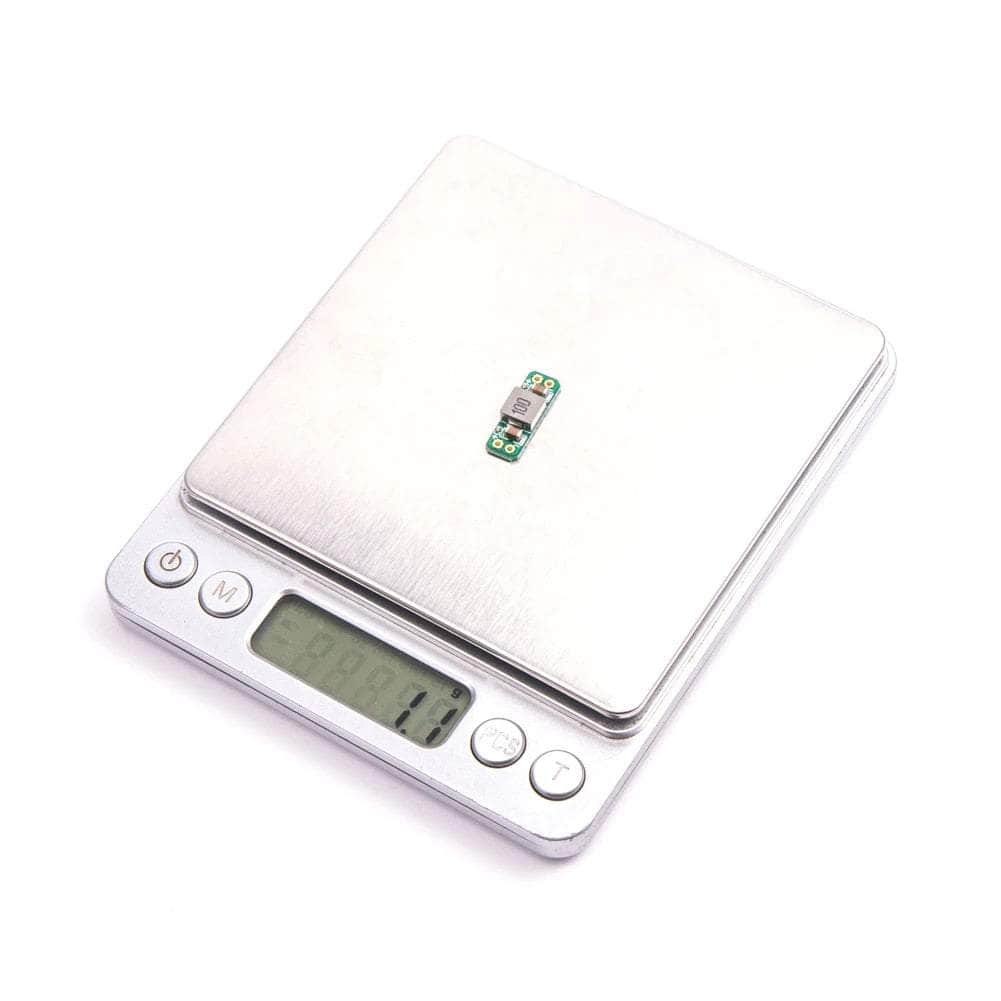

  • Weight: 1.1g

Includes

  • 1x iFlight 5-36V LC Filter Module

More Info

  • SKU: IFLI-B012944
  • Barcode: 691023522718


Overall rating: 4.821429 / 5 from 28 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["improvement","works","filters","video","vtx","noise"].

Review highlights

Reviews

love it

"works good"

— dennis r. (5/5)

Perfectly clean video

"I installed this in a wing to filter the power feeding my FPV equipment. I get absolutely zero throttle lines in my video feed."

— Stephen W. (5/5)

Perfect to removing video noise!

"These are perfect for removing tough video noise. I include one of these in all of my builds both quads and fixed wings alike."

— Frank W. (5/5)

Very small and easy to

"Very small and easy to install. On my rig i couldn't really tell a difference but i didn't have much noise in the first place. I wired it directly to a 4s battery and have it feeding my VTX and camera power."

— Brad D. (4/5)

This thing is so Good

"I've been fighting noise in my video feed for so long trying to figure out how to make it go away. When I do a full throttle punch it would break up like crazy. I added a bec to power my camera. That didn't do much. Installed this little thing to power my vtx and it cleared up my video feed almost perfect. Highly recommended if youre getting a lot of static in your goggles."

— Greg S. (5/5)

Nice and small LC filter

"This tiny 5-36V 3A LC filter can be wired to the VTX power supply (battery voltage) in order to filter noise coming from motors and ESCs through your FC or PDB BEC despite your other filters (capacitors and TVS diodes) that would be closer to the source. Great addition to the FPV setup, and very small, easy to squeeze in."

— Matthias J. (5/5)

Seemed to help filter noise

"Seemed to help filter noise from my video feed"

— ROGER C. (5/5)

It works. Enough said.

"I got this to try to reduce noise on my VTx. It helped a little. But it's not clear whether the noise was coming from the BEC. Was worth the helping to diagnose the problem."

— Marty W. (4/5)

Love these! Provides clean power

"Love these! Provides clean power and helps reduce noise in your video feed."

— Seth T. (5/5)

Works great lowered the noise

"Works great lowered the noise in my video feed considerably"

— Anthony D. (5/5)

Q&A

Does the arrow has a meaning? Is direction of output?
This is correct, the arrow shows the direction of the power through this board.
