Description

XING-E PRO series are everything you love about Xing motors at a more affordable price, and now with a unibell design like their premium counterparts! Performance and durability are still of utmost importance to iFlight when designing these motors. They feature a 4mm high strength hollow steel shaft, single strand windings, M3 shaft screw, and larger 9x4x4mm NSK bearings.

We also carry the original Xing and Xing Camo lineup of course!

Check out our vast motor selection, and all our iFlight gear!

Features

• New Unibell construction

• High-strength 4mm Steel shaft

• N52H High-temperature magnets, NSK bearings
• 16x16mm hole pattern
• Single strand copper winding
• Hex bolt shaft set screw

Specifications

• Kv: 1800
• Input Voltage: 4-6S
• Configuration: 12N14P
• Magnets: N52SH Curved
• Max Continuous Current: 42.63A
• Internal Resistance: 46.8mΩ
• ldle Current@10V: 2A
• Motor Dimensions: Φ28.5x19.7mm
• Stator Dimensions: Φ22x7mm
• Shaft Diameter: 4mm Steel
• Bearing Dimensions: 9x4x4mm
• Output Shaft Dimensions: ΦM5x15mm
• Wire Dimensions: 20AWG x 150mm
• Mounting Pattern: Φ16mm, 4x M3
• Weight (w/ wires): 33.8g

Includes

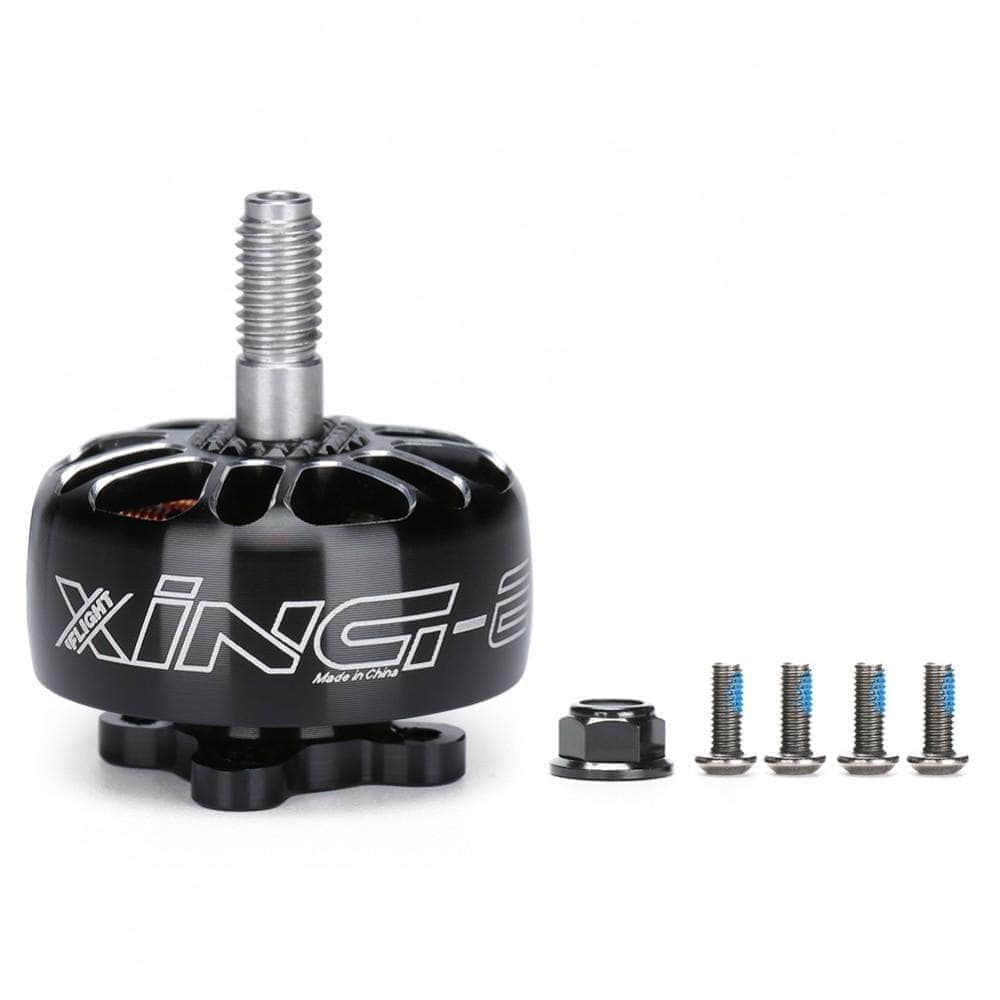

• 1x IFlight Xing-E PRO 2207 1800Kv Motor
