Matek Digital Airspeed Sensor ASPD-4525

Matek Digital Airspeed Sensor ASPD-4525

Regular price $59.99
Sale price $59.99 Regular price
In stock
In stock
Add To Wishlist
View full details

Details

Description

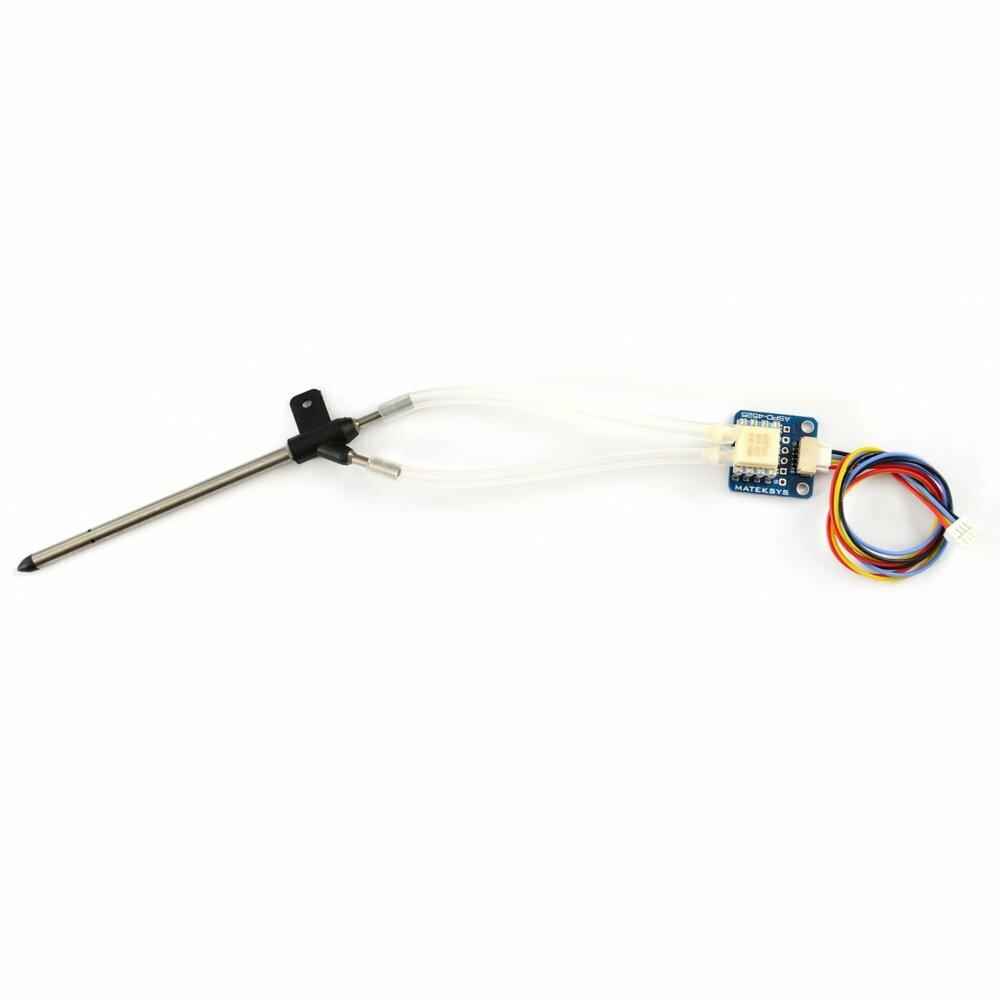

If you've ever wanted to see your wing's actual relative airspeed rather than ground speed supplied by GPS, this is the thing for you! The kit includes a sensor, pitot tube and connection rubber tubing.

Check out all our wing parts & our Matek gear selection!

Specifications

  • Board Supply voltage: 4~6V DC
  • Sensor: MS4525
  • Working current: 5mA
  • Output: I2C (SCL & SDA)
  • Pressure Ranges: 1 PSI (6.89kPa)
  • Maximum Pressure: 20 PSI (137.9kPa)
  • Operating Temperature: -40°C ~ 125°C
  • Accuracy: ±0.25% SPAN
  • Red LED: power indicator
  • JST-GH sequence: 5V, SCL, SDA, GND

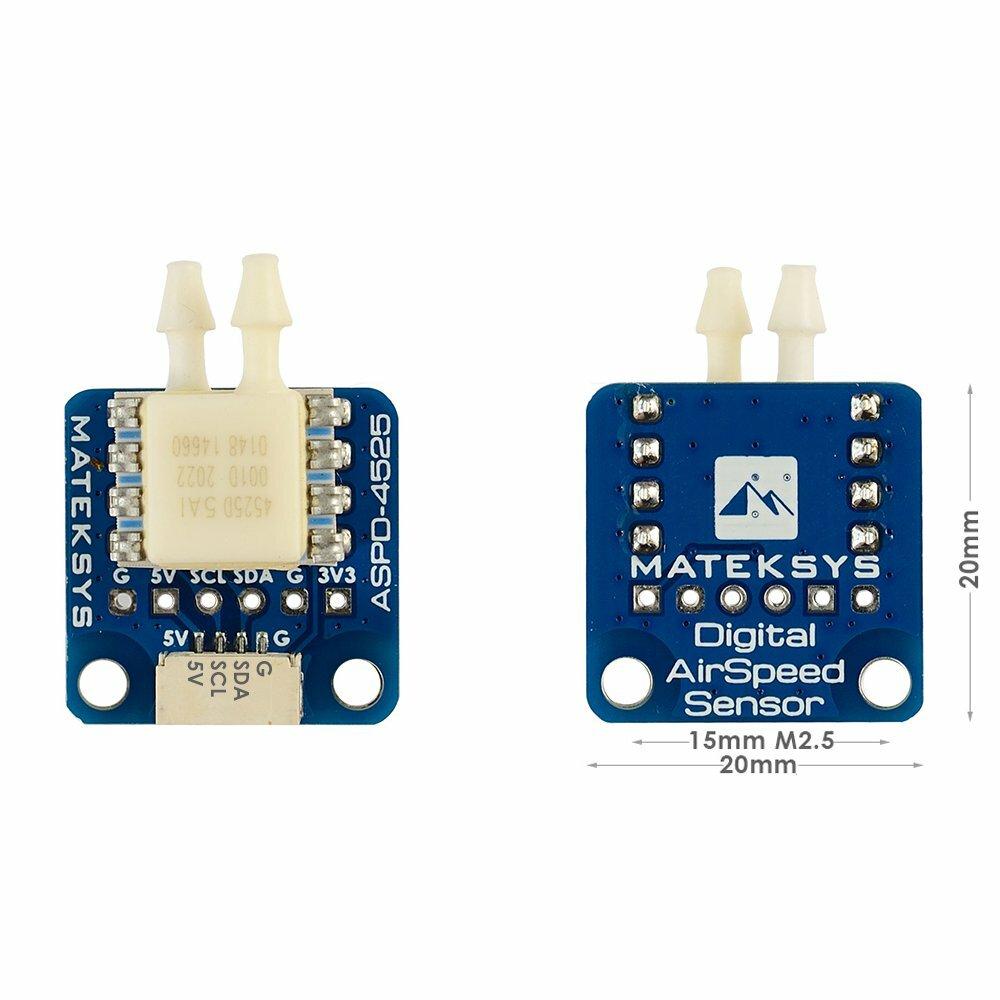

  • Weight: 3.5g (sensor board)

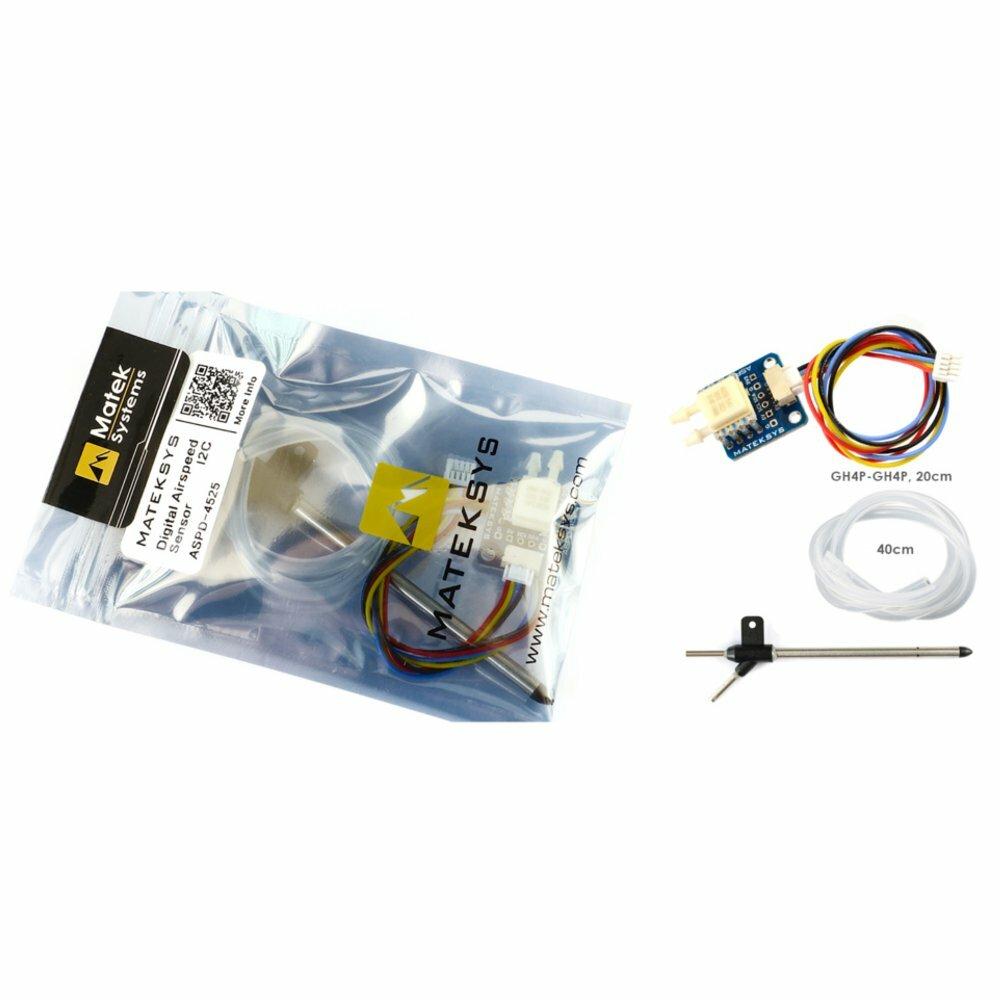

Includes

  • 1x Matek Digital Airspeed Sensor ASPD-4525
  • 1x JST-GH to JST-GH 20cm silicon cable.
  • 1x Pitot Tube.
  • 1x Clear silicon tubing 40cm

Wiring Diagram

5V to FC 4~6V
SCL to FC I2C_SCL
SDA to FC I2C_SDA
G to FC GND
