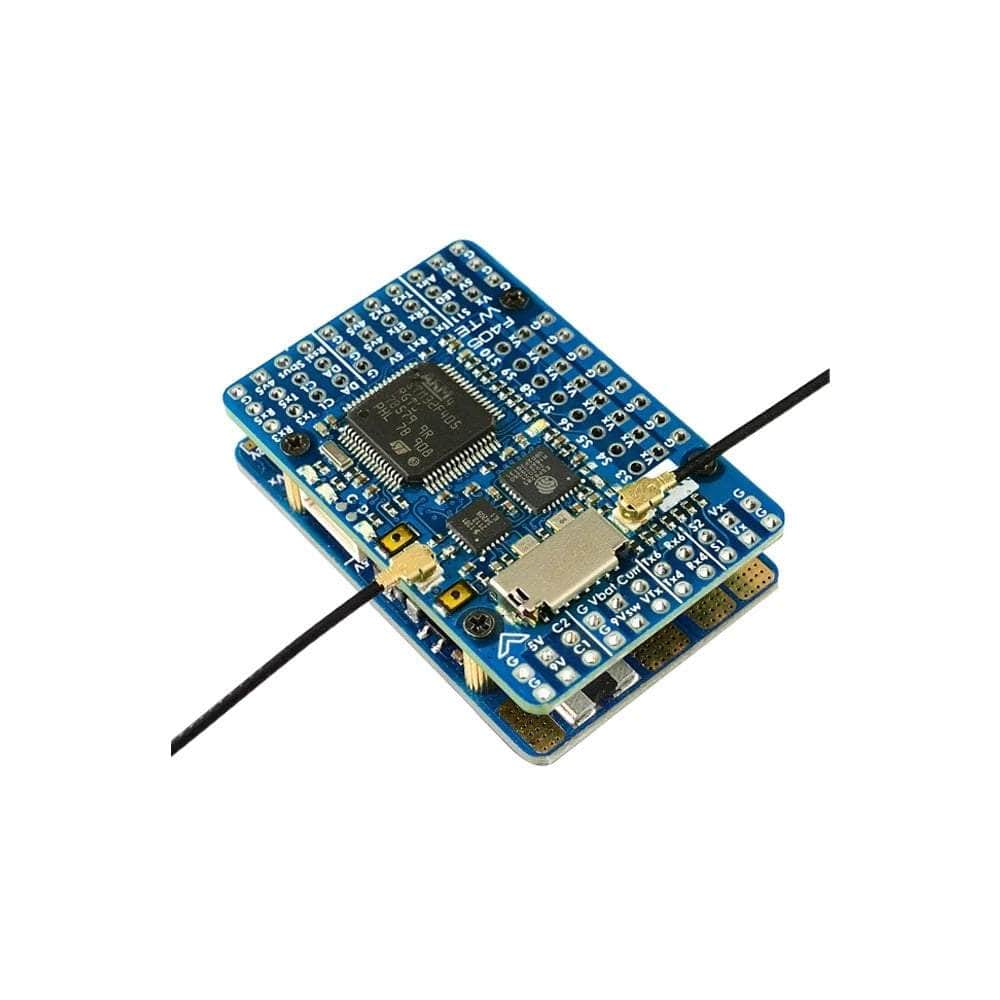

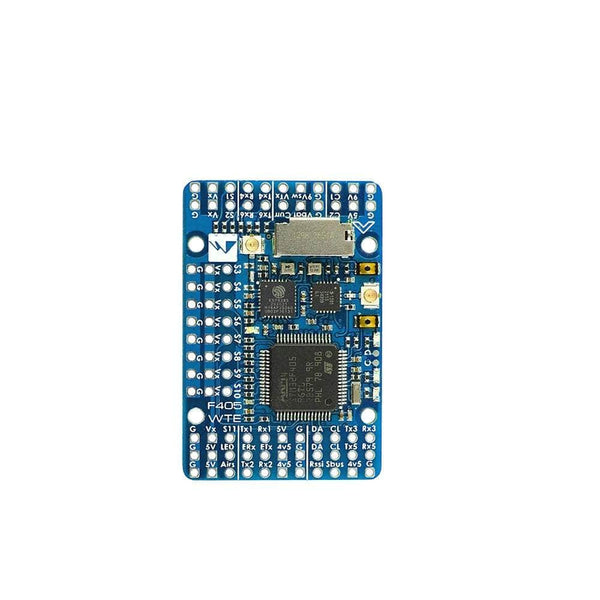

Matek has done it again with another top of the line Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & RX . This time with an integrated ESP32 module that can be used as an ELRS Receiver of wifi telemetry! You won't find any better quality in the wing game.

Check out our other wing flight controllers, as well as the rest of our Matek selection!

Specifications

  • Input Voltage 2-6S
  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: MicroSD card slot
  • ESP WiFi Telemetry: Yes(MAVLink, 14dBm)
  • ExpressLRS 2.4G Receiver: Yes(CRSF protocol, Telemetry 12dBm)
  • UARTs: 6 + 1x Softserial_Tx option(INAV)
  • PWM outputs: 12
  • I2C: Yes
  • ADC: 4 (VBAT, Current, RSSI, Airspeed)
  • Dual Camera Inputs Switch: Yes
  • FC Firmware: ArduPilot: MatekF405-TE, INAV: MATEKF405TE_SD (not available in INAV configurator 4.x)
  • Mounting Pattern: 25x25mm M2
  • Dimensions: 44x29x12.7mm
  • Weight: 22g

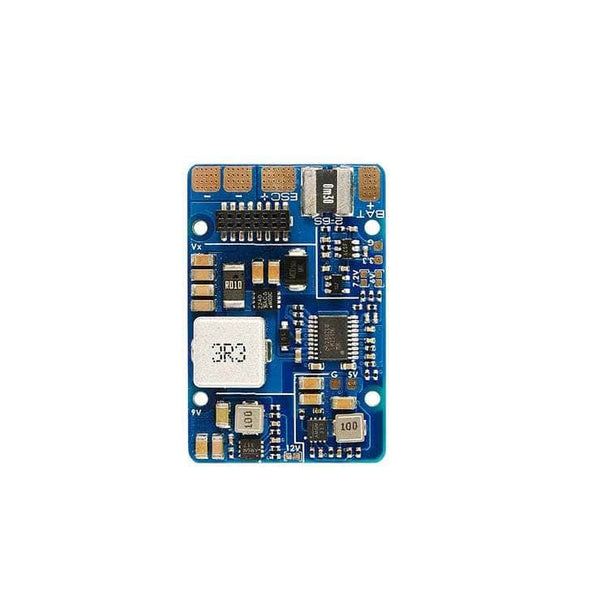

BEC Specifications

BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps, Max.3A

BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad
  • for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps, Max.10A
  • for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output

  • Designed for Baro / Compass module and external 3.3V peripherals
  • Linear Regulator
  • Continuous current: 200mA

Includes

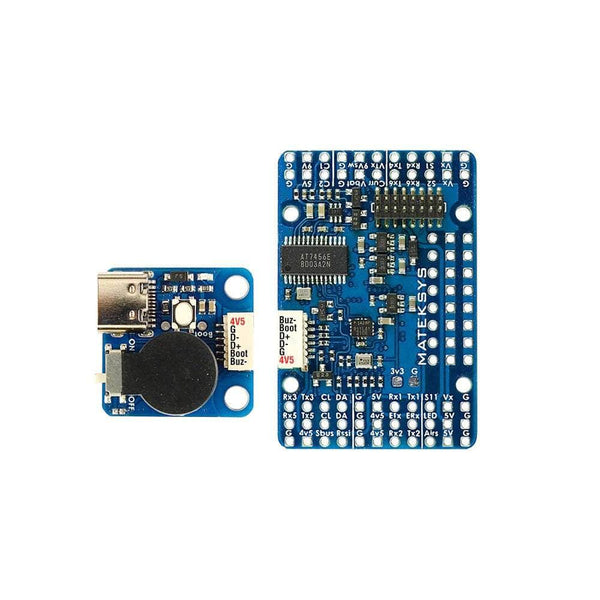

  • 1x Matek F405-WTE Wing Flight Controller w/ Integrated ESP32 & RX
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • 2x IPEX-MHF1 2.4G Antennas
  • 1x Rubycon ZLH 35V 470uF capacitor
  • 1x Set Dupont 2.54 pins

>
