Description

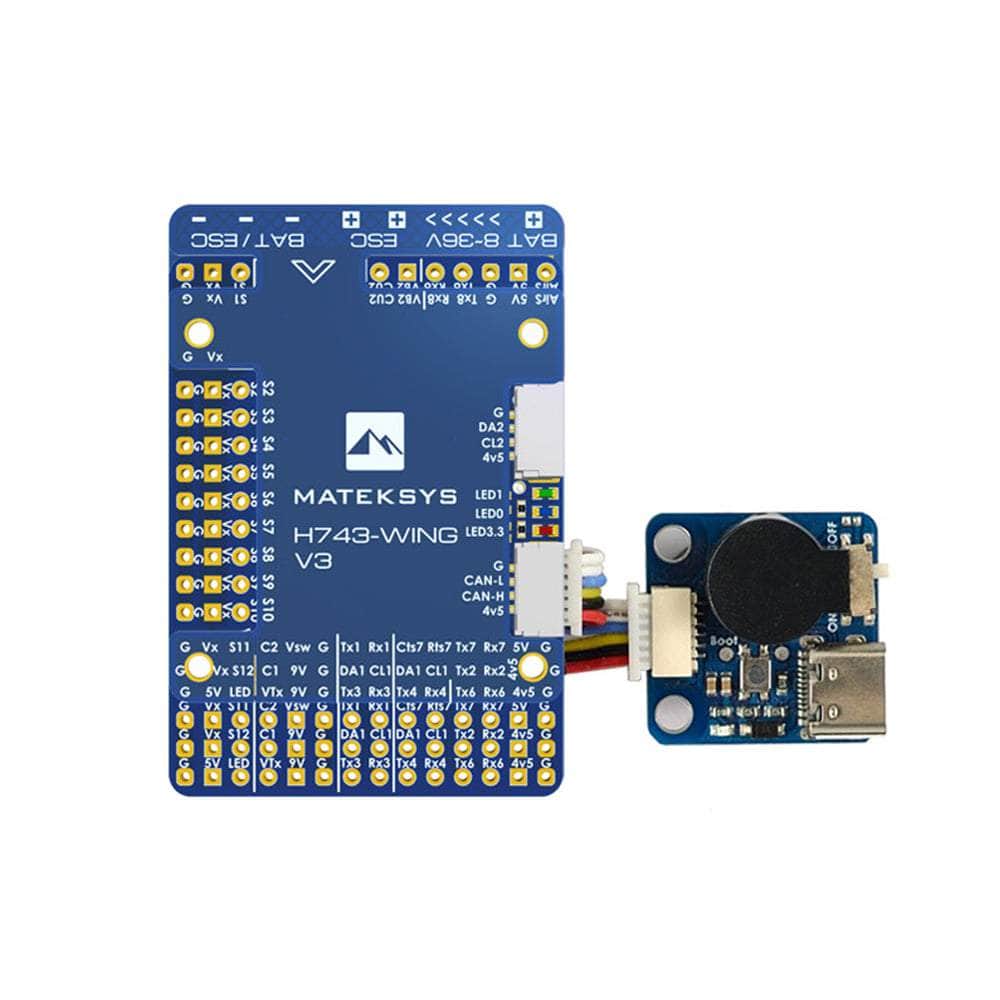

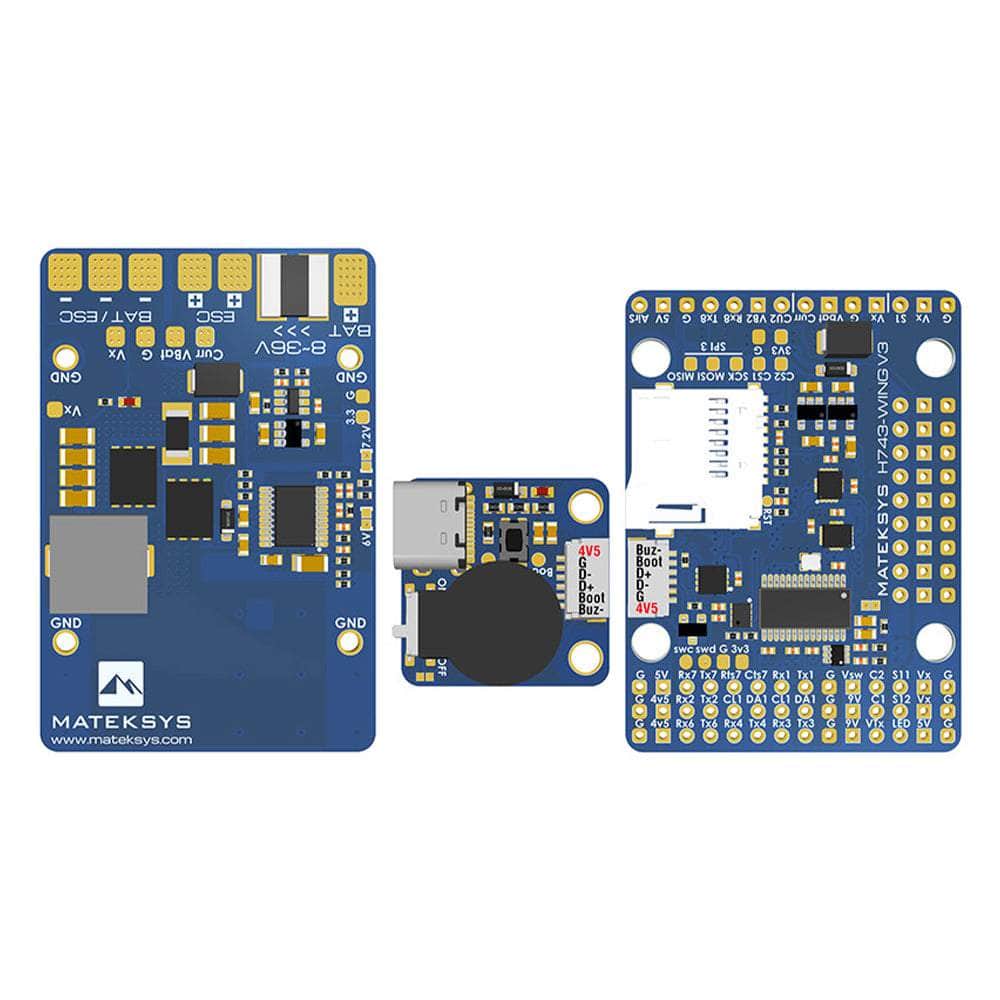

Matek's H743-Wing V3 Flight Controller arrives with new features and improvements over the original. This FC features a STM32H743VIT6 MCU running at 480MHz, dual gyros ICM42688-P(SPI1) & ICM42605(SPI4), a DPS310 (I2C2) barometer, and much more.

This version features an updated Gyro compared to the V2.

Check out our other wing flight controllers, as well as the rest of our Matek selection!

Specifications

• Input Voltage: 3-8S LiPo
• MCU: STM32H743VIT6
• Gyro: ICM42688-P / ICM42605
• OSD: Yes
• UARTs: 8 Sets
• ESC Connections: Yes
• Firmware: MATEKH743
• BEC: 3.3V, 5V, 9V, 12V
• Current Sensor: Yes
• Buzzer: Yes
• Barometer: Yes
• Black Box: Micro SD
• Stack Size: Not Stack Mounted
• Dimensions: 54x36x13mm
• Weight: 30g

Includes

• 1x Matek H743-Wing V3 Flight Controller

Wiring Diagram
