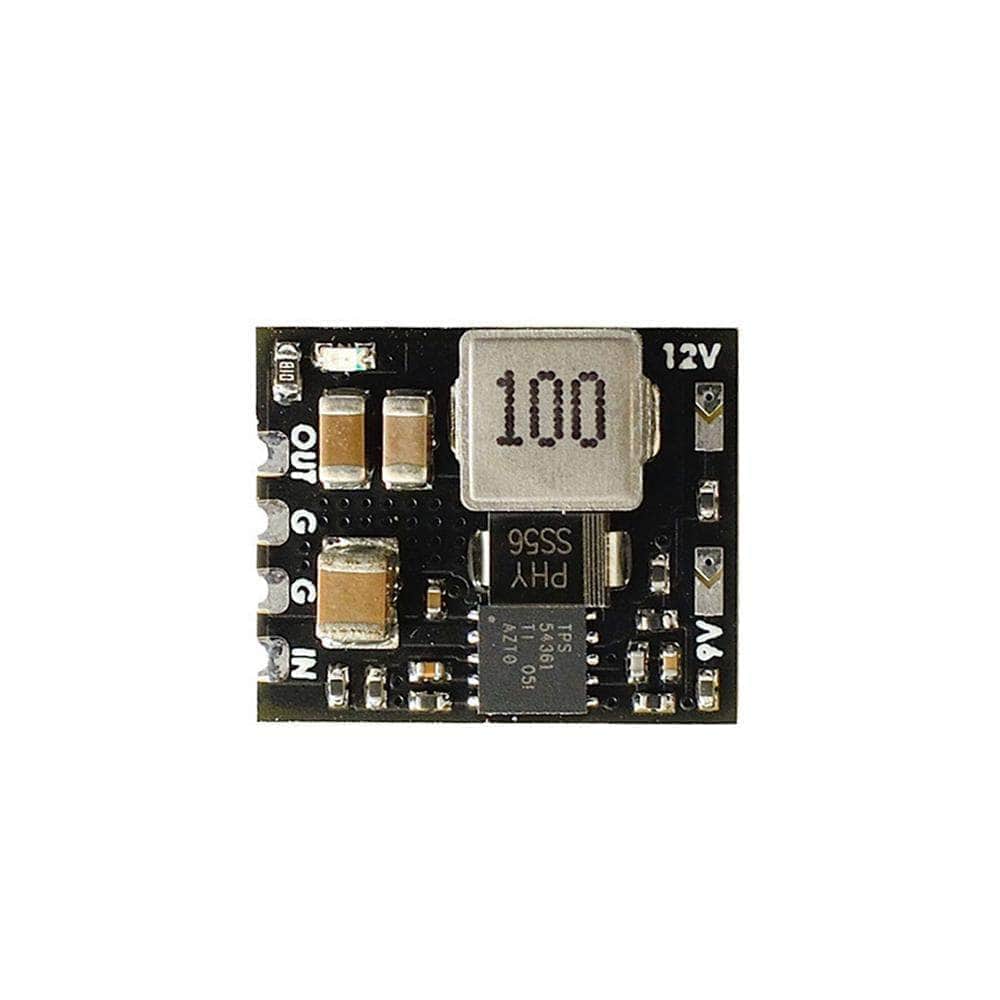

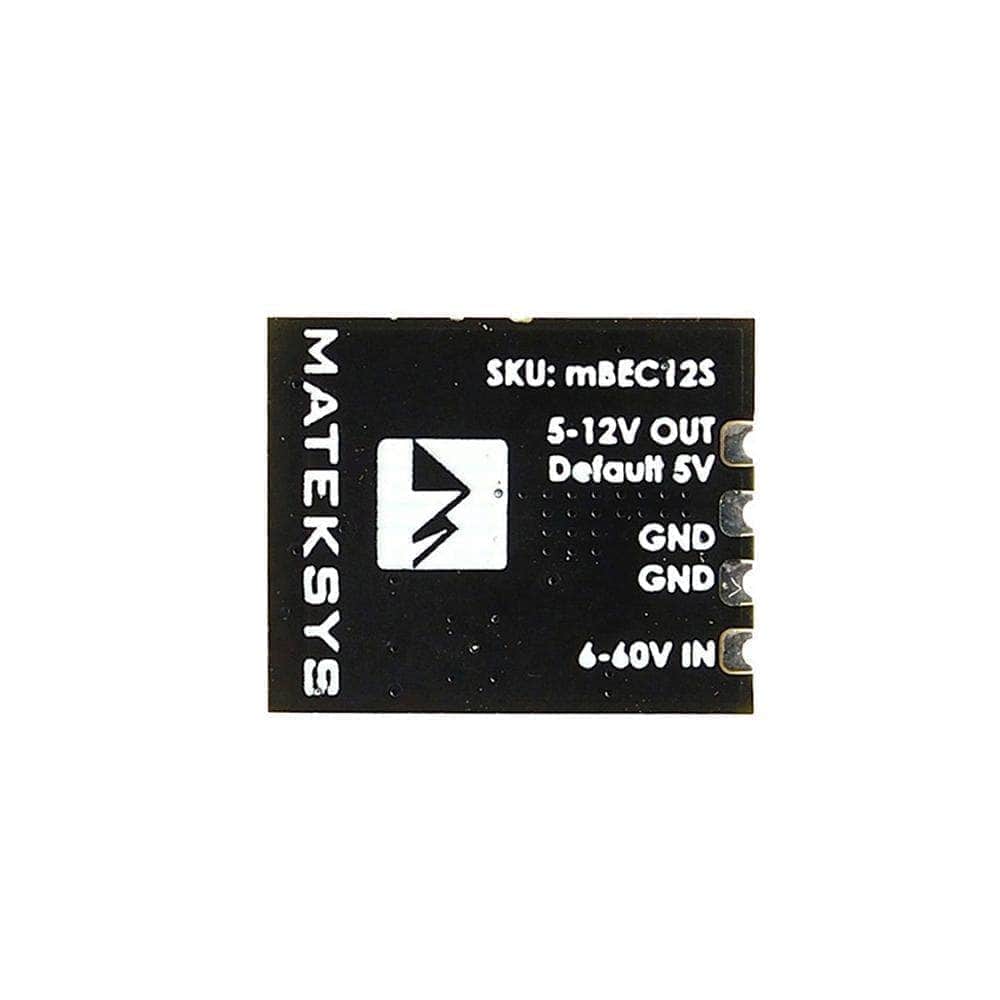

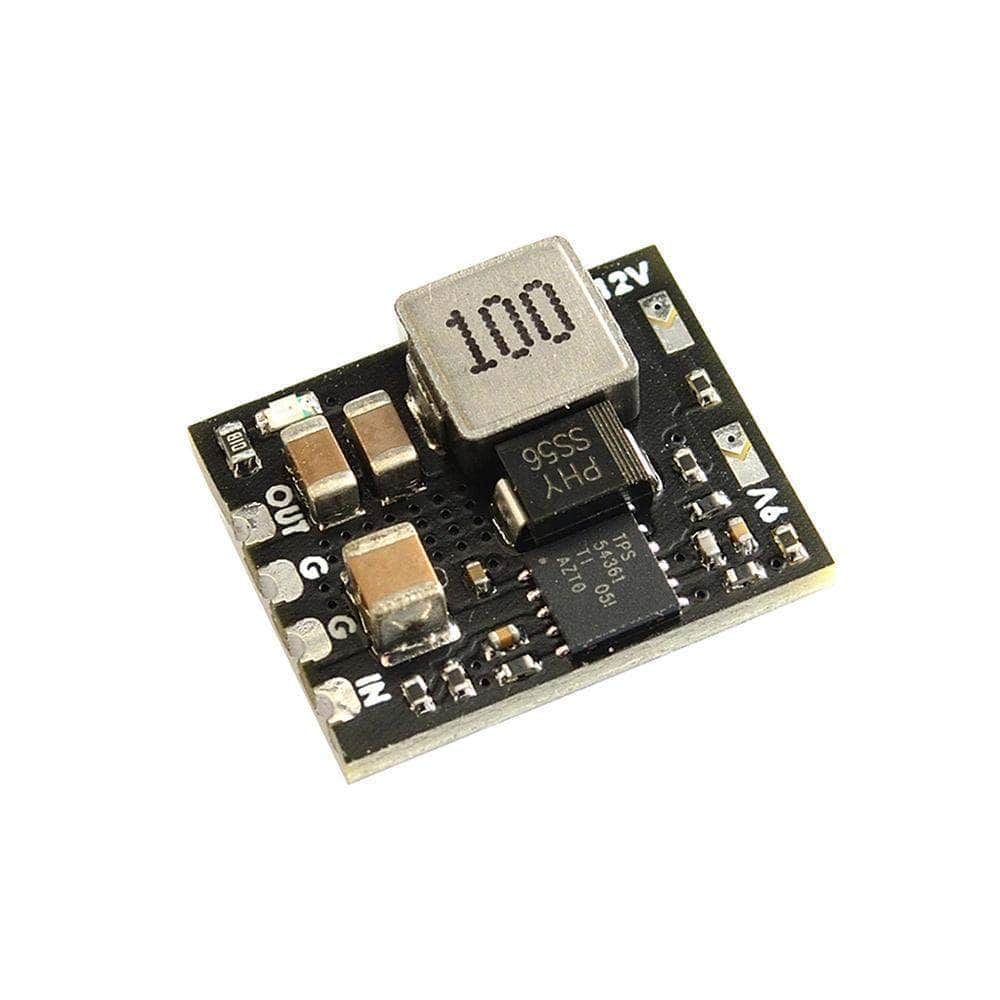

Matek Micro BEC 6-60V to 5V/9V/12V

Matek Micro BEC 6-60V to 5V/9V/12V

$10.99
$10.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

Get the voltage you need with this Matek BEC, convert 6-60V to either 5V, 9V, or 12V.

This BEC defaults to 5V, select either 9V or 12V by soldering the respective jumper.

Check out all our BECs and PDBs, as well as the entire Matek selection!

Specifications

  • Wide 6V to 60V Operating Input Range
  • Start-up Voltage >=6.7V
  • VOut 5V, 9V or 12V Adj. Default is 5V.
  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
  • Continuous load current: Depends on input voltage and heat dissipation.
  • Standby current: <5mA
  • OCP Protection and Hiccup
  • Thermal Shutdown
  • Output Short-circuit tolerant (3 seconds/minute)
  • No protection for reversed input polarity
  • Pins distance: 2.54mm
  • Size & Weight: 18x15x4.5mm, 2g

Includes

  • 1x Matek Micro BEC 6-60V to 5V/9V/12V

Matek Micro BEC 6-60V to 5V/9V/12V for Sale

More Info

  • SKU: 19951
  • Barcode: 691023527591


Overall rating: 4.8965516 / 5 from 29 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["bec"].

Review highlights

Reviews

Mateksys Micro BEC Good Product

"Used this BEC to protect my Walksnail VTX. Closed the 9v gate to get more power to VTX instead of the default 5v."

— Jim H. (5/5)

From crash to comeback

"This little thing helps me return my AcroBee 75 HD back to life. Very easy to install, I solder it to the led strip 5v pads and routed the cables to put it between the BeeBrain and the O3 unit. Works great again."

— Efrain (5/5)

Great product

"Worked very well for the application I needed. Highly recommend this product when you need a dedicated BEC circuit."

— Jim A. (5/5)

Reliable BEC

"Small and light. Perfect for builds that need 5v power for the Walksnail 1s Lite VTX"

— Richard S. (5/5)

Does the job

"Perfect BEC, small easy to connect gives options for 5, 9 and 12V output."

— David B. (5/5)

Great for DJI

"Used to power DJI Vista instead of using FC. Works great. Enough amps to not worry."

— David A. (5/5)

Great product

"A Product is as ordered. Will purchase same if needed"

— Bob B. (5/5)

great item

"great item"

— Clemeth P. (3/5)

Great!!!

"It allowed me to maintain a constant flow of current in my VTX, I no longer lose video in mid-flight"

— jaime A. (5/5)

good BEC

"Some suppliers are recommending this as a stand alone bec for high powered accessories like the Walksnail GT video unit. Works very well."

— Richard I. (5/5)
