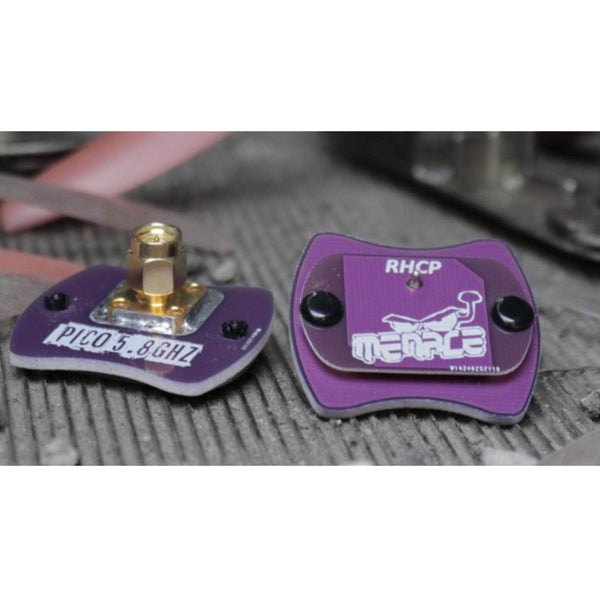

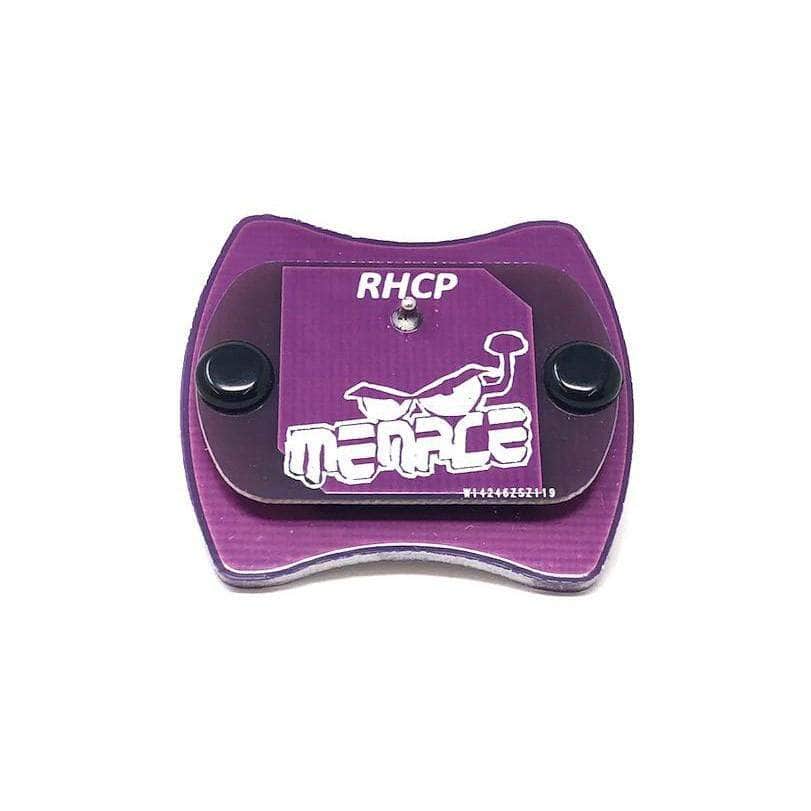

MenaceRC Pico Patch 5.8GHz SMA Receiver Antenna - RHCP
The Menace PICOpatch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarized omni style transmitter antenna.
Check out all our FPV Receivers & Antennas and our Menace selection!
- Highest Sensitivity for increased range
- Ergonomic design to fit diversity modules on Fat Shark & other goggles
- Can stay on your goggles in the carry case.
- 5.8ghz Frequency Bands Compatible
- Circular Polarized for left or right hand
- Designed for goggles or base stations.
- Great for diversity setups.
- Frequency Range: 5645 – 5945 Mhz
- Gain: 9.4 dBi
- Beam Width: 61° at -3db points

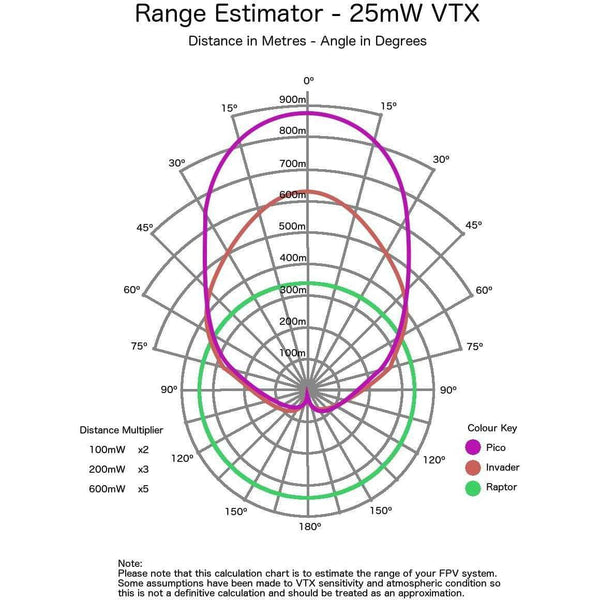

- (Check polar plot comparison invader actual angular db)
- Right Hand Circular Polarized

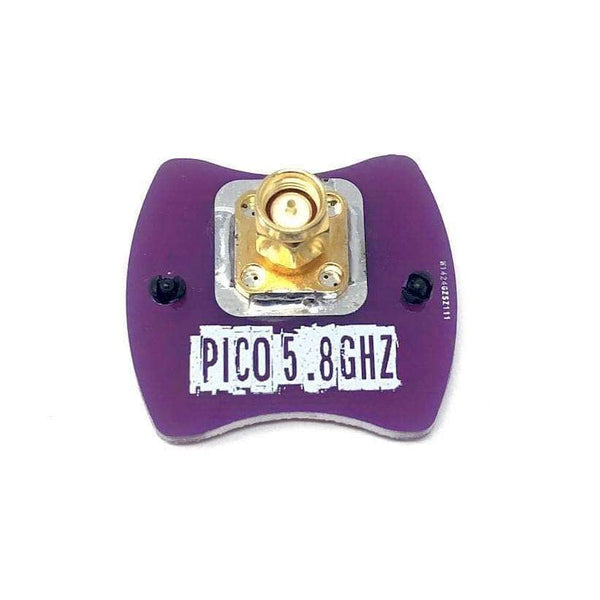

- SMA Connector (Fits Fatshark Goggles)
- Dimensions: 37.0mm x 33.6mm x 19.2mm
- Weight: 10 grams
- 1x MenaceRC Pico Patch 5.8GHz SMA Receiver Antenna - RHCP
