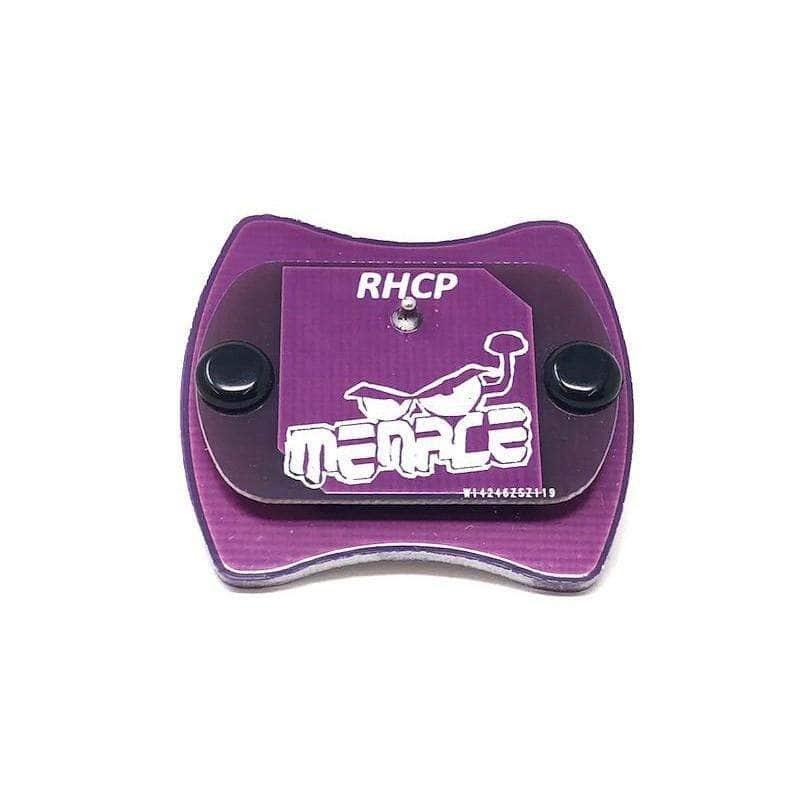

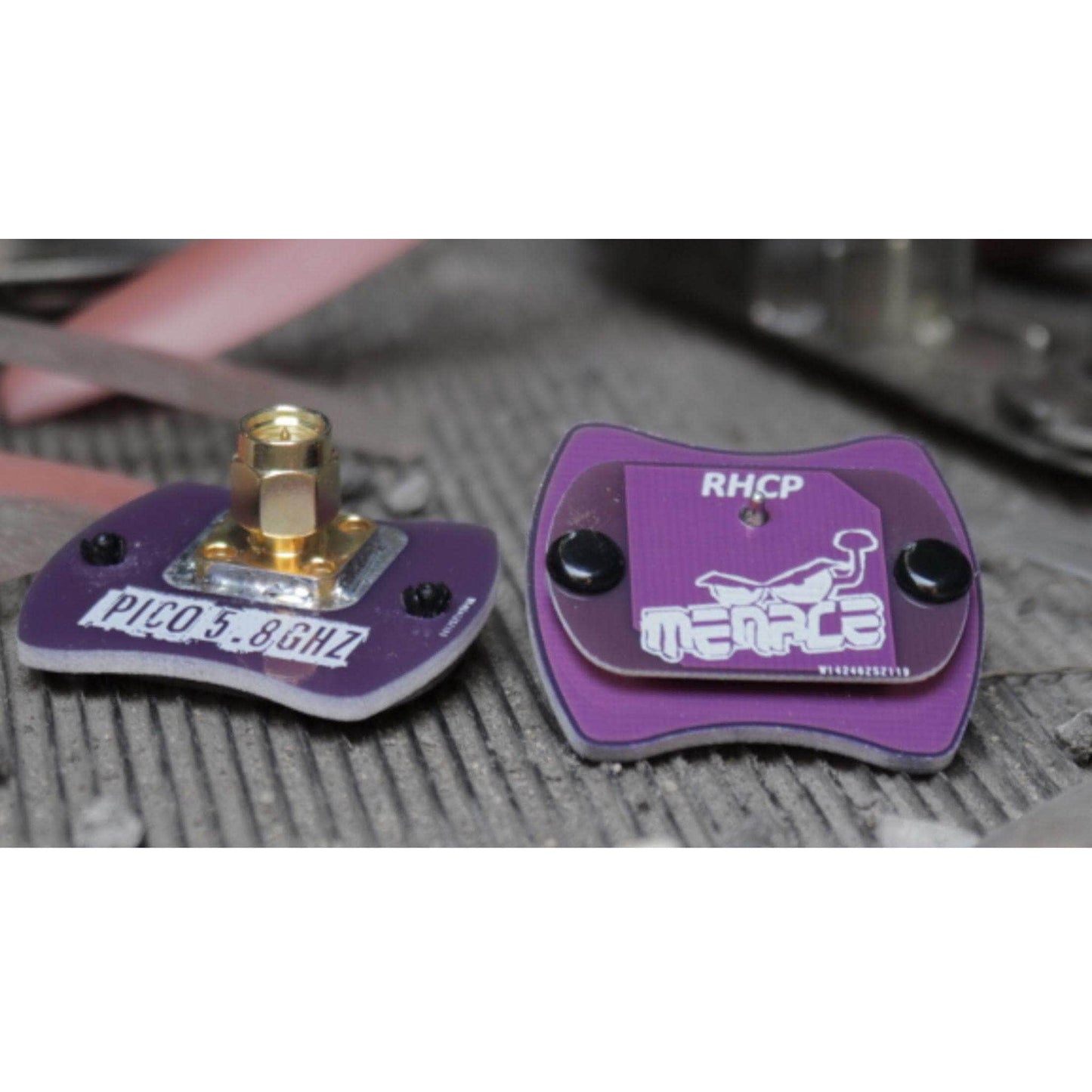

MenaceRC Pico Patch 5.8GHz SMA Receiver Antenna - RHCP or LHCP

In Stock
Pre Order
Coming Soon
Add to Wishlist
Free Delivery on U.S.A. Orders $50 or more

The Menace PICOpatch antenna is our smallest receiving patch that is big in performance, perfect partnering with a circular polarized omni style transmitter antenna.

-Highest Sensitivity for increased range

-Ergonomic design to fit diversity modules on Fat Shark & other goggles

-Can stay on your goggles in the carry case.

-5.8ghz Frequency Bands Compatible

-Circular Polarized for left or right hand

-Designed for goggles or base stations.

-Great for diversity setups.


Frequency Range: 5645 – 5945 Mhz

Gain: 9.4 dBi

Beam Width: 61° at -3db points

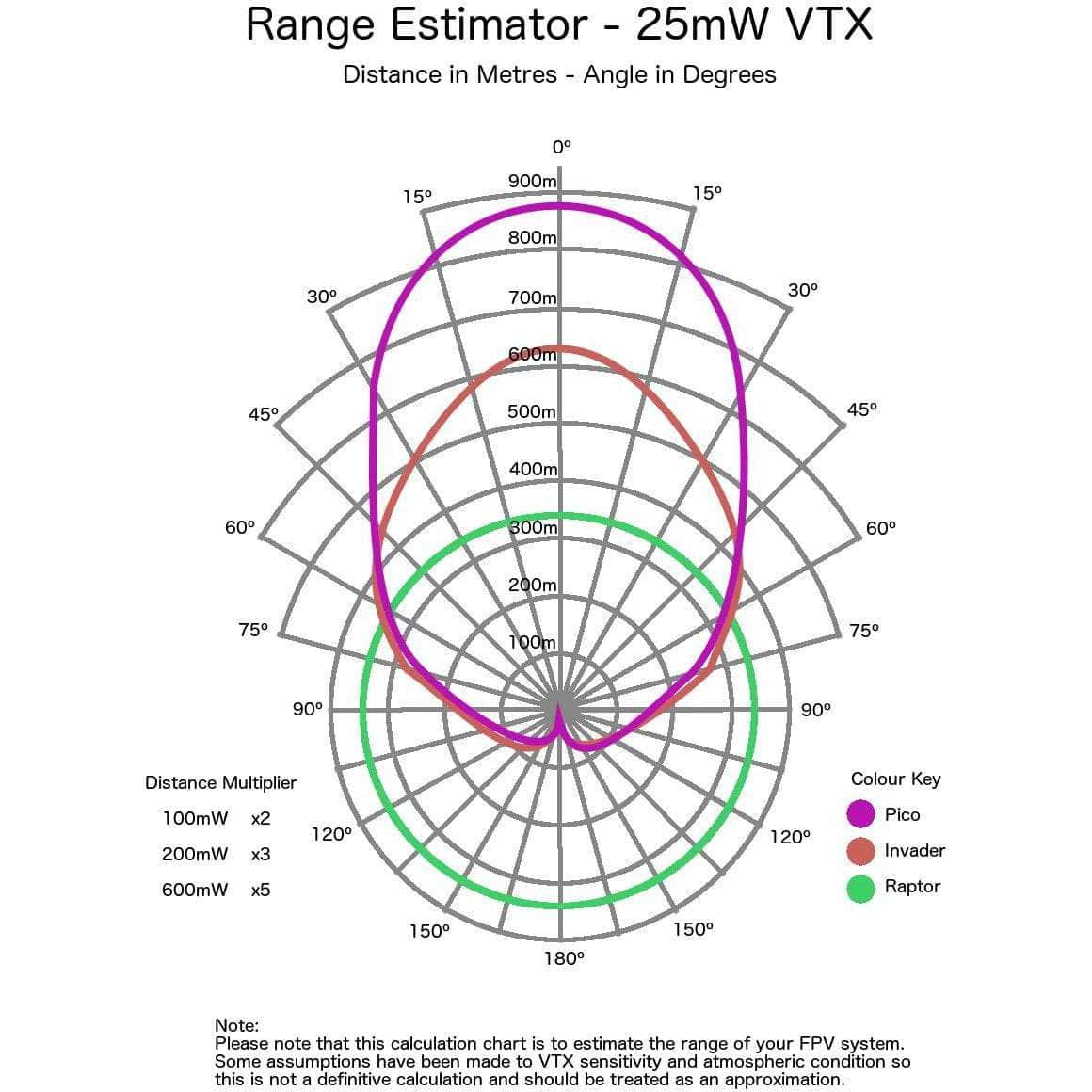

(Check polar plot comparison invader actual angular db)

Left or Right Hand Circular Polarised (LHCP or RHCP)

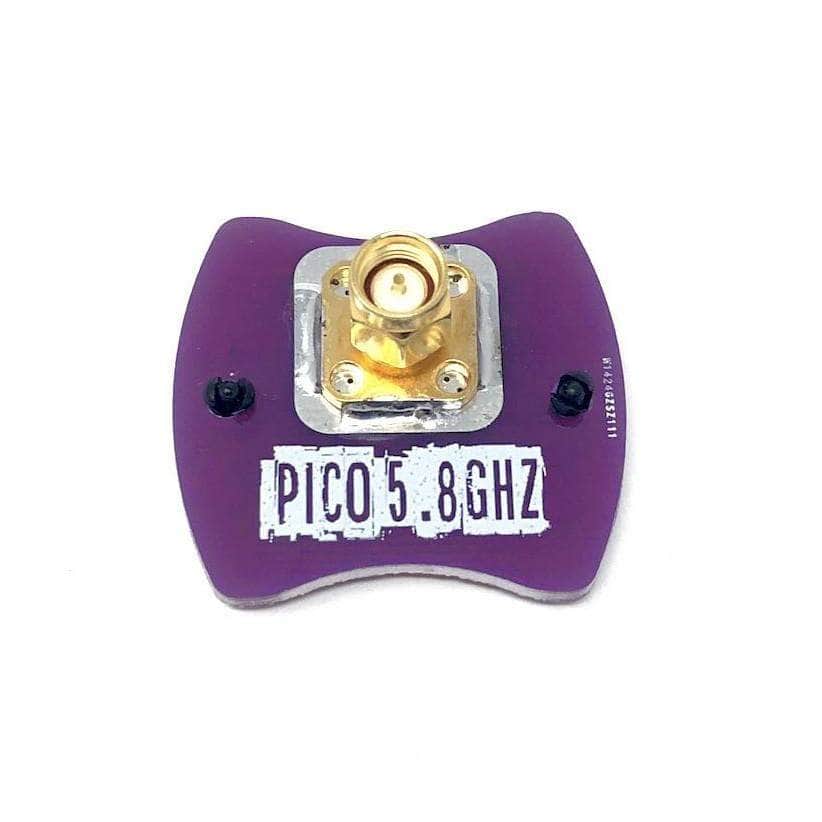

SMA Connector (Fits Fatshark Goggles)

Dimensions: 37.0mm x 33.6mm x 19.2mm

Weight: 10 grams


Real World
25mW Range tested to 1.33km

60% increase in range over a 5db patch

20% increase in range over a 8db patch

38% increase range over the Invader patch
Reduced multipath propagation compared to 360 degree omni style receiving antenna’s.

MenaceRC Pico Patch RHCP SMA for Sale
