NewBeeDrone Turismo 5'' light weight frame for Racing and Freestyle

Original price $59.99 - Original price $59.99
Original price
$59.99 - $59.99
Current price $59.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

This is NewBeeDrone's first 5inch light weight frame for racing and freestyle.

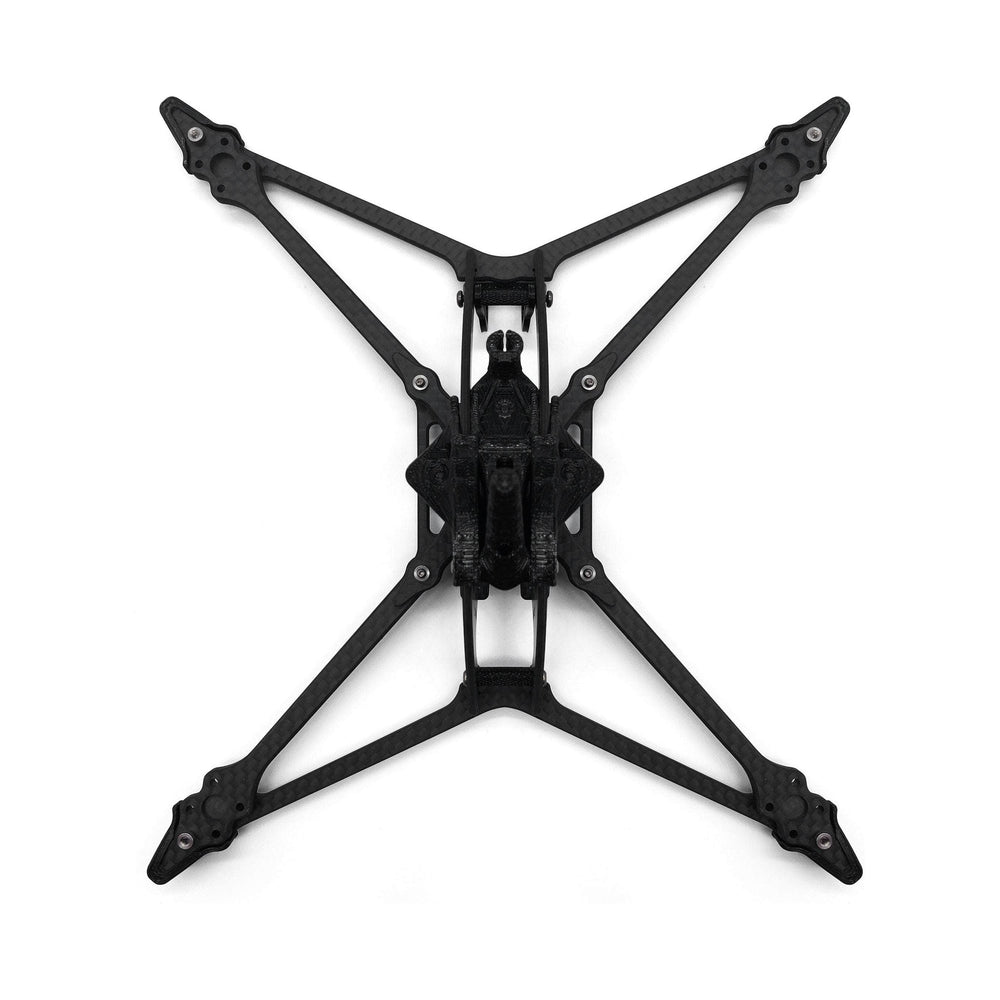

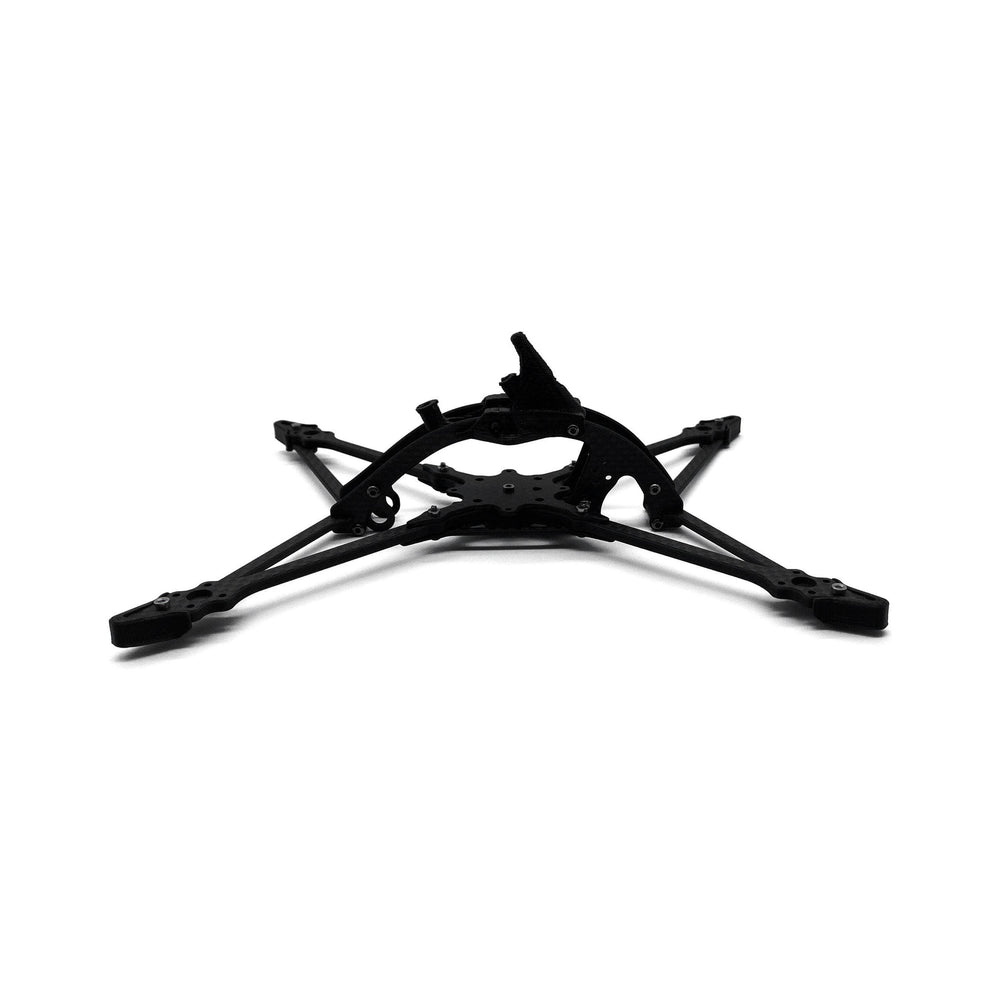

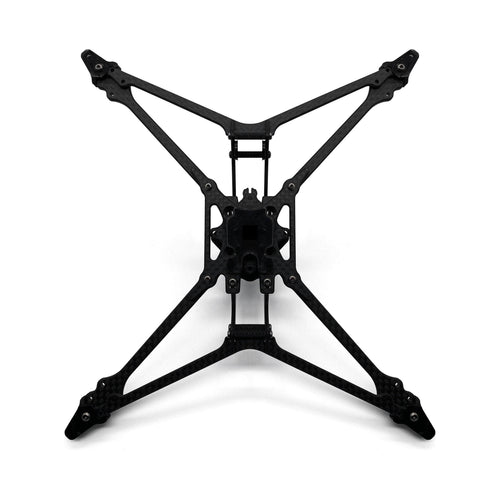

Introducing the Turismo Frame. The Turismo Frame is an offering for the ultralight 5inch enthusiast who wants a versatile, ultralight frame to build a locked-in setup with a sturdy roll-cage for the ‘goods’ inside. Pairing this frame with a whoop-size AIO board, then we suggest a build with an analog vtx setup or set it up with the Caddx Vista for that digital HD cruising. If you decide to pair this ultralight frame with a signature NewBeeDrone 20x20 series stacks (Infinity200 or CricketFPV stack) then an analog vtx build is the way to go.

At-A-Glance Frame Breakdown:

  • Motor Layout Type: Stretched-X configuration (longer front-to-back, than side-to-side)
  • Motor-to-Motor: 211mm
  • Cam Mounting: 14x14mm
  • Motor Mounting hole spacing: 4-holes spaced on a 12mm diameter
  • Stack Mounting: Whoop AIO board - 25.4x25.4mm (1x1inch) and 20x20 stack
  • Weight: (with Caddx Vista mount and TPU arm guards)  -  53g

Top Plate x1
Bottom Plate x1
Side Camera Plate x2
Arm left x2
Arm Right  x2
Cross Plate x2
3D Print Part Arm edge protect x4
3D Print Part Vista mount x1

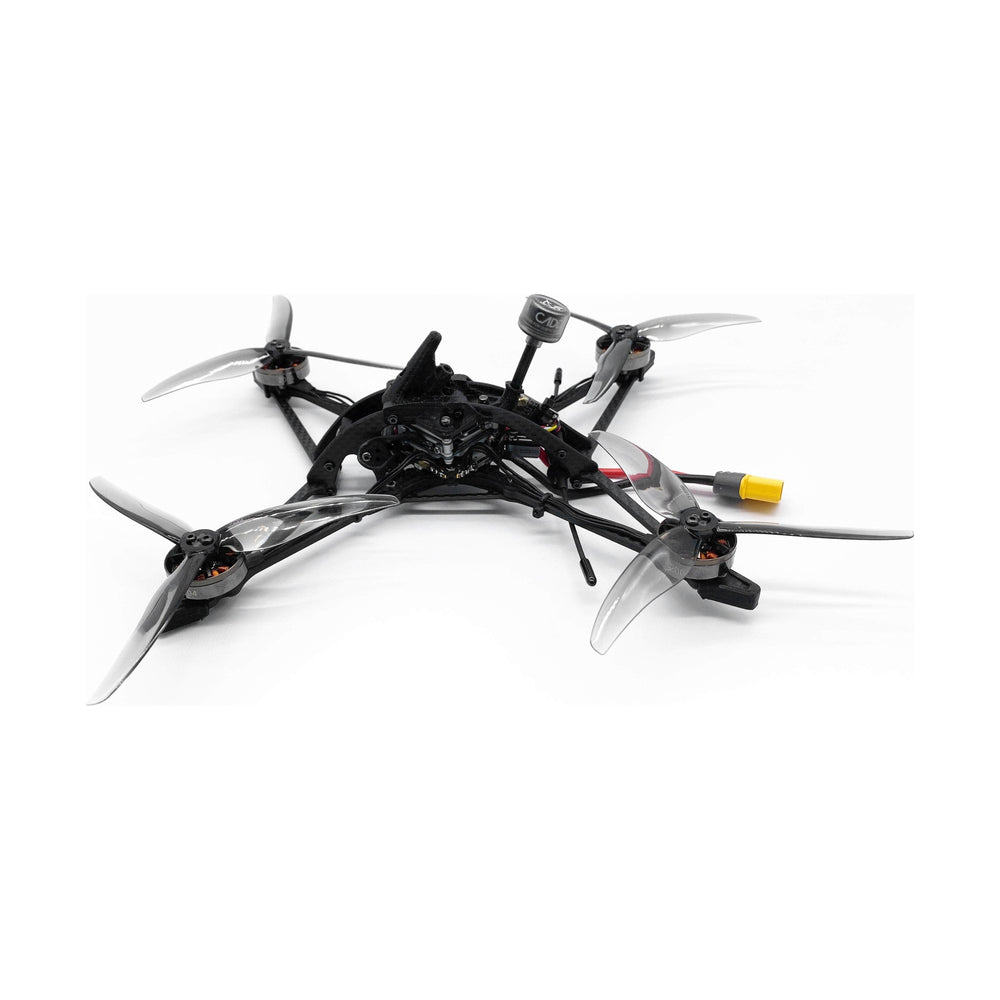

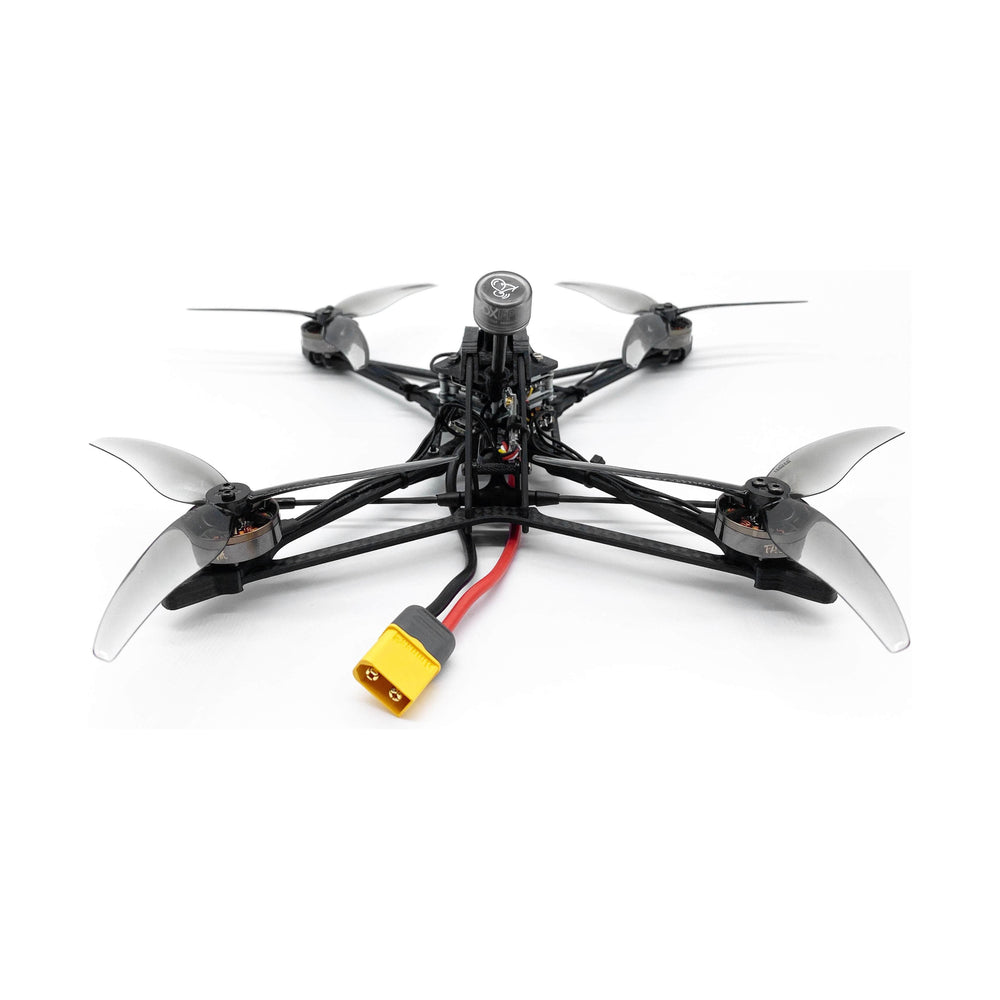

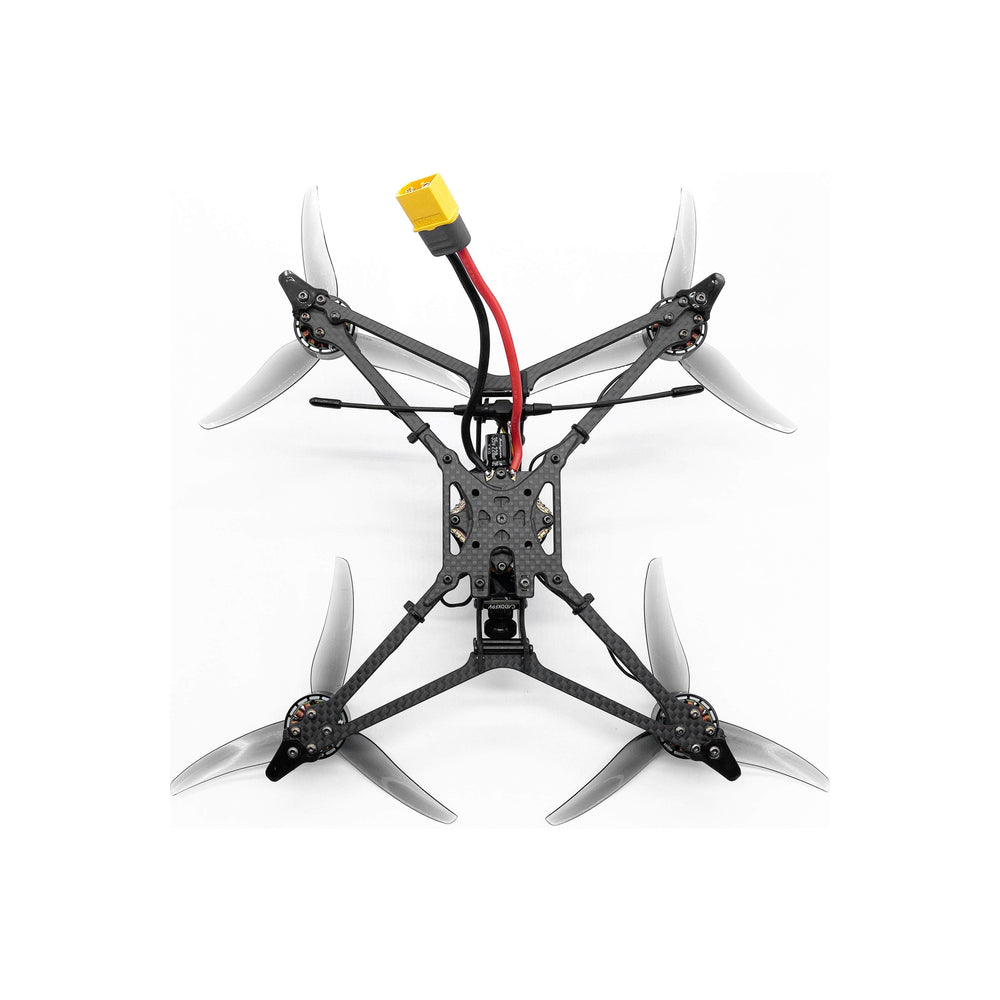

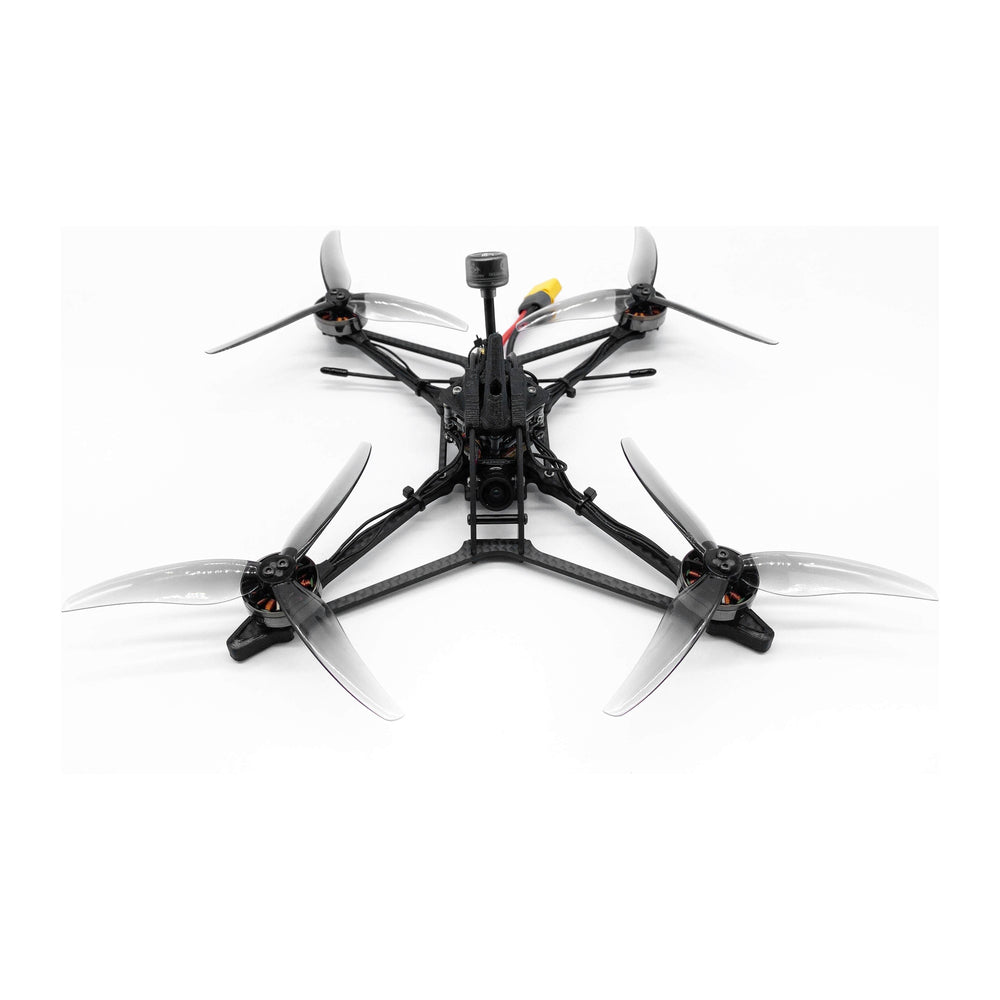

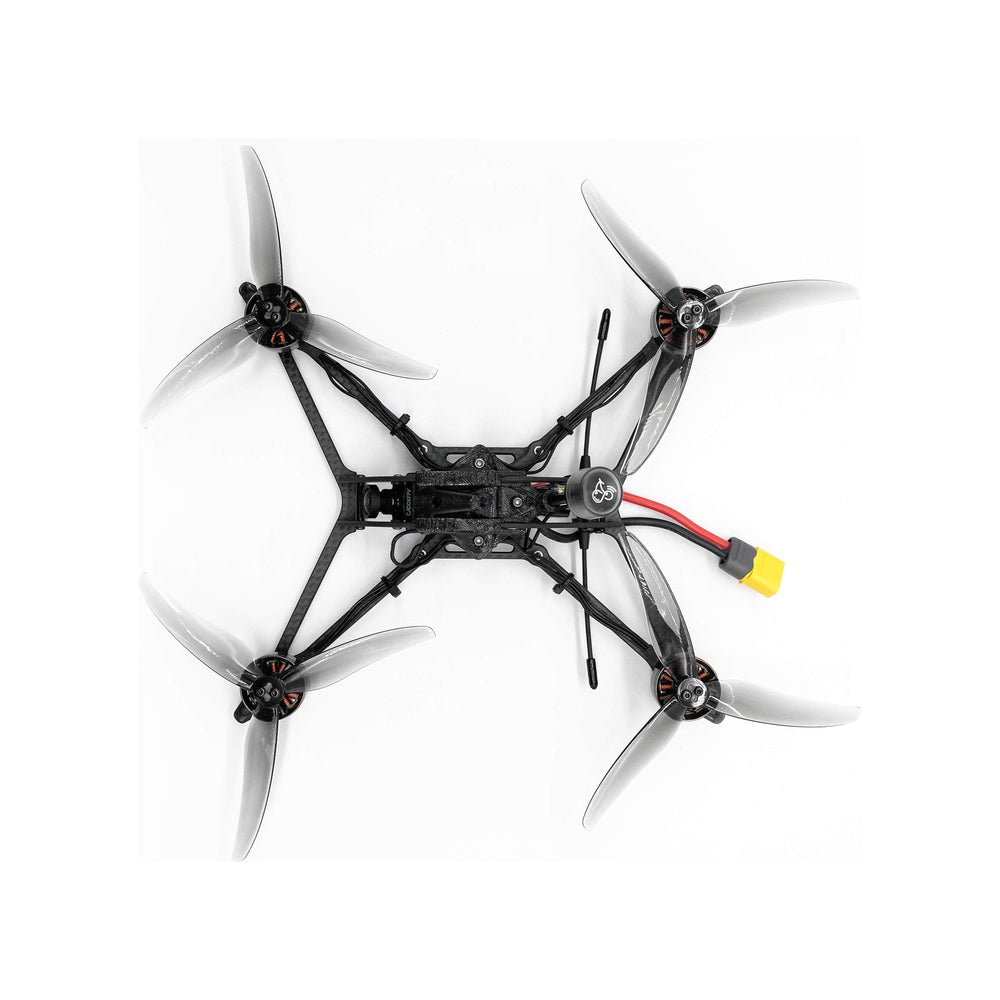

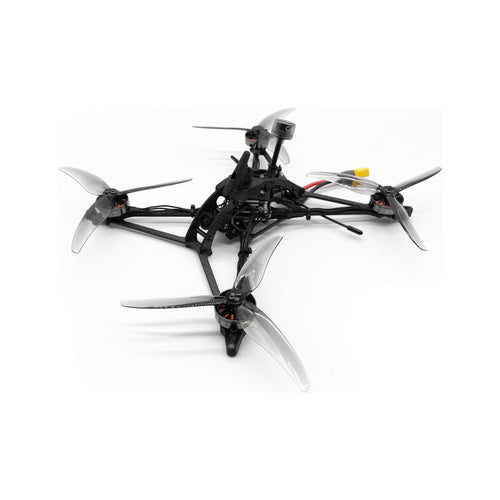

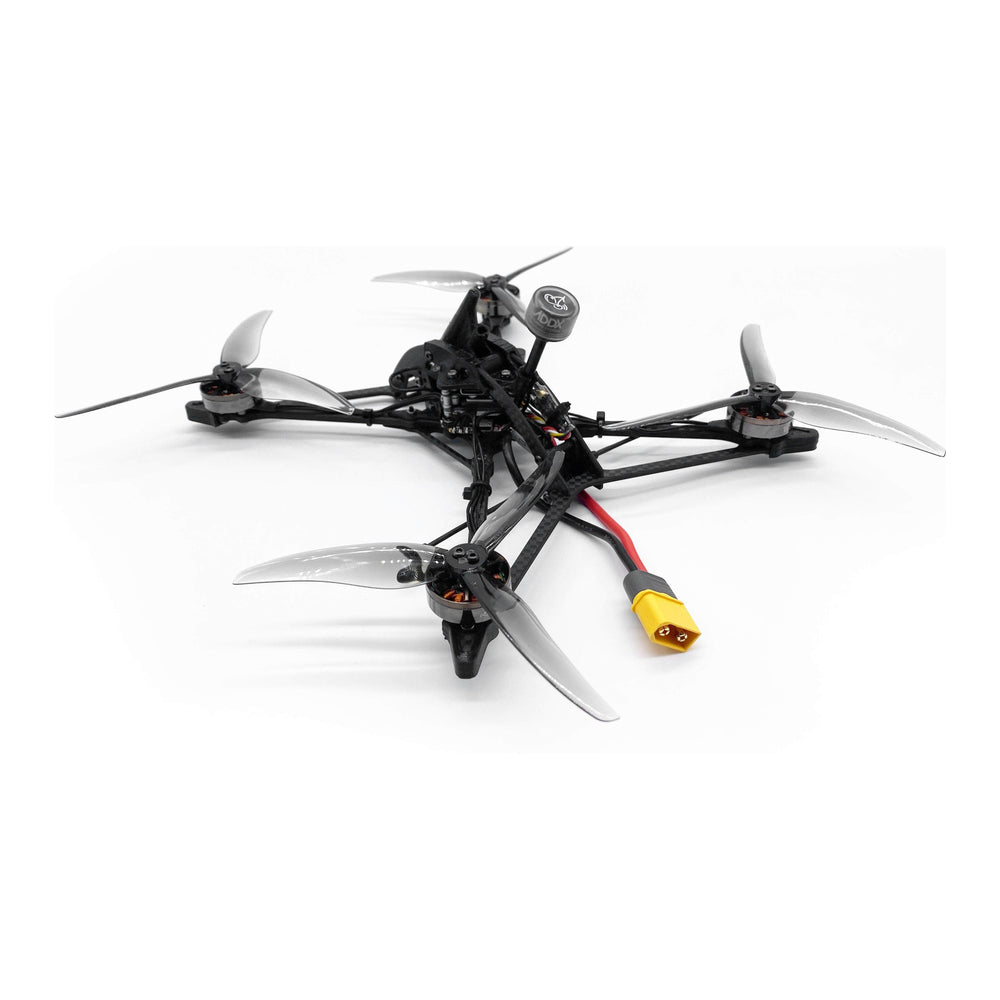

Recommend build:
1. NewBeeDrone Turismo 5inch Frame
2. NewBeeDrone Flow 2004 motor
3. JHEMCU GHF405 BLHELI_S 35A 3-6S AIO for Racing Toothpick
4. Gemfan 5125 Hurricane Durable 3 Blade 1.5mm
5. Caddx Vista with Nebula nano kit V2

Instruction: Link

3DPrinted part file: Link
