Details
Description

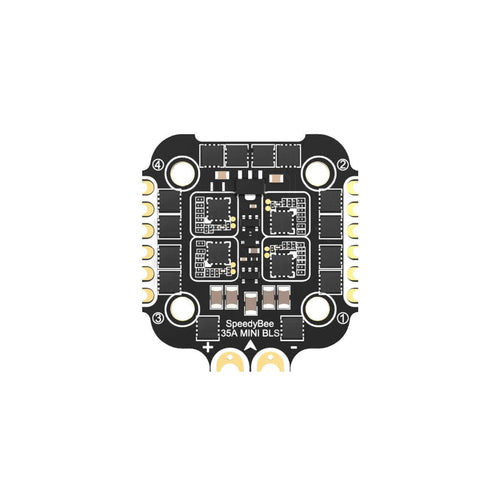

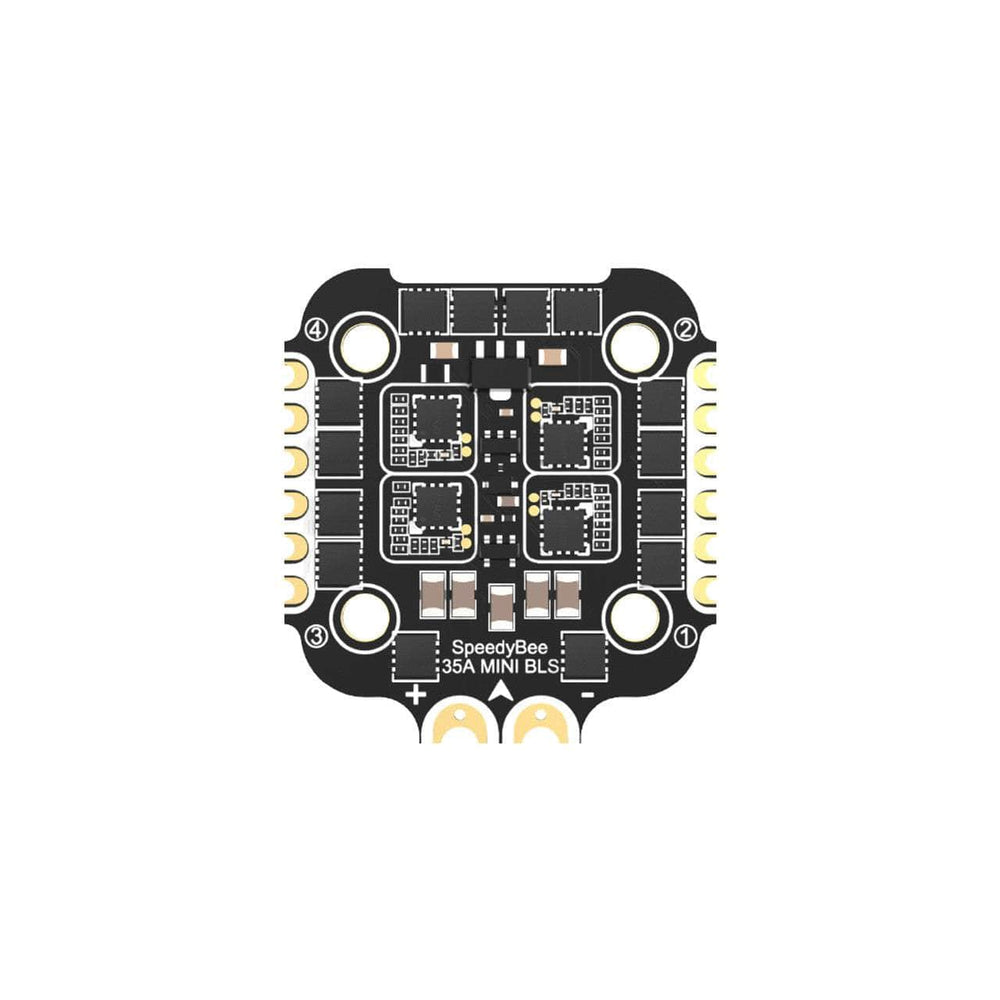

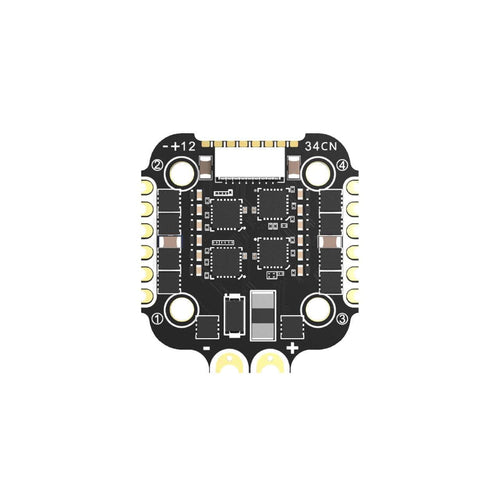

This ESC provides four synchronized outputs with a continuous current of 35A, delivering strong power to drive all 2-4 inch and lightweight 5-inch quadcopters. Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC. All on a 20x20 platform with a value you can't beat!Ā
Check out all ourĀ 20x20 ESCs as well asĀ the rest of ourĀ SpeedyBee products!Ā
Specifications
- Firmware: BLHeli_S J-H-40
- Continuous Current: 35A x 4
- Burst Current: 45A(5seconds)
- ESC Protocol: DSHOT300/600
- Power Input: 3-6S LiPo
- Power Output: VBAT(Battery voltage, used to power the flight controller)
- Current Sensor: Support (Scale=250 Offset=-500)
- Mounting: 20 x 20mm ā 3.5mm hole size, compatible with M2 and M3
- screws/Silicone grommets.
- Dimension: 35 x 35 x 5.5mm
- Weight: 7.2g
Includes
- 1x Speedybee Mini BLS V2 8Bit 35A 3-6S 20x20 4in1 ESC
Wiring Diagram
