Description

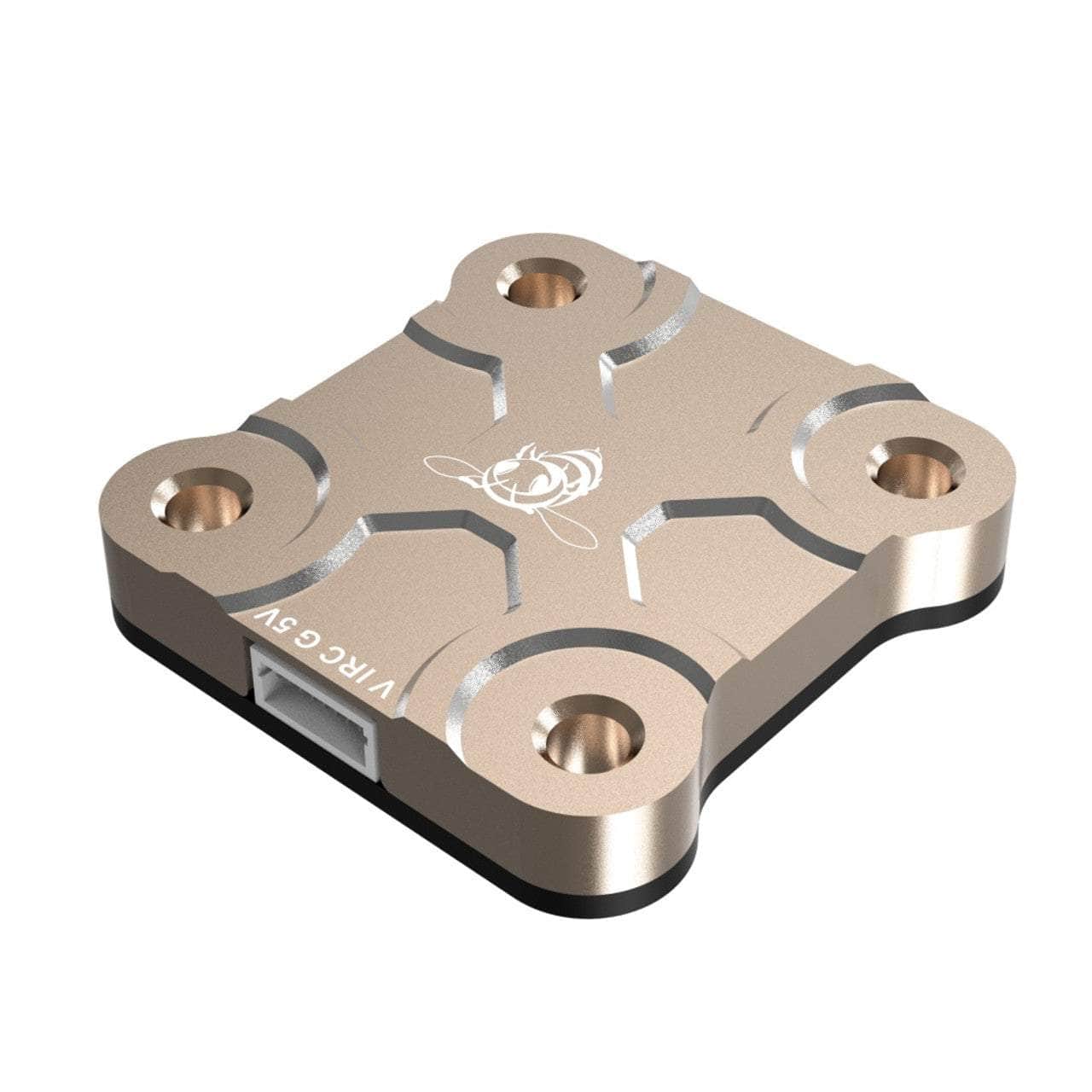

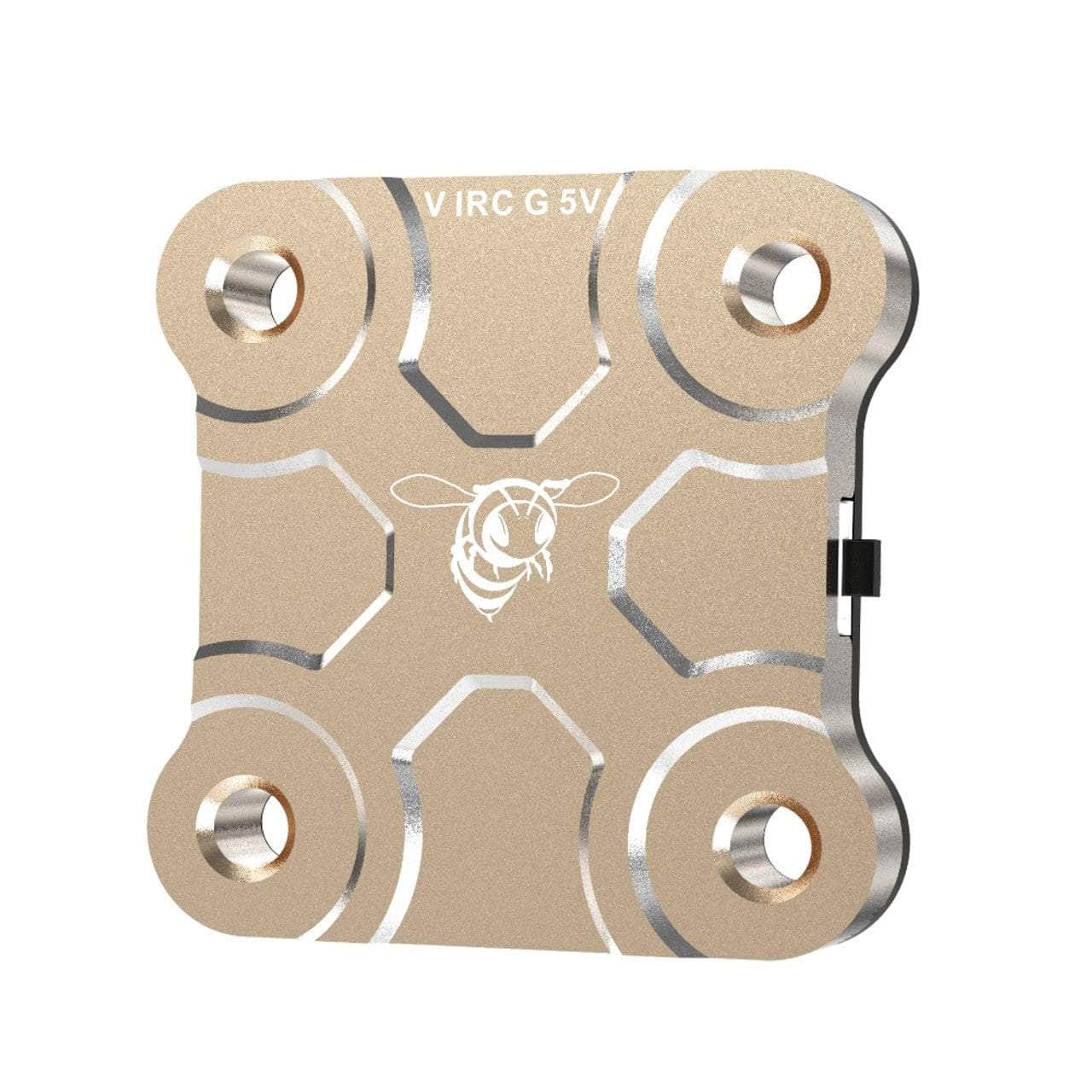

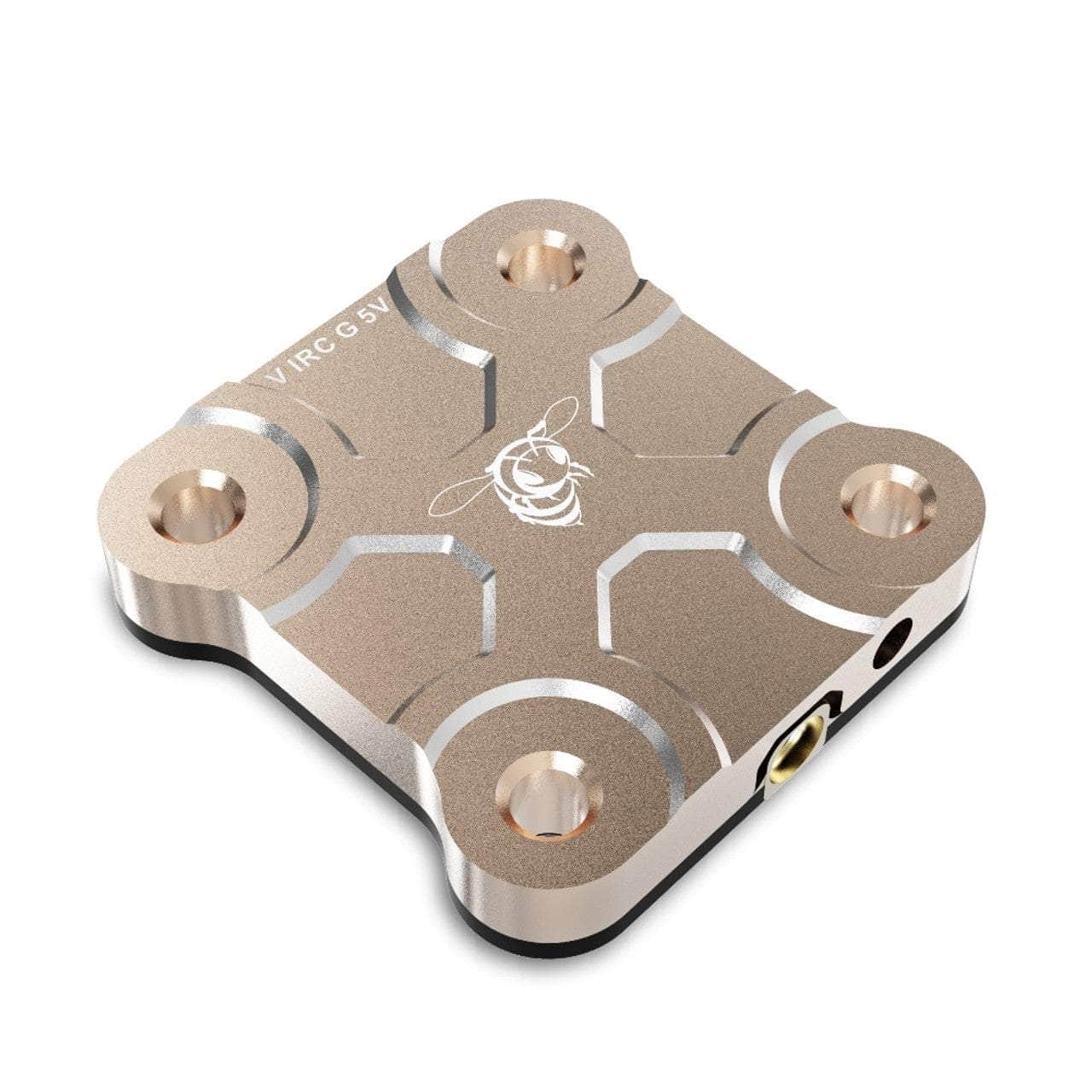

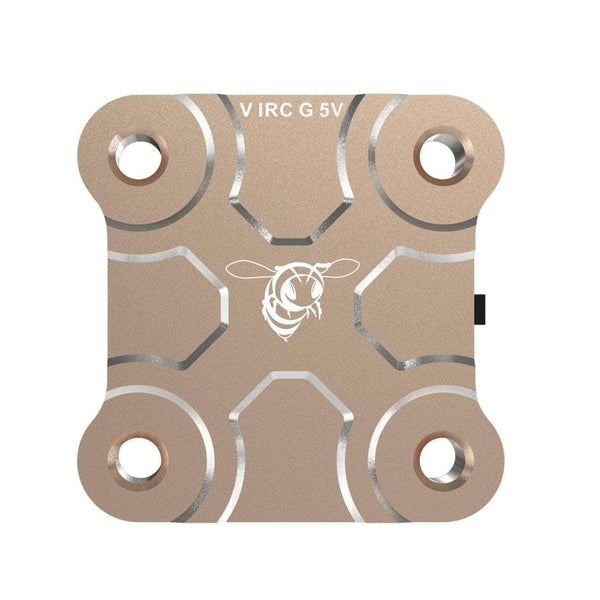

The SpeedyBee TX800 It is a great choice for the FPV freestyle or for those who need a accurate and reliable VTX to fly in demanding locations.

Check out our other MMCX VTXs, as well as the rest of our SpeedyBee products!

Specifications

• Input Voltage: 3.7-5V
• RF Output Power: 25 / 200 / 400 / 800mW
• Control Protocol: IRC Tramp Protocol
• Output Voltage: 5V
• Antenna Connector: MMCX

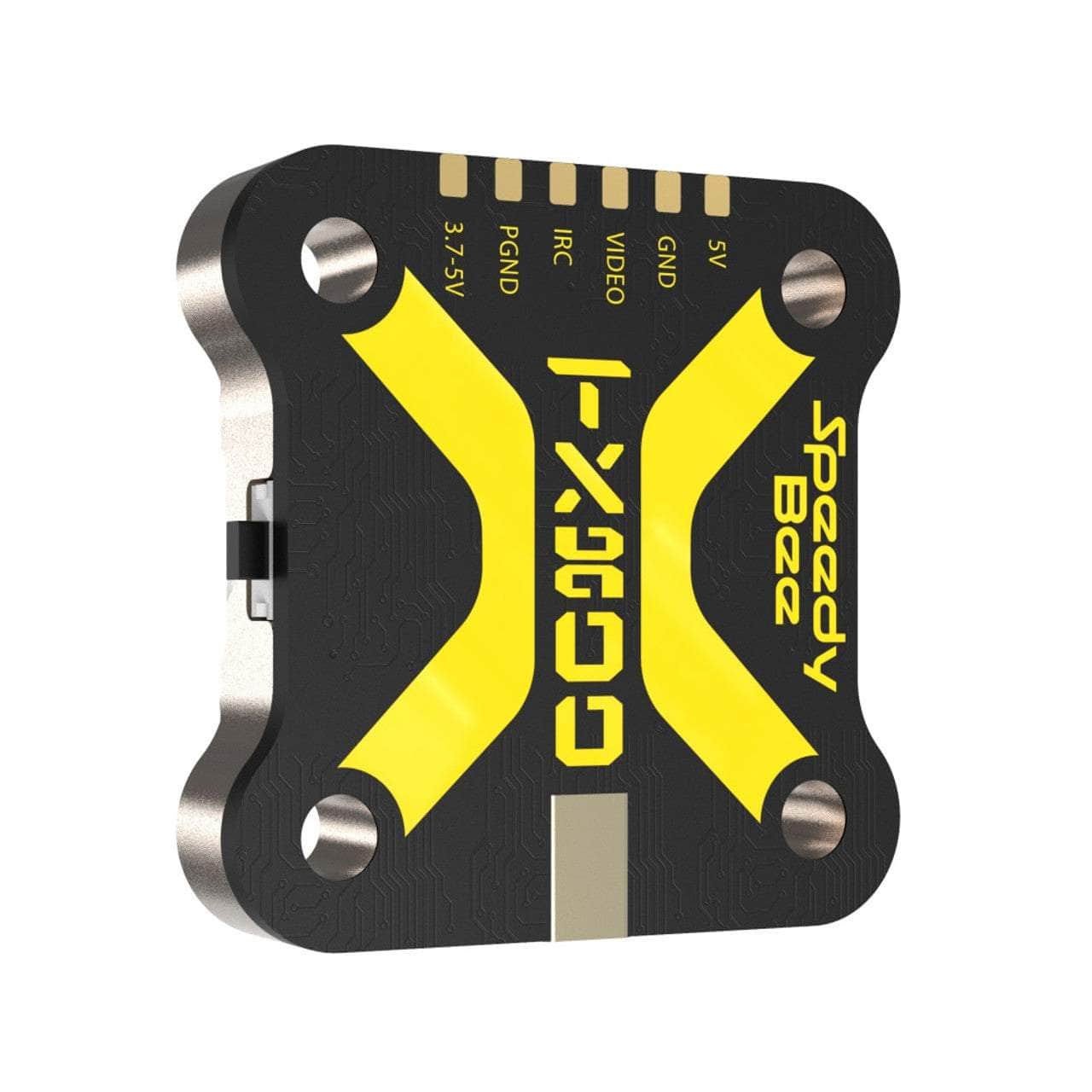

• Power/Video Connection: 4 Pin JST / Solder Pads
• Stack Size: 20x20mm m3
• Weight: 5.6g

Includes

• 1x SpeedyBee TX800 20x20 25-800mW 5.8GHz VTX - MMCX
• 1x SMA to MMCX Pigtail
• 1x MMCX Dipole Antenna
• 1x Wiring Harness

Manual

Speedybeetx800
