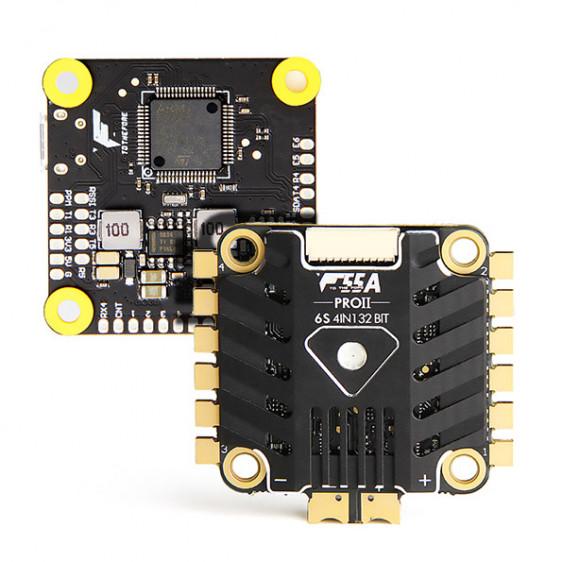

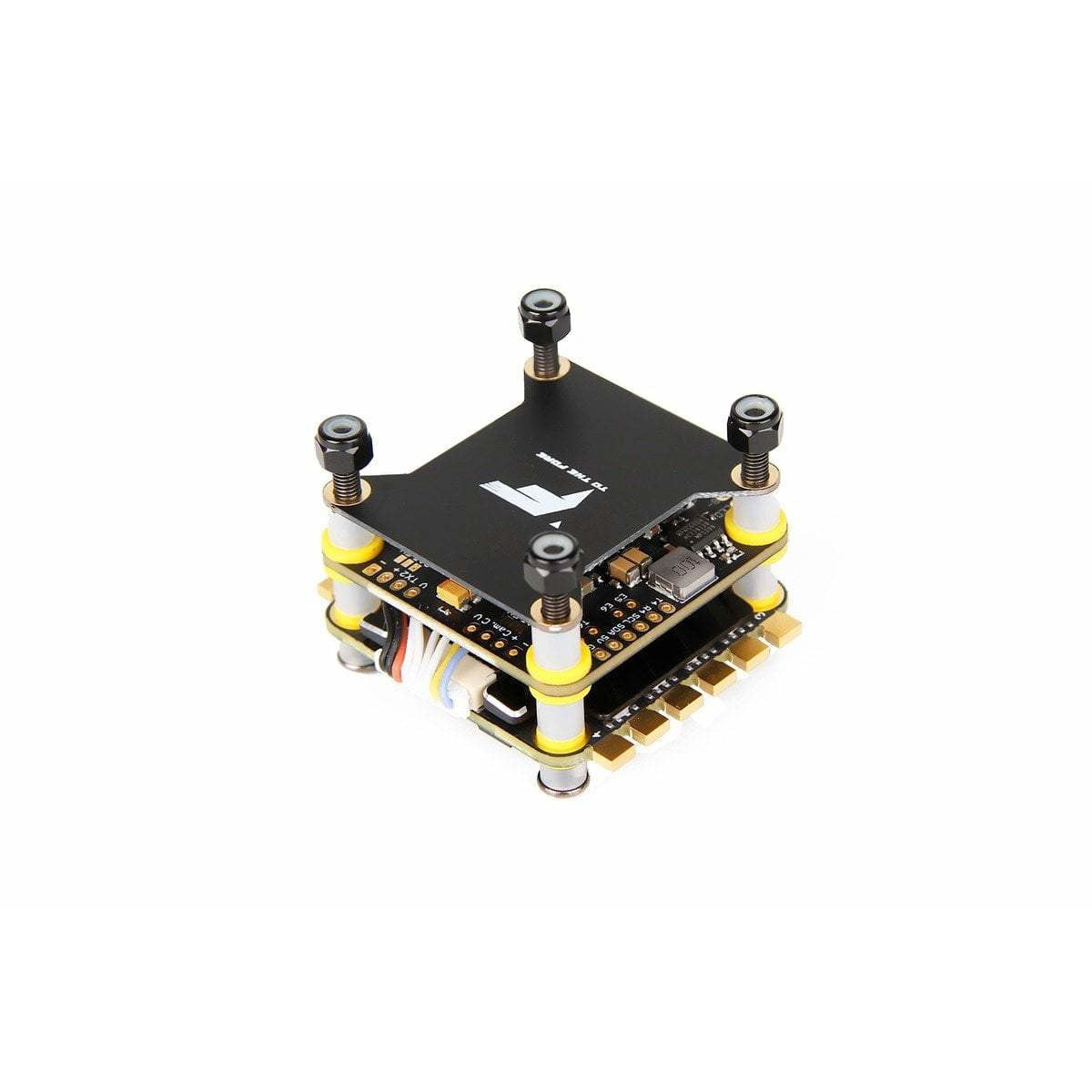

T-Motor F7 HD & F55A Pro II 3-6S 30x30 Stack/Combo (F7 HD FC / 32Bit 55A 4in1 ESC)

Name: T-Motor F7 HD & F55A Pro II 3-6S 30x30 Stack/Combo (F7 HD FC / 32Bit 55A 4in1 ESC)
Brand: TMOTOR
Price: 174.99 USD
Availability: OutOfStock

$174.99

Add To Wishlist

View full details

Details

Description

The T-Motor F7 & F55A Stack now comes in a version meant specifically for the DJI Digital FPV System! Including a plug for your Air Unit and a 10V 2A BEC to power it.

Check out all our 30x30 Flight Controllers, all our DJI compatible gear, and all our T-Motor products!

Specifications

Input Voltage: 3-6S
Gyro: BMI270
Master chip: STM32F722RET6
Flash: 16MB
BEC: 5V 2A, 10V 2A
Mounting hole: 30.5x30.5mm
Weight: 8.4g
Size: 37x37mm
Firmware: TMOTOR F7(Betaflight)

ESC

Continuous current: 4x55A
BLHeli_32 32bit
Burst current: 4x75A
BEC Output: 10V @2.0A
Size: 45x41x7.3mm
Weight: 17.3g (Including Heatsink)
Support DSHOT150/300/600/1200

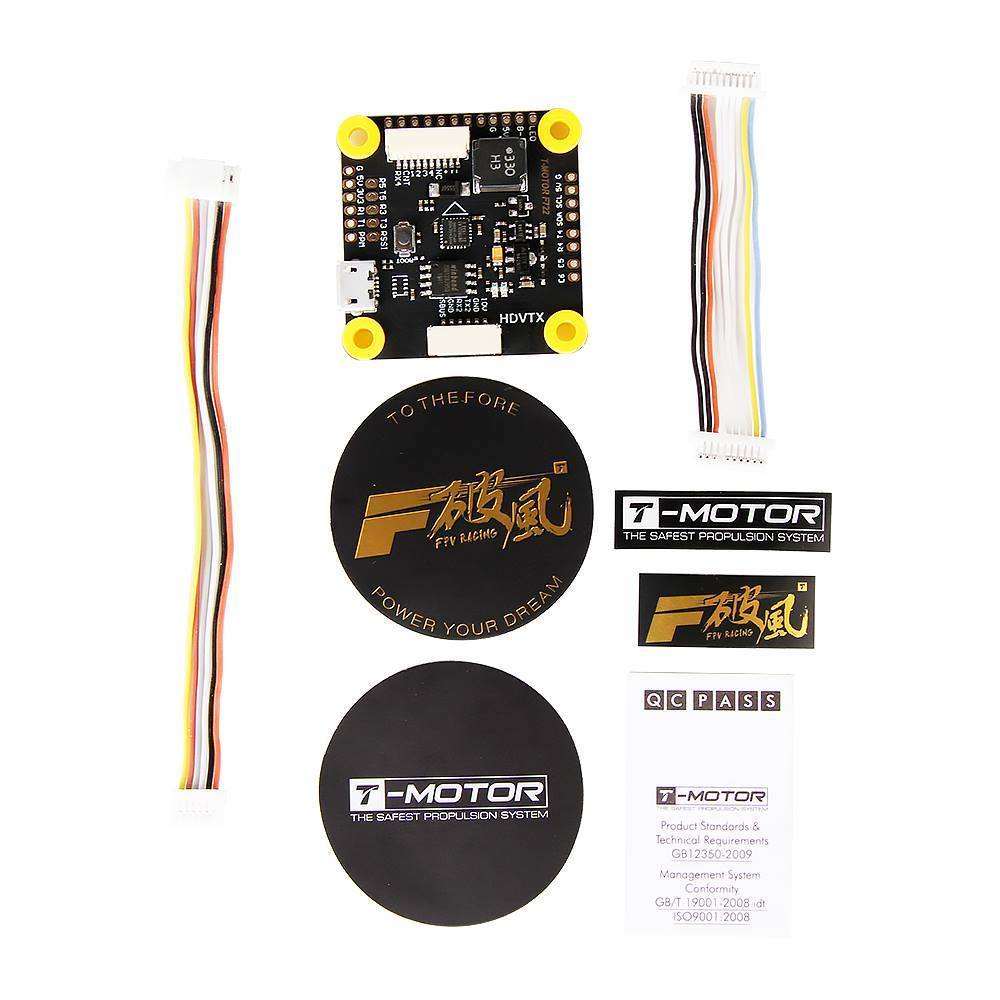

Includes

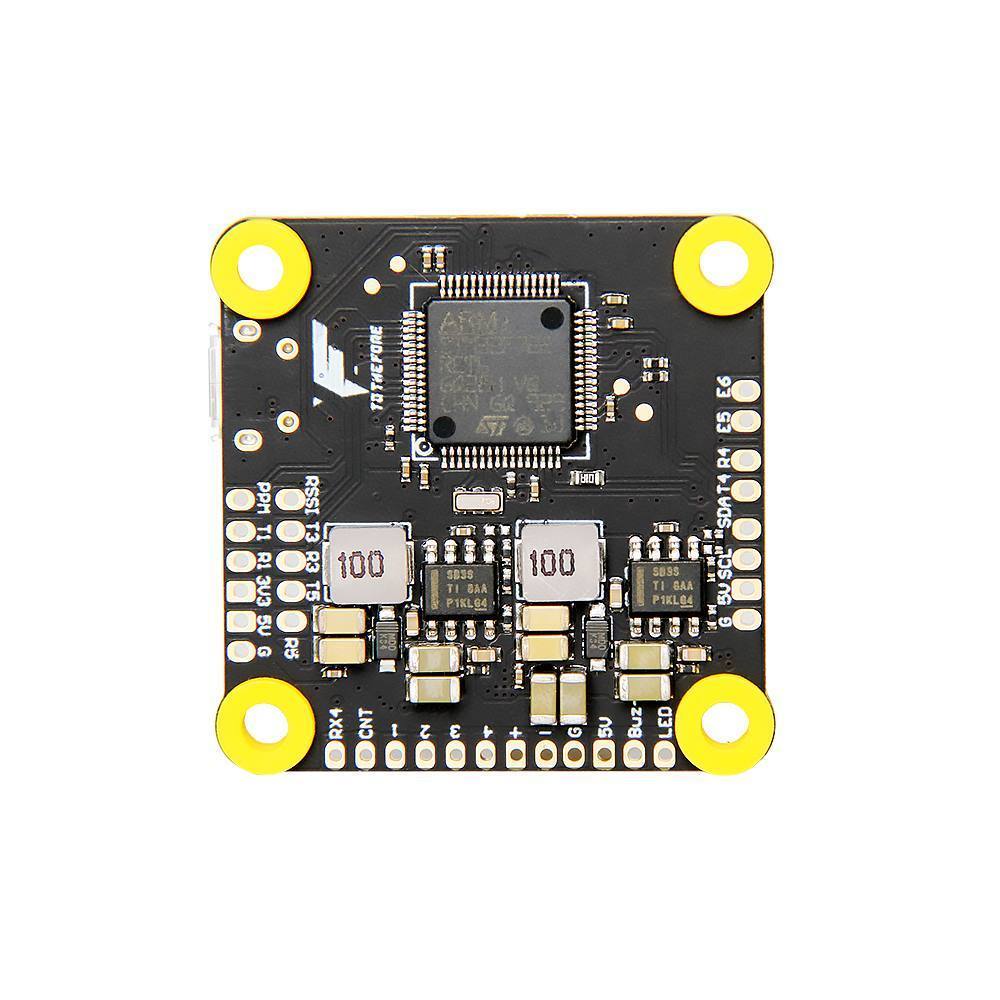

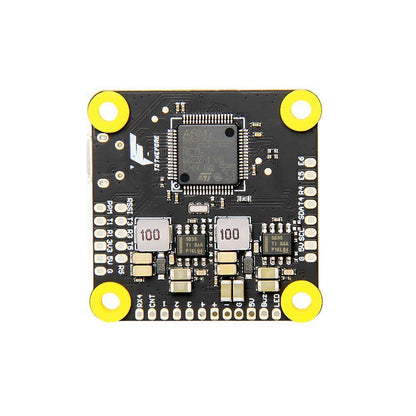

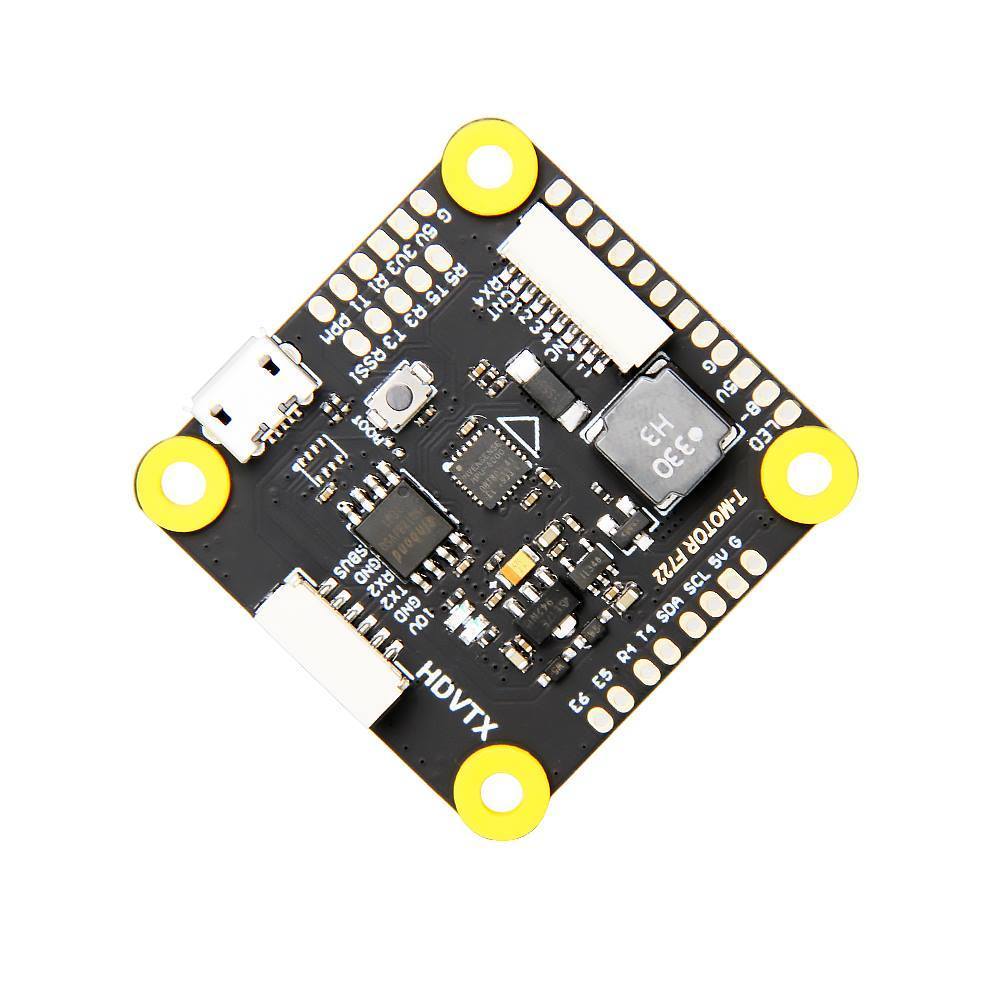

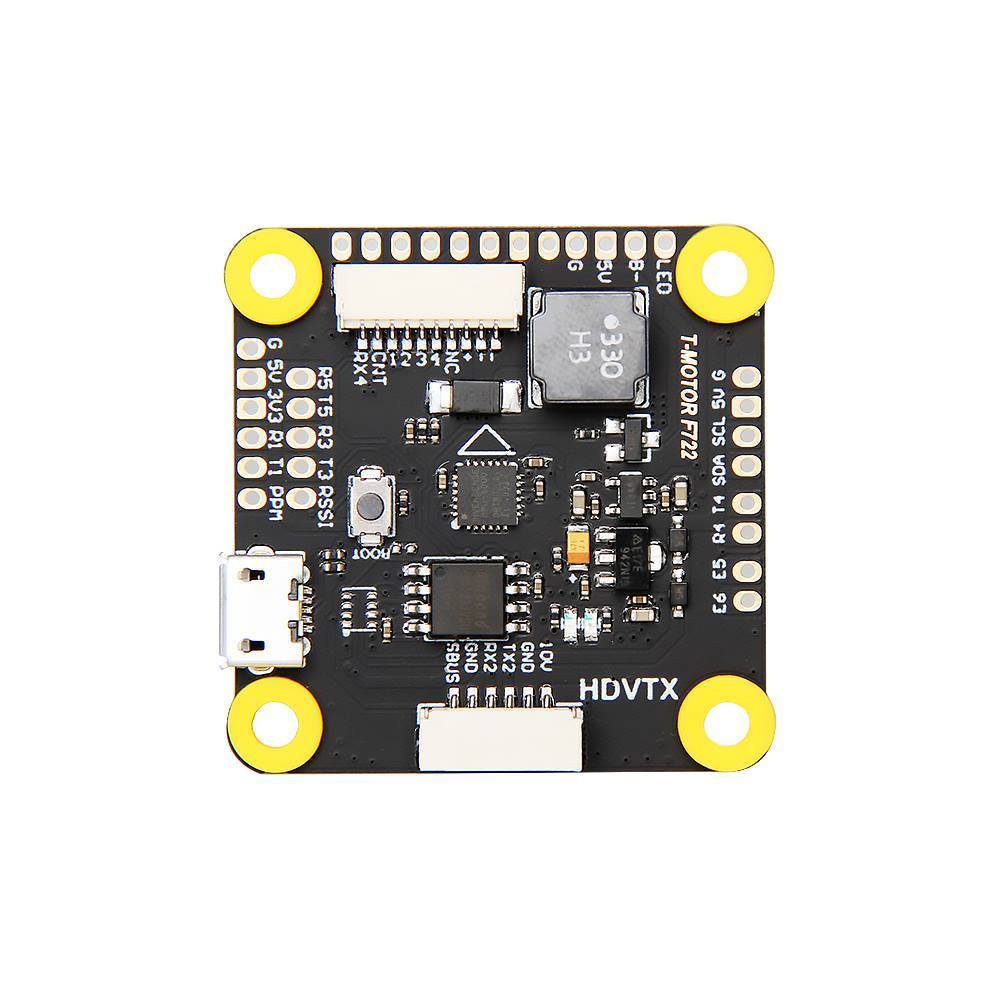

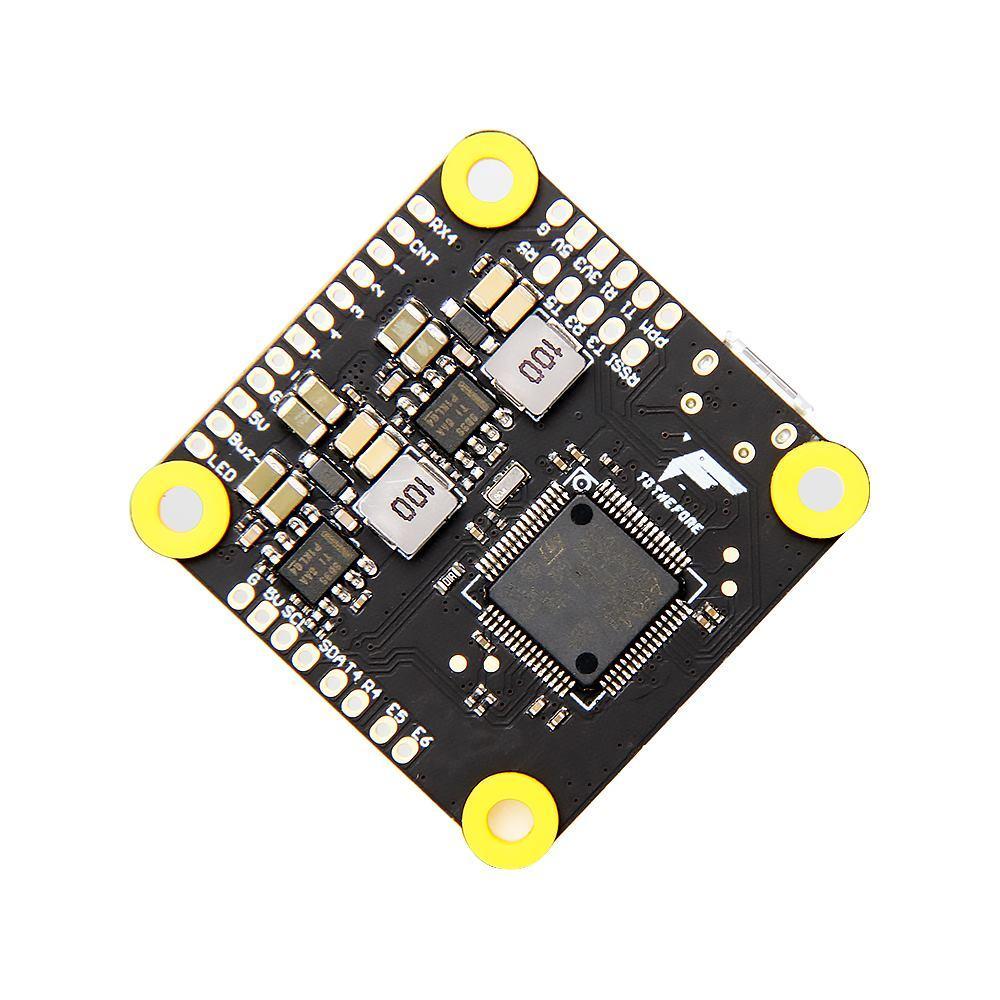

1x T-Motor F7 HD 30x30 Flight Controller for DJI

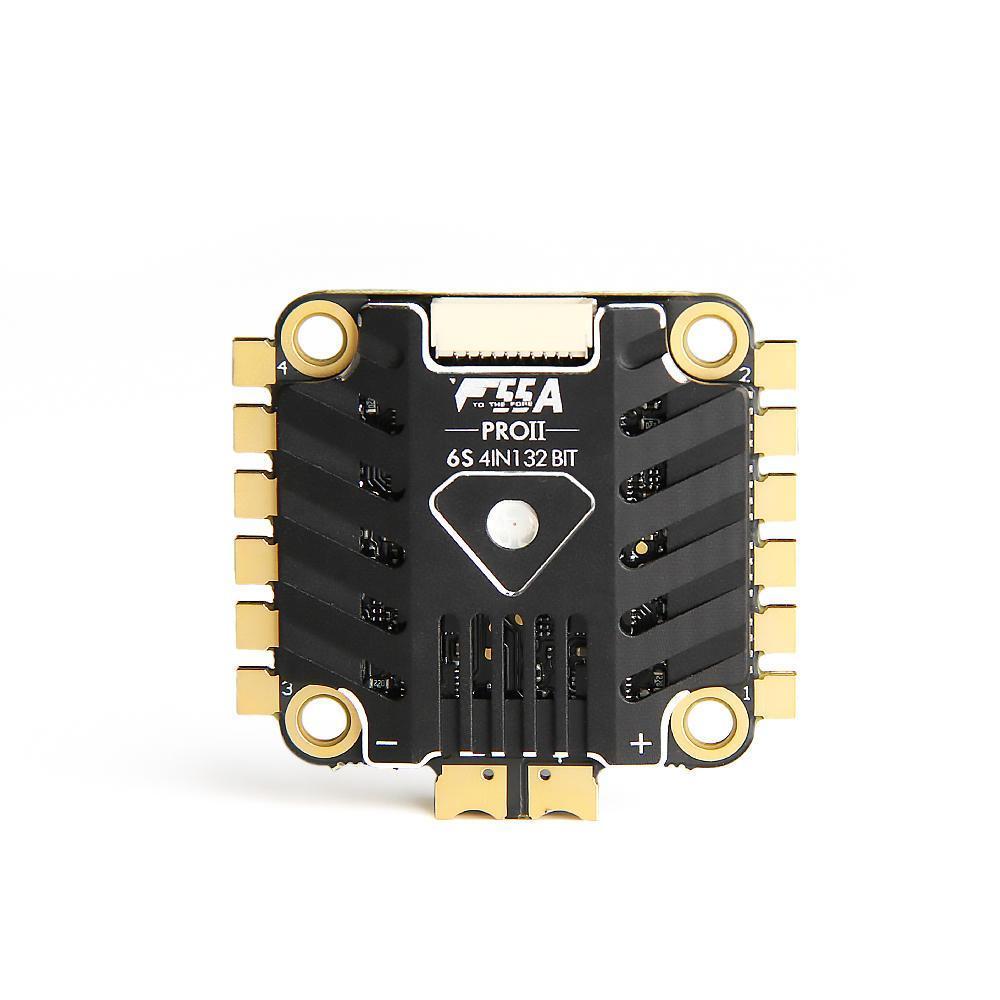

1 x F55A Pro II 4 in 1 Brushless ESC

Wiring Diagram

More Info

SKU: 22430
Barcode: 6971360352549

Overall rating: 4.64 / 5 from 75 reviews.

AI Generated Review Summary

The T-Motor F7 HD & F55A Pro II 3-6S 30x30 Stack/Combo is highly regarded for its ease of setup, excellent quality, and bulletproof operation. Customers appreciate its solid build and smooth performance with BF 4.2, making it a popular choice among DJI Digital FPV System users.

Summary topics

Stack Performance: 44%
Setup Ease: 8%
ESC Performance: 11%
Product Quality: 15%
Build Solidity: 8%

Review topics: ["quality","build","setup","issues","control","looks","works","stack","esc","stacks","install","motors","pads","reason","grommets","experience","heatsink"].

Review highlights

"Beautiful stack and easy setup Esc is super easy to soldering" — Victor A.
"The quality looks excellent and handles swinging the 7inchers flawlessly." — Jim M.
"The included cable with plug ends makes for an easy and quick install and setup." — James K.

Reviews

Love it

"Great f7 stack."

— Harold I. (5/5)

"Thumbs up for T-motor i’m making this stack put it right in. Did a little program on beta flight and all I went good job T-motor👍👍👍"

— Vincent (5/5)

High end quality! DJI air

"High end quality! DJI air unit compatible! Great for my free style 6s 5" quad build."

— Adam W. (5/5)

T-Motor F7 HD

"Very nice stack and quality build. The Uarts are configured wrong with betaflight, even after flashing to the latest revision. Under Ports, set UART 2 to Configuration/MSP, with the standard 115200 rate. Set UART 5 to Serial Rx."

— Joey R. (5/5)

Great stack, super easy to

"Great stack, super easy to set up.. used a caddx vista in an Armattan Marmotte for dji this quad is amazing couldn't be happier with this stack"

— Levi B. (5/5)

The greatest stack in the

"The greatest stack in the game. Super easy to install and setup. I will be ordering more of these stacks. I highly recommend to everyone"

— Jason H. (5/5)

T motor stack/combo LlT LIT🔥🔥

"T motor stack/combo LlT LIT🔥🔥"

— Kevin B. (5/5)

SQulitt

"I think these motor stack will last long time. Built quilty is 10 si far having fun flying with these ."

— Daniel H. (5/5)

Good stuff

"Easy install and set up with the dji air unit."

— Mark D. (5/5)

Have one of these on

"Have one of these on each kwad! Never given me a single problem (hundreds of flights!) Best in the biz!!"

— Chad S. (5/5)

Q&A

Can this be used in a analog set up?: This can be used to fly analog, however it does not have an OSD chip on it and as such cannot give betaflight OSD to your goggles.
Does this combo stack require a capacitor? I don’t see one included so guess it’s built into the esc?: If you are on 6s it is recommended to use one if you are having video issues.
