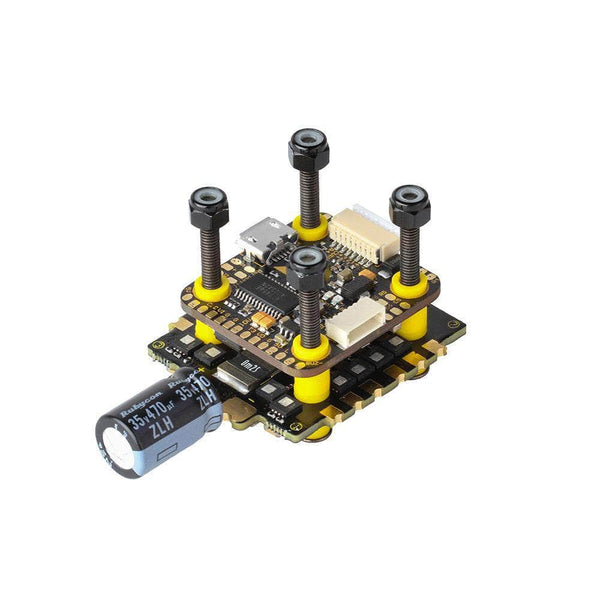

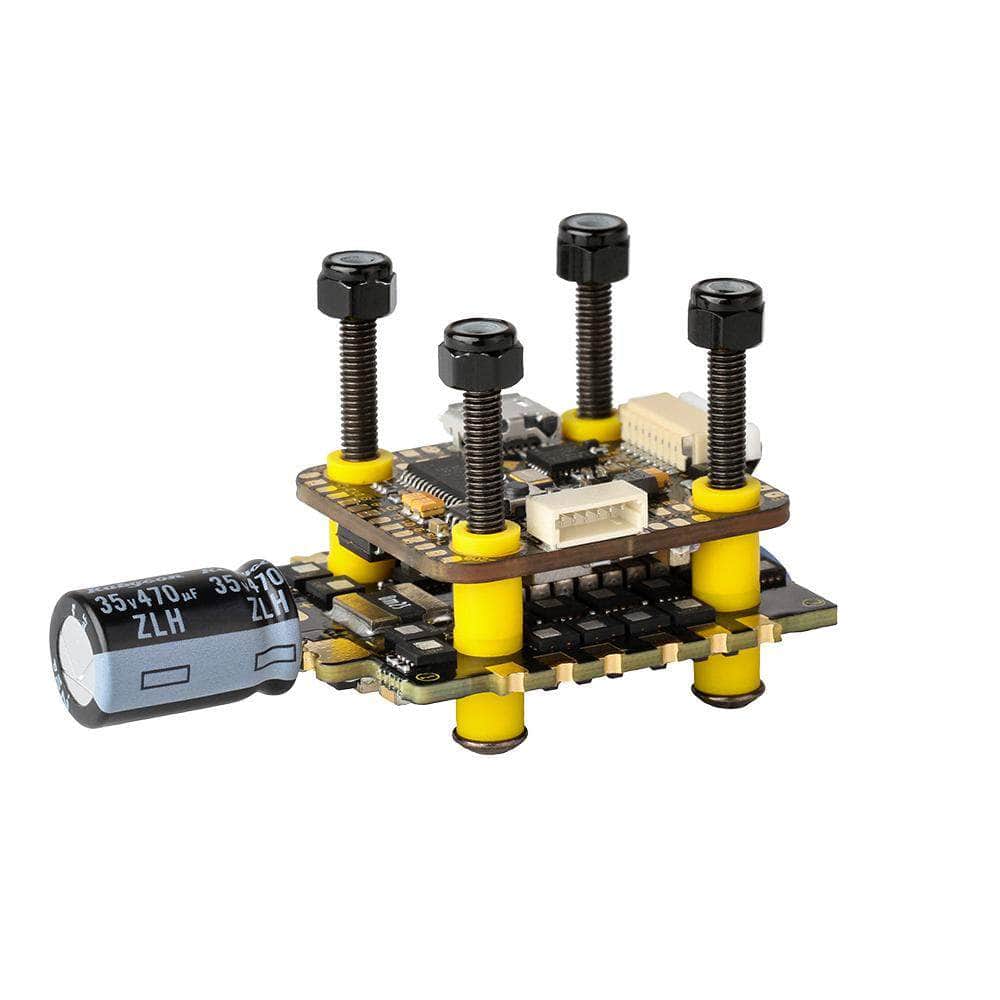

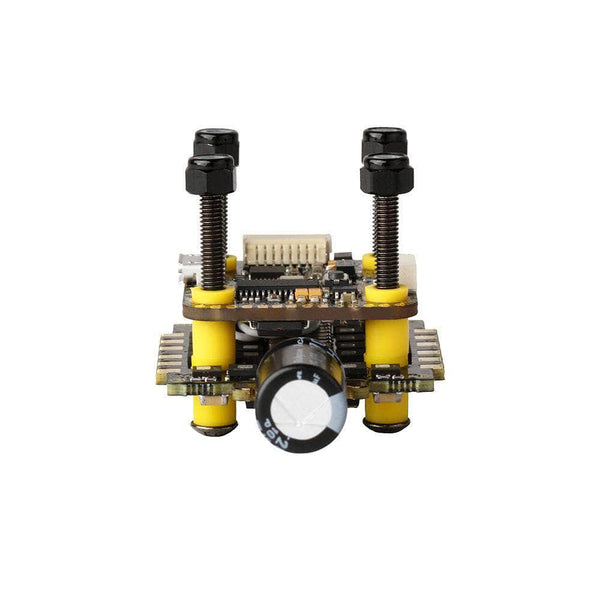

T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A 4in1 ESC)

Original price $136.99 - Original price $136.99
Original price
$136.99
$136.99 - $136.99
Current price $136.99
In Stock
Pre Order
Coming Soon
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist
Lightweight DJI plug and play ready 20x20 stack from T-Motor.

Check out our 20x20 Flight Controllers, our DJI compatible gear, and all our T-Motor products!

Features

  • Dual BEC, DJI Plug and Play Ready
  • 45A ESC
  • F7 Flight Controller

Specifications

T-Motor F7 Mini Flight Controller

  • Input Voltage: 3-6S
  • Firmware: TMOTORF7 (STM32FX2)
  • BEC: 5V/2A, 10V/2A (For DJI HD VTX)
  • Main Control: STM32F722
  • Gyroscope: BMI270
  • RAM: Onboard 16M
  • OSD: Support
  • Barometer: No
  • Mounting Pitch: 20*20mm
  • Weight: 5.1g

T-Motor Mini 45A ESC

  • Input Voltage: 3-6S
  • ESC Firmware: BLHeli32
  • Telemetry: Supported
  • Galvanometer: Supported
  • DSHOT 150/DSHOT 300/DSHOT 600/PROSHOT 1000
  • Backwards Compatible with Oneshot125/Oneshot42/Multishot
  • Betaflight Galvanometer Ratio: 200
  • Mounting Pitch: 20*20mm
  • Weight: 9.2g

Includes

  • 1x T-Motor Mini F7 3-6S 20x20 Stack Combo (F7 FC / 45A ESC)
>
