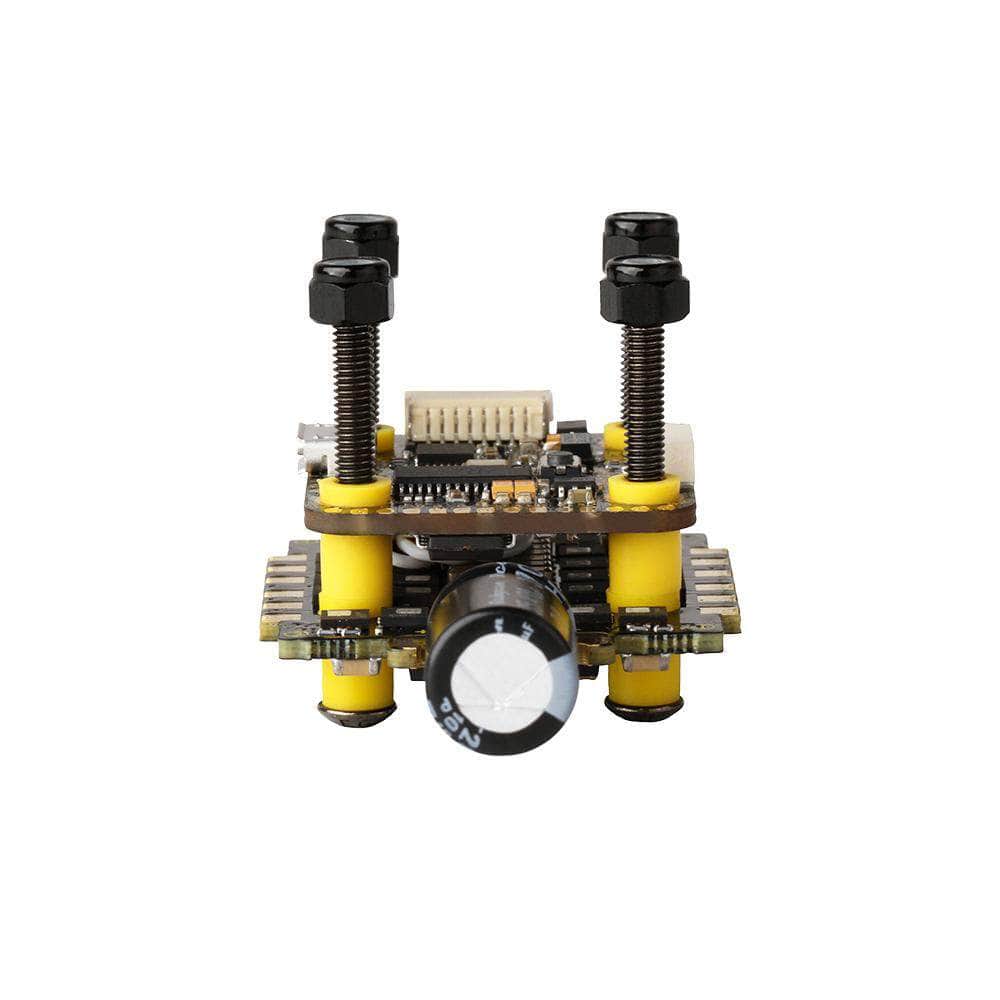

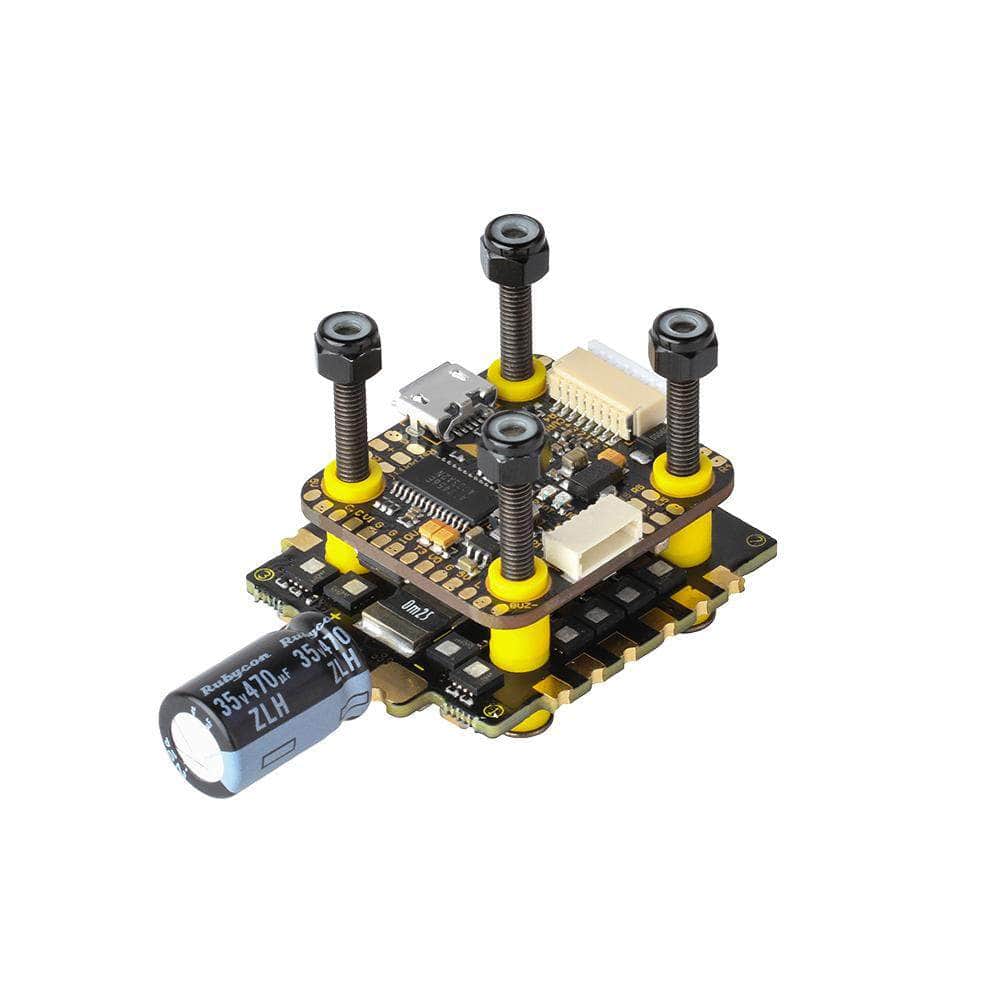

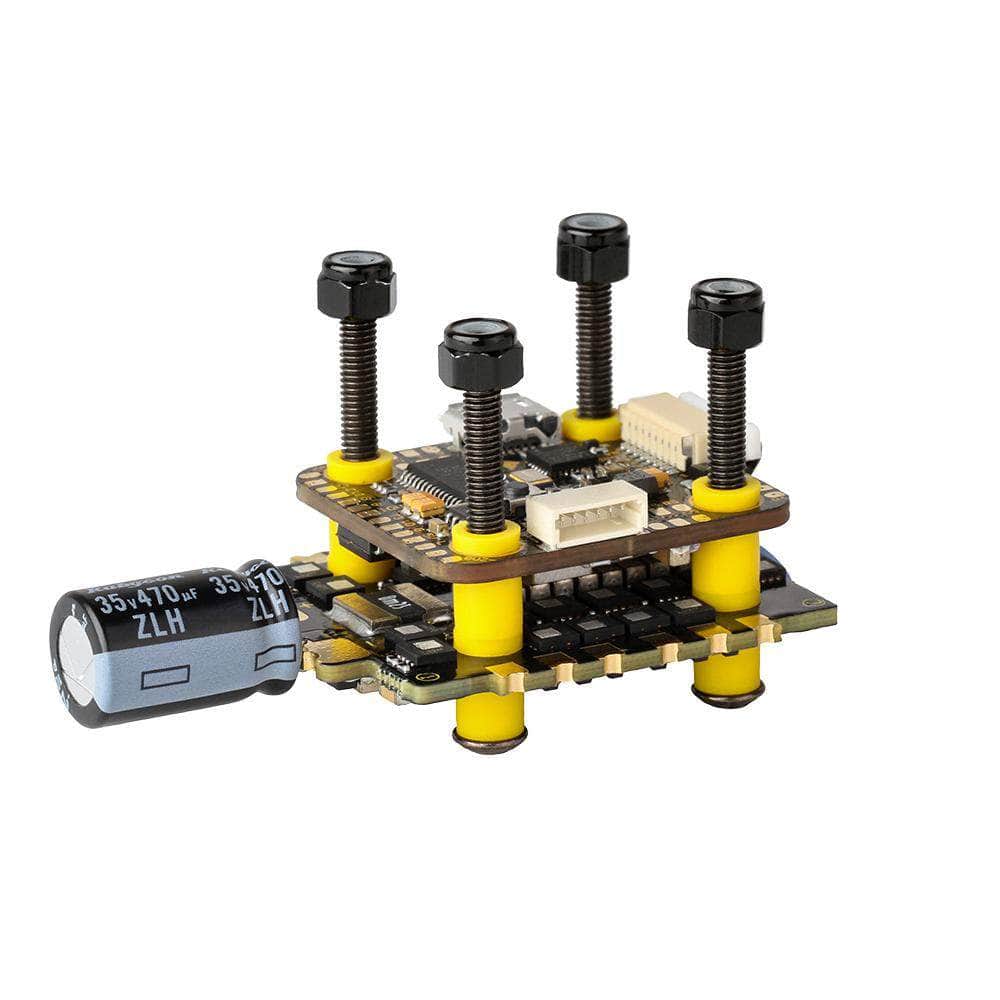

T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A 4in1 ESC)

Name: T-Motor Mini F7 3-6S 20x20 Stack/Combo for DJI (F7 FC / 45A 4in1 ESC)
Brand: TMOTOR
Price: 187.99 USD
Availability: OutOfStock

$187.99

Add To Wishlist

View full details

Details

Description

Lightweight DJI plug and play ready 20x20 stack from T-Motor.

Check out our 20x20 Flight Controllers, our DJI compatible gear, and all our T-Motor products!

Features

Dual BEC, DJI Plug and Play Ready
45A ESC
F7 Flight Controller

Specifications

T-Motor F7 Mini Flight Controller

Input Voltage: 3-6S
Firmware: TMOTORF7 (STM32FX2)
BEC: 5V/2A, 10V/2A (For DJI HD VTX)
Main Control: STM32F722
Gyroscope: BMI270
RAM: Onboard 16M
OSD: Support
Barometer: No
Mounting Pitch: 20*20mm
Weight: 5.1g

T-Motor Mini 45A ESC

Input Voltage: 3-6S
ESC Firmware: BLHeli32
Telemetry: Supported
Galvanometer: Supported
DSHOT 150/DSHOT 300/DSHOT 600/PROSHOT 1000
Backwards Compatible with Oneshot125/Oneshot42/Multishot
Betaflight Galvanometer Ratio: 200
Mounting Pitch: 20*20mm
Weight: 9.2g

Includes

1x T-Motor Mini F7 3-6S 20x20 Stack Combo (F7 FC / 45A ESC)

More Info

SKU: 13195
Barcode: 6971360354659

Overall rating: 4.5405407 / 5 from 37 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["performance","issues","stack","pads","esc","board","stacks","cap","motors"].

Review highlights

Reviews

Nice stack

"Nice stack"

— John M. (5/5)

Pretty rugged lil' stack

"This is the stack I have in my first two builds, a 5" and now a 2,5" (both HDZero). Works as expected and seems pretty rugged to me as I have crashed MANY times, and it just keeps on going."

— Mike W. (5/5)

One small issue…

"This is a really excellent product (like all t-motor stuff) but there’s a medium-size cap way too close to one of the mounting holes on the bottom of the ESC. It will short if you use a metal nut to secure your stack screws to the frame. I also found the video connector was reversed and had to re-pin the connector for my DJI o3 AU, The Rx/Tx lines on that connector are also incorrectly marked. If you cant get the OSD to work and notice the DJI o3 doesnt come out of low power mode, try swapping the Rx & Tx lines on that connector.. As you can tell, I struggled to set mine up and unfortunately as soon as the kinks were worked out, that cap sent me puff of smoke from under the ESC, and the board was toast. For this price, they should have added a barometer to the FC board too."

— Matt W. (4/5)

cant complain

"cant complain"

— tiuri h. (5/5)

Can't get bidirectional Dshot to work

"Most expensive mini stack on earth, F7. Can't use RPM filtering because Dshot won't do bidirectional. Very frustrating."

— Michael C. (3/5)

Not impressed.

"Blew a MOSFET before this even got off the bench. No manual, limited support from T-Motor. I'm a big fan of T-motor, but feel this stack is not quite up to the high standard T-motor has set for itself...waiting for replacement parts."

— Dennis F. (2/5)

solid stack

"this stack is very solid, a little bit disappointed with how to set it up, came with no instructions. pretty good documentation on pinouts if you go to t motors website. And the pads are easy enough to solder to. 9/10"

— Tom W. (5/5)

solid FC

"I have this FC on a chasers138 frame and I can't complain"

— Tono (5/5)

Great racing stack

"I been putting this through its paces and its been really solid. I ended up with 2. Tmotor did a great job on this one"

— Ron S. (5/5)

The Beans

"This stack is perfect for my 3inch ripper w/ oversized motors. Check your hd pin arrangement, and consider the capacitor space. Easy to solder to considering other stacks. Im impressed for an older board, and would buy again. Good intro to the brand. Most of the project came from RDQ bc of lightning shipping. I feel unworthy. :D"

— Jason W. (5/5)

Q&A

Hello can I attach a TBS crossfire nano to this FC? thanks: Yes you can run tbs crossfire on this stack
