Description

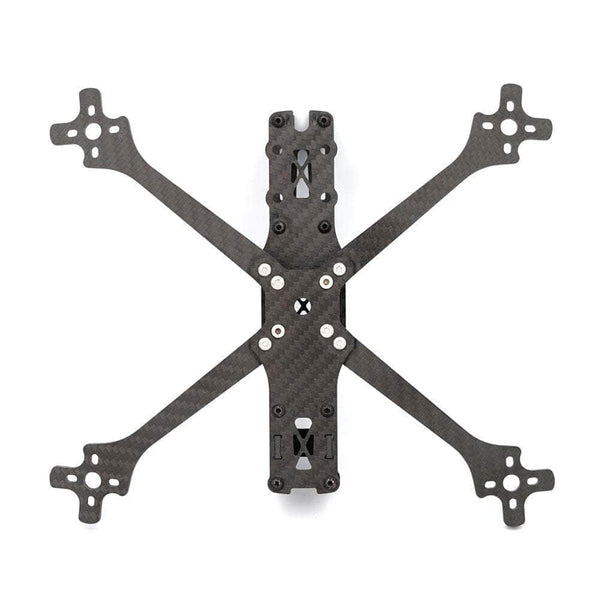

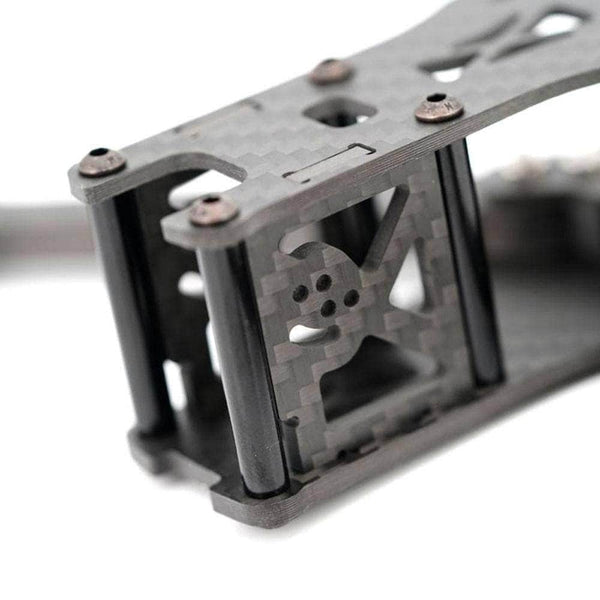

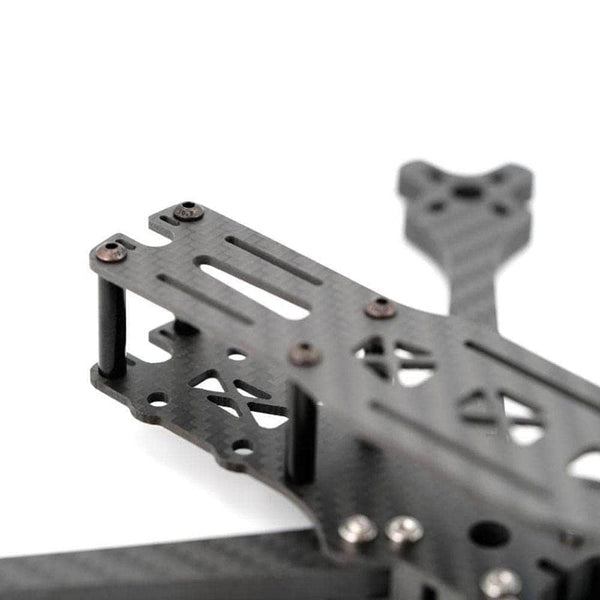

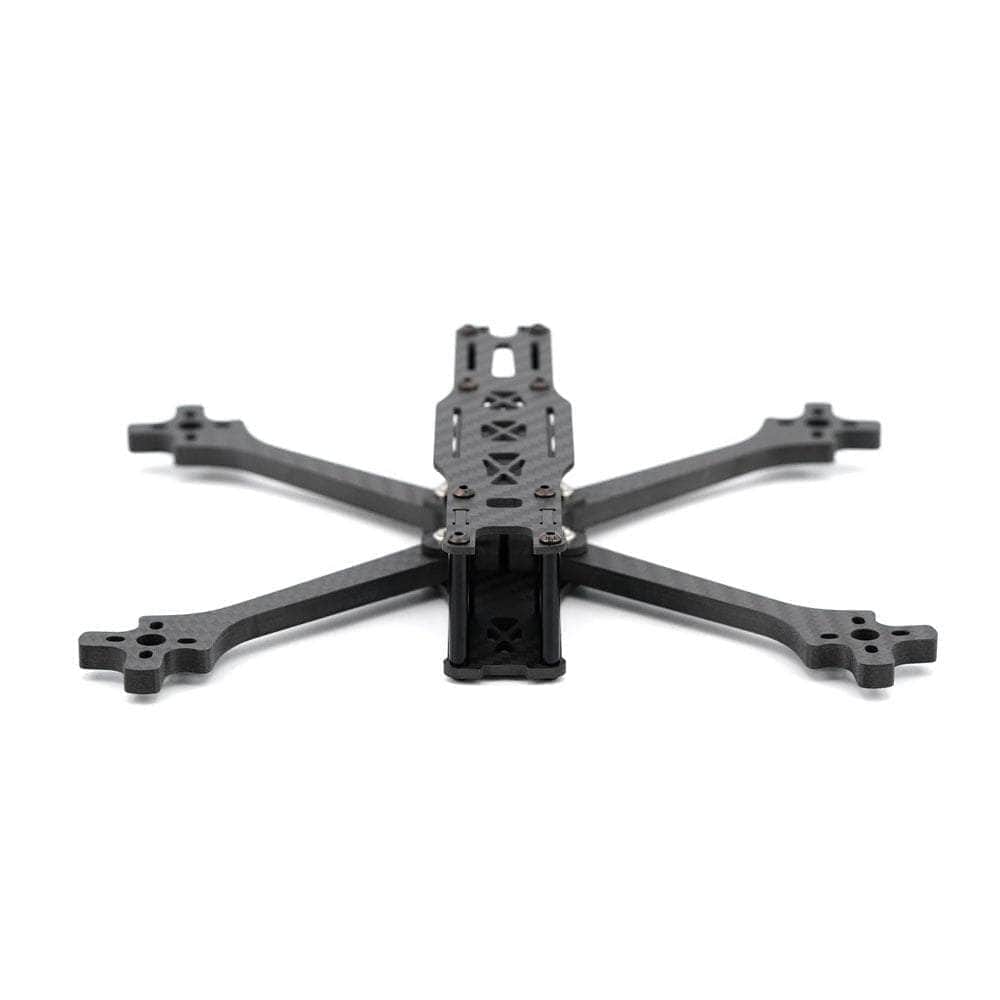

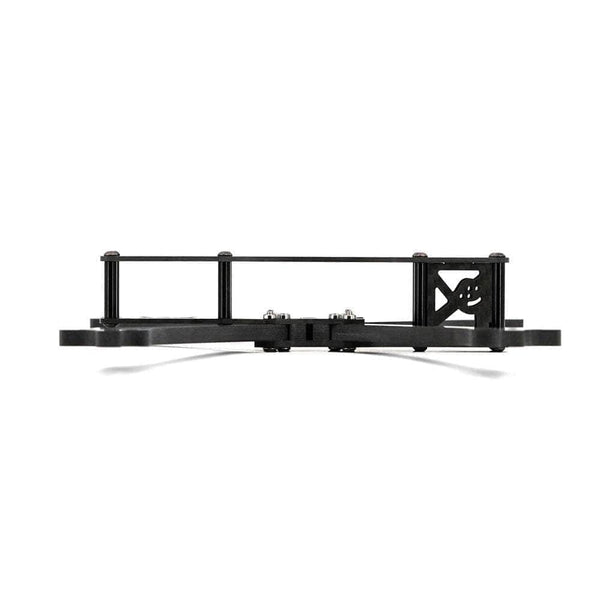

The TBS SourceOne V5 5" Freestyle Frame is a pre-fitted, X-configured frame, ready to fit a full-sized air unit. Its wide stance and durability makes it popular for freestyle and long range acrobatic flying, while its optimized light-weight construction ensures it can withstand heavy crashes. Press nuts come already installed, making it a reliable, everyday workhorse for casual FPV flying and competitive freestyle. Learn more about the SourceOne project from TBS.

As a bonus, add some 7" arms to this frame and you can use it in Street League Racing.

 About the Project

The SOURCE ONE project is a first-of-its-kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation, and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

Get Involved!

• 3D Printed Parts (STL) https://github.com/tbs-trappy/source_one/tree/master/3D%20Print%20Accessories
• 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
• Build Guide: https://oscarliang.com/how-to-build-fpv-drone/
• Project discussion: https://discordapp.com/invite/ZJGkHwF
• Project files: https://github.com/tbs-trappy/source_one

Specifications

• Wheelbase: 226mm
• Top Plate: 2mm
• Bottom Plate: 2.5mm
• Middle Plate: 2mm
• Arms Spacer: 6mm
• Standoff Height: 30mm and 22mm
• Camera plate: 2mm

• Arm Thickness: 6mm
• Stack Mounting: 30.5m30.5mm, 20x20mm and DJI Air Unit
• Weight: 123.5g

Includes

• 1x TBS Source One V5 5" Freestyle Frame Kit
