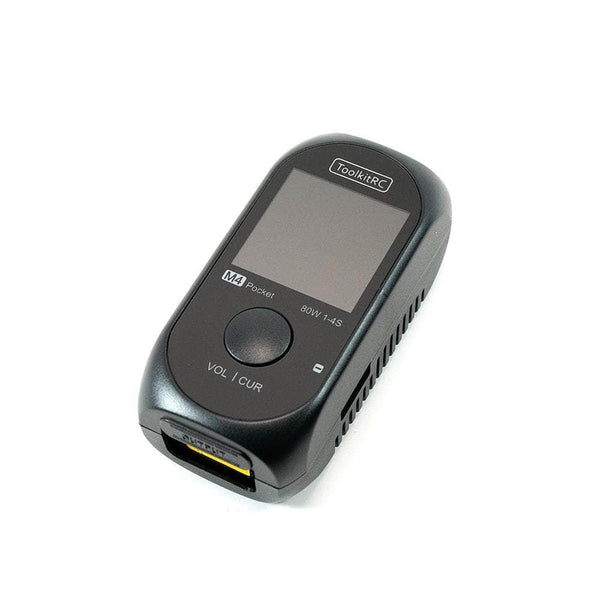

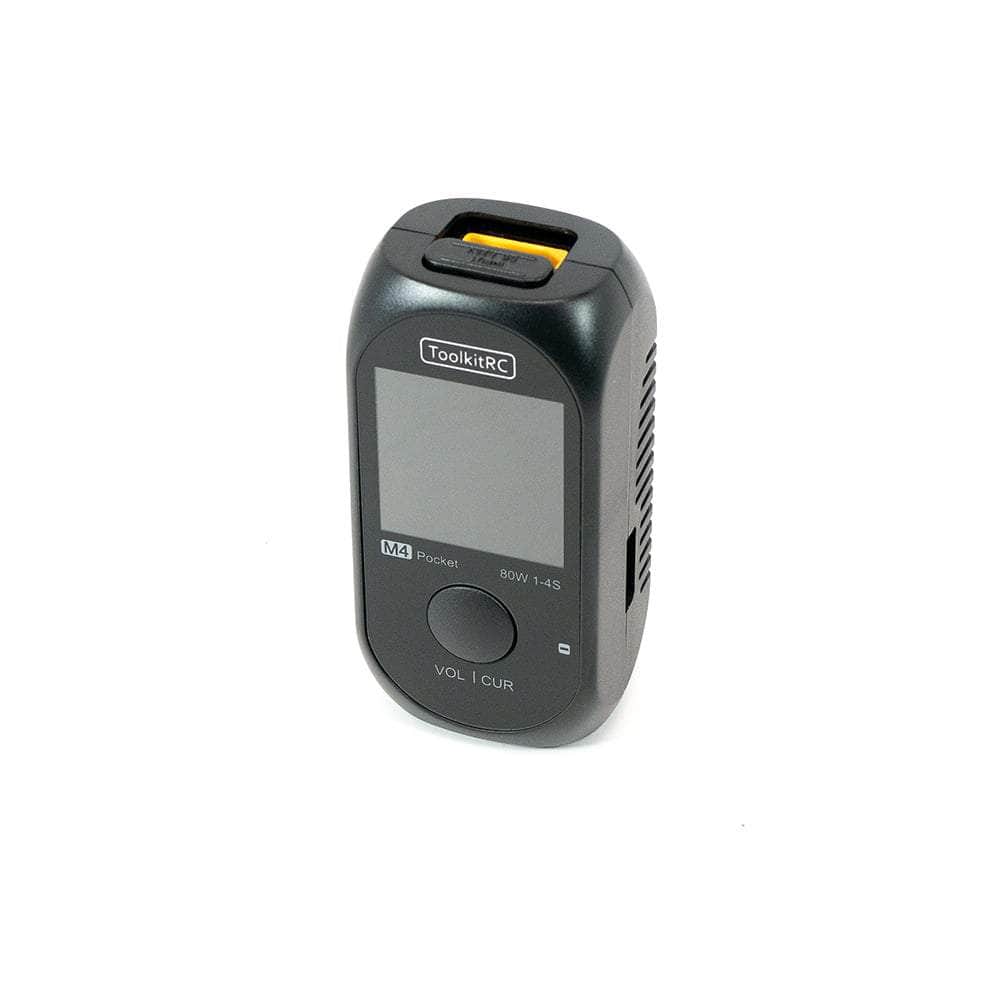

ToolkitRC M4 Pocket 80W 5A 1-4S DC Charger

ToolkitRC M4 Pocket 80W 5A 1-4S DC Charger

$35.99
$35.99
In stock
In stock
Add To Wishlist
View full details

Details

Description

The M4 Pocket is a ultra-compact balance charger; despite the small size, the M4 pocket has a maximum output of 80W! Featuring an intuitive user interface and a color IPS full viewing angle display ,the M4 Pocket is a capable, bring-anywhere charger!

Check out our other Battery Chargers and Accessories, and all our ToolkitRC products!

Specifications

  • Input Voltage: XT60 7.0-25.0V MAX 5.0A, USB-C 7.0-20.0V
  • USB-C protocol: QC,PD,AFC,FCP Protocol
  • Type of battery: LiPo LiHv LiFe LipoStorage 1-4S
  • Charge power: 1.0-5.0A@MAX 80W
  • Balance current: 400mA @4.20V
  • Balance accuracy: <0.005V @ 4.2V
  • USB-C output: 1.0A @5.0V
  • Screen: IPS 1.54inch LCD 240*240 Pixel
  • Dimensions: 80x40x30
  • Weight: 75g

Includes

  • ToolkitRC M4 Pocket 80W 5A 1-4S DC Charger

More Info

  • SKU: 17665
  • Barcode: 6972969830155


Overall rating: 3.6923077 / 5 from 13 reviews.

AI Generated Review Summary

Summary topics

Review topics: ["charger","works"].

Review highlights

Reviews

Major issue

"Major thing to note you can't charge via usb c with out the unincluded sc100 cord, you have to use the xt60. If you put usb c in the top then it will charge the cord not battery."

— Lincoln H. (3/5)

Great! Just missing discharge/storage charge mode. Would be perfect with it.

"The only one thing missing is storage discharge mode. Would be perfect if it had it."

— VICTOR H. (4/5)

Good charger for the price

"For $29.99 this is a good little charger. I don't have any real complaints other than the fact that the only options for storage voltages are 3.60v and 3.85v. I always hear that 3.80 is the magic number where batteries should be kept. Either way though, it's a pretty compact charger. Works with USB-C PD or a dedicated XT60 power supply."

— Devon S. (4/5)

Inaccurate, couldn't calibrate

"Good size and functionality, but the measured input voltage was way off (risking damaging my field battery) and the outputs were also off. The unit has a calibration function but it wasn't able to save the changes, and ToolkitRC support wasn't helpful at all. Can't recommend this!"

— Dana S. (2/5)

Works great but with some quirks

"Brought this to charge my batteries with a USB C wall charger. Unfortunately it does not like my lenovo wall charger that can do 20v and up to 5 amps. Works with a cheap amazon usb c wall charger that only provides 17v with max 3 amp rating. I'm still happy with this as it chargers my 2s batteries fine. I would recommend getting a balance lead extender for this also."

— Francis P. (4/5)

It works!

"Gets the job done at charging my 3S lipos. Here are some functions I really wished it had: - Discharging to storage voltage - Being able to connect a full 6S balance plug (since parallel charging boards tend to use it) - Charging below 1.0A Otherwise, super easy to use and gets the job done."

— G (4/5)

Simple and cheap

"Love it."

— aaron r. (5/5)

garbage

"DOA."

— Noah M. (1/5)

Information a bit missleading.

"This unit will not charge via the USB C connector. Only for updating, I presume. ToolkitRC's description did not make this clear to me."

— Rusty A. (3/5)

Small in size, Big ib features.

"Works great. Ideal for a small tool box and smaller electric powered models. Provides many of the features of a full size charger."

— john w. (5/5)
