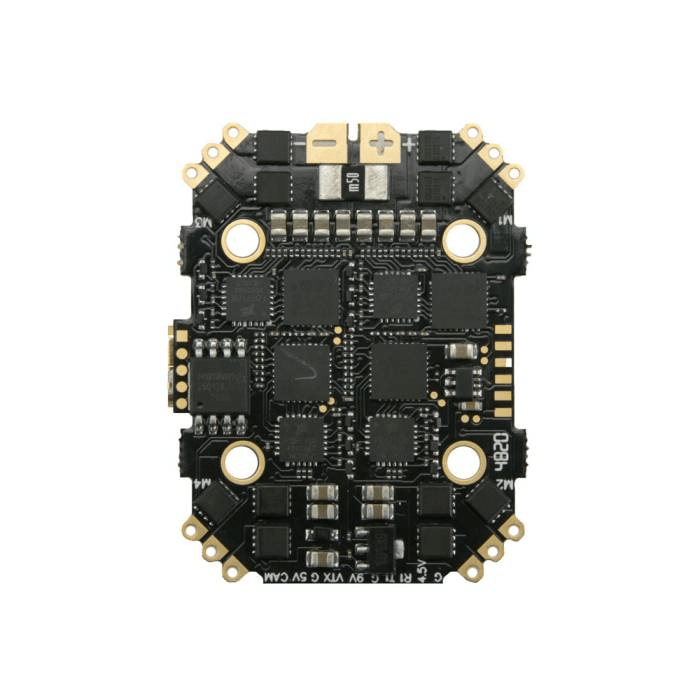

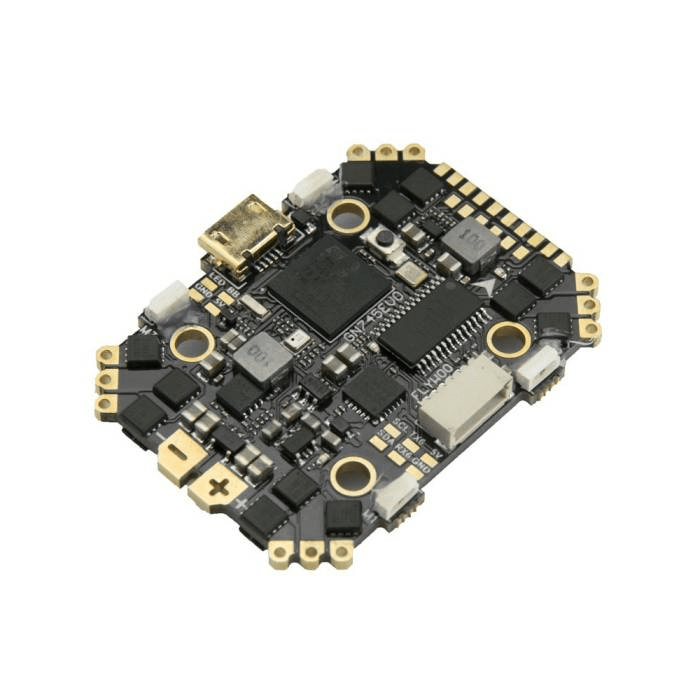

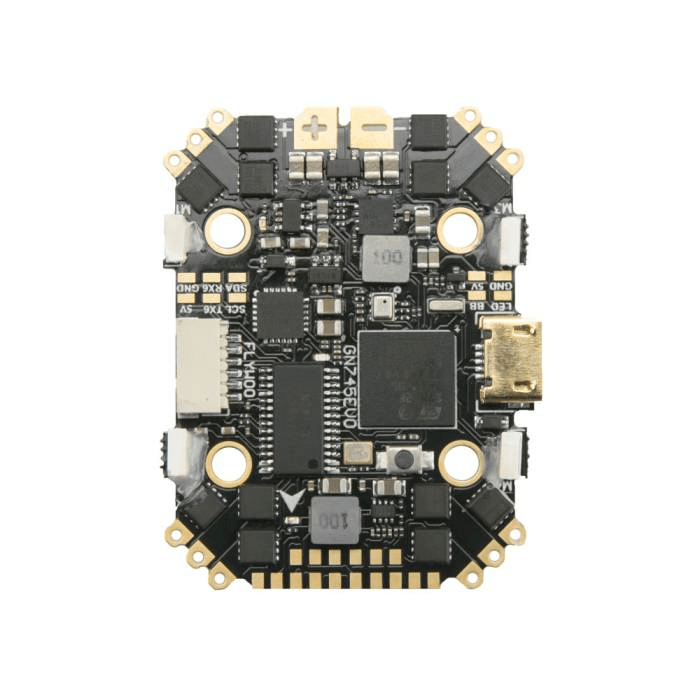

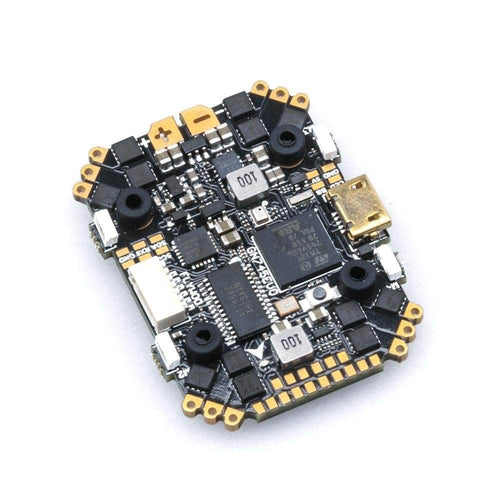

Flywoo GOKU GN F745 EVO HD 2-6S 20x20 AIO Flight Controller w/ 40A 32Bit 4in1 ESC

Original price $139.99 - Original price $139.99
Original price
$139.99 - $139.99
Current price $139.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Experience a superior flight performance with the Flywoo GOKU GN F745 EVO HD AIO Flight Controller. This 20x20 board combines a F745 BGA chip with BLHELI-32 ESC firmware, and a dual BEC that supports 5V and 9V. Plug & Play solution for DJI, allows for less wires to solder and makes your quad an ease to work on.  Furthermore, it has a barometer, black box, WS2812 LED, and 7 serial ports, so you get the most out of your all in one. The GOKU GN F745 EVO HD is the ultimate choice for AIOs!

Note: Works for both DJI and analog FPV setups.

Check out our other AIO boards as well as the rest of our Flywoo selection.


  • Perfect for super-light quads that need a low-profile 20x20 FC that doesn't skimp on features.
  • F745 BGA chip and BLHELI_32 ESC firmware
  • This AIO come installed with a MPU6000
  • Supports 7 complete hardware serial ports
  • Integrated 5V/9V Dual BEC
  • Featuring a Black Box
  • Current sensor
  • Support BLheli / BLHELI_32
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire).


  • MCU: STM32F745 32-bit processor, 216MHz, 512Kbytes Flash
  • IMU: MPU6000
  • Barometer: BMP280
  • Onboard LED:WS2812x4
  • Onbord Storage: 8Mbytes for Blackbox logging
  • 9V Power Out: 1.5A max(3S voltage input)
  • 5V Power Out: 2.0A max
  • 3.3V Power Out: 0.5A max

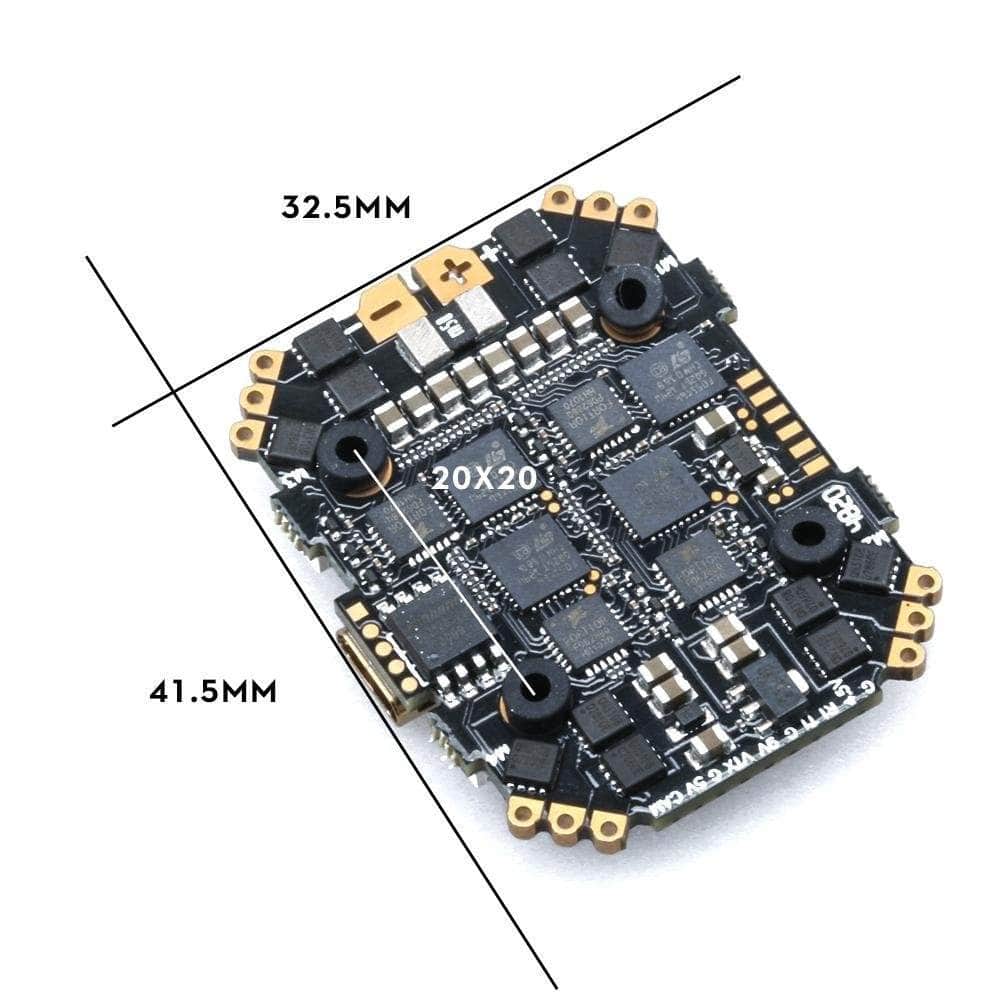

  • Dimensions: 41x32mm
  • Mounting Holes: 20x20mm
  • Weight: 8.5g
  • ESC: Built-in 40A BL_32 4in1 ESC
  • Input Voltage: 2-6S Lipo
  • Continuous Current: 40A
  • Firmware: BLHELI_32


  • Flywoo GOKU GN F745 EVO HD 2-6S AIO 20x20 AIO Flight Controller w/ 40A 32Bit 4in1 ESC
  • 1x XT60H-M Power Lead
  • 4x Black M2 grommets
  • 1x Capacitor
  • 1x Sticker
