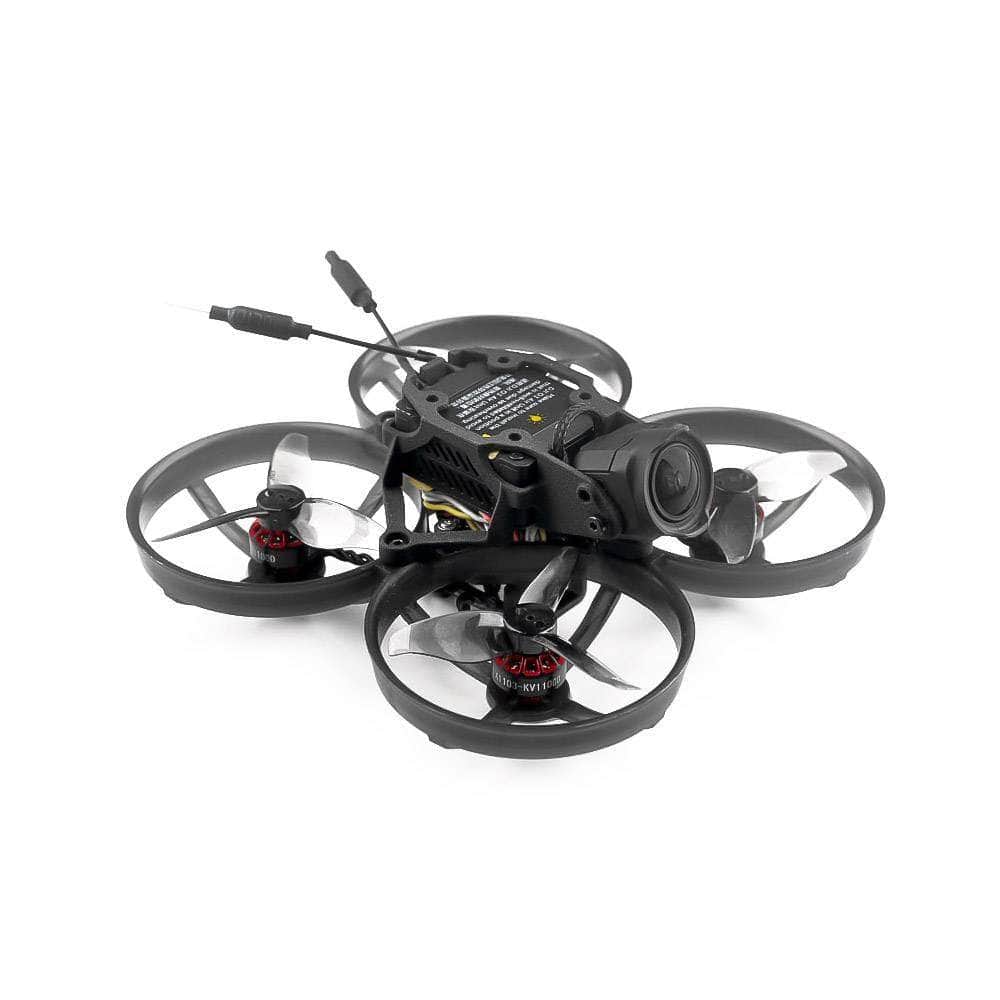

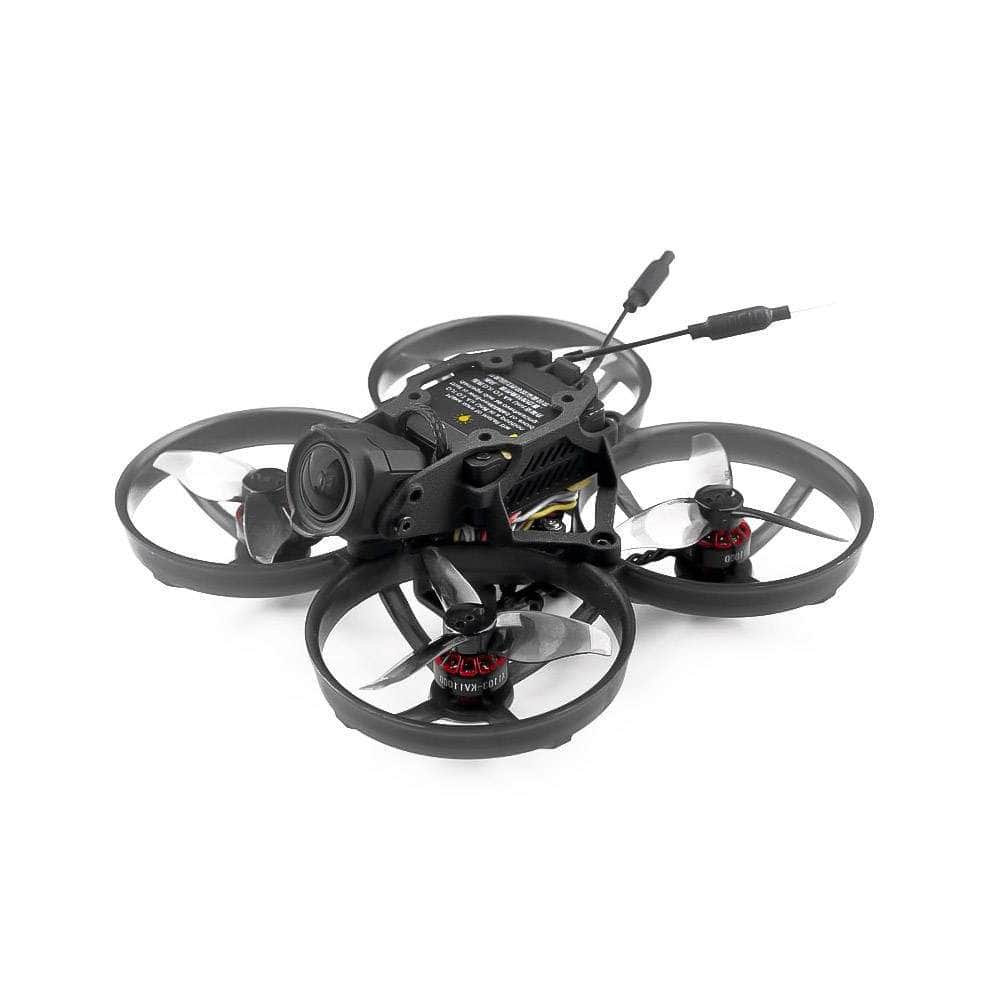

HappyModel BNF Mobula8 1-2S HD 85mm Whoop w/ DJI O3 Air Unit & Micro Cam - ELRS 2.4GHz

Original price $386.99 - Original price $386.99
Original price
$386.99
$386.99 - $386.99
Current price $386.99
Coming Soon
In Stock
Pre Order
Free Delivery on U.S.A. Orders $99 or more

Add To Wishlist

Experience powerful performance with the HappyModel BNF Mobula8 1-2S HD 85mm! This amazing quadcopter comes with an amazing DJI O3 Air Unit and Micro Cam, as well as Crazy F405 ELRS HD flight controller, EX1103 11000Kv motors, and Gemfan Hurricane 2023 tri-blade propellers for superior power performance. Get the perfect HD experience with the Mobula8!

Be sure to check out all our pre-built quads, and all our Happymodel products!

Specifications

  • Camera/VTX: DJI O3 Air Unit
  • Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
  • Size: 120mmx120mmx50mm
  • Brand Name: Happymodel
  • Wheelbase: 85mm

FLIGHT CONTROLLER

  • Built-in voltage meter sensor, voltage meter scale 110
  • Built-in current meter sensor, current meter scale 470
  • MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • GYRO Sensor: BMI270  (SPI connection)
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Mount hole size: 25.5mm x 25.5mm
  • Built-in Serial ExpressLRS 2.4G
  • Model: Crazy F405 ELRS HD
  • Built-in BMP280 Barometer
  • Built-in 8MBp black box

ONBOARD UART ELRS 2.4GHZ RECEIVER

  • Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
  • Could update firmware via ExpressLRS configurator
  • Antenna: enameled copper wire 31mm length
  • Default firmware version: ExpressLRS V3.0.1
  • Firmware target: HappyModel EP 2400 RX
  • Telemetry output Power: <12dBm
  • RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

  • Current: 12A continuous peak 15A (3 seconds)
  • Factory firmware: Bluejay ESC V0.19
  • Support BLHeli_S Bluejay firmware
  • Power supply: 1-2S LiPo/LiPo HV
  • Default protocol: DSHOT300
  • Firmware target: Z-H-30

MOTORS

  • Motor Dimension(Dia.xLen):Φ13.5mmx15.5mm
  • Mode: EX1103 11000Kv
  • Shaft Diameter:Φ1.5mm
  • No.of Cells(Lipo):1-2S
  • Configu-ration:9N12P
  • Stator Diamter:11mm
  • Stator Length:3mm
  • Weight(g):3.8g

PROPELLERS

  • Center Hole Dia:1.5mm
  • Center Thickness:5mm
  • Props Dia:52.17mm
  • Weight:0.88g
  • Pitch:2.3inch
  • Material: PC

Includes

  • 1x HappyModel BNF Mobula8 1-2S HD 85mm w/ DJI O3 Air Unit & Micro Cam - ELRS 2.4GHz
>
